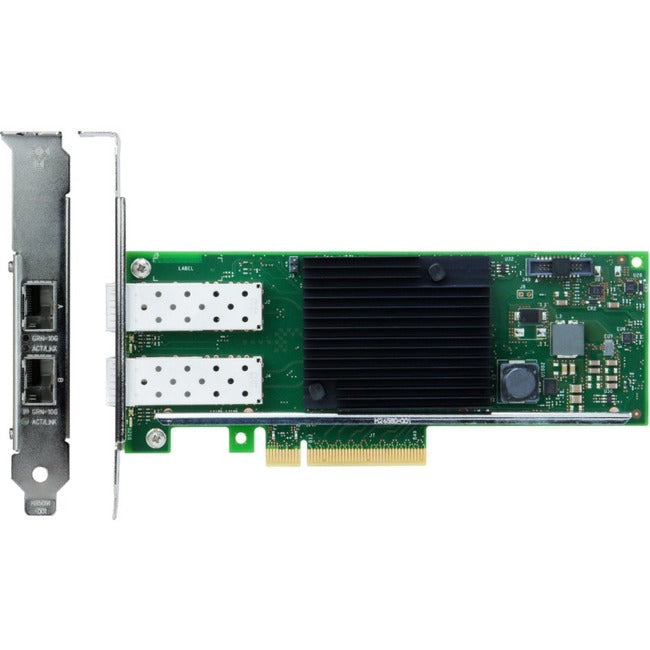

Lenovo Intel X710-DA2 ML2 2x10GbE SFP+ Adapter 00JY940

Description :

Lenovo Intel X710-DA2 ML2 2x10GbE SFP+ Adapter

The new Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.

The X710 is available in three form factors: a Standard PCIe low-profile card for ThinkServer and System x servers, a Mezzanine LOM (ML2) form factor for System x servers, and an AnyFabric form factor for ThinkServer systems.

Did you know?

The Intel X710 adapters support Intel I/O Virtualization Technology, which helps accelerate data and improves application response times. For virtualized environments, the X710 adapters offer advanced features with VMDq that lower processor usage and increase I/O performance.

Mezzanine LAN-on-Motherboard Generation 2 (ML2) for System x and AnyFabric for ThinkServer are cost-effective adapters that offers the flexibility advantages of a PCIe adapter while supporting integrated networking features, such as Wake-on-LAN and direct connectivity to the server's IMM2 service processor for NCSI-compliant out-of-band systems management.

• To accelerate IT services, increase data center efficiency and double your bandwidth without doubling your costs and complexity use this 10Gigabit Ethernet


• This 8000 MB/s bandwidth PCI Express 3.0 x8 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network


• This dual port 10gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation


• Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components


• With the 10GBase-X technology get up to 10Gbps data transfer rate over the supported network cable

Product Type: 10Gigabit Ethernet Card
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Series: X710
Brand Name: Lenovo
Form Factor: Plug-in Module
Manufacturer: Lenovo Group Limited
Product Model: X710-DA2
Product Name: Intel X710-DA2 ML2 2x10GbE SFP+ Adapter
Device Supported: Server
Manufacturer Part Number: 00JY940
Manufacturer Website Address: http://www.lenovo.com/us/en/
Packaged Quantity: 1
Package Contents:

• Intel X710-DA2 ML2 2x10GbE SFP+ Adapter
• Full-Height (3U) Bracket Attached with Low-Profile (2U) Bracket
• Quick Install Guide
• Warranty Flyer
• Documentation CD
• Important Notices Flyer
