Wichard Marine

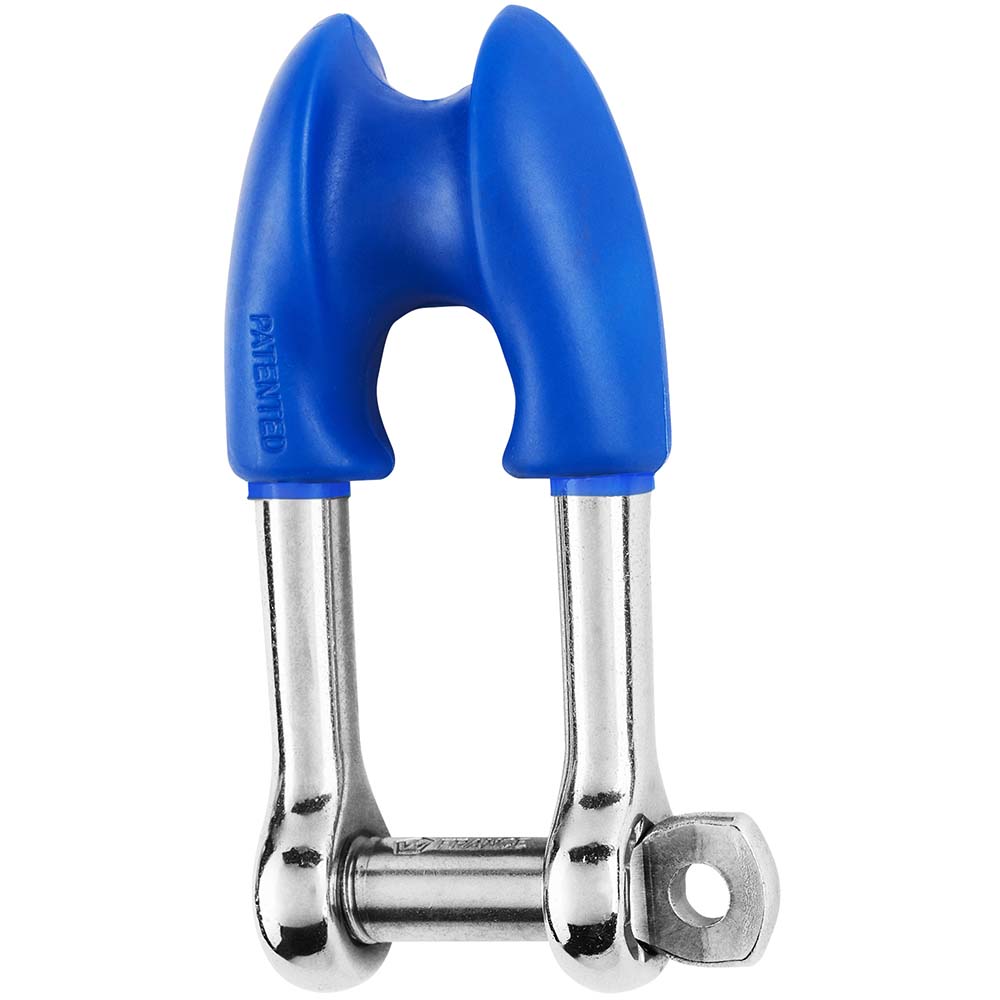

Wichard Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"

Wichard Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"

SKU:93132-cwr

Regular price $136.10
Regular price Sale price $136.10
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"

          Features:

          • Thimble shackle with captive pin forged in grade 316L stainless steel
          • Allows to spliced a rope without adding an additional thimble
          • With the captive pin, no risk to lose the pin
          • Outstanding working and breaking loads

          Applications:

          • Mainsheet halyards
          • Max rope size: 16 mm

          Specifications:

          • Materials 316 stainless steel grade
          • Working load (lb) 3350
          • Breaking load (lb) 11020
          • Weight (lb) 0.322

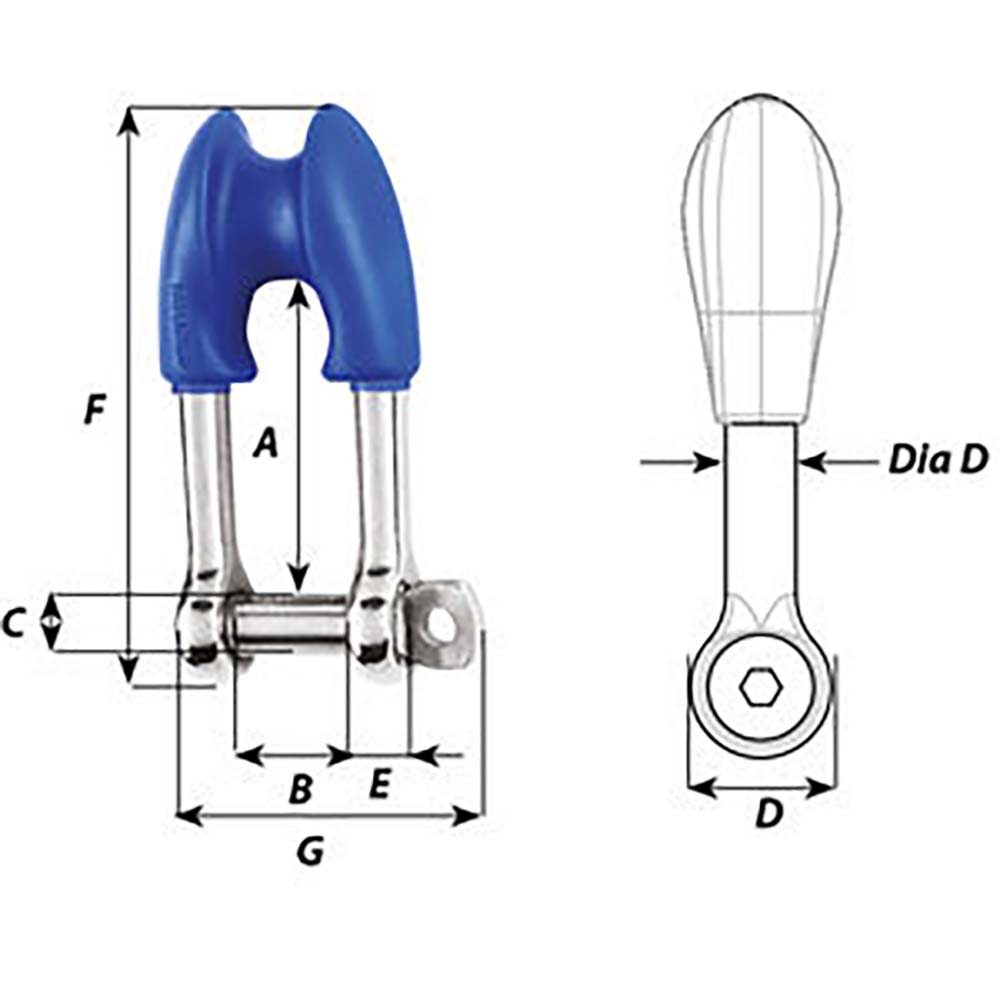

          Dimensions (see 2nd image):

          • A (inch) 2-1/64"
          • B (inch) 25/32"
          • C (inch) 25/64"
          • D (inch) 25/32"
          • D diameter (inch) 25/64"
          • E (inch) 23/64"
          • F (inch) 3-47/64"
          • G (inch) 2-1/8"




          Manufacturer Part Number: 01495

          Specifications :

          General Information

          Manufacturer Wichard Marine
          Manufacturer Part Number 01495
          Product Type Sailing | Shackles/Rings/Pins
          UPC 768536014952
