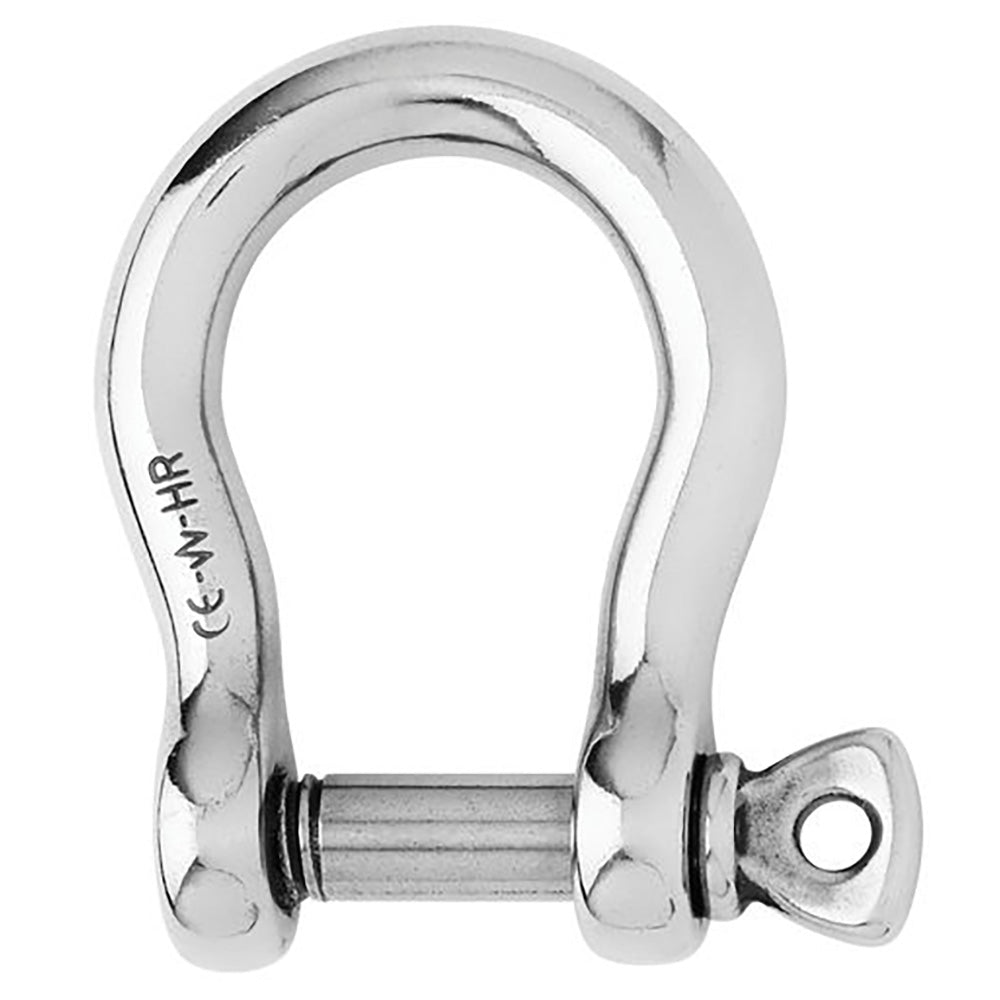

Wichard HR Bow Shackle - 16mm Diameter - 5/8"

Wichard HR Bow Shackle - 16mm Diameter - 5/8"

SKU:97714-cwr

Regular price $428.40
Regular price Sale price $428.40
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          HR Bow Shackle - 16mm Diameter - 5/8"

          Features:

          • Forged bow shackle in HR stainless steel grade (17,4 PH)
          • Outstanding working and breaking load
          • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
          • WLL: only for industrial applications (lifting i.e…)
          • CE marking

          Applications:

          • Applications requesting high loads
          • To be used when ample room is required
          • Possibility to attach several lines or cables
          • Do not use it for mooring applications

          Specifications:

          • Materials: HR 17.4 PH stainless steel grade
          • Working load: (lb) 14990 / (kg) 6800
          • WLL: (lb) 8370 / (kg) 3800
          • Breaking load: (lb) 41880 / (kg) 19000
          • Weight: (lb) 1.16 / (g) 526

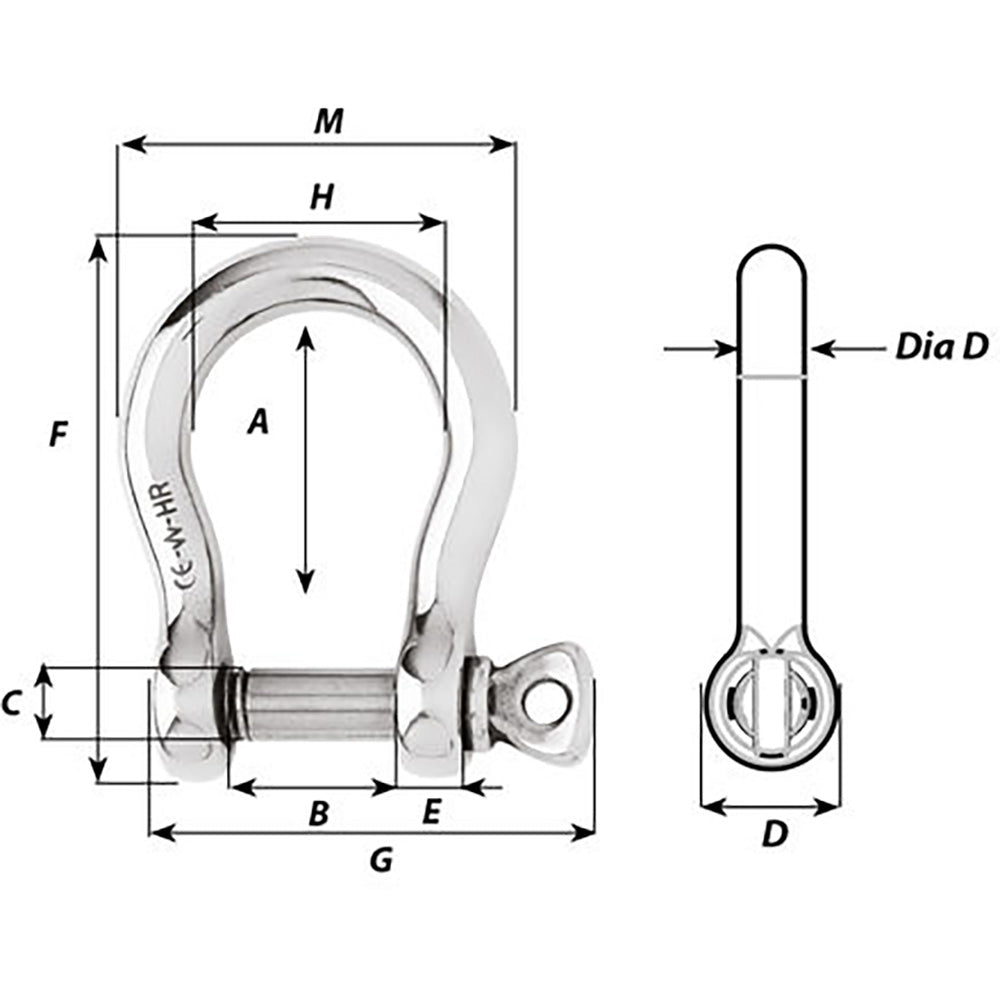

          Dimensions:

          • A: (inch) 2 3/4" / (mm) 70
          • B: (inch) 1 17/64" / (mm) 32
          • C: (inch) 5/8" / (mm) 16
          • D: (inch) 1 17/64" / (mm) 32
          • D diameter: (inch) 5/8" / (mm) 16
          • E: (inch) 19/32" / (mm) 15
          • M: (inch) 3 17/64" / (mm) 83

          Caption:

          • Working Load (WL): For nautical applications
          • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
          • High Resistance (HR)

          *Sold as an Individual



          Quick Guide View (pdf)

          Specifications :

          General Information

          Manufacturer Wichard Marine
          Manufacturer Part Number 11247
          Product Type Sailing | Shackles/Rings/Pins
          UPC 768536015102
