Wichard Captive Pin D Shackle - Diameter 6mm - 1/4"

Wichard Captive Pin D Shackle - Diameter 6mm - 1/4"

SKU:93111-cwr

Regular price $33.60
Regular price Sale price $33.60
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

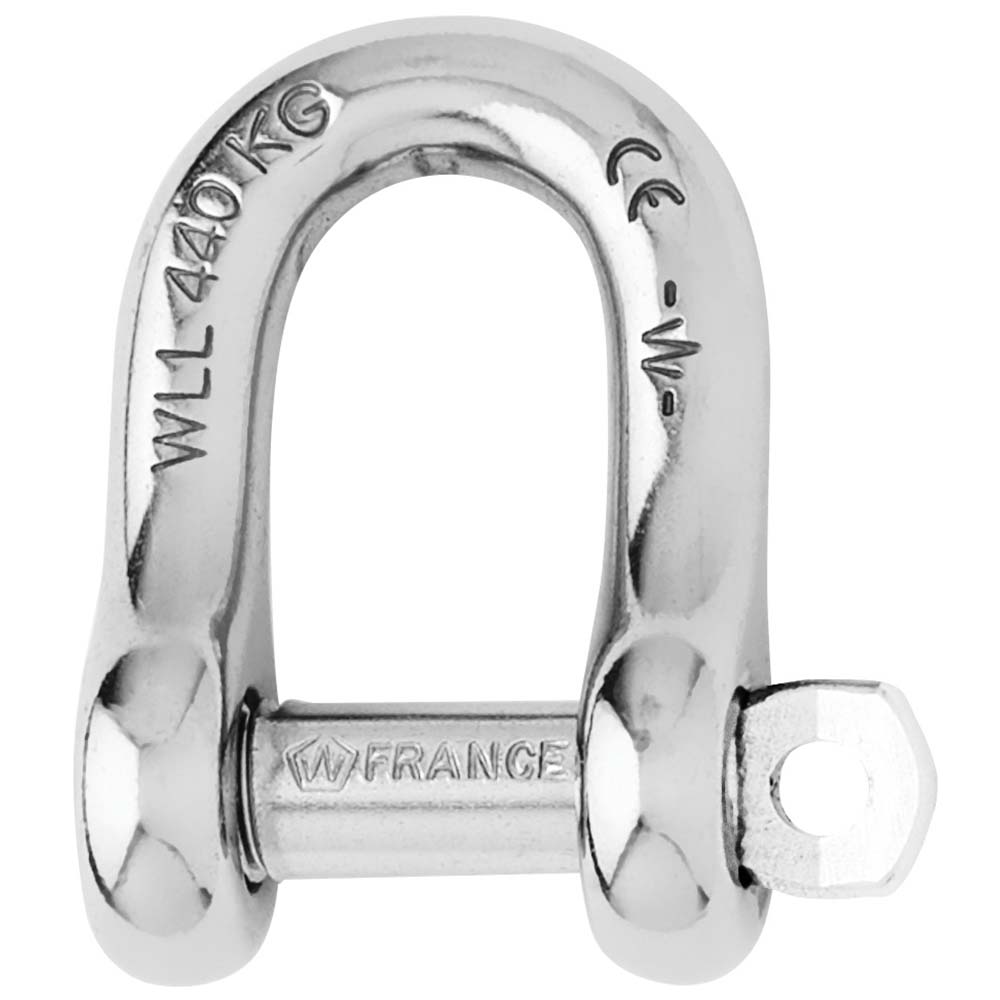

          Captive Pin D Shackle - Diameter 6mm - 1/4"

          Features:

          • Captive pin "D" shackle forged in grade 316L stainless steel
          • The pin is connected to the body at all times even when opened
          • The pin is locked into one of the indentations
          • No risks of loosening due to vibrations
          • Outstanding working and breaking loads

          Applications:

          • Standard applications of shackle
          • Attachment applications: blocks, head...

          Specifications:

          • Materials 316 stainless steel grade
          • Working load (lb) 1490
          • WLL (lb) 970
          • Breaking load (lb) 4850
          • Weight (lb) 0.062

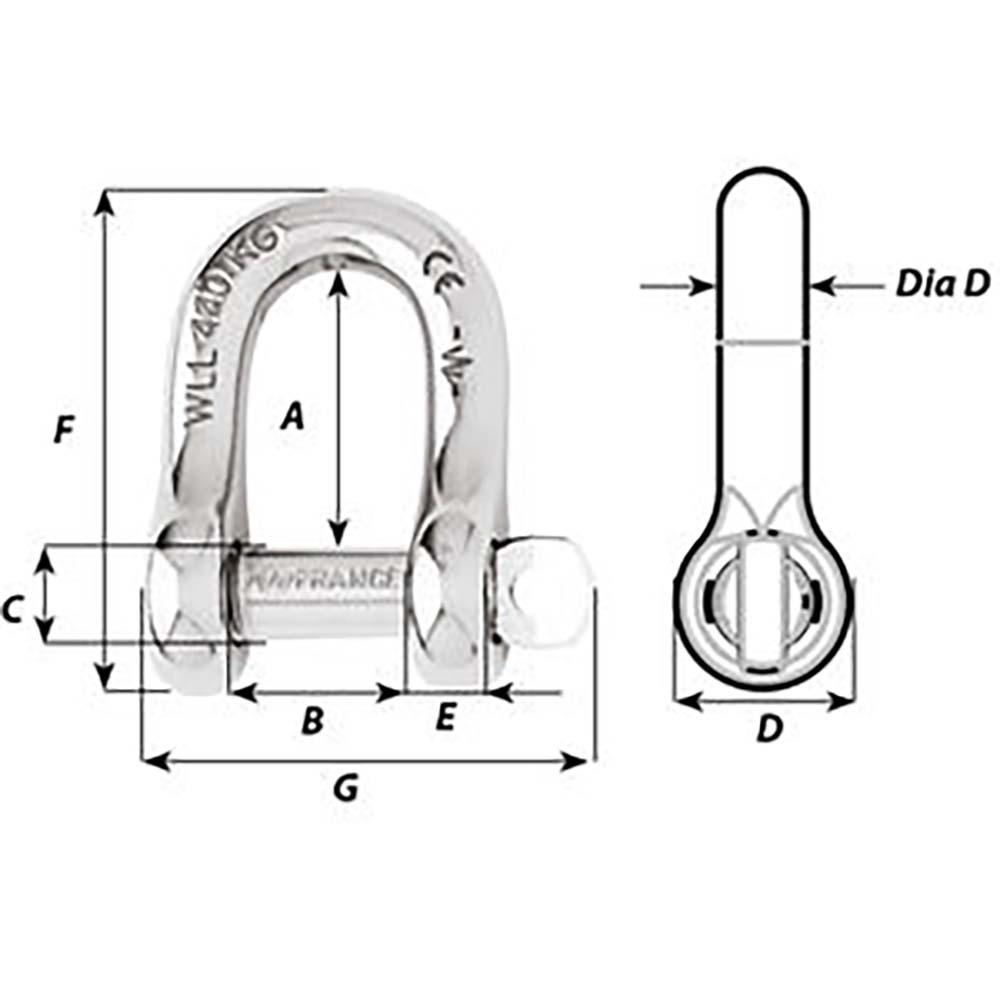

          Dimensions (see 2nd image):

          • A (inch) 25/32"
          • B (inch) 15/32"
          • C (inch) 9/32"
          • D (inch) 35/64"
          • D diameter (inch) 15/64"
          • E (inch) 15/64"
          • F (inch) 1-27/64"
          • G (inch) 1-17/64"




          Manufacturer Part Number: 01403

          Specifications :

          General Information

          Manufacturer Wichard Marine
          Manufacturer Part Number 01403
          Product Type Sailing | Shackles/Rings/Pins
          UPC 768536014037
