Wichard Captive Pin D Shackle - Diameter 4mm - 5/32"

Wichard Captive Pin D Shackle - Diameter 4mm - 5/32"

SKU:93109-cwr

Regular price $21.70
Regular price Sale price $21.70
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

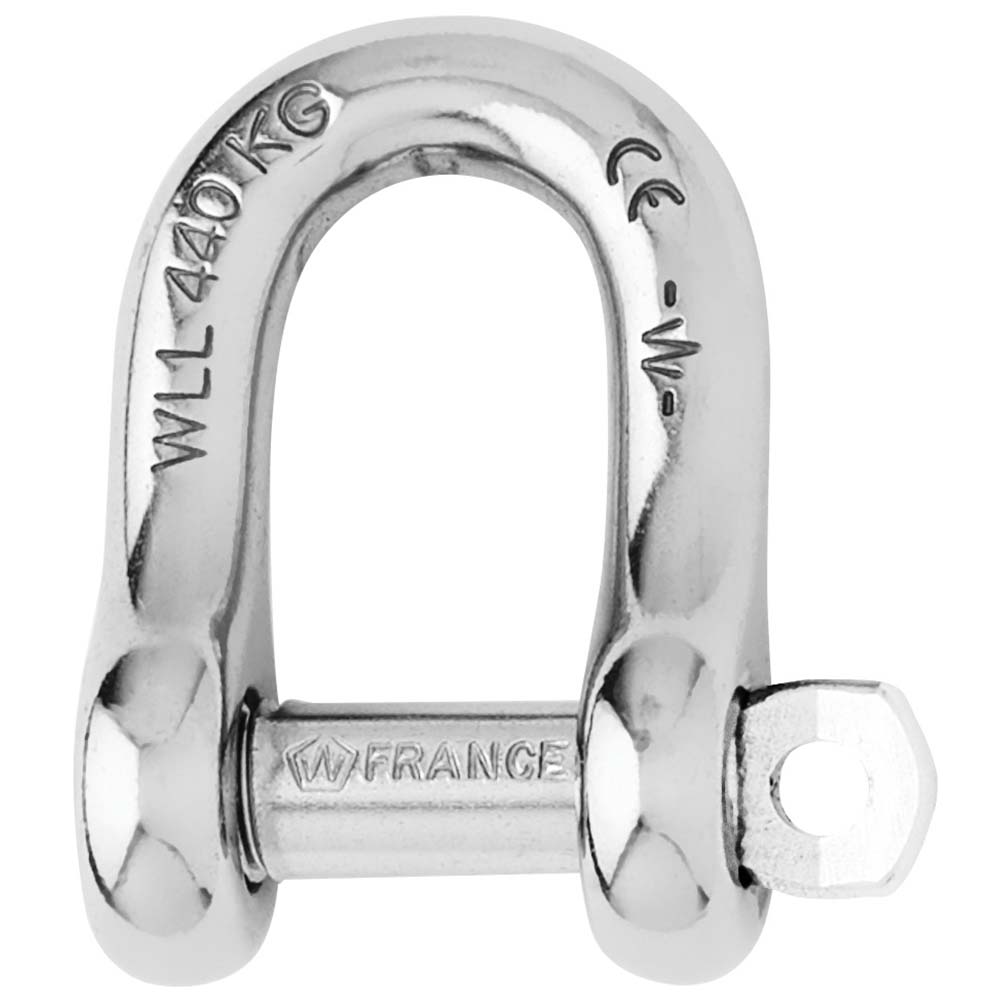

          Captive Pin D Shackle - Diameter 4mm - 5/32"

          Features:

          • Captive pin "D" shackle forged in grade 316L stainless steel
          • The pin is connected to the body at all times even when opened
          • The pin is locked into one of the indentations
          • No risks of loosening due to vibrations
          • Outstanding working and breaking loads

          Applications:

          • Standard applications of shackle
          • Attachment applications: blocks, head…

          Specifications:

          • Materials 316 stainless steel grade
          • Working load (lb) 700
          • WLL (lb) 440
          • Breaking load (lb) 2200
          • Weight (lb) 0.02

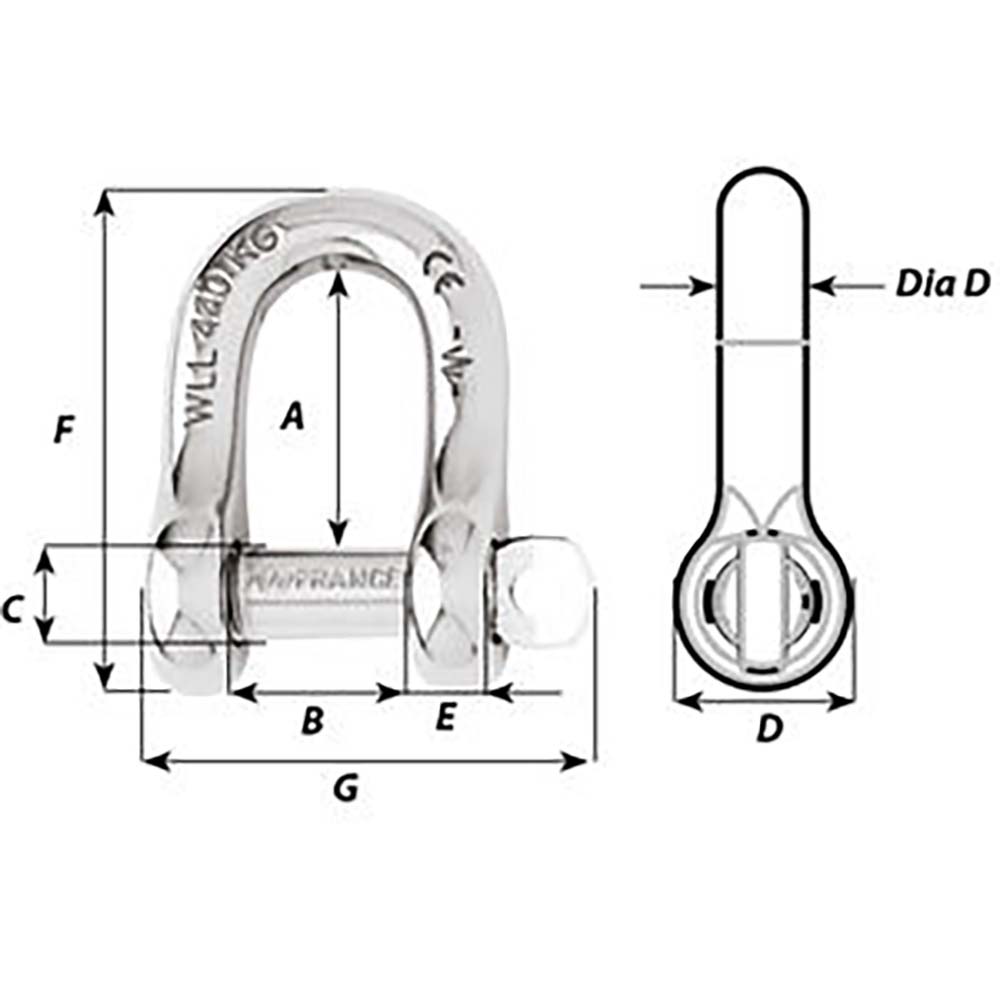

          Dimensions (see 2nd image):

          • A (inch) 33/64"
          • B (inch) 5/16"
          • C (inch) 13/64"
          • D (inch) 23/64"
          • D diameter (inch) 5/32"
          • E (inch) 5/32"
          • F (inch) 15/16"
          • G (inch) 55/64"




          Manufacturer Part Number: 01401

          Specifications :

          General Information

          Manufacturer Wichard Marine
          Manufacturer Part Number 01401
          Product Type Sailing | Shackles/Rings/Pins
          UPC 768536014013
