Wichard Marine

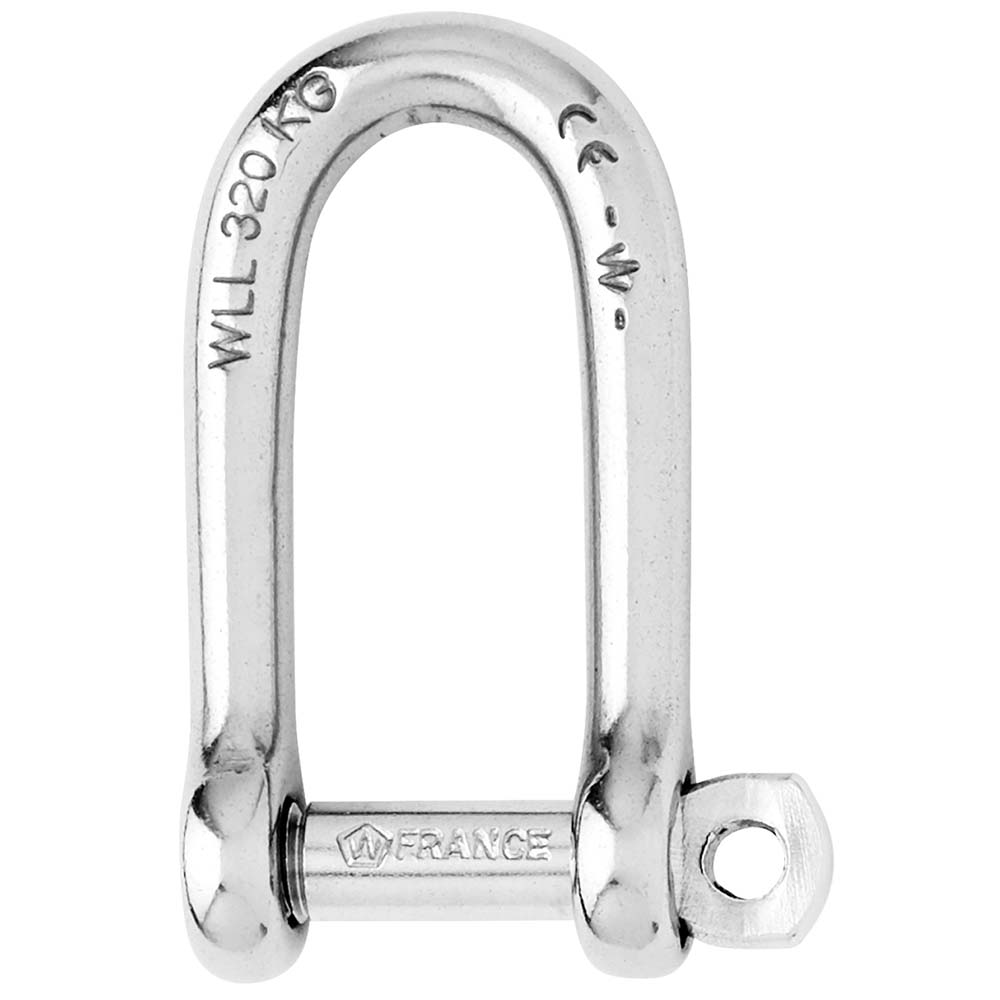

Wicahrd Self-Locking Long D Shackle - Diameter 5mm - 3/16"

Wicahrd Self-Locking Long D Shackle - Diameter 5mm - 3/16"

SKU:93096-cwr

Regular price $19.70
Regular price Sale price $19.70
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          Self-Locking Long D Shackle - Diameter 5mm - 3/16"

          Features:

          • Self-locking long shackle forged in grade 316L stainless steel
          • The pin is locked into one of the indentations
          • No risks of loosening due to vibrations
          • Outstanding working and breaking loads
          • WLL: only for industrial applications
          • CE Marking and batch number

          Applications:

          • Standard applications of shackle requiring more length
          • Attachment applications: blocks, head...

          Specifications:

          • Materials 316 stainless steel grade
          • Working load (lb) 880
          • WLL (lb) 440
          • Breaking load (lb) 2200
          • Weight (lb) 0.037

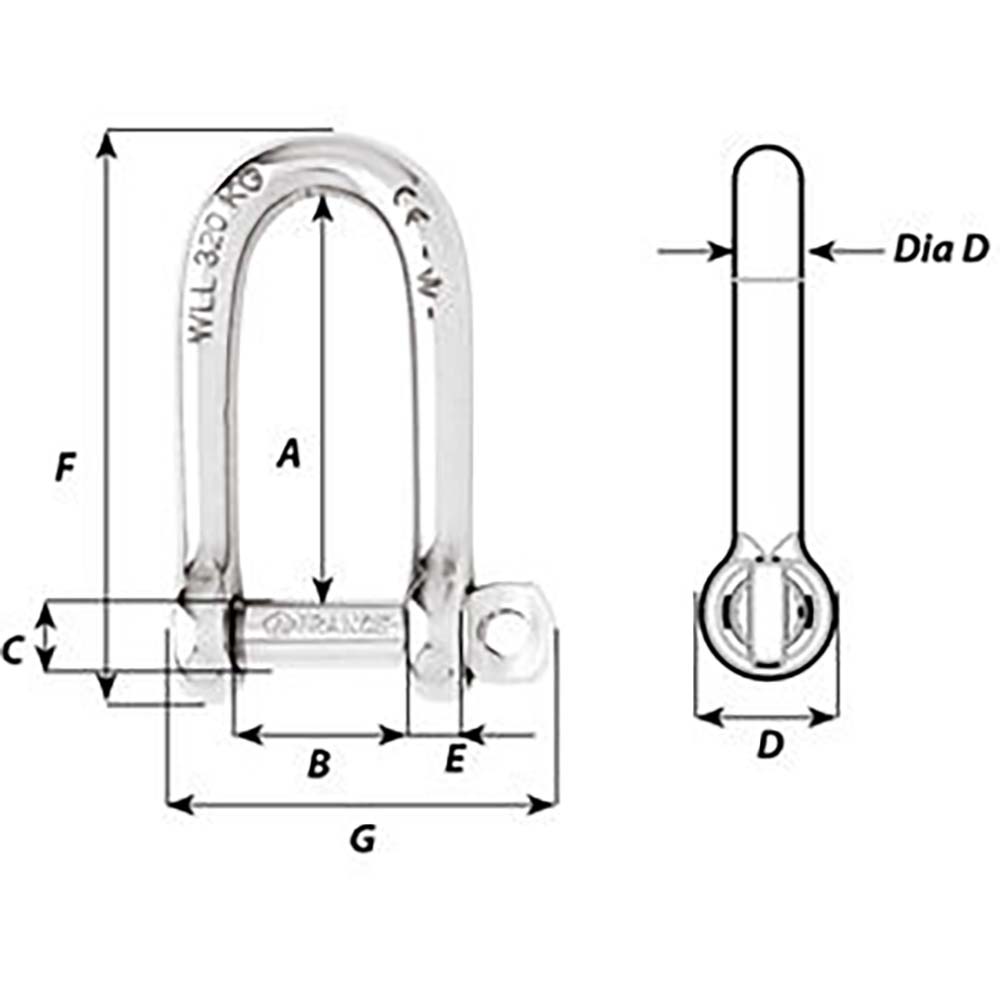

          Dimensions (see 2nd image):

          • A (inch) 1-9/64"
          • B (inch) 25/64"
          • C (inch) 13/64"
          • D (inch) 25/64"
          • D diameter (inch) 13/64"
          • E (inch) 5/32"
          • F (inch) 1-39/64"
          • G (inch) 1-1/32"




          Manufacturer Part Number: 01212

          Specifications :

          General Information

          Manufacturer Wichard Marine
          Manufacturer Part Number 01212
          Product Type Sailing | Shackles/Rings/Pins
          UPC 768536012125
