Vertiv Liebert POD PD2 - (8) NEMA 5-20R| (2) NEMA L5-60R| UPS Maintenance Bypass PD2-101

Description :

Vertiv Liebert POD PD2 - (8) NEMA 5-20R| (2) NEMA L5-60R| UPS Maintenance Bypass

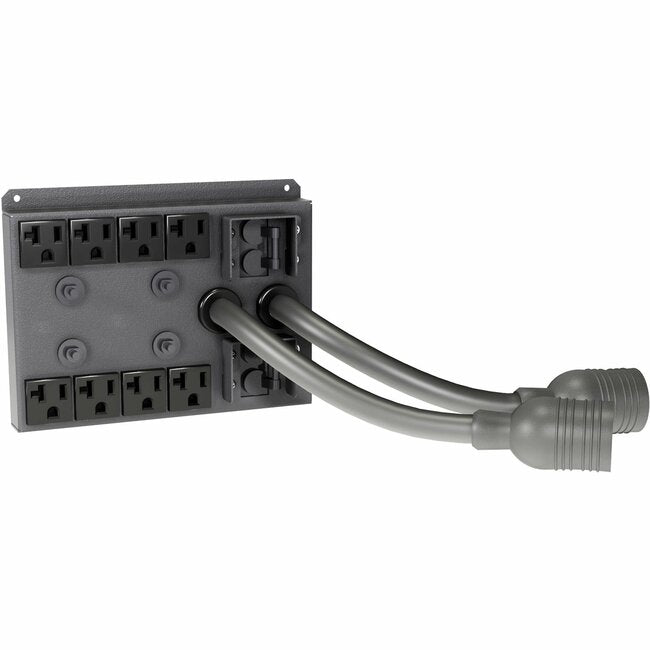

The Vertiv Liebert POD PD2-101 is a power output distribution (POD) unit with built-in maintenance bypass feature. Designed for the GXT4 8-10kVA uninterruptible power supply (UPS) models, it is a POD that allows you to conduct UPS maintenance or replacements without power interruption to the connected load. It also automatically transfers the current from the UPS to the original power source in cases of UPS failures, saving your equipment from unnecessary downtimes and ensuring continuous uptime for your system. The PD2-101 is a plug-and-play unit that will replace the existing POD box on your UPS. It has eight NEMA 5-20R and two NEMA L6-30R output connectors and is equipped with a 2PH+N+G Hardwire 4-wire input connector. It also has circuit breakers and supports a max current of 60A.

More from the Manufacturer

• Input: Hardwire 4-wire (2PH+N+G)


• Output: Eight (8) NEMA 5-20R, Two (2) NEMA L6-30R


• Max Current: 60A


• Easy plug-and-play deployment to ensure continuous uptime of your network even during UPS maintenance


• Avoid initiating unnecessary downtimes while conducting UPS maintenance


• Power output distribution unit with UPS maintenance bypass feature

Product Type: PDU
Brand Name: Liebert
Manufacturer: Vertiv
Product Model: PD2-101
Product Name: PD2-101 10-Outlets PDU
Manufacturer Part Number: PD2-101
Manufacturer Website Address: http://www.vertiv.com/
Limited Warranty: 2 Year
Weight (Approximate): 4.40 lb
