Vertiv

Vertiv Avocent Lv5500R Kvm Extender Receiver

Vertiv Avocent Lv5500R Kvm Extender Receiver

SKU:LV5500R-400

Regular price $1,196.83
Regular price Sale price $1,196.83
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          Avocent LV5500 High-Performance KVM Extender | Receiver

          Vertiv Avocent LV5500R. Type: Receiver, Connectivity technology: Wired, Maximum transfer distance: 4000 m. Receiver local video port type: DisplayPort, Receiver local keyboard/mouse port type: USB. AC input voltage: 100 - 240 V, AC input frequency: 47/63 Hz, Power consumption (receiver) (max): 18 W. Receiver width: 18.6 cm, Receiver depth: 13.7 cm, Receiver height: 3.91 cm. Package width: 203.2 mm, Package depth: 152.4 mm, Package height: 50.8 mm

          The Vertiv Avocent LongView 5500 Receiver (LV5500R) is the latest in the Avocent high-performance family of products. Coupled with the Avocent LV5500T, the LV5500R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, local port pass through, and HD analog audio, the LV5500R provides an effortless and automatic connection for up to two users, local and remote, over the IP network without the need for extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5500R is ideal for broadcasting, control centers, and other industries requiring high performance, 4K video.

          Specifications :

          General Information

          Manufacturer Vertiv
          Manufacturer Part Number LV5500R-400
          Manufacturer Website Address http://www.vertiv.com/
          Brand Name AVOCENT
          Product Line LongView
          Product Series 5000
          Product Model LV5500R
          Product Name LV5500 High-Performance KVM Extender | Receiver
          Product Type KVM Extender Receiver
          UPC 0636430090900

          Interfaces/Ports

          HDMINo
          Network (RJ-45)Yes
          Product ColorBlack

          Miscellaneous

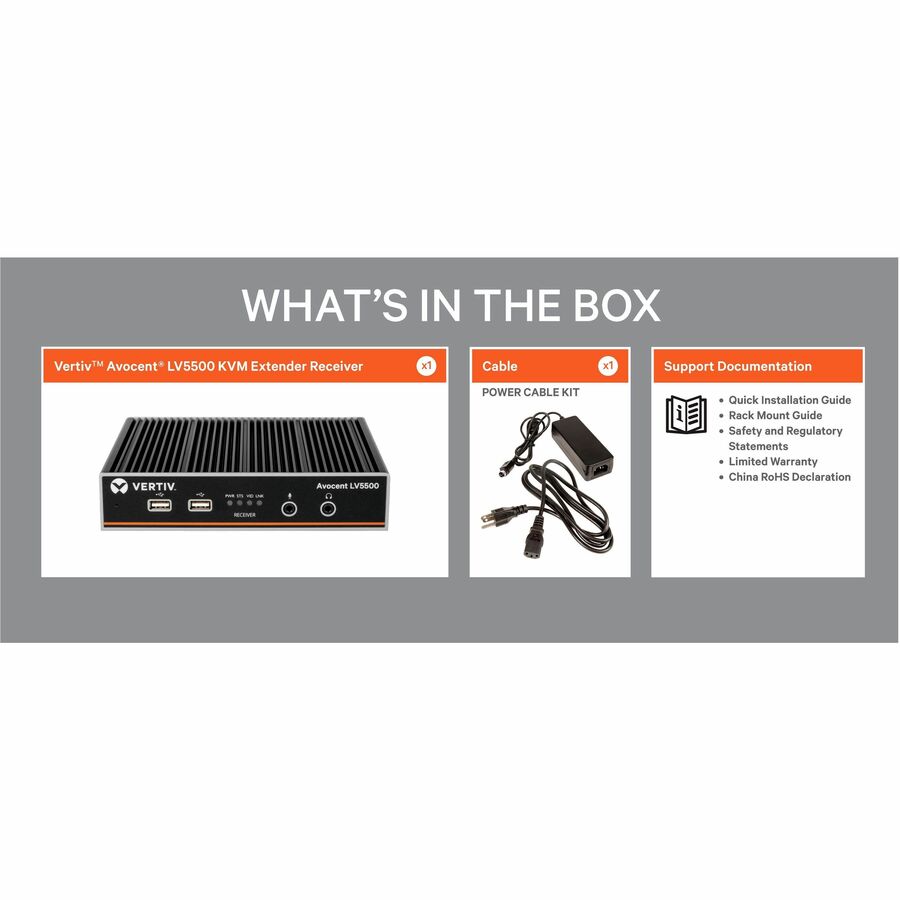

          Package Contents
          • LV5500 High-Performance KVM Extender | Receiver
          • 1 x LV5500 Extender Quick Installation Guide
          • 1 x Extender RMK Quick Installation Guide
          • 1 x Compliance/Safety Sheet (See PLM BOM) 1 each
          • 1 x Customer Support/Warranty Card (See PLM BOM)
          • 1 x 3.5mm stereo plug to plug audio cable, 3meter
          • 1 x USB cable, Type A to Type B, 1.8meter
          • 1 x DisplayPort cable, M-M, High Bit-Rate, 2meter
          • 1 x Power supply: HK-AB-050A400-D56 or HK-25-AB-050A400-D56
          • 1 x China RoHS Declaration
          • 1 x Vertiv document wallet
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year
