Usb2 Cat5 Extender W/4Port Hub,Usb2.0 Cat5 Extender With 4Port Hub

Description :

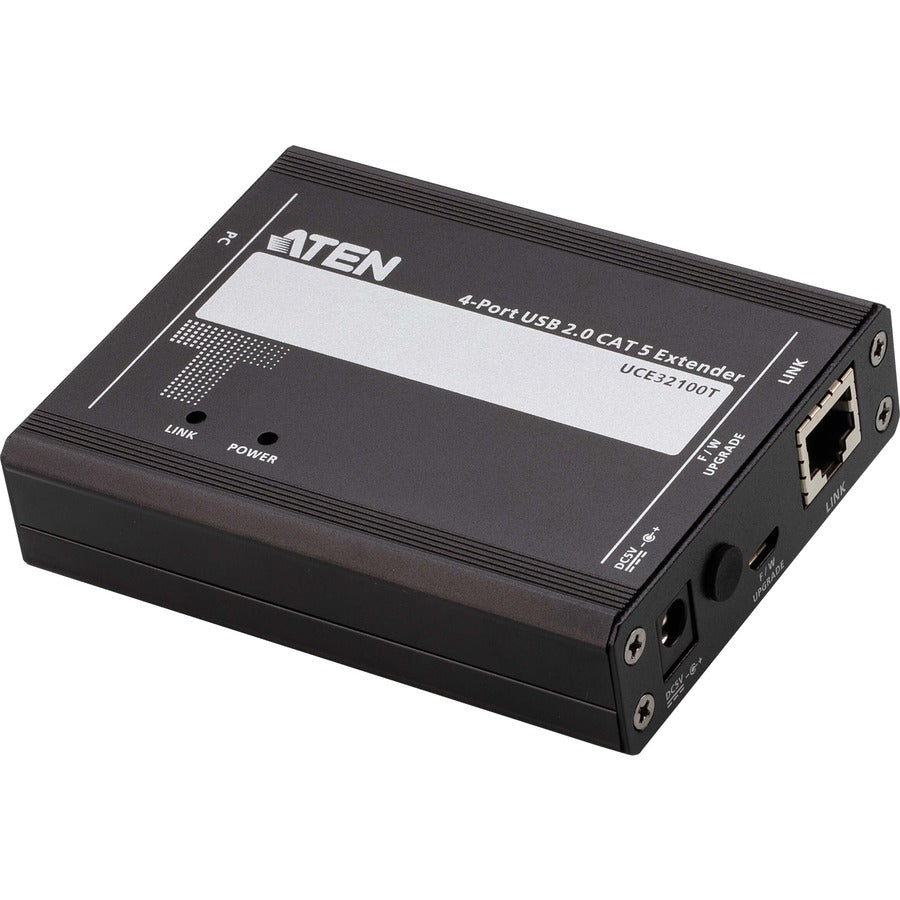

ATEN 4-port USB 2.0 CAT 5 Extender (100m)

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.

The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.

A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.

• True USB 2.0 transparent extension over CAT 5 cabling up to 100 meters


• Supports all USB 2.0 devices up to 480Mbps


• USB Lossless - Higher compatibility of remote USB devices


• An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub


• Power supply for remote unit to ensure power delivery to multiple devices at once


• Compact size with wall mounting and din rail included for flexible installation


• DC jack lock kit included to ensure durable power adapter connection


• Supports Windows®, OS X®, and Linux®


• Plug-and-play

Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 0.96"
Transmitter Width: 4"
Transmitter Depth: 3.11"
Receiver Height: 0.96"
Receiver Width: 4"
Receiver Depth: 3.11"
Transmitter Weight (Approximate): 7.41 oz
Receiver Weight (Approximate): 7.41 oz
Brand Name: ATEN
Form Factor: Wall Mountable
Manufacturer: ATEN Technology, Inc
Product Model: UCE32100
Product Name: 4-port USB 2.0 CAT 5 Extender (100m)
Manufacturer Part Number: UCE32100
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:

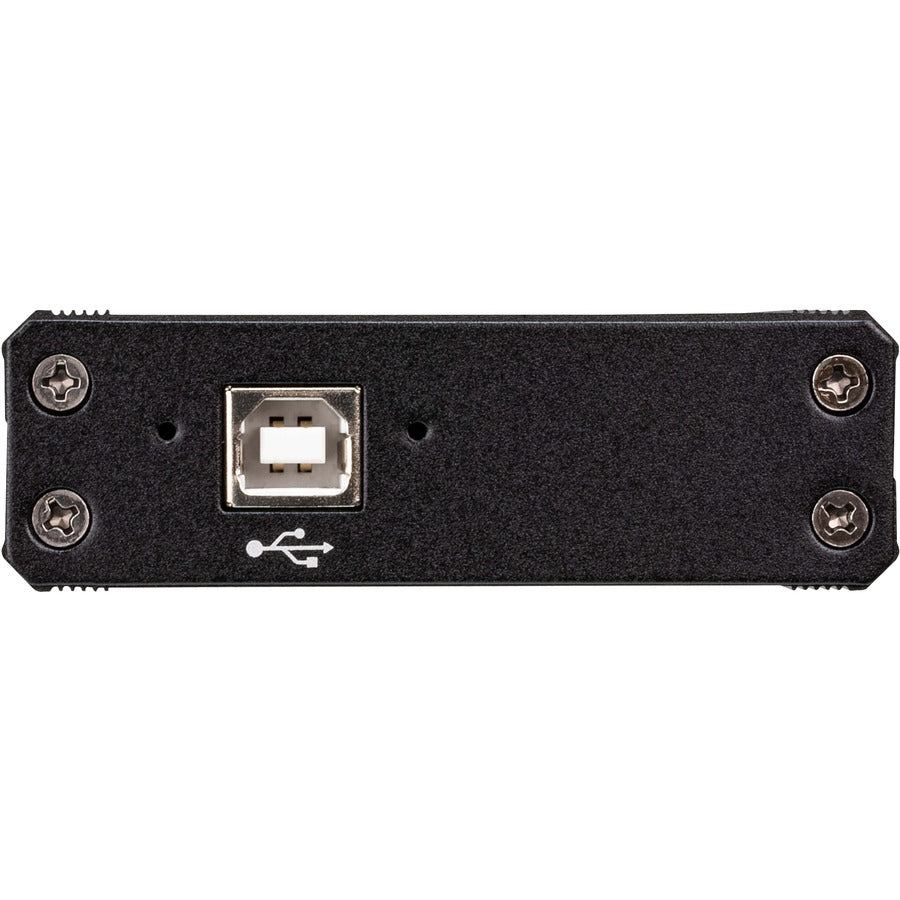

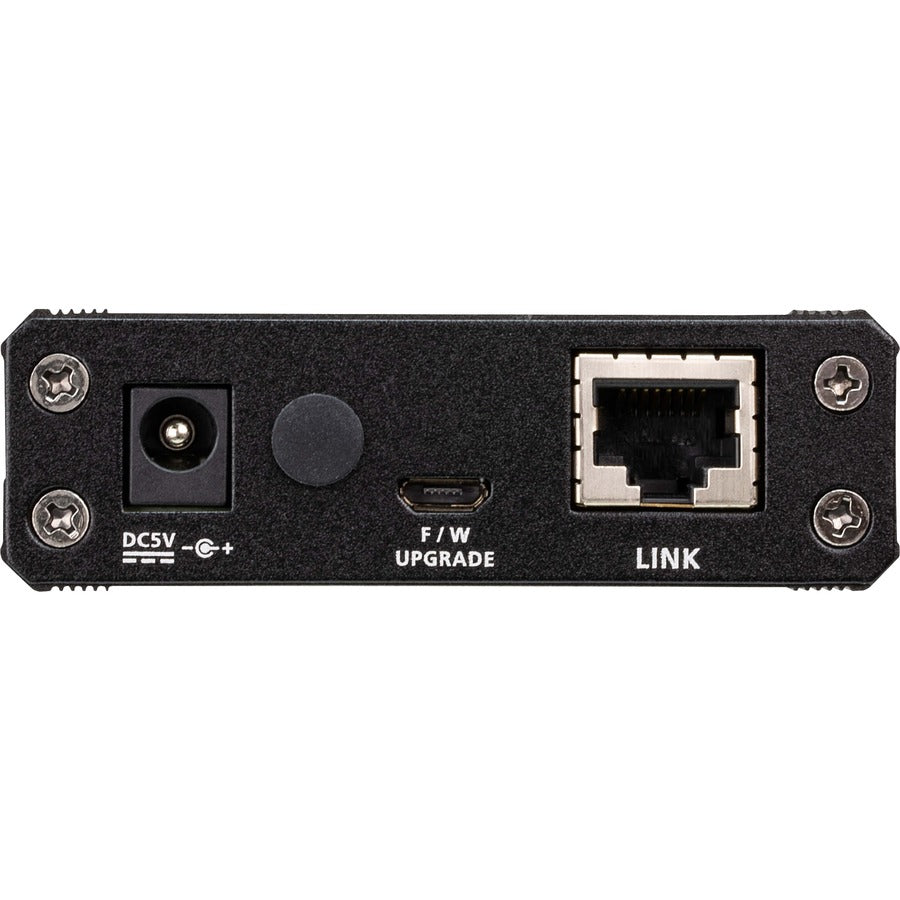

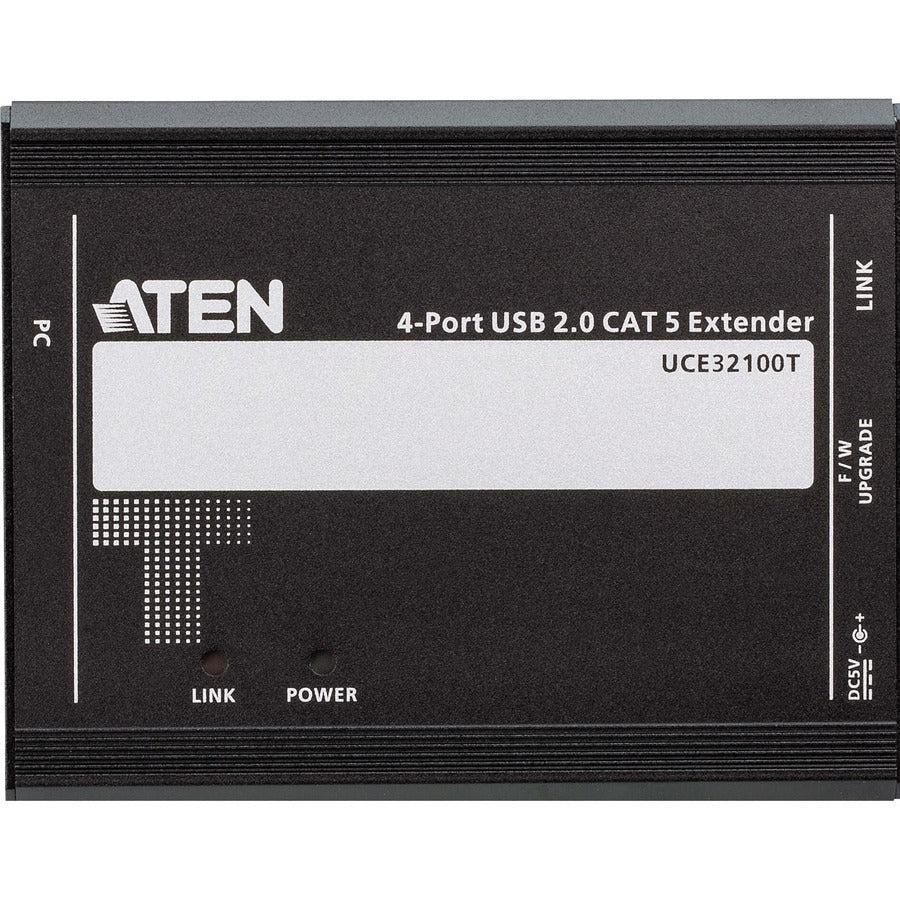

• 1 x UCE32100T USB 2.0 CAT 5 Transmitter

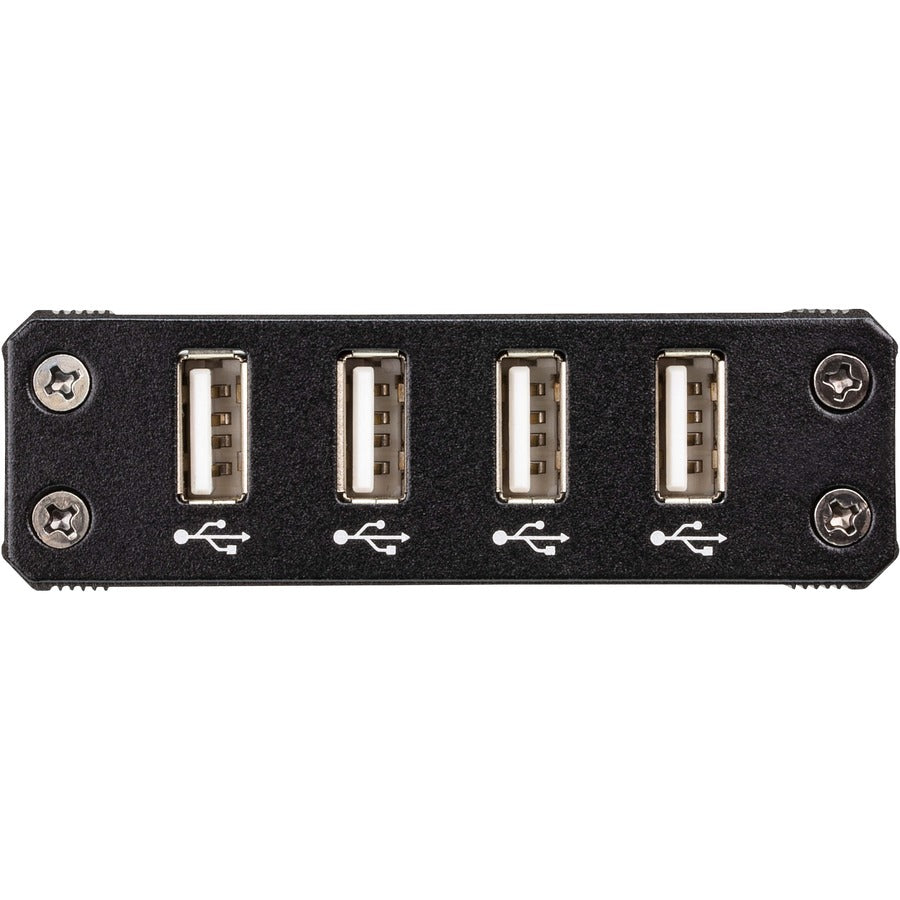

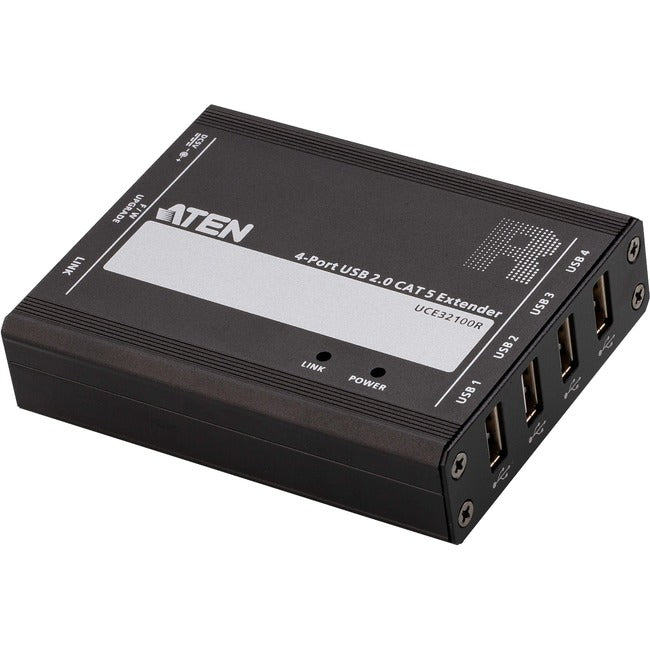

• 1 x UCE32100R USB 2.0 CAT 5 Receiver
• 1 x USB 2.0 Type-A Male to Type-B Male Cable
• 1 x Power Adapter
• 1 x Power Cord
• 4 x Mounting Kit
• 2 x Din Rail
• 2 x DC Jack Lock Kit
• 2 x Rubber Feet Sets
• 1 x User Instructions
