Ultra High Perfor 82Way Ceiling,Mt Loudspeaker Sys ConcentricSKU: EVID-PC8.2

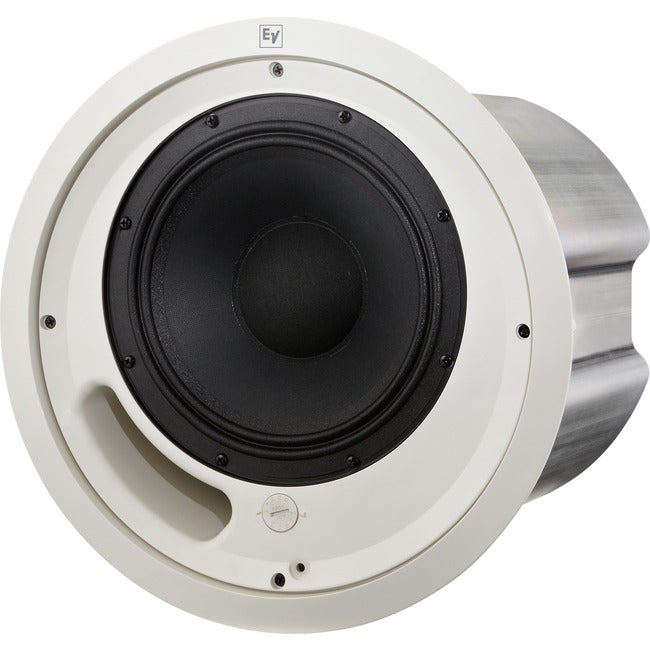

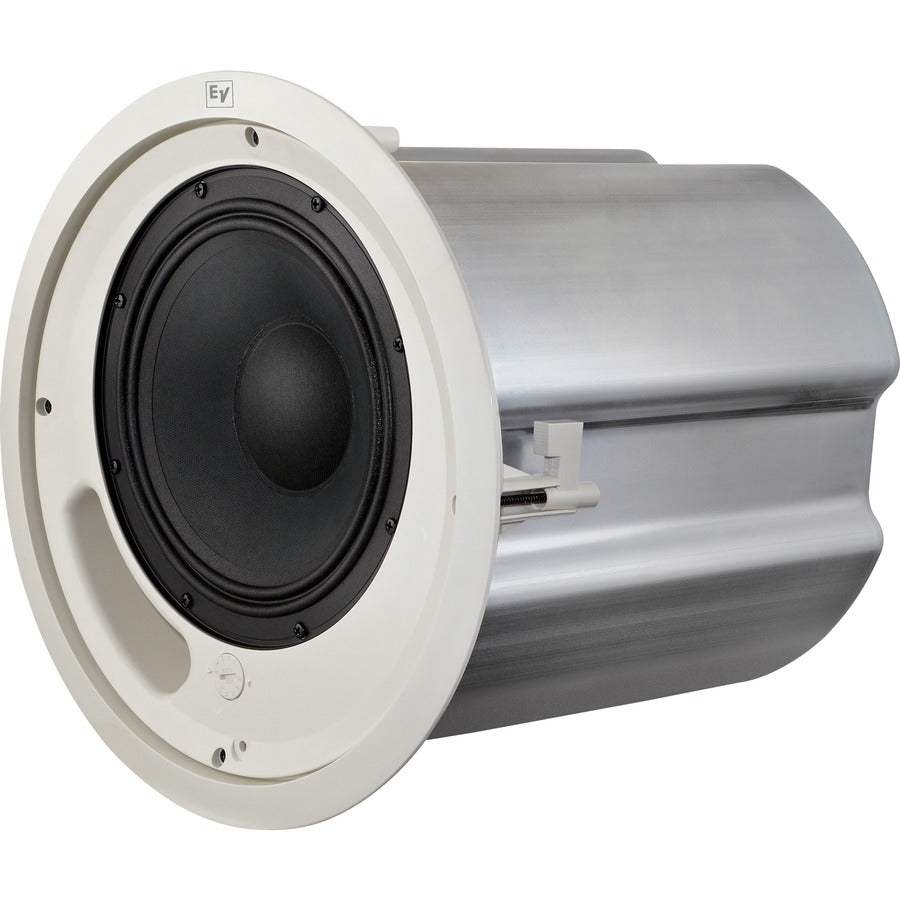

Electro-Voice EVID PC8.2 2-way Ceiling Mountable Speaker - White

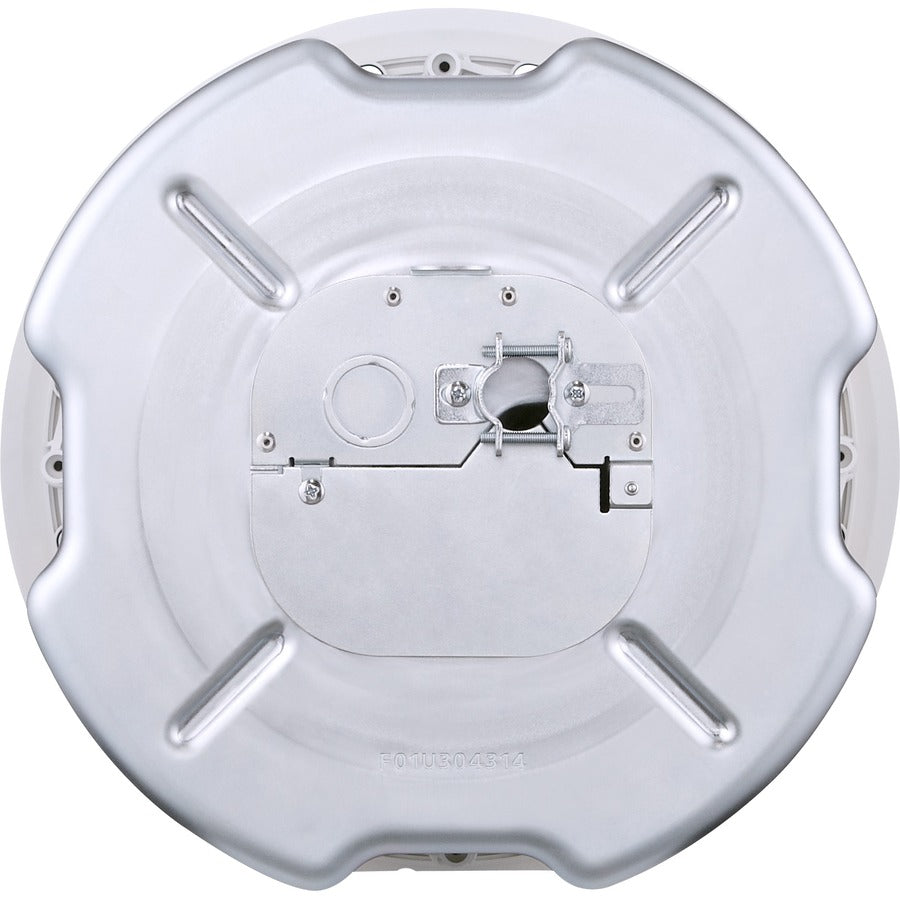

The EVID PC8.2 speaker system from Electro-Voice is a complete high performance two-way ceiling speaker package. The EVID PC8.2 is ideal for background and foreground music, voice evacuation, paging, and sound reinforcement applications. All EVID Premium Ceiling Speaker models provide a unique combination of high acoustic output, superb coverage control, high power handling and wide dispersion, to cover virtually any size listening area. The EVID PC8.2 comes completely assembled with an integrated bezel assembly, grille, rear enclosure, 8-inch (200 mm) coaxial two-way speaker and internal high power line-matching transformer. The speaker features a waveguide coupled true compression HF driver and a long excursion 8-inch (200 mm) woofer. The EVID PC8.2 utilizes a transformer that offers a selection of 7.5 W (70-V only), 15, 30 or 60 watts delivered to the speaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is fully zinc plated and finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from fire rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel. The rear enclosure, with fiberglass damping material, provides an optimum internal volume for extended low-frequency performance. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with up to 2.5 mm (12 AWG) wire and provides pass through to additional speakers. Two (2) adjustable metal tile bridges and metal "C" ring are included for safe suspension of the EVID PC8.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber- based ceiling tiles. The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions.
- The 2-way Ceiling Mountable speakers provide the finest sound coverage
- Hear low subs and soaring vocals with a frequency range of sound from 40 Hz-20 kHz
- 10 Ohm impedance extracts maximum power so you will get more output from your speakers
Product Type: Speaker
Cutout Diameter: 11.59"
Woofer Diameter: 7.87"
Product Color: White
Brand Name: Electro-Voice
Form Factor: Ceiling Mountable
Manufacturer: The Bosch Group
Product Model: PC8.2
Product Name: EVID PC8.2 Speaker
Product Line: EVID
Manufacturer Part Number: EVID-PC8.2
Manufacturer Website Address: http://www.bosch.com
Packaged Quantity: 2
- EVID PC8.2 Speaker
- Tile rails and "C" mounting ring
Weight (Approximate): 17.64 lb
