Ultra HD 4x4 HDMI Matrix Switch 4K @60Hz with IR Remote (UHD-404)
Ultra HD 4x4 HDMI Matrix Switch 4K @60Hz with IR Remote (UHD-404)
SKU:UHD-404
Couldn't load pickup availability
Description :

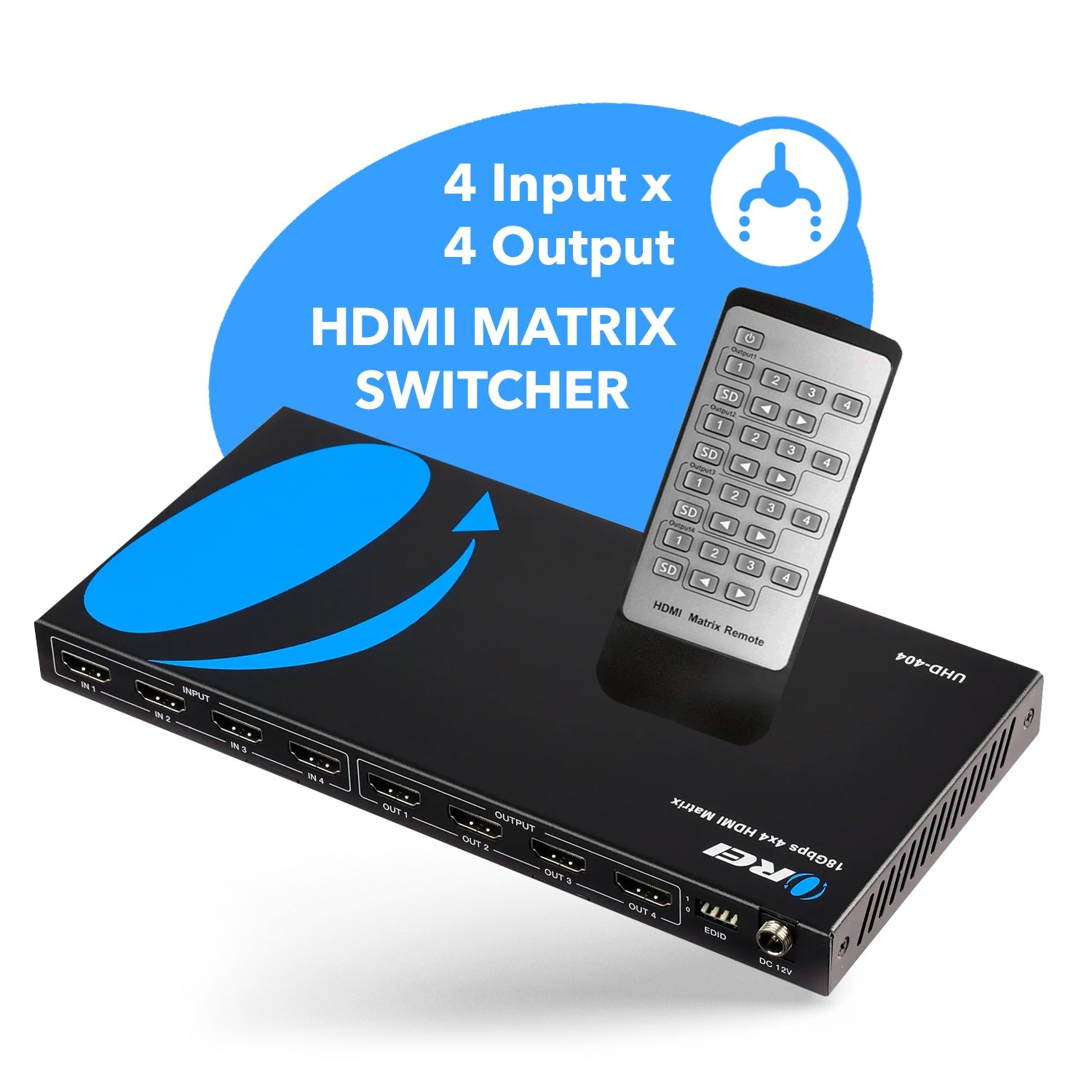

OREI UHD-404: Ultra HD 4x4 HDMI Matrix Switch
- 4x4 HDMI Switch/Splitter 4-Input ports: 4 HDMI (female type), 4-Output ports: 4 HDMI (female type)
- It can also display the same or 4 different screens on all 4 displays.
- This is HDCP 2.2 compliant
- 18G Switcher with audio de-embedded
- Video Resolution up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4, HDR, HDR10, HDR10+, Dolby Vision passthrough
- Supports full 3D/2D, Ultra HD resolutions up to 4K@60Hz, 2K@60Hz, and HD resolutions up to 1080p
- 4 IN 4 OUT HDMI SWITCH - Smart EDID management, EDID bypass
- Audio output : PCM, Dolby True HD, DTS-HD Master Audio up to 7.1 Ch.
- Downscale function 4K & 1080p Together

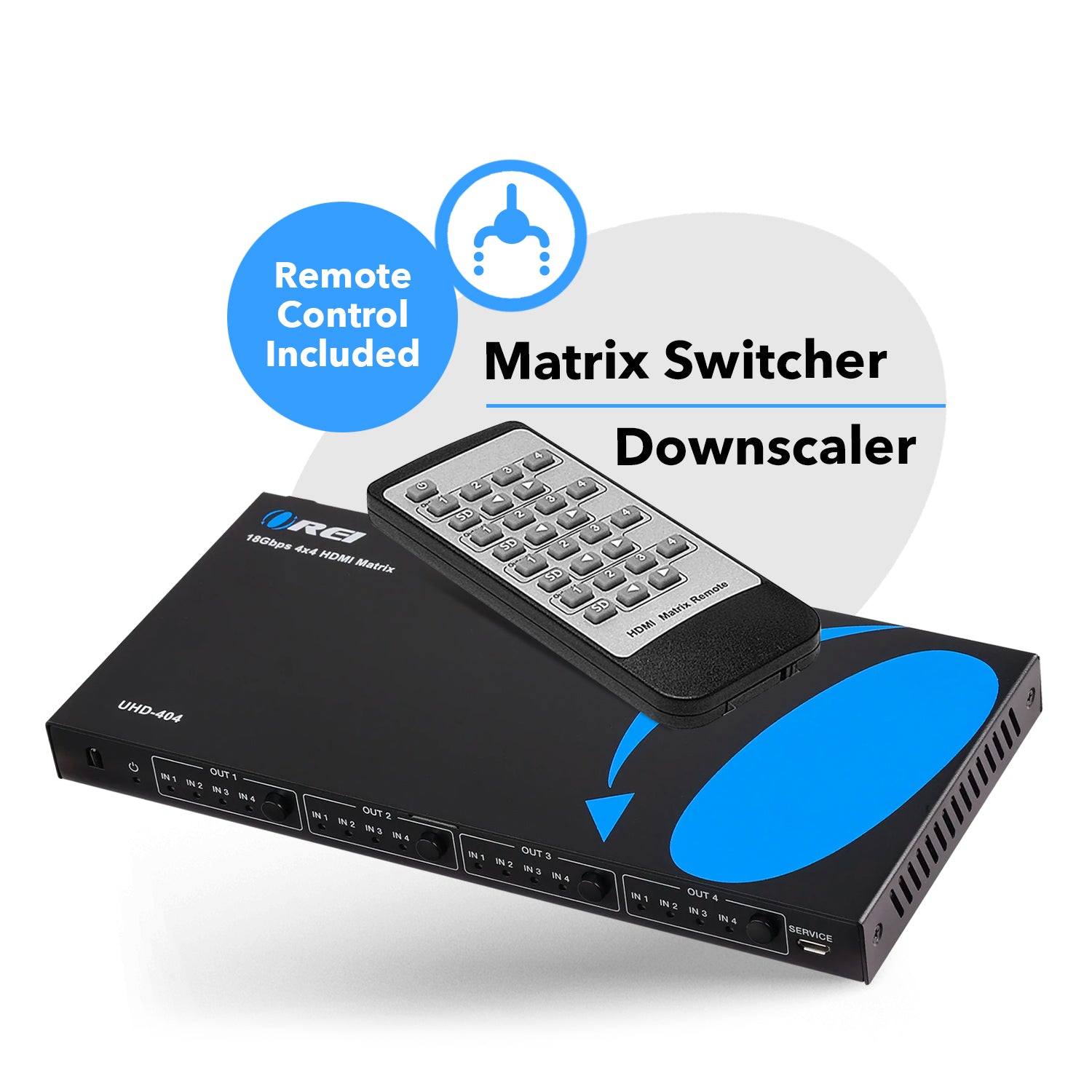

- Flexible control via panel or IR remote control
- Built-in auto-adjusting amplifier ensures no signal loss
Few sample applications:

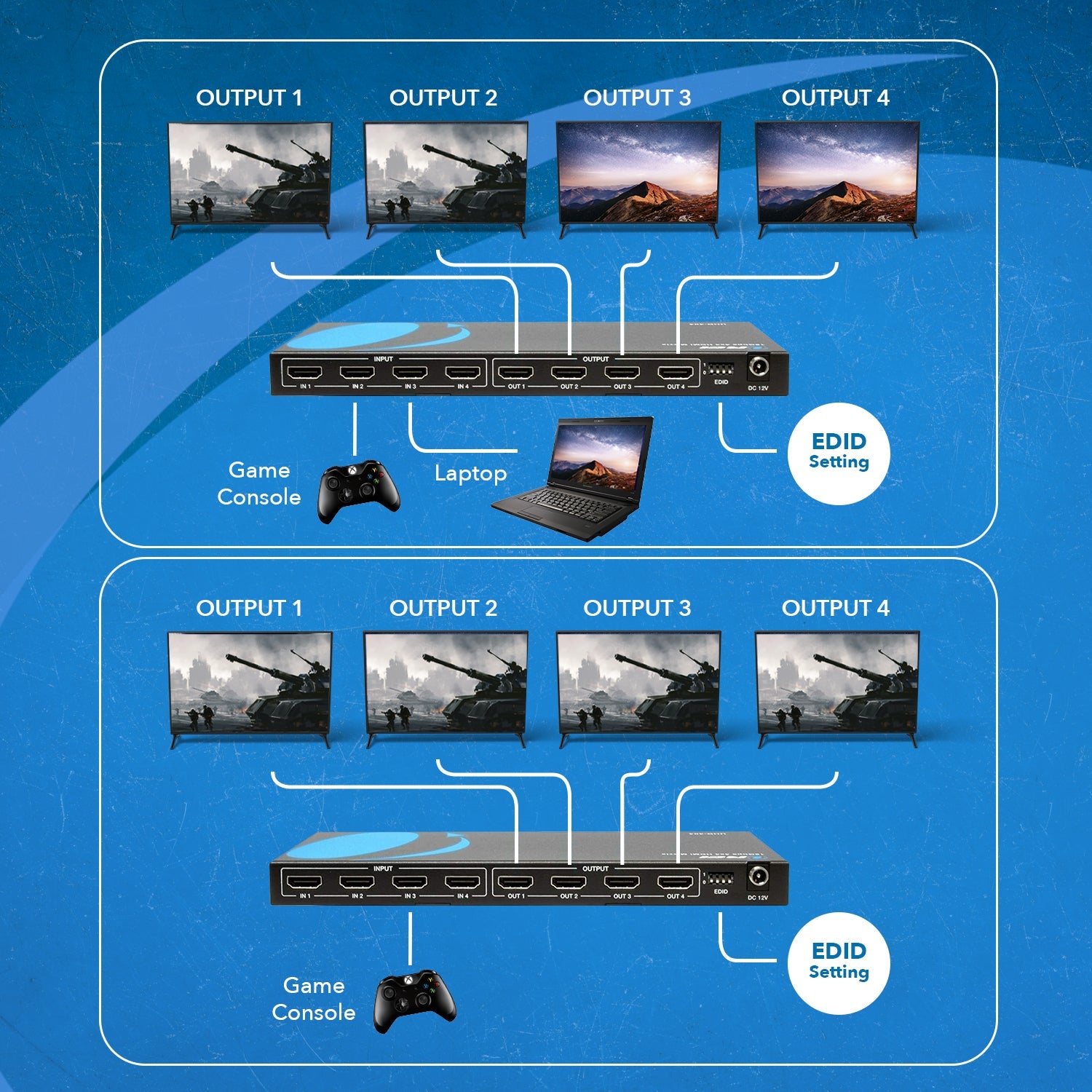

The OREI UHD-404 4x4 switcher is perfect for splitting, switching your HDMI signal to 4 different display. This matrix has 4 HDMI inputs and 4 HDMI outputs, so you can switch between 4 input source devices and send the signal simultaneously to 4 displays. This HDMI Matrix supports the transmission of the video signal (up to 4K2K@60Hz YCbCr 4:4:4) with multichannel digital audio from up to four high definition sources to up to four HDMI outputs.
In this switcher, each output supports downscale functionality. It can display the same or different screen on 4 displays (the user can choose the display screen for any signal source). No setup or special configuration is required, simply connect the input device(s) and output device(s) and start using it.
HDMI Audio Formats: Supports up to 7.1-channel audio, Dolby Digital, DTS Digital, Dolby TrueHD, and DTS-HD Master audio formats.
[tab]
AUDIO AND VIDEO
| Inputs: | 4 × HDMI Type A (19-pin female) |
| 1×IR Receiver Window | |
| 1×Micro USB | |
| Output Ports: | 4 × HDMI Type A (19-pin female) |
| Video Bandwidth: | 594 MHz / 18 Gbps |
| Video Resolution: | 480i ~ 1080p 50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Space: | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| HDMI Audio Formats: | LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio |
COMMUNICATION AND CONTROL
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 / 1.x |
POWER
| Power Supply: | Input: AC100~240V 50/60Hz, Output: DC 12V/2.5A(US/EU standard, CE/FCC/UL certified) |
| Power Consumption: | 11.04W |
CONTROL
| CEC: | Pass through |
ENVIRONMENTAL
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20 ~ 90% RH (non-condensing) |
DIMENSIONS & WEIGHT
| Height: | 19 mm |
| Width: | 220 mm |
| Depth: | 205 mm |
| Weight: | 535 g |
REGULATORY
| REGULATORY: | CE | FCC | RoHS |
PACKAGE CONTENTS
| 1 × UHD-404 4×4 HDMI matrix switch |
| 1 × Power Adapter |
| 1 × Matrix IR Remote Control |
| 2 × Mounting Ears |
| 1 × User Manual |
Warranty
| 1 - Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, our switchers aren't compatible with capture cards
Yes, the included power adapter does support 220V
Yes
Yes, our HDMI matrixes are designed for commercial use so you can run them continuously 24x7
[/tab1]
[shortdes]
- 4 Inputs - 4 output HDMI Matrix switch
- Video resolution up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4 - EDID Control
- Supports HDR, HDR10, HDR10+, Dolby Vision
- Compliance: HDMI 2.0b, HDCP 1.x, 2.2
[/shortdes]
Specifications :
General Information
| UPC | 850008956737 |
|---|
