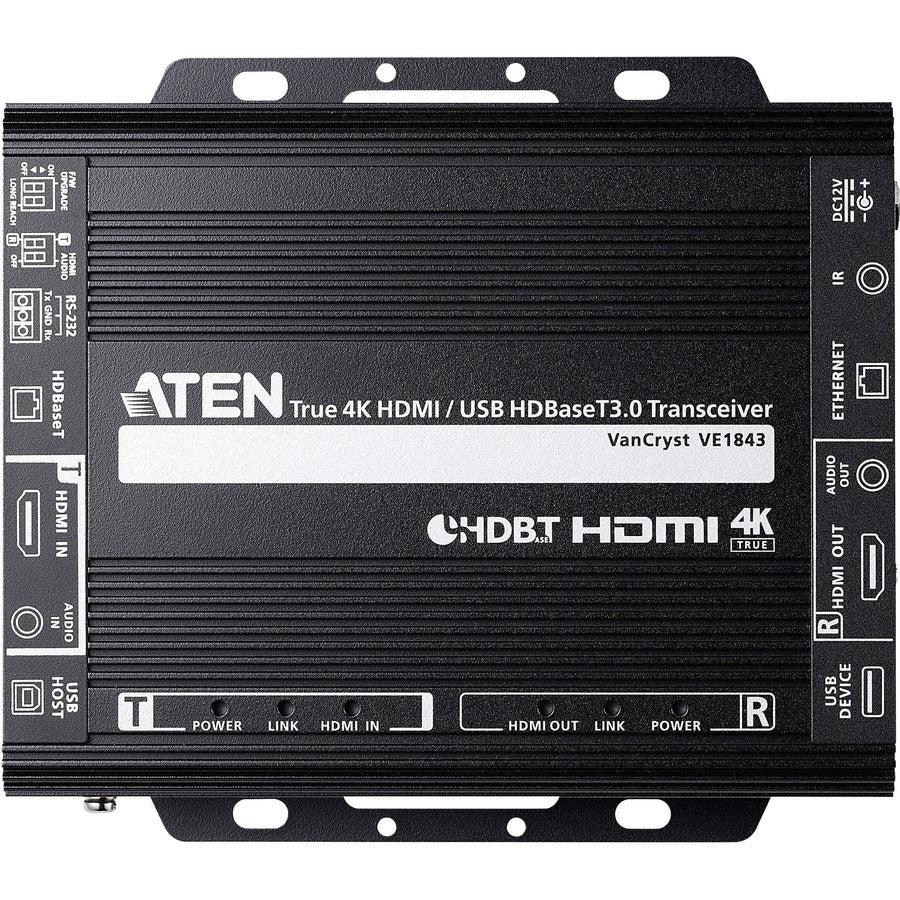

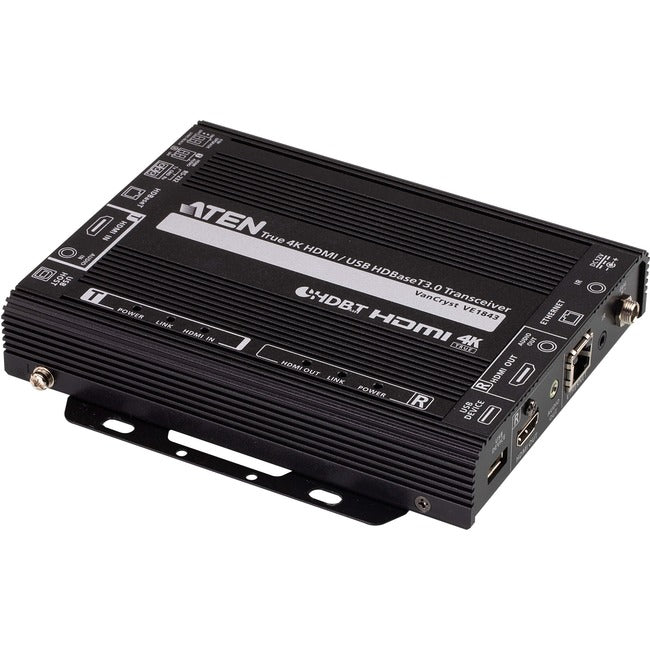

ATEN True 4K HDMI / USB HDBaseT 3.0 Transceiver VE1843

Description :

ATEN True 4K HDMI / USB HDBaseT 3.0 Transceiver

As ATEN 's first video transceiver, the VE1843 features the latest HDBaseT 3.0 technology, allowing users to easily configure the unit to be a transmitter or receiver depending on the AV solution they need, while enabling uncompressed True 4K HDMI transmission up to 100m/328ft with zero latency via just one Cat 6A cable. With its user-oriented hardware design and enhanced durability, this new model is purpose-built for spaces that require long-distance, yet high-quality, signal transmission with easy installation and non-stop operation, such as conference rooms, auditoriums, banquet halls, and museums.

One Unit, Two Configurations

VE1843 integrates the functions of a transmitter and a receiver into one unit for users to easily set it to the direction (Tx / Rx) required and enjoy more flexible deployment with video matrix switches, splitters, and more.

Uncompressed True 4K HDMI with HDR @100m

Delivering uncompressed True 4K @ 60Hz 4:4:4 HDMI with HDR up to 100m/328ft over a Cat 6A cable with no latency, VE1843 offers superior video quality even when output devices are located far away.

One Cable to Transmit It All

Streamline complex installation and enjoy multi-signal control by using a Cat 6A cable to extend signals including high-quality video, audio, IR, RS-232, Gigabit Ethernet, and USB 2.0 for remotely located equipment management.

HDMI Audio Embedding & De-embedding

VE1843 comes with HDMI audio embedding / de-embedding functions, enabling users to easily embed a separate audio source to video content for applications such as training and education, or de-embed an audio signal from HDMI input source and output to an amplifier or speaker for enhanced sound quality.

Tailored Fanless Fin Heat Sink Enclosure

VE1843 prevents overheating and fan malfunctions, which will shut down operation, ensuring efficient thermal dissipation and non-stop signal transmission, while improving durability.

User-Focused Design in Every Detail

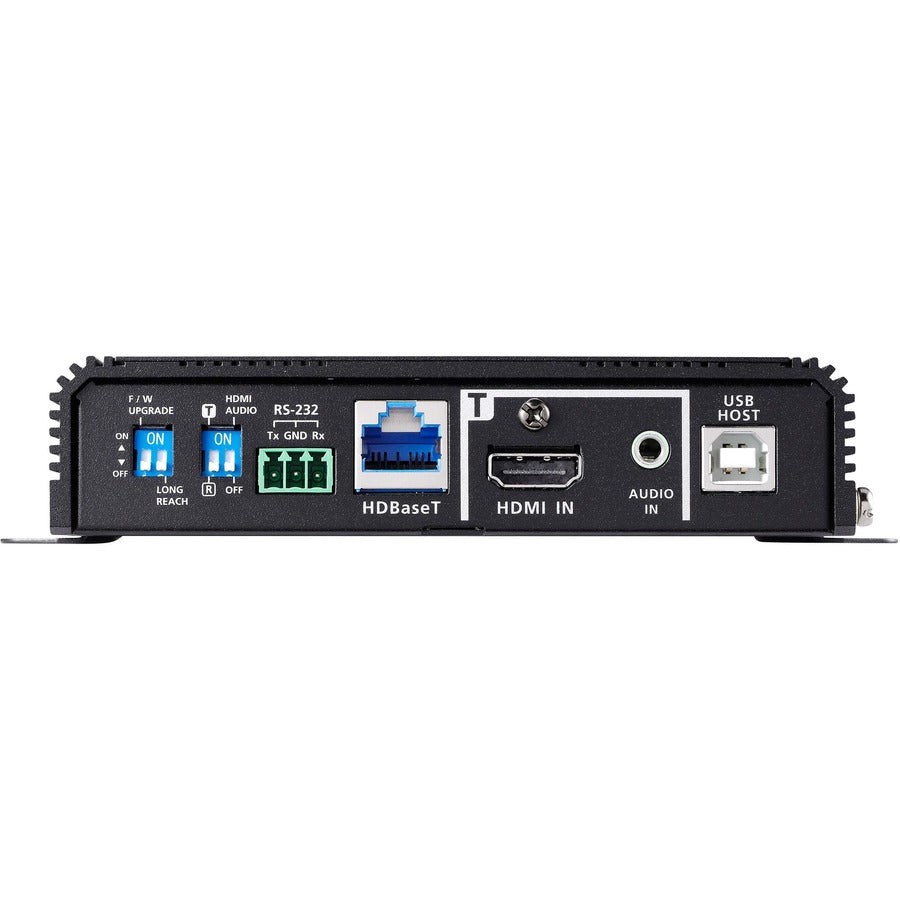

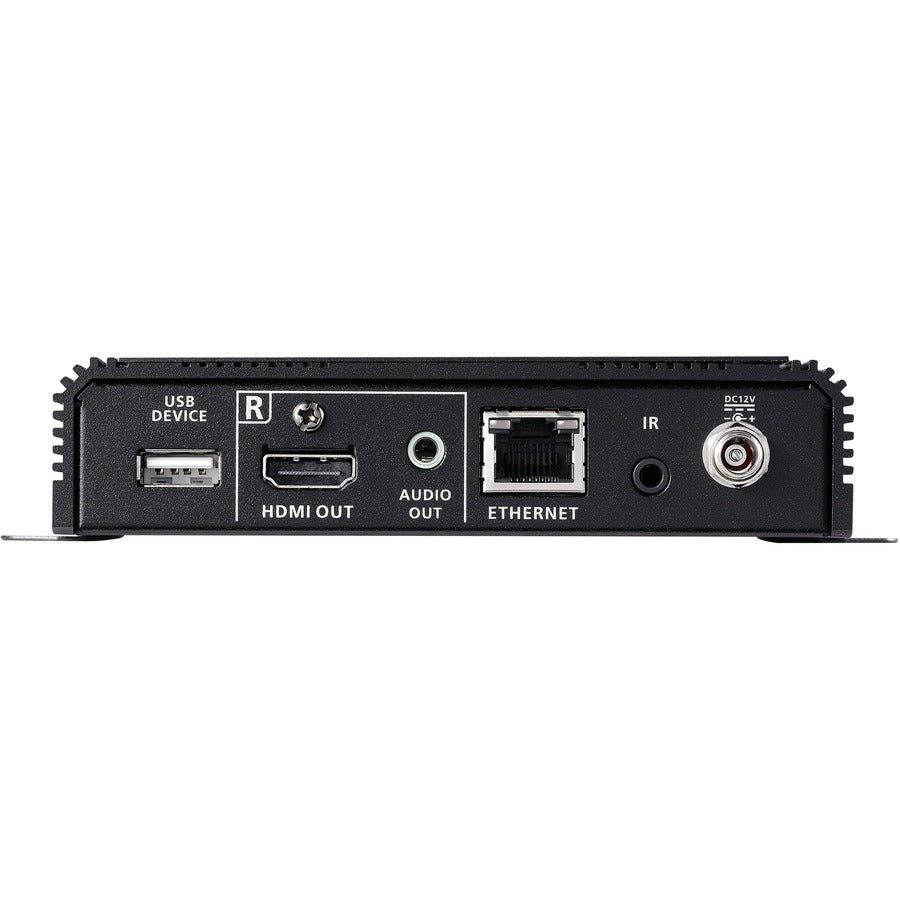

The design of VE1843 elevates its ease-of-use, including the self-explanatory labeling for intuitive port recognition, the built-in brackets for easy mounting, the LED lights for quick diagnosis, and a dedicated space on the front for writing labels to help device recognition / management.

Applications

VE1843 is ideal for small / mid-sized video presentation in conference rooms, public areas, and other applications where high-quality signal transmission across up to 100m/328ft is needed.

• Extends uncompressed True 4K HDMI signals up to 100 m over a single Cat 6a cable (HDBaseT3 Certified Cat 6a cable) with zero latency


• Flexible for deployment - can be configured as a transmitter or receiver depending on the AV solution


• Compliant with HDBaseT 3.0 standards - transmits high-quality video, full range IR, bi-directional RS-232, Gigabit Ethernet, independent stereo audio and USB 2.0 signals channel bypass


• HDMI (3D, Deep Color, 4K/60Hz); HDCP 2.2 compliant


• Superior video quality - up to 4096 x 2160 @ 60 Hz (4:4:4); HDR supported


• Supports HDMI audio embedding / de-embedding functions


• Supports HDMI local output


• Compliant with the USB 2.0 standard for a wide range of USB peripherals compatibility


• LED indication of HDBaseT and HDMI signal status for easier recognition


• Fanless fin heat sink enclosure - elevates durability and reliability by preventing overheating, fan malfunctions, and noises

Product Type: Video Extender Transceiver
Brand Name: ATEN
Form Factor: Desktop
Manufacturer: ATEN Technology, Inc
Product Model: VE1843
Product Name: True 4K HDMI / USB HDBaseT 3.0 Transceiver
Manufacturer Part Number: VE1843
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:

• True 4K HDMI / USB HDBaseT 3.0 Transceiver
• 1 x RS-232 Terminal Block
• 1 x Foot Pad set (4 pcs)
• 1 x USB Type-B to USB Type-A cable
• 1 x Power Adapter
• 1 x IR Emitter
• 1 x IR Receiver
• 1 x User Instructions
