Tripp Lite by Eaton

Tripp Lite Usb-C Dock, Dual Display - 5K 60 Hz Dp, 4K 60 Hz Hdmi, Usb 3.2 Gen 1, Usb-A/C Hub, Gbe, 85W Pd Charging

Tripp Lite Usb-C Dock, Dual Display - 5K 60 Hz Dp, 4K 60 Hz Hdmi, Usb 3.2 Gen 1, Usb-A/C Hub, Gbe, 85W Pd Charging

SKU:U442-DOCK21-B

Regular price $287.40
Regular price Sale price $287.40
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          USB-C Dock, Dual Display - 5K 60 Hz DP, 4K 60 Hz HDMI, USB 3.2 Gen 1, USB-A/C Hub, GbE, 85W PD Charging

          Tripp Lite USB-C Dock, Dual Display - 5K 60 Hz DP, 4K 60 Hz HDMI, USB 3.2 Gen 1, USB-A/C Hub, GbE, 85W PD Charging. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, HD type: 5K Ultra HD, Maximum digital resolution: 5120 x 2880 pixels. Power source type: DC, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Sustainability certificates: REACH, RoHS

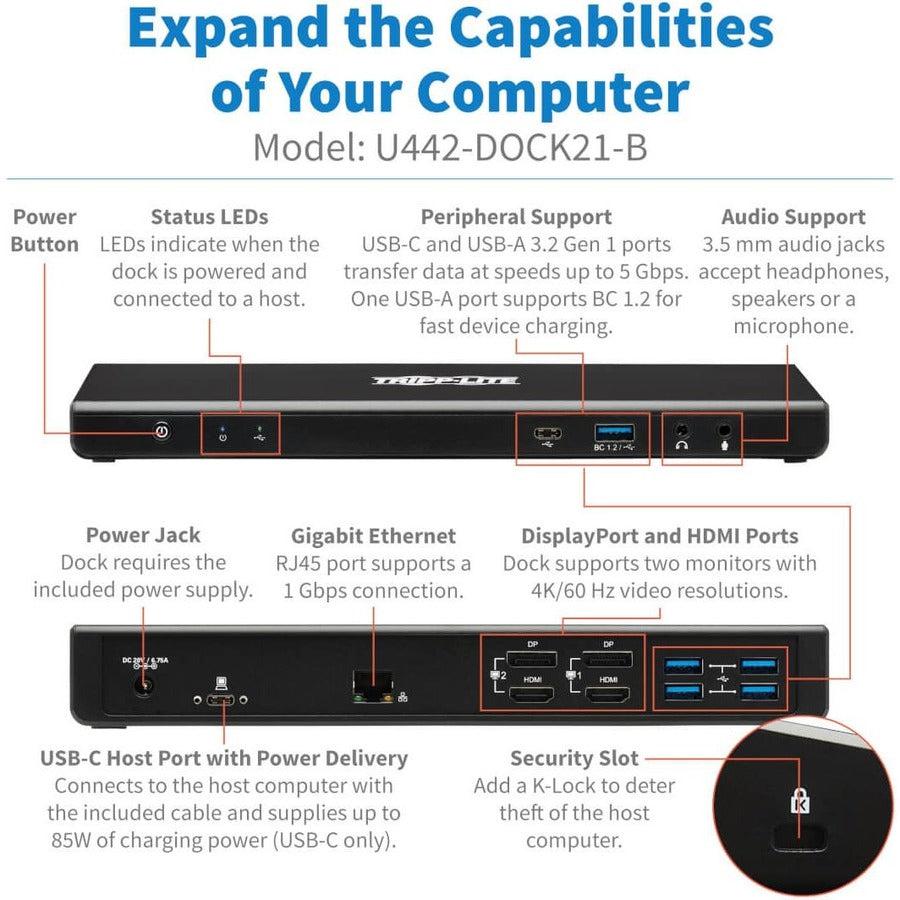

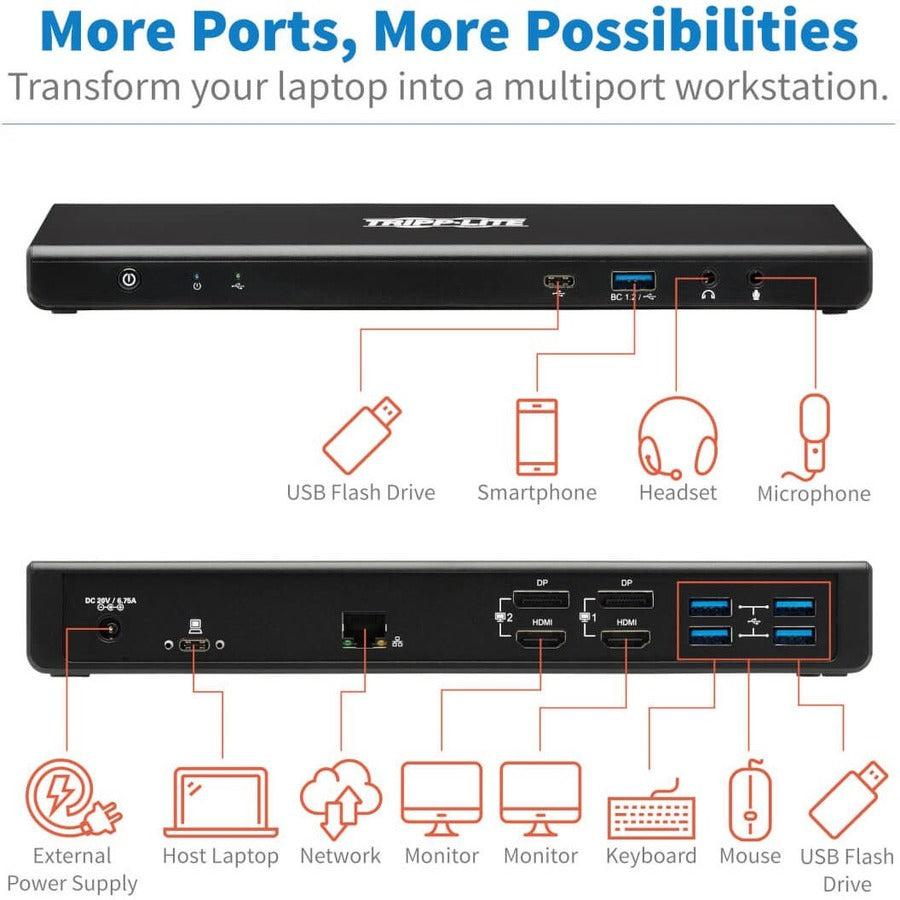

          USB-C Docking Station Turns Your Device’s USB or Thunderbolt 3 Port into 14 New Ports

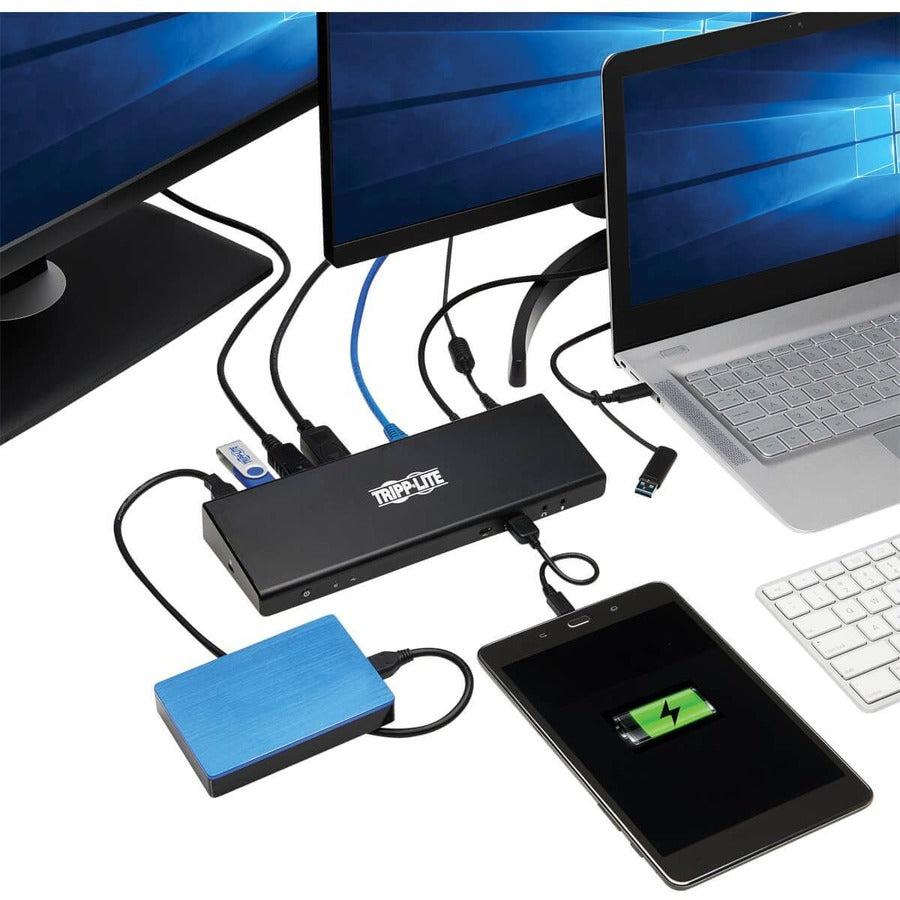

          This universal USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, smartphone or PC’s USB-A, USB-C or Thunderbolt 3 port. Connect the docking station using the included USB-C cable, and add 14 ports to your device:
          - (2) 4K HDMI
          - (2) 4K DisplayPort
          - RJ45 Gigabit Ethernet
          - (4) USB 3.0
          - USB 3.0 with BC 1.2
          - USB-C PD Charging
          - USB-C data
          - (2) 3.5 mm stereo

          Transmits Crystal-Clear True 5K/4K Video and Digital Audio with 4:4:4 Color

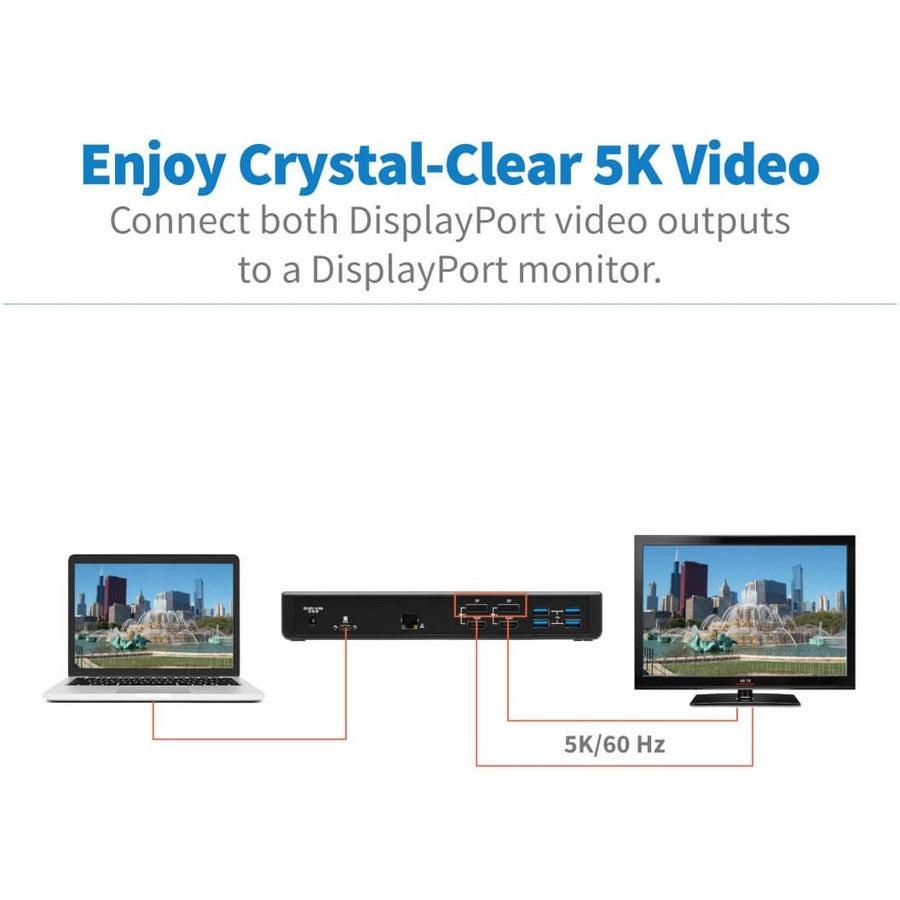

          The HDMI and DisplayPort (DP) outputs support true 4K resolutions up to 4096 x 2160 at 60 Hz with 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. When both DP outputs are connected to one DP monitor, that monitor will support 5K video up to 5120 x 2880 at 60 Hz.

          DisplayLink Technology Allows Connection of Multiple Displays

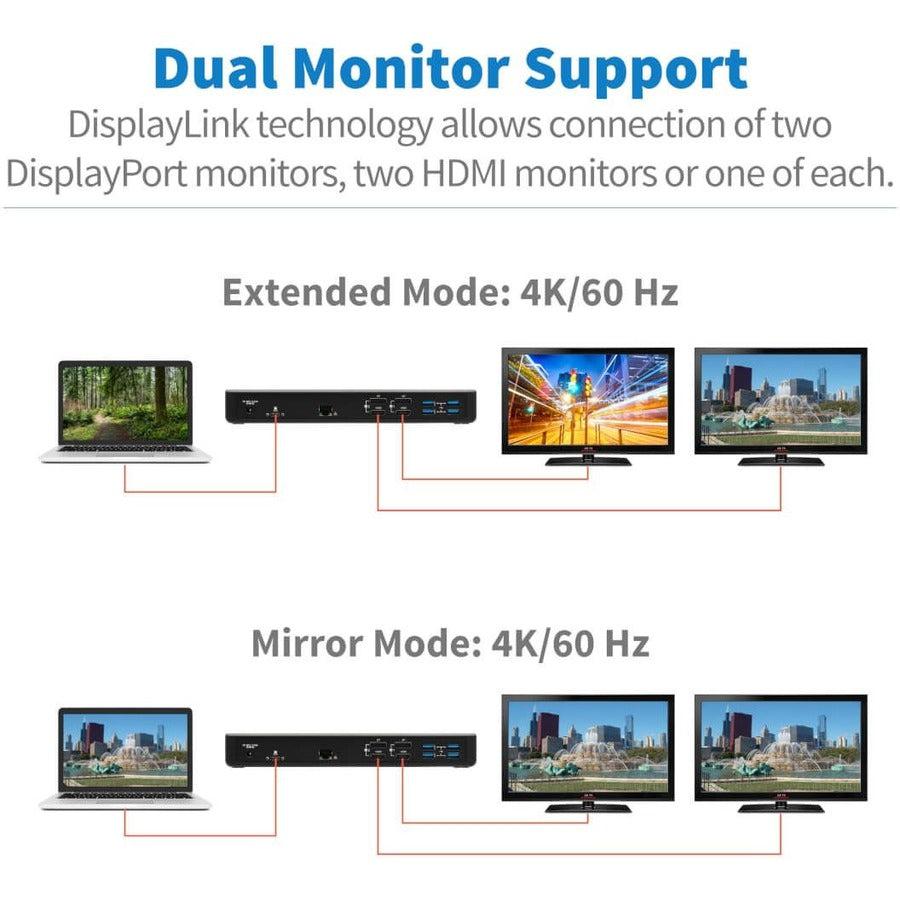

          By downloading and installing the proper DisplayLink drivers to your host device, you may connect two external displays simultaneously. This allows you to display the image from the host computer on both monitors, extend your host desktop across both with different windows open on each, or combine all into one large display as a video wall. Connect multiple monitors (dual 4K @ 60 Hz DP; dual 4K @ 60 Hz HDMI; or 4K @ 60 Hz DP and 4K @ 60 Hz HDMI) in Extended and Mirror modes. Note: Mac OS laptops or computers will only extend to one monitor. The others will be mirrored.

          USB Hub Ports Connect Keyboards, Thumb Drives and Other Peripherals
          One USB-C and five USB-A ports accept USB peripherals, such as flash drives, mice, keyboards and printers. All support fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. One USB-A port also supports BC 1.2 charging with 5V 1.5A (7.5W) of power dedicated to fast-charging your mobile device. Note: Host must support USB OTG (On-the-Go).

          PD Charging Port Charges the Connected Notebook, Tablet or Other Device
          Connect your host device to the USB-C Power Delivery port, which supports PD 2.0 charging of connected PD Charging-compliant devices, such as laptops, Kindles, iPads and Android smartphones, up to 20V 4.25A (85W). The included power supply, when plugged into an AC outlet, provides the charging power.

          Accesses a Wired Gigabit Ethernet Network
          The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.

          Connects Speakers, Microphone and Other Audio Equipment
          Two 3.5 mm mini stereo jacks are convenient for connecting speakers, headphones and/or a microphone to your workstation. You can listen to music or record the latest episode of your podcast.

          Anti-Theft Lock Protects the Docking Station When You Aren’t Around
          Connect a user-supplied computer/laptop security cable lock (not included) to this K-lock port to protect your source device against theft.

          Detachable USB-C Cable Connects in Either Direction
          Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time. A USB-C to USB-A adapter is included for connecting the docking station to your host device’s USB-A port.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number U442-DOCK21-B
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model U442-DOCK21-B
          Product Name U442-DOCK21-B Docking Station
          Product Type Docking Station
          UPC 037332253477

          Interfaces/Ports

          HDMIYes
          Total Number of USB Ports6
          Network (RJ-45)Yes

          Power Description

          Maximum Power Supply Wattage85 W
          Height9.84"
          Width3.24"
          Depth1.36"
          Weight (Approximate)13.76 oz

          Miscellaneous

          Package Contents
          • U442-DOCK21-B Docking Station
          • USB-C Cable, 1 m
          • USB-C to USB-A Adapter
          • External Power Supply with 5 ft. Cord and NEMA 5-15P Plug (Input: 100-240V, 50/60 Hz, 1.8A; Output: 20V 6.75A)
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty3 Year
