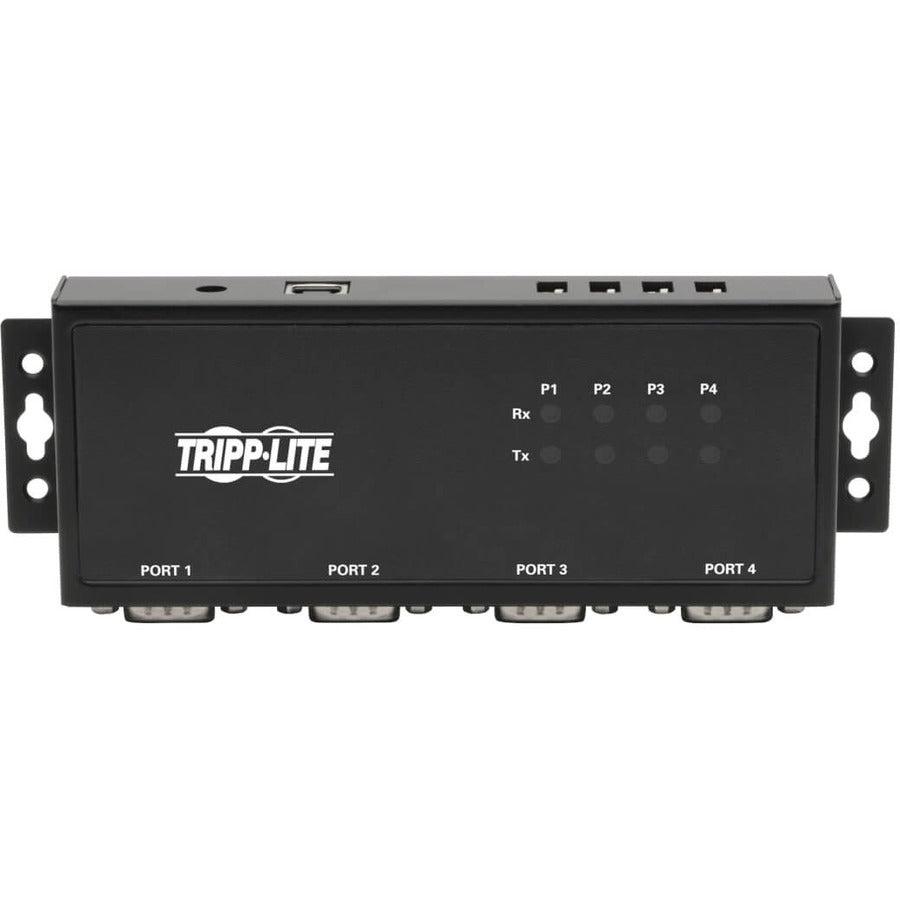

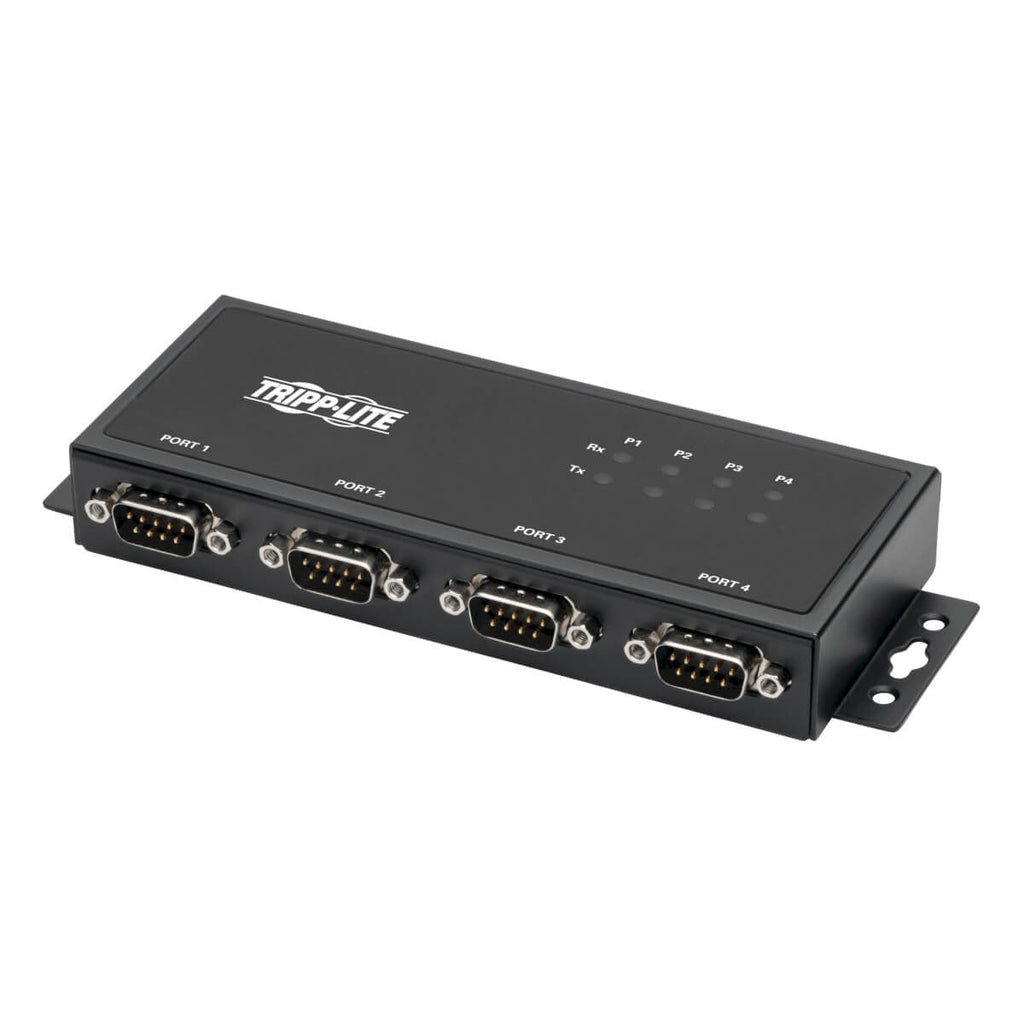

Tripp Lite U208-004-IND 4-Port RS-422/RS-485 USB to Serial FTDI Adapter with COM Retention (USB-B to DB9 F/M)SKU: U208-004-IND
Sale Sold out
Regular price $98.00
Regular priceUnit price per
Que. & Ans.
Description :4-Port RS-422/RS-485 USB to Serial FTDI Adapter with COM Retention (USB-B to DB9 F/M)
Tripp Lite U208-004-IND 4-Port RS-422/RS-485 USB to Serial FTDI Adapter with COM Retention (USB-B to DB9 F/M). Host interface: USB 2.0 Type-B, Hub interfaces: Serial. Data transfer rate: 480 Mbit/s, Product colour: Black, Housing material: Steel. Power source type: DC, Input voltage: 100 - 240 V, Input current: 0.6 A. Width: 172 mm, Depth: 59.9 mm, Height: 23.1 mm. Quantity per pack: 1 pc(s), Package width: 149.9 mm, Package depth: 226.1 mm

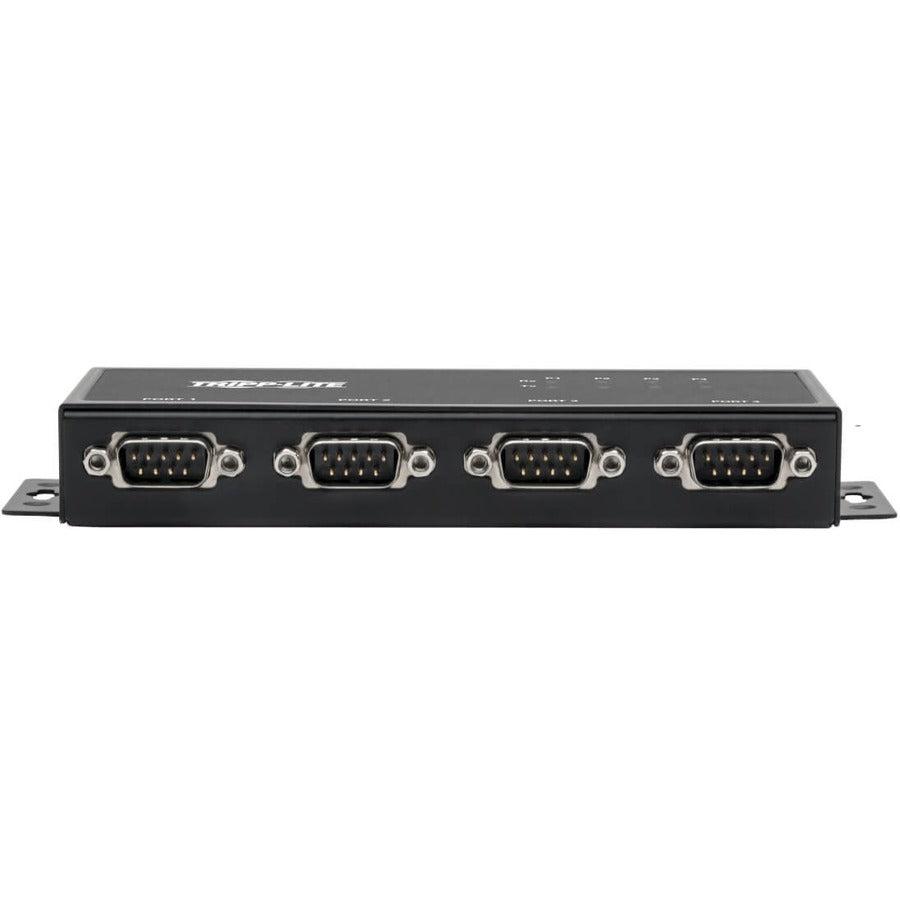

Connects Up to Four 9-Pin Serial Devices to Your Computer, Laptop or Tablet’s USB-A Port

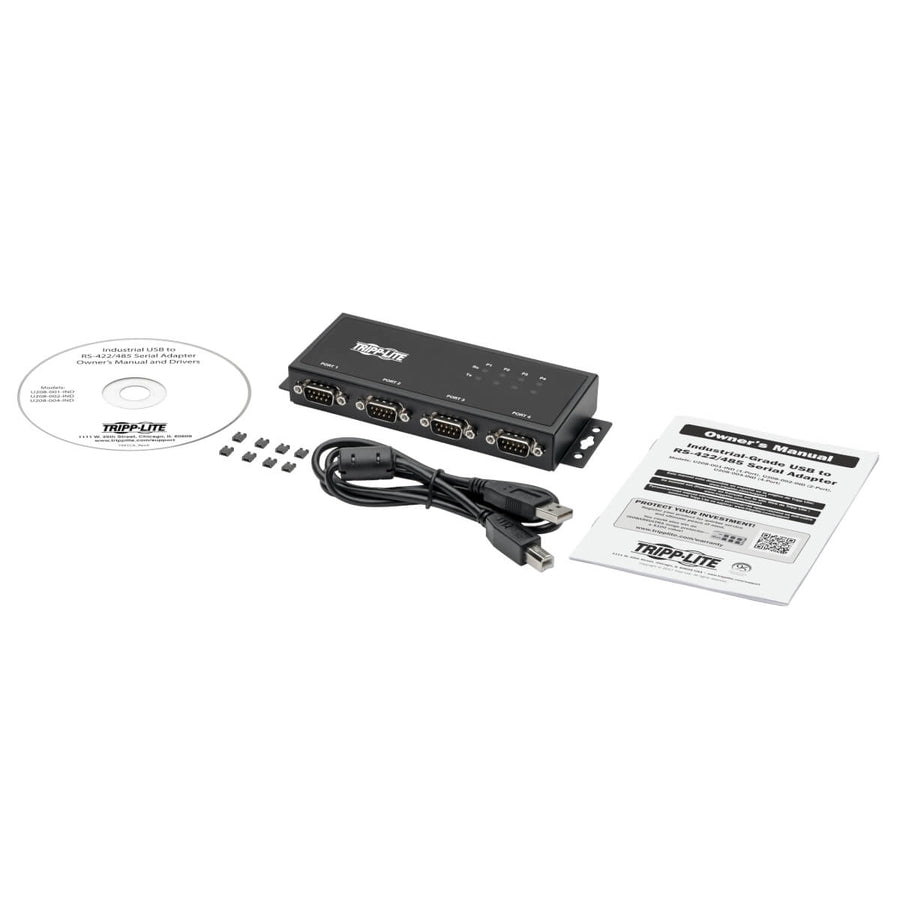

This USB to serial converter turns your computer’s USB port into four DB9 ports capable of connecting RS-422 and RS-485 serial devices, such as modems, handheld scanners and GPS systems. No external power source is needed. Just connect the included USB cable between the U208-004-IND and your computer, and insert the included CD into your computer’s CD drive in order to launch the driver. You’ll be able to configure and share data among point-of-sale equipment and other serial devices. LEDs indicate when serial data is being sent or received.

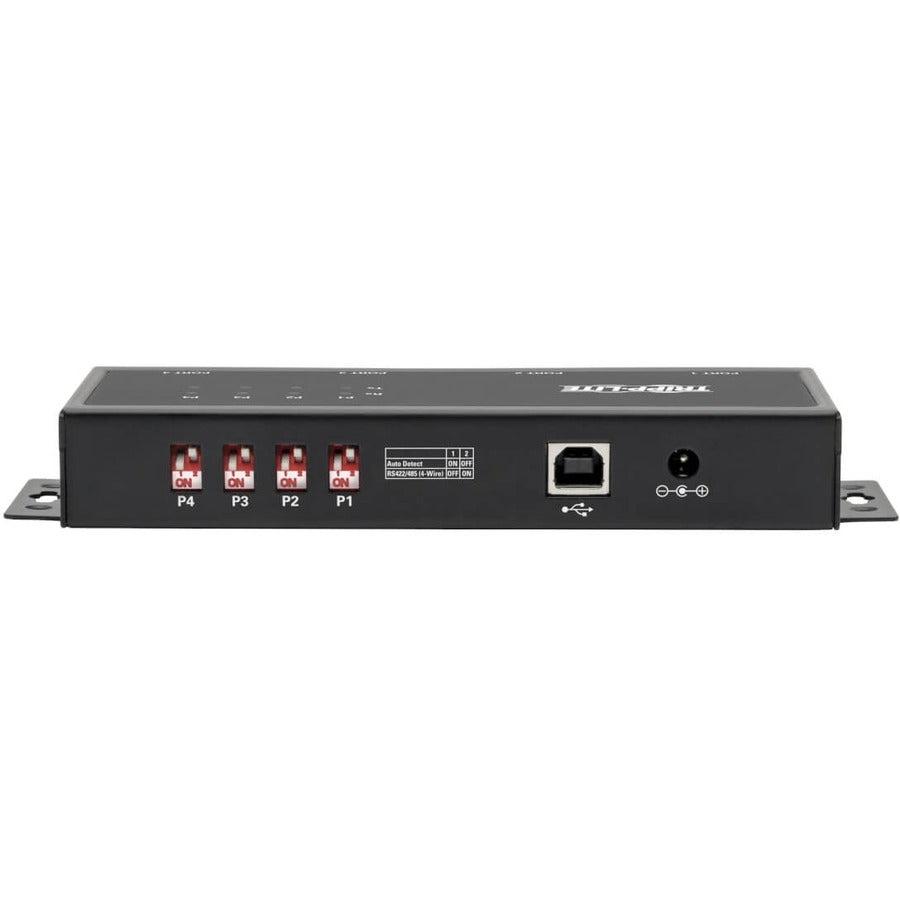

Independent DIP Switches for Easy Port Configuration
The U208-004-IND’s serial ports can be set to automatically detect an RS-422 or RS-485 device by adjusting their DIP switch settings. The ports can also be set specifically for use in 4-wire mode.
COM Retention Feature for Convenient Reassigning of COM Values to Ports
This USB to RS-485 adapter with built-in FTDI chipset offers COM retention. It automatically reassigns the same COM port values to each port, so when the cable is disconnected or the system is rebooted, no additional configuration is needed. The cable auto-detects and auto-switches RS-422 and RS-485 devices. It also supports RS-485 auto-transceiver turn around with unique featured ATTA hardware.
Rugged All-Metal Housing Designed to Last in Harsh Industrial Applications
The wall-mountable USB to serial converter with an industrial-grade steel enclosure offers electrostatic discharge (ESD) protection to ±15kV. It supports serial communications speeds up to one Mbps and USB 2.0 specifications, though it is backward compatible with USB 1.1 devices.
The U208-004-IND is backed by a 2-year warranty, ensuring reliability and performance.
