Tripp Lite Svt10Kx Smartonline Svtx Series 3-Phase 380/400/415V 10Kva 9Kw On-Line Double-Conversion Ups, Tower, Extended Run, Snmp Option

Description :

SmartOnline SVTX Series 3-Phase 380/400/415V 10kVA 9kW On-Line Double-Conversion UPS, Tower, Extended Run, SNMP Option

Tripp Lite SVT10KX SmartOnline SVTX Series 3-Phase 380/400/415V 10kVA 9kW On-Line Double-Conversion UPS, Tower, Extended Run, SNMP Option. UPS topology: Double-conversion (Online), Output power capacity: 10 kVA, Output power: 9000 W. Battery voltage: 240 V, Battery recharge time: 4 h. Form factor: Tower, Product colour: Black, Certification: EN 62040-1-1, EN 62040-2. Width: 250.2 mm, Depth: 812.8 mm, Height: 862.1 mm. Package width: 380 mm, Package depth: 920 mm, Package height: 1060.2 mm

The SVT10KX SmartOnline® SVTX Series 3-Phase 380/400/415V 10kVA 9kW On-Line Double-Conversion UPS with IGBT technology provides battery backup and AC power protection against power disturbances that can damage electronics or destroy data. It’s recommended for critical IT or corporate infrastructure, telecom, LAN/WAN, security and emergency, financial and light industrial applications.

The SVT10KX’s VFI design allows continuous operation at any supported voltage at either 50 or 60 Hz. Zero transfer time to battery mode ensures no disruption to the attached loads. Automatic and Manual Bypass keeps connected equipment powered even during overloads and UPS maintenance.

IGBT inverter technology produces output power with less than 2% total harmonic distortion (THD) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands.

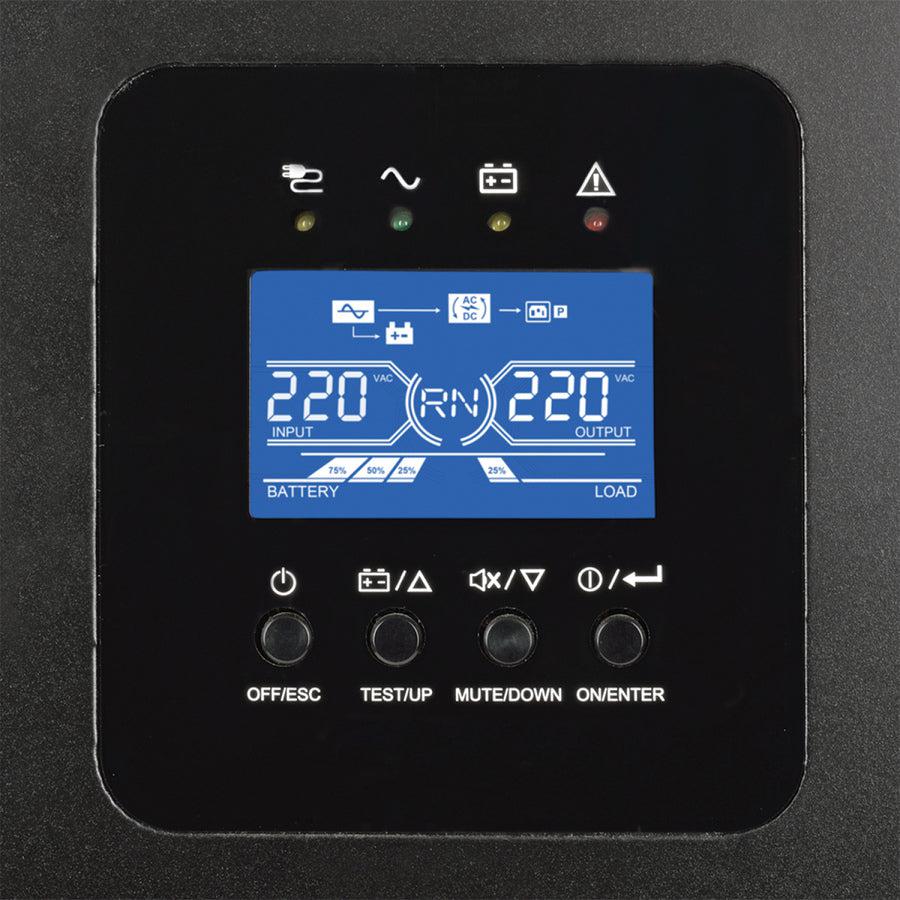

Managing the SVT10KX is simplified through the interactive front-panel LCD interface, which displays critical operating conditions and diagnostic data, such as load levels, available runtime, alarm status, battery charge, and voltage and frequency values. Four LEDs indicate bypass, line, battery and fault modes. A serial port allows connection to Tripp Lite’s free local shutdown agent. A built-in card slot supports WEBCARDLX or RELAYCARDSV for network interface and remote monitoring and control. The SVT10KX’s reduced size and small footprint save valuable space.

VFI True On-Line Double-Conversion 3-Phase UPS System
Provides fully regulated sine wave AC output for critical telecom, network, security, financial, corporate and light industrial applications
+/-1% output voltage regulation in online and battery modes
High 0.9 power factor offers 10kVA/9kW output capacity, allowing for more connected devices
Selectable 380/400/415V output voltage
Wide input voltage window (305–478V) minimizes battery use and prolongs battery life

Reliable Battery Backup with Expandable Runtime
Supports half load for 10.5 min. and full load for 3.8 min.
Zero transfer time suitable for advanced network applications
Expandable runtime with optional external battery packs, such as Tripp Lite’s BP240V135
Restarts automatically after lengthy power outages

IGBT Inverter Technology
Produces output power with less than 2% THD to keep connected equipment functioning at its peak
Low <6% THDi input rating and advanced IGBT rectifier enables 1:1 Generator Sizing, eliminating costly oversizing requirements for generators, breakers and cables

Automatic and Manual Bypass
Increases system reliability
Allows maintenance without removing power from attached loads

ECO Mode
Operates at efficiency levels as high as 98.8% when input line conditions are favorable

SNMP/Web Capability
Slot for SNMP network interface and relay card for remote monitoring and control options
Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations

Communications Ports
DB9 and EPO ports offer local monitoring and shutdown options

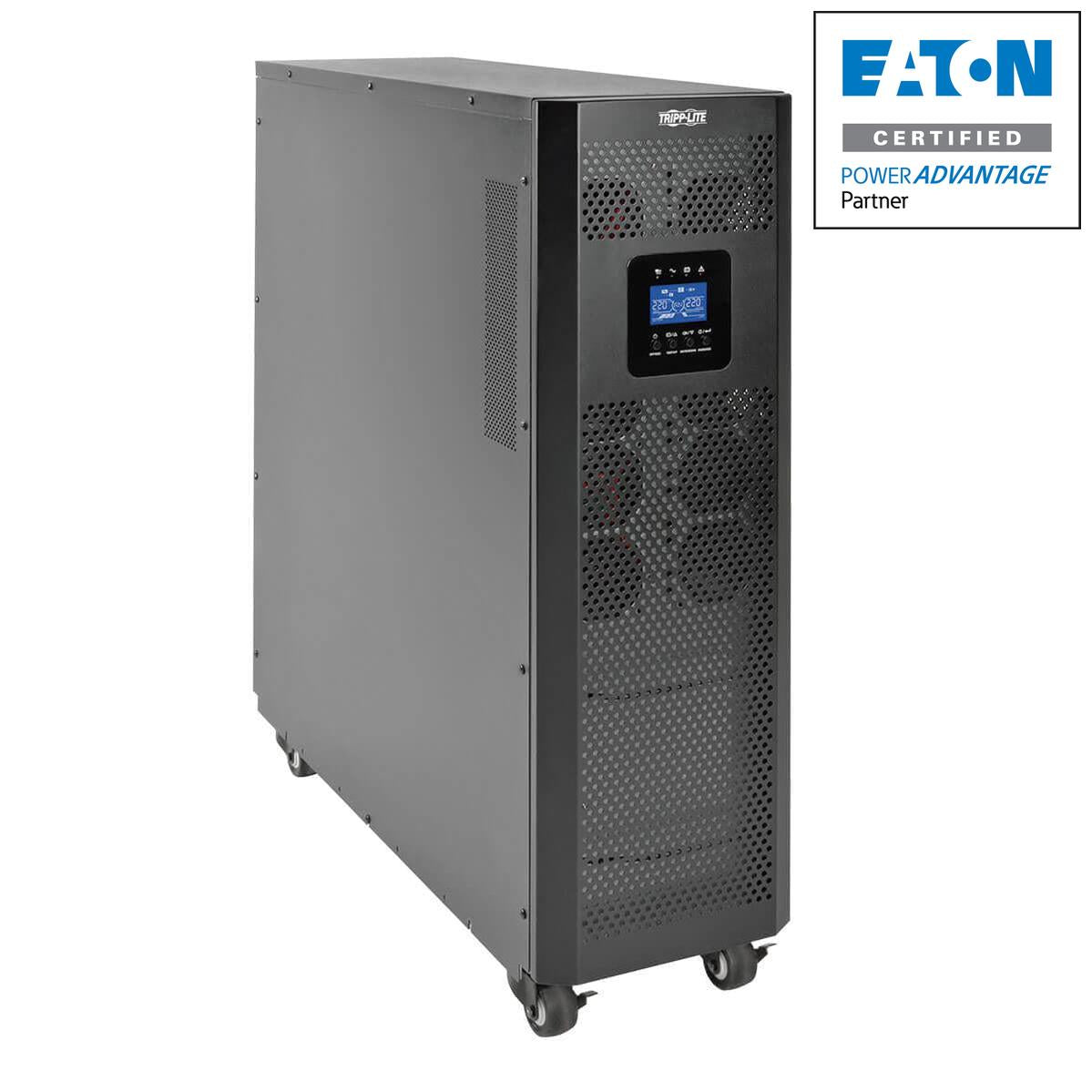

Small-Footprint Tower Design
Reduced-size black tower case saves valuable floor space
Matching external battery cabinets enable extended runtime options
