Tripp Lite by Eaton

Tripp Lite Srwf6U Smartrack 6U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet

Tripp Lite Srwf6U Smartrack 6U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet

SKU:SRWF6U

Regular price $459.71
Regular price Sale price $459.71
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

          SmartRack 6U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet

          Tripp Lite SRWF6U SmartRack 6U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet. Product colour: Black, Maximum weight capacity: 68 kg, Rack capacity: 6U. Size (imperial): 48.3 cm (19"), Width: 650.2 mm, Depth: 292.1 mm. Quantity per pack: 1 pc(s), Package width: 789.9 mm, Package depth: 430 mm. Products per pallet: 1 pc(s), Master (outer) case width: 789.9 mm, Master (outer) case length: 430 mm

          The SRWF6U SmartRack 6U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 lbs (68 kgs).

          Because the low-profile cabinet mounts vertically, it extends less than 12 inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels. In addition to 6U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.

          The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.

          The SRWF6U comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.

          Saves Valuable Workspace
          Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
          Houses EIA-standard 19 in. rack equipment in 6U of space
          Low-profile vertical-mount cabinet extends less than 12 inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels
          Also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep
          Maximum load capacity of 150 lbs (68 kgs)

          Keeps Important Equipment Secure
          Top panel and reversible front door lock securely to help prevent damage, tampering or theft
          Vented cabinet keeps equipment cool
          Convenient ports with removable covers allow cable routing through top and bottom

          Easy Enclosure and Equipment Installation
          Ships fully assembled for quick installation

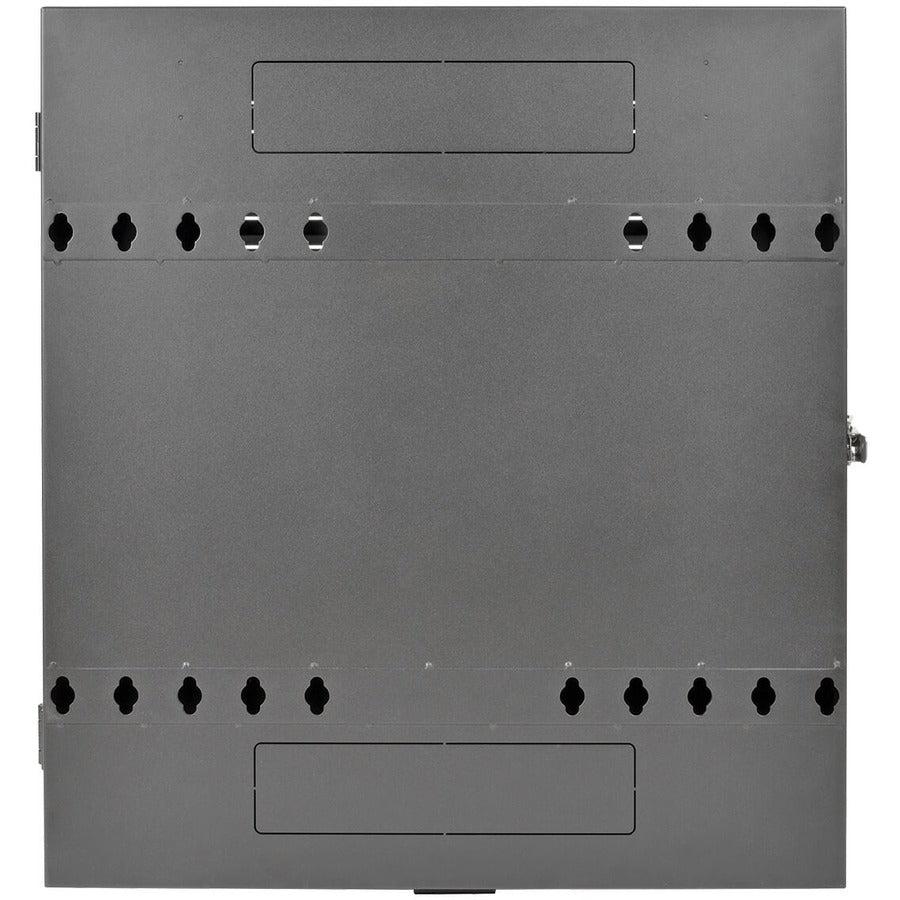

          Wall-mounting holes spaced 16 in. apart for standard wall stud placement
          Rails adjust easily—unscrew them, slide them to desired depth, and screw them back in
          Threaded mounting holes support M6 or 12-24 mounting
          Rack spaces marked for easy reference

          Meets Payment Card Industry Standards
          Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
