Tripp Lite by Eaton

Tripp Lite Srwallbrkt6U Smartrack 6U Vertical Wall-Mount Rack Bracket

Tripp Lite Srwallbrkt6U Smartrack 6U Vertical Wall-Mount Rack Bracket

SKU:SRWALLBRKT6U

Regular price $95.01
Regular price Sale price $95.01
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

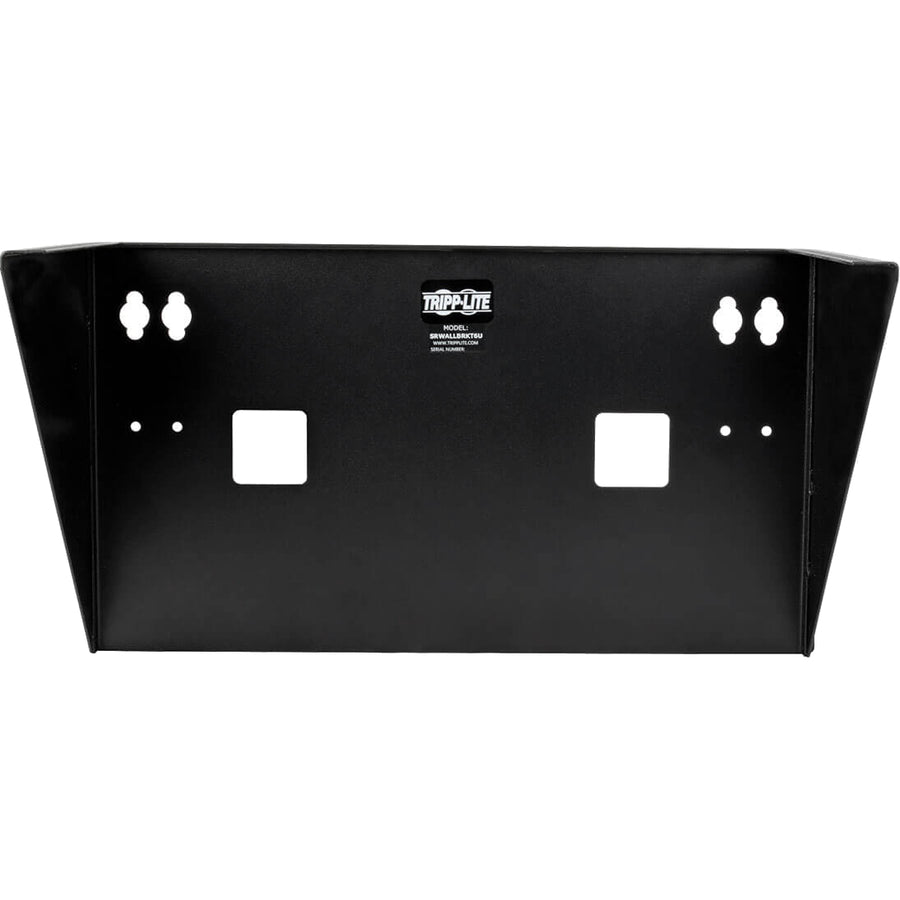

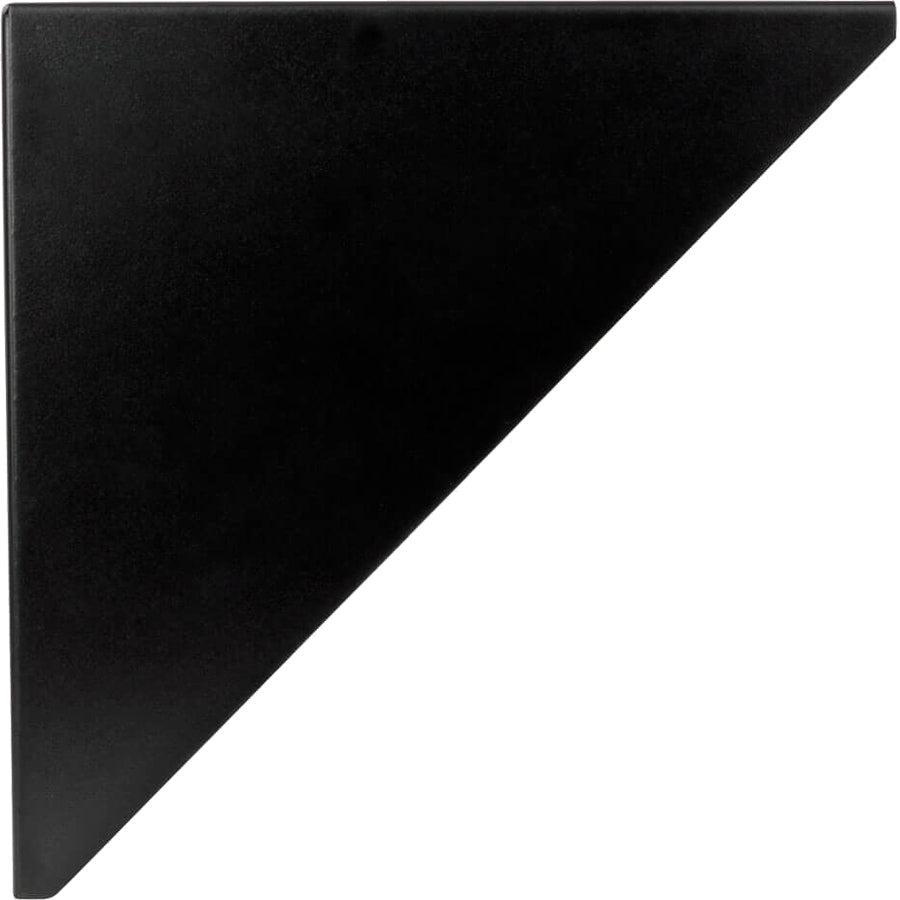

          SmartRack 6U Vertical Wall-Mount Rack Bracket

          Tripp Lite SRWALLBRKT6U SmartRack 6U Vertical Wall-Mount Rack Bracket. Type: Mounting bracket, Product colour: Black, Maximum weight capacity: 91 kg. Size (imperial): 48.3 cm (19"), Width: 500.1 mm, Depth: 283.2 mm. Quantity per pack: 1 pc(s), Package width: 555 mm, Package depth: 465.1 mm. Master (outer) case width: 570 mm, Master (outer) case length: 1130 mm, Master (outer) case height: 480.1 mm

          The SRWALLBRKT6U SmartRack® 6U Vertical Wall-Mount Rack Bracket is recommended for home offices and small businesses with rack-mount equipment that doesn't need to be secured and no room on the premises for a standard 19-inch server rack.

          Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 6U wall-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.

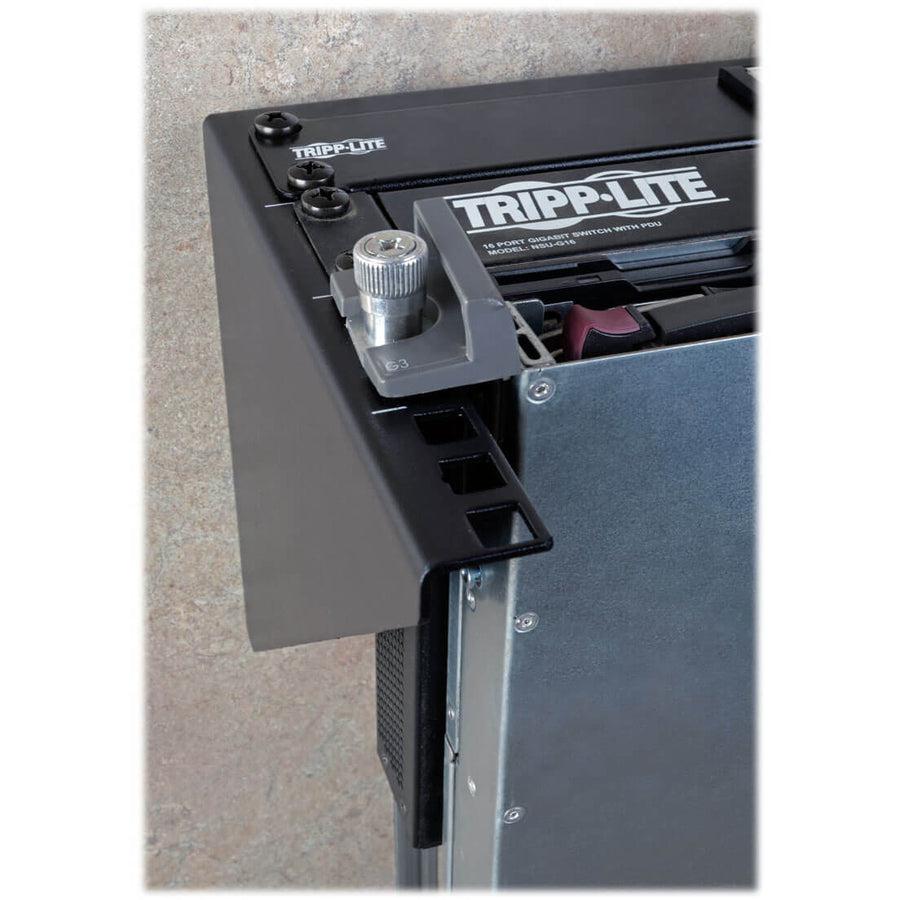

          Use the included hardware to attach your 6U rack-mount equipment, such as a network switch or UPS system, to the steel bracket's rails. Its maximum load capacity is 200 lbs (90.7 kgs). Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT6U is compatible with most EIA-standard 19-inch two-post rack equipment.

          6U Wall-Mount Bracket Allows Vertical Mounting in a Closet or Back Office
          Recommended for home offices and small businesses with no room for standard 19 in. rack
          Provides open, unrestricted access to equipment and cabling
          Maximum load capacity of 200 lbs (90.7 kgs)
          Cold-rolled steel construction with black powder-coated finish designed for long life
          Ships fully assembled for quick installation

          Attaches to the Wall with User-Supplied Hardware

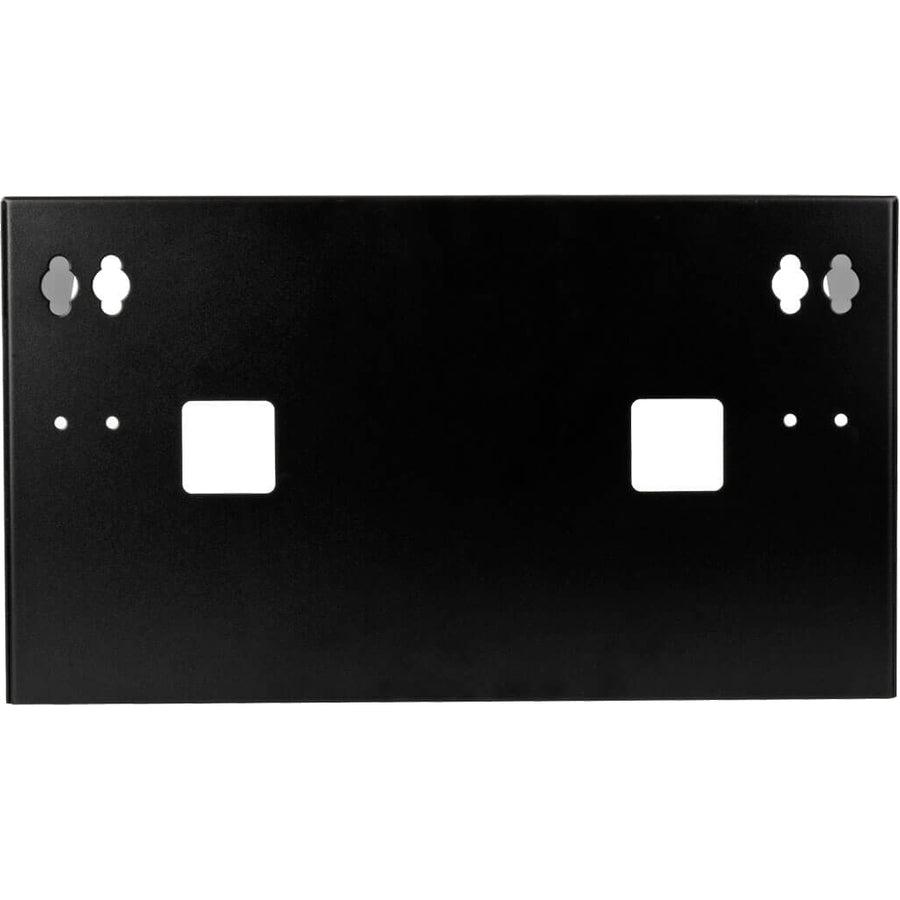

          Wall-mounting holes spaced 16 in. apart for standard wall stud placement
          Also mounts horizontally beneath a desk or workbench

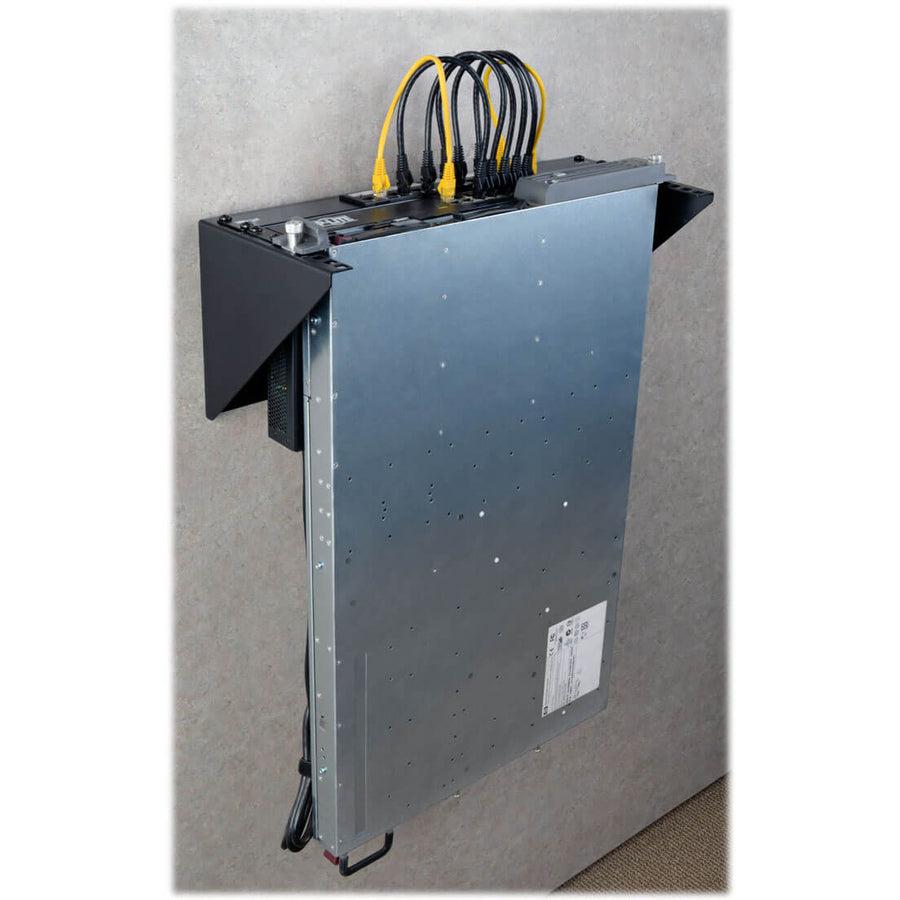

          Component hangs flush against the wall for unrestricted out-of-the-way access

          Compatible with EIA-Standard 19 in. 2-Post Rack Equipment
          Hardware included for mounting 6U rack equipment
          Rails support square-hole mounting

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SRWALLBRKT6U
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartRack
          Product Model SRWALLBRKT6U
          Product Name SmartRack 6U Vertical Wall-Mount Rack Bracket
          Product Type Mounting Bracket
          UPC 037332203212

          Physical Characteristics

          Color FamilyBlack
          Product ColorBlack
          Height11.2"
          Width19.7"
          Depth11.2"
          Weight (Approximate)8.38 lb

          Miscellaneous

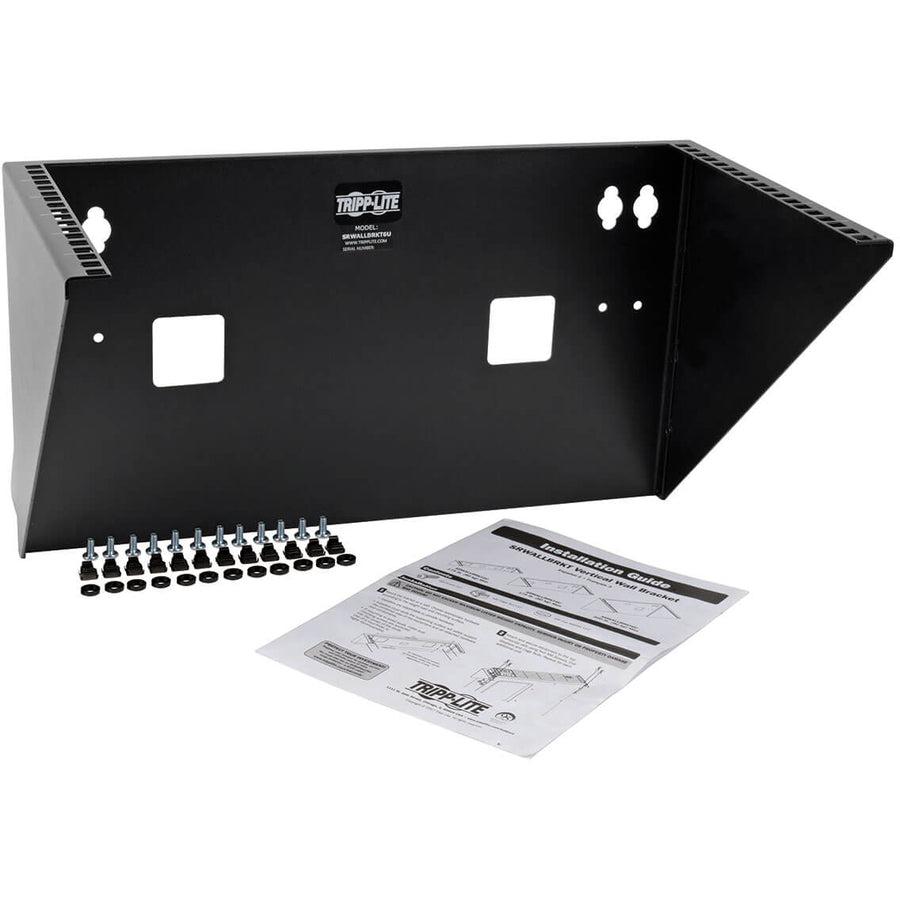

          Package Contents
          • SmartRack 6U Vertical Wall-Mount Rack Bracket
          • 12 x M6 Screws
          • 12 x M6 Cup Washers
          • 12 x M6 Cage Nuts
          • Installation Guide
          Environmentally FriendlyYes

          Warranty

          Limited Warranty5 Year
