Tripp Lite by Eaton

Tripp Lite Srw10Us Smartrack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Hinged Back

Tripp Lite Srw10Us Smartrack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Hinged Back

SKU:SRW10US

Regular price $368.79
Regular price Sale price $368.79
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

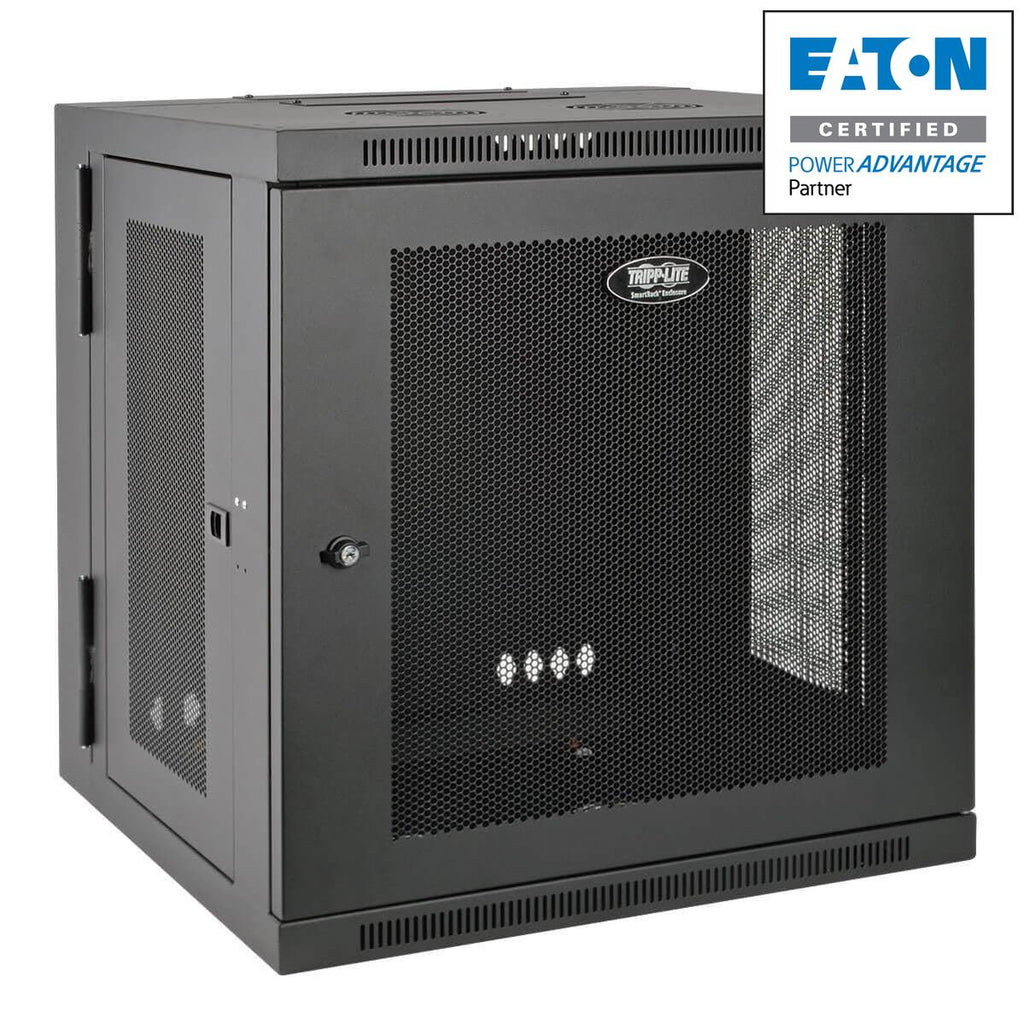

          SmartRack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Hinged Back

          Tripp Lite SRW10US SmartRack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Hinged Back. Type: Wall mounted rack, Rack capacity: 10U, Maximum weight capacity: 90.7 kg. Weight: 24.2 kg. Product colour: Black

          The SRW10US SmartRack 10U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lbs (90.7 kgs).

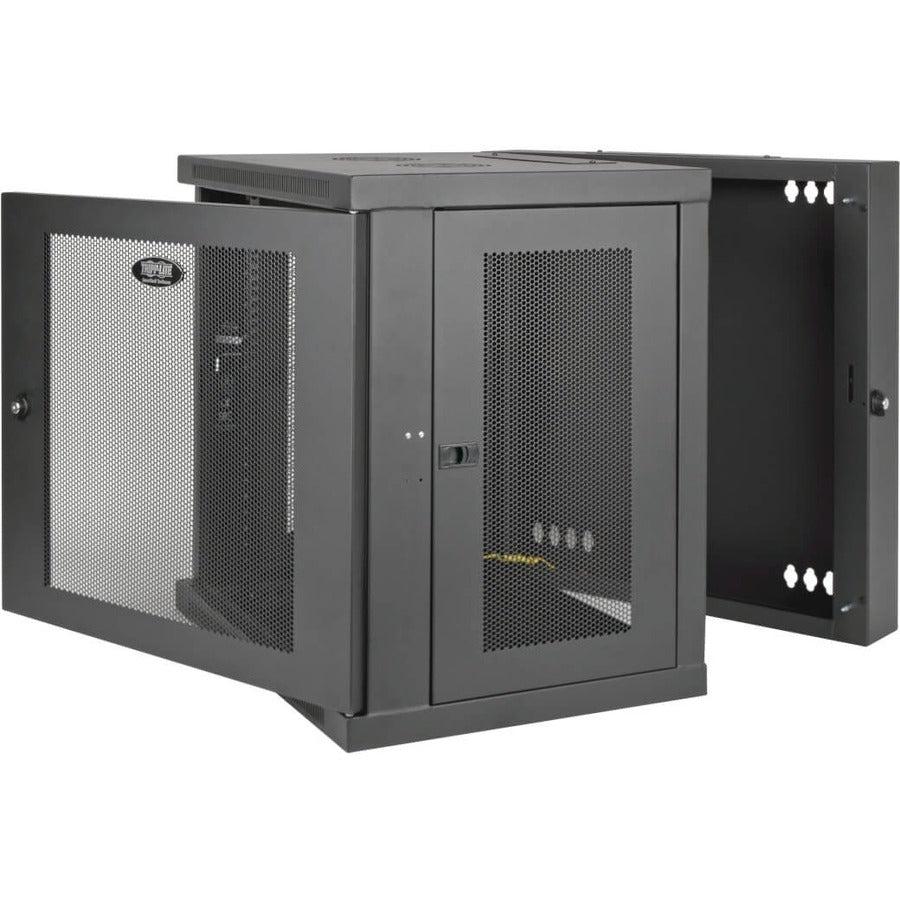

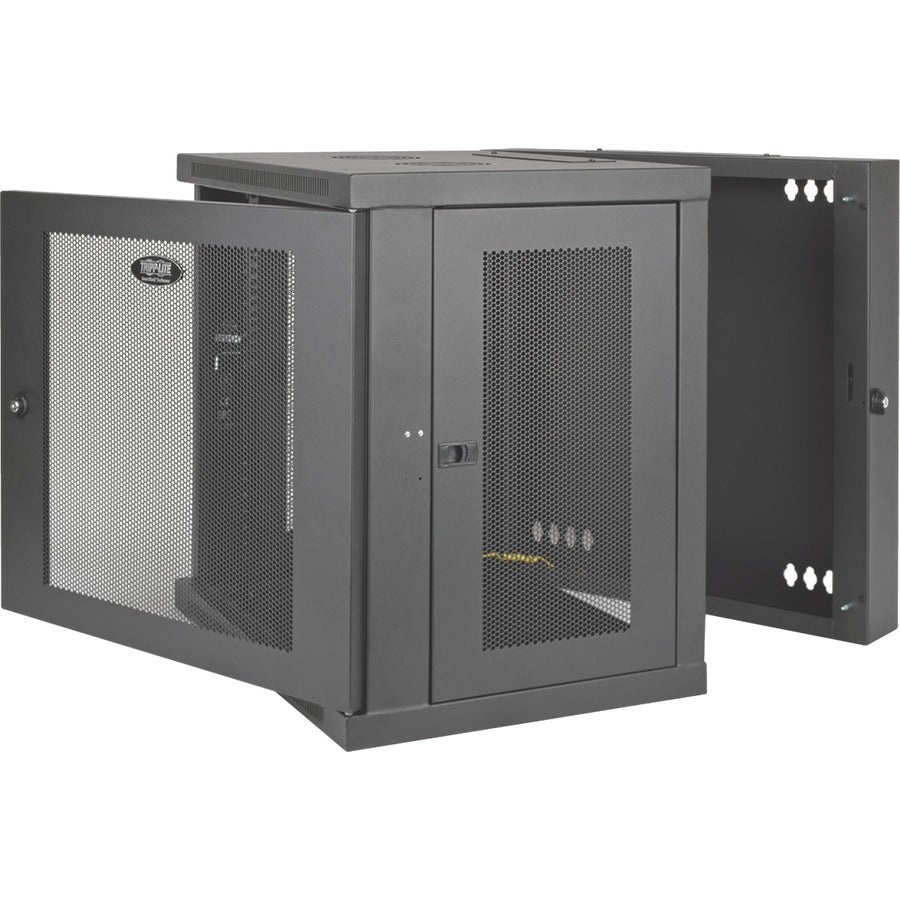

          The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

          The SRW10US comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.

          Saves Valuable Workspace
          Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
          Houses EIA-standard 19 in. rack equipment in 10U of space
          Maximum load capacity of 200 lbs (90.7 kgs)

          Hinged Cabinet for Convenient Access
          Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance
          Rotate cabinet 180° before mounting to open reversible doors left or right

          Keeps Important Equipment Secure
          Side panels and doors lock securely to help prevent damage, tampering or theft
          Vented panels allow generous airflow that keeps equipment cool
          Convenient ports with removable covers allow cable routing through top and bottom

          Easy Enclosure and Equipment Installation
          Ships fully assembled for quick installation
          Mounts to wall or rolls on floor with Tripp Lite's optional SRCASTER caster kit

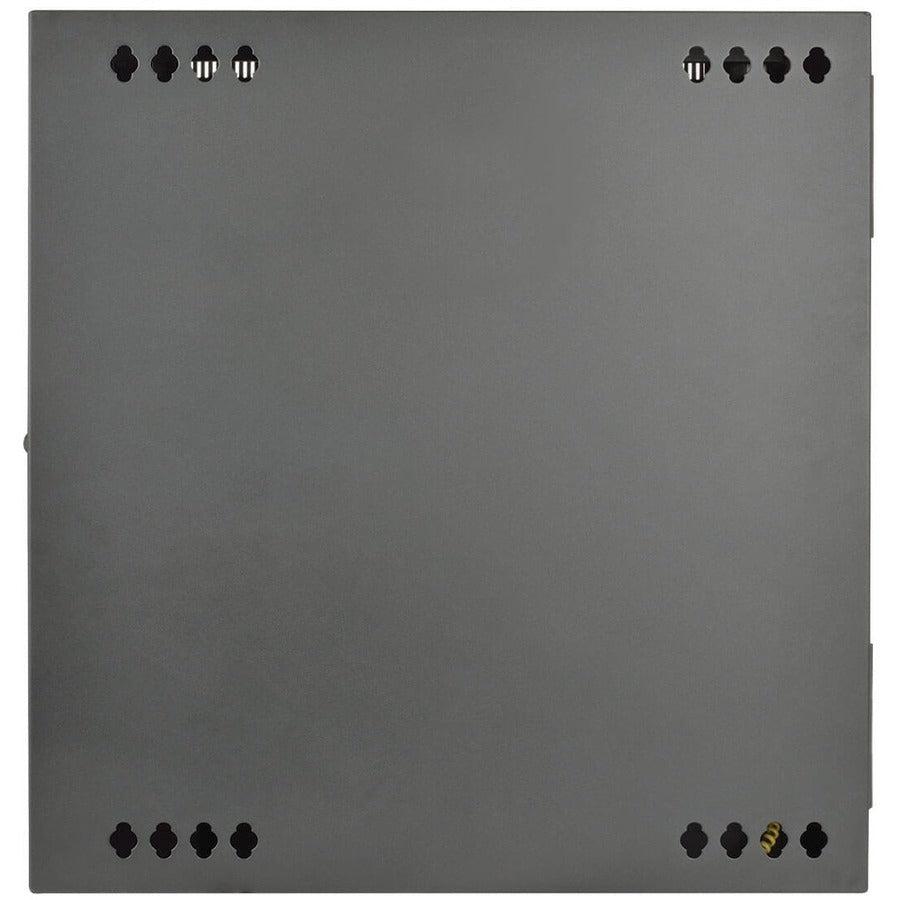

          Wall-mounting holes spaced 16 in. apart for standard wall stud placement
          Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 20.5 in. deep, such as network switches and patch panels

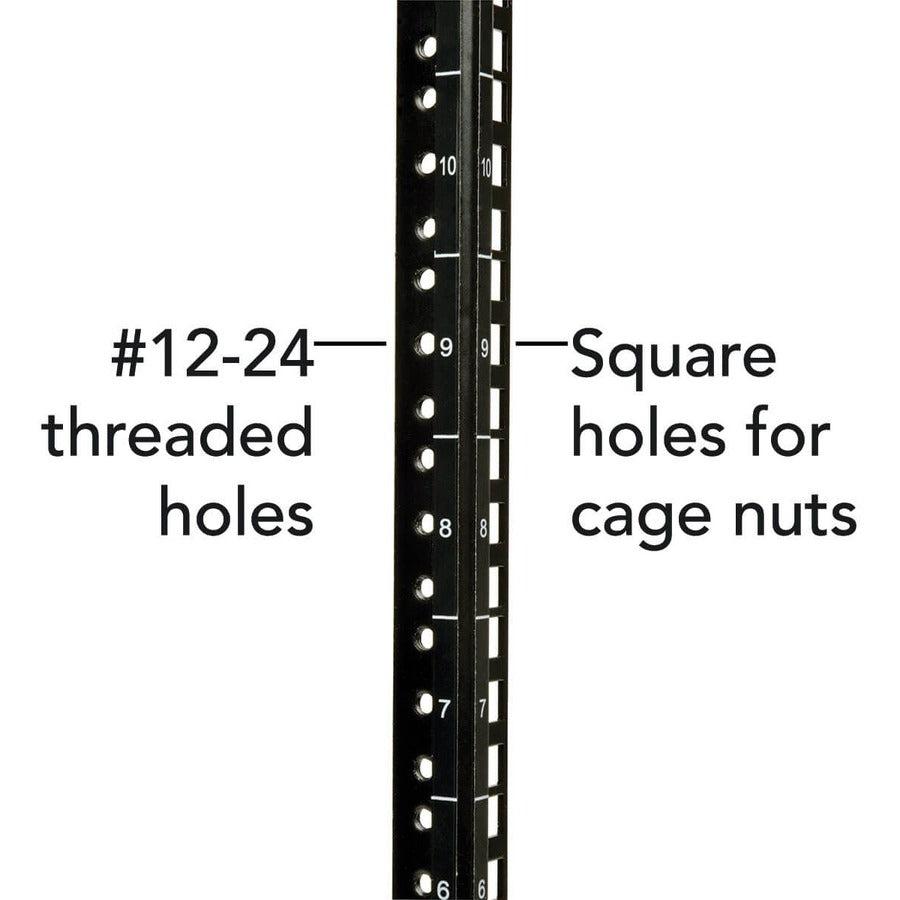

          Rails support square-hole or 12-24 threaded-hole mounting
          Rack spaces numbered for easy reference

          Meets Payment Card Industry Standards
          Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SRW10US
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartRack
          Product Model SRW10US
          Product Name SRW10US Wall mount Rack Enclosure Cabinet 10U 19"
          Product Type Rack Cabinet
          UPC 037332154828
          Height21.6"
          Width23.6"
          Depth21.5"
          Environmentally FriendlyYes

          Warranty

          Limited Warranty5 Year

          Customer Reviews

          Reviews 0
          Questions 0
          Ask your Question about this product
