Tripp Lite by Eaton

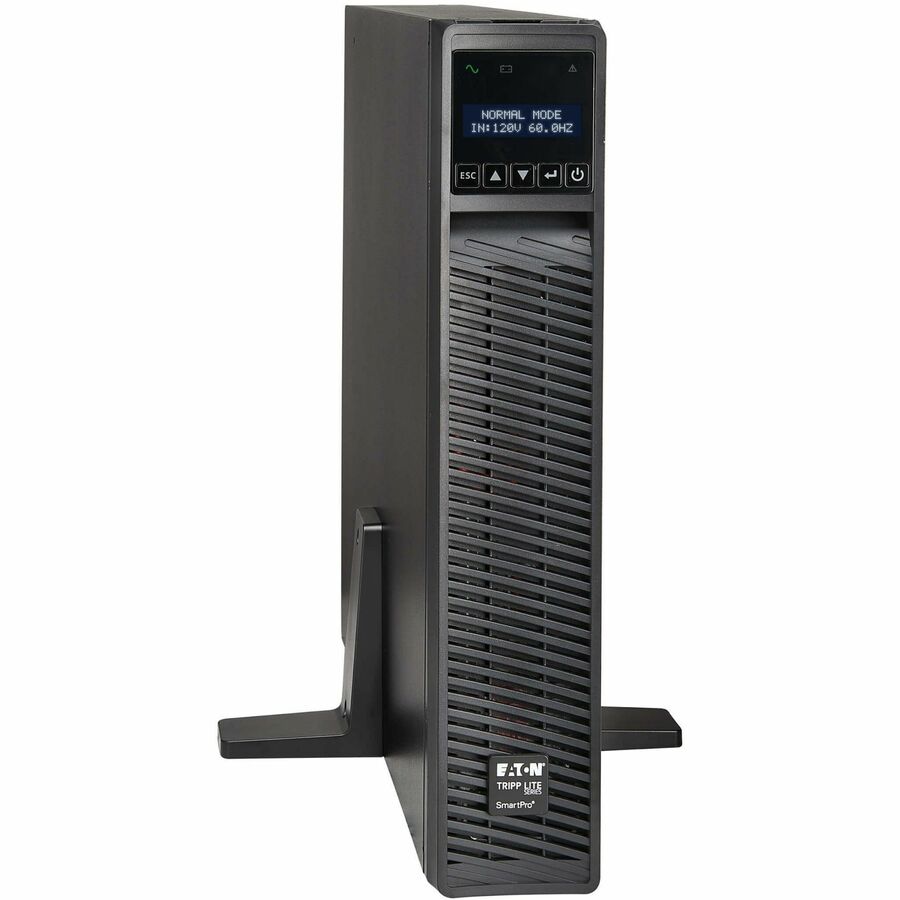

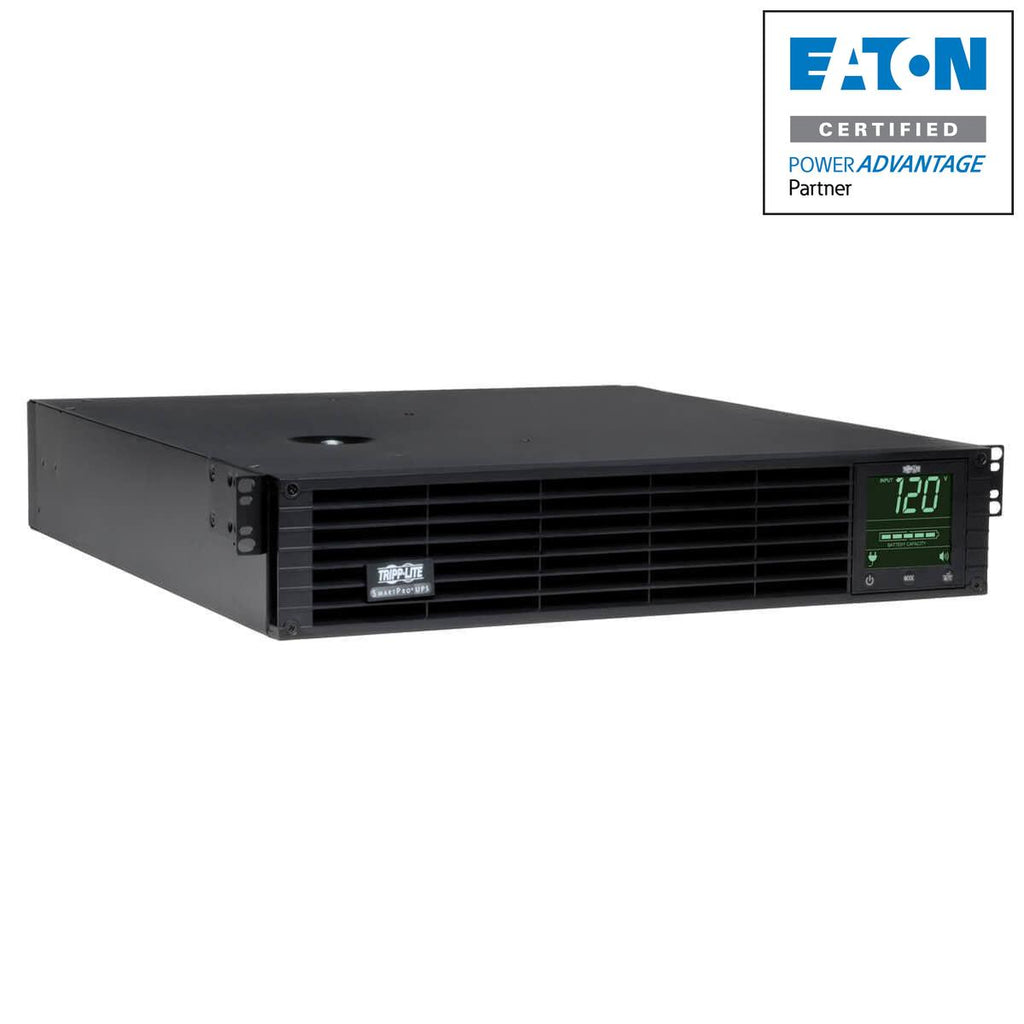

Tripp Lite Smartpro 120V 3Kva 2.25Kw Line Interactive Sine Wave Ups, Snmp, Webcard Pre-Installed, 2U Rack/Tower, Lcd, Usb, Db9 Serial

Tripp Lite Smartpro 120V 3Kva 2.25Kw Line Interactive Sine Wave Ups, Snmp, Webcard Pre-Installed, 2U Rack/Tower, Lcd, Usb, Db9 Serial

SKU:SMART3000RM2UN

Regular price $1,576.52
Regular price Sale price $1,576.52
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          SmartPro, 2250W, 3000VA, 120V AC, 60Hz, 30A, LCD, 570J

          Tripp Lite SmartPro 120V 3kVA 2.25kW Line Interactive Sine Wave UPS, SNMP, Webcard pre-installed, 2U Rack/Tower, LCD, USB, DB9 Serial. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2250 W. Power plug: NEMA L5-30P, AC outlets quantity: 9 AC outlet(s). Typical backup time at full load: 3.5 min, Typical backup time at half load: 10 min, Battery recharge time: 4.5 h. Form factor: Rackmount, Product colour: Black, Housing material: Steel. Width: 439.9 mm, Depth: 494.3 mm, Height: 87.1 mm

          Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and pre-installed SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

          - Tripp Lite SMART3000RM2UN line interactive 2U rack/tower UPS with 3000VA / 3kVA capacity (1600W maximum load with external battery packs)
          - Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V
          - NEMA L5-30P input plug; 8 NEMA 5-15/20R and 1 L5-30R output receptacles, Two independently switchable output load banks
          - Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
          - High 98% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
          - Internal batteries offer 10 minutes at 50% load (1125W) and 3.5 minutes at 100% load (2250W)
          - Extended runtime is available with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs (max output de-rates to 1600 watts with external batteries)
          - External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
          - Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
          - Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
          - LCD interface also supports a number of advanced user setup and operating preferences
          - Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
          - Built-in USB, RS-232 and pre-installed SNMPWEBCARD accessory
          - HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
          - Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SMART3000RM2UN
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Series SmartPro
          Product Model SMART3000RM2UN
          Product Name SMART3000RM2UN UPS System with Pre-installed WEBCARDLX
          Product Type Line-interactive UPS
          UPC 037332177902
          Height3.5"
          Width17.5"
          Depth19.5"
          Weight (Approximate)62.80 lb

          Miscellaneous

          Package Contents
          • SMART3000RM2UN UPS System with Pre-installed WEBCARDLX
          • PowerAlert Software CD
          • USB Cable
          • Serial Cable
          • EPO Cable
          • 4 Post Installation Kit
          • Instruction Manual

          Warranty

          Limited Warranty3 Year
