Tripp Lite

Tripp Lite Pdumnv20Hvlx 3.7Kw Single-Phase 208/230V Monitored Pdu - Lx Platform, 20 C13, 4 C19

SKU: PDUMNV20HVLX

Regular price $413.49
Regular price Sale price $413.49
Sale Sold out
Shipping calculated at checkout.
          Description
          Que. & Ans.
          Reviews

          Description :

          3.7kW Single-Phase 208/230V Monitored PDU - LX Platform, 20 C13, 4 C19 Outlets, C20 Input with L6-20P Adapter, 0U 1778mm Height, TAA

          Tripp Lite PDUMNV20HVLX 3.7kW Single-Phase 208/230V Monitored PDU - LX Platform, 20 C13, 4 C19 Outlets, C20 Input with L6-20P Adapter, 0U 1778mm Height, TAA. PDU types: Monitored, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: NEMA L6-20P. Cable length: 3.05 m. Monitoring: Current, Power, Supported network protocols: IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, NTP. Nominal input voltage: 208-230 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz

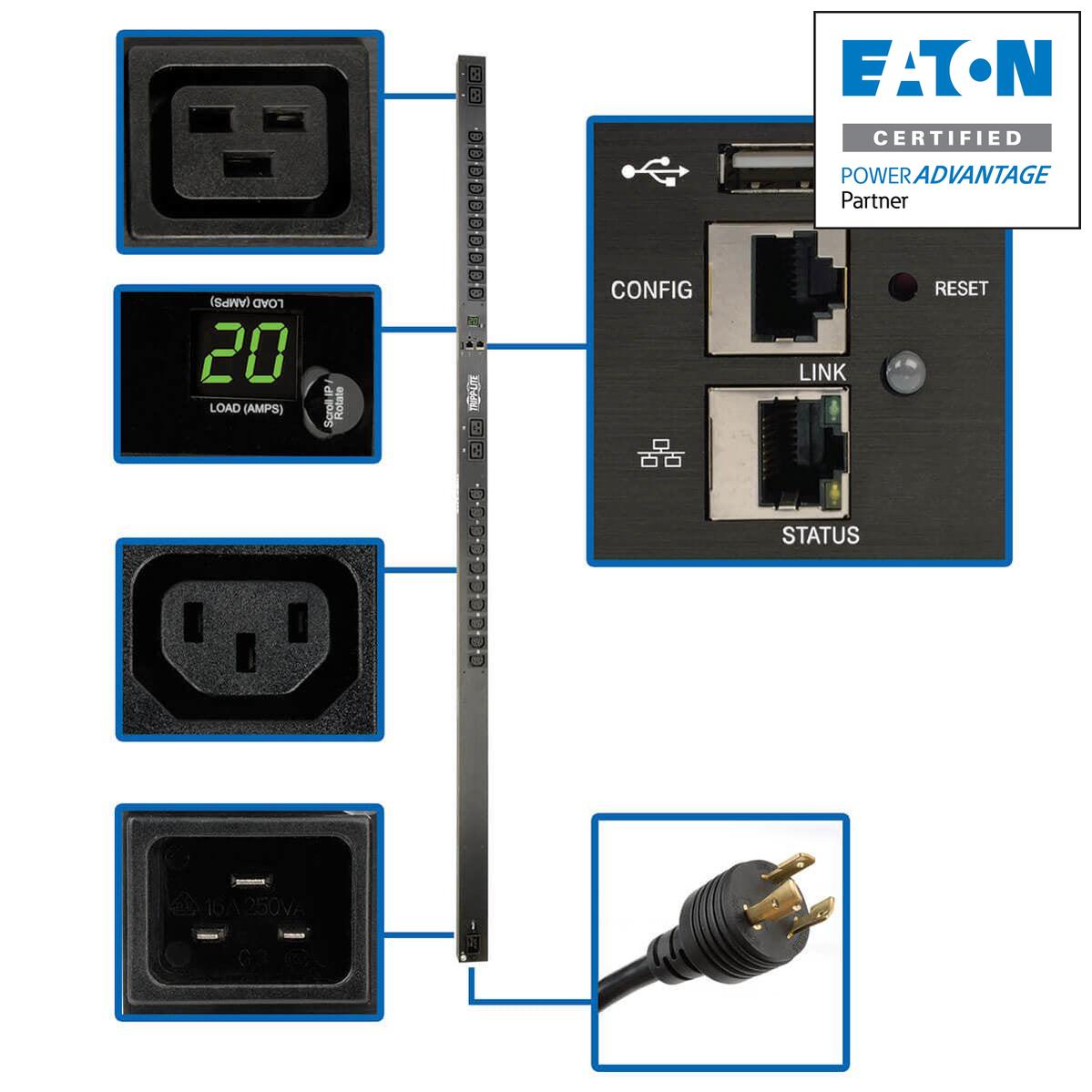

          The PDUMNV20HVLX 3.7kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for your IT or industrial application, the 0U PDU features 24 outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. The C20 inlet is compatible with a wide variety of user-supplied power cords for connecting to an AC source, generator or protected UPS. A detachable 10-ft. (3.05 m) cord with NEMA L6-20P plug is included.

          The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

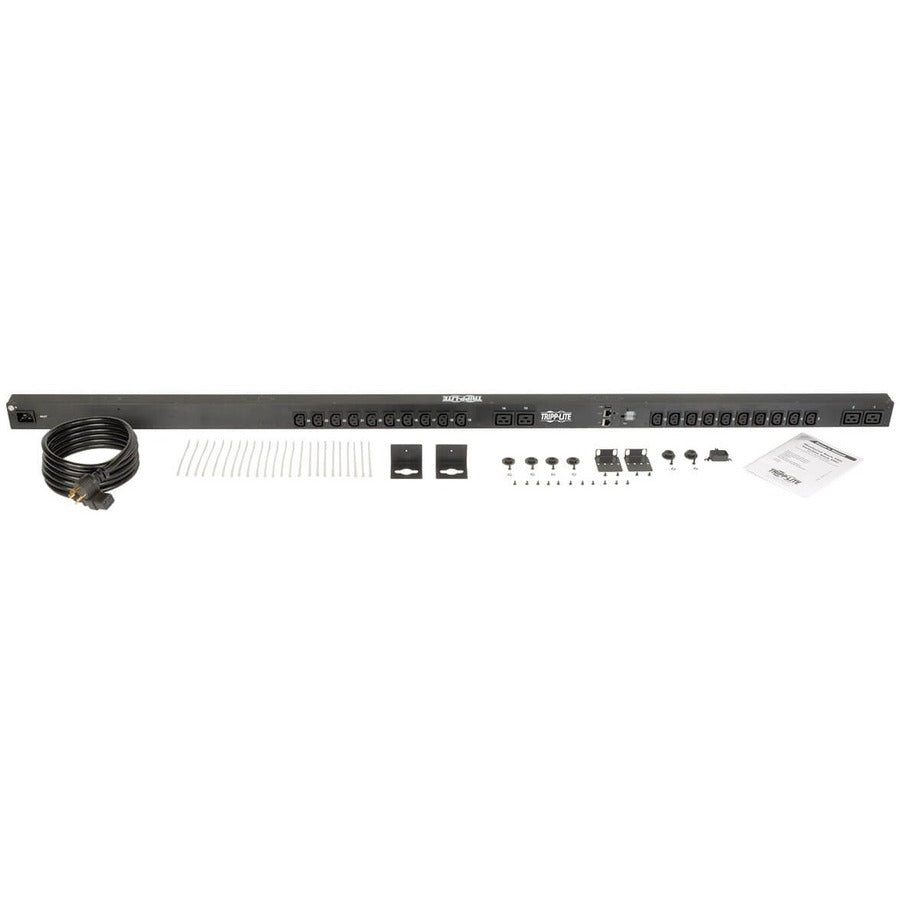

          A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

          Distributes and Monitors Network-Grade AC Power
          3.3-3.7kW 208/230V 16A monitored PDU with single-phase input

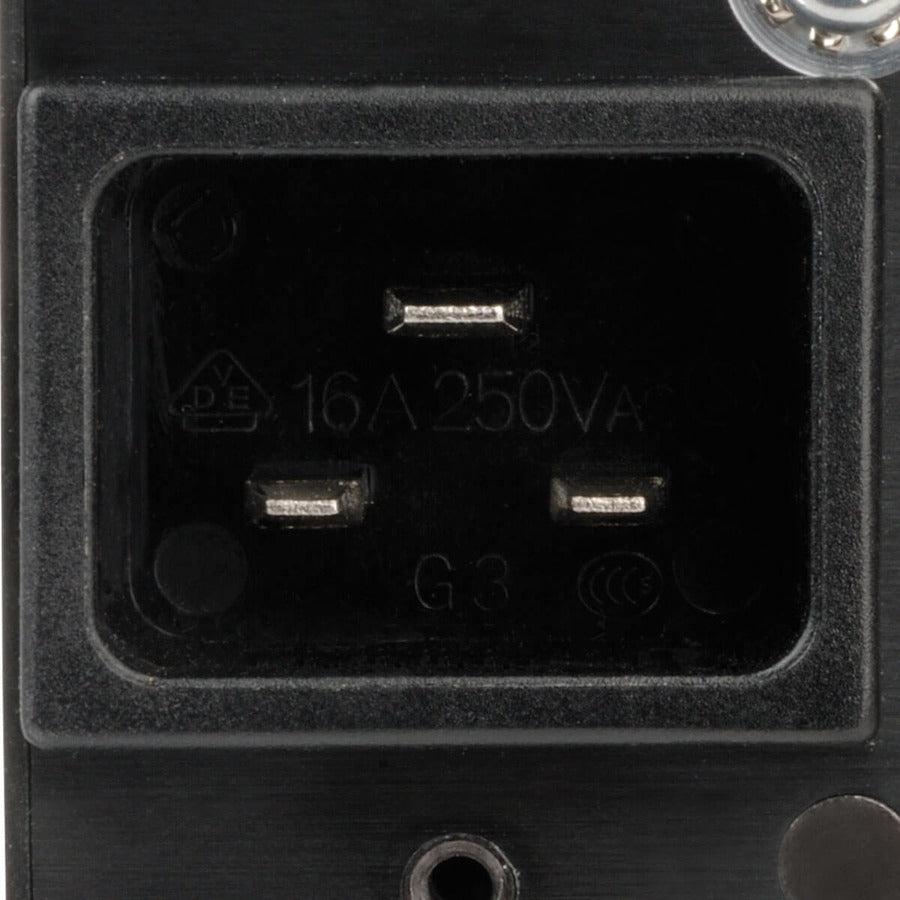

          C20 inlet compatible with wide variety of user-supplied power cords

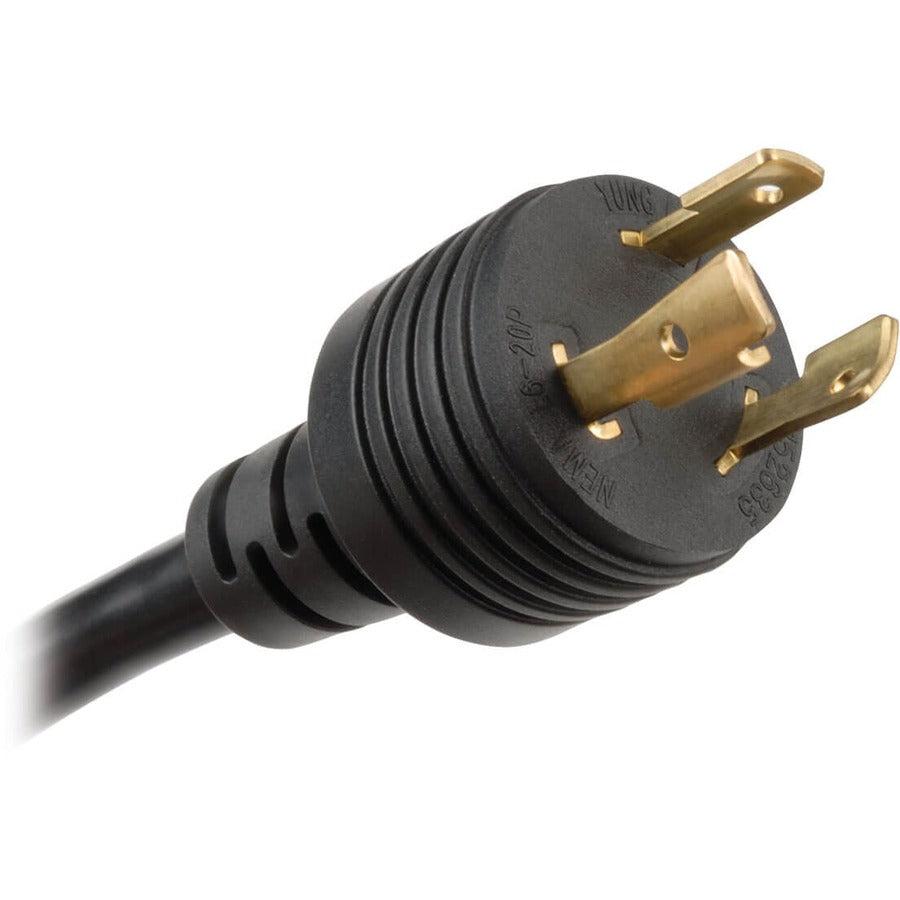

          Detachable 10-ft. (3.05 m) cord with NEMA L6-20P plug included
          Firmware upgrades support future product enhancements

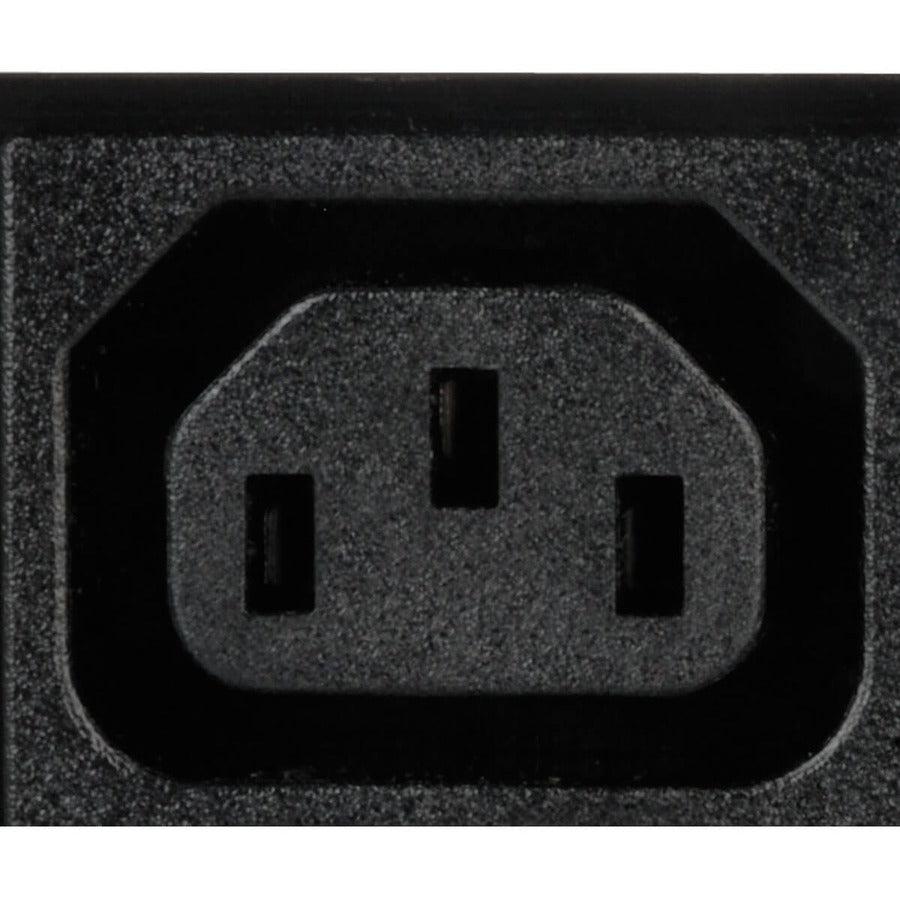

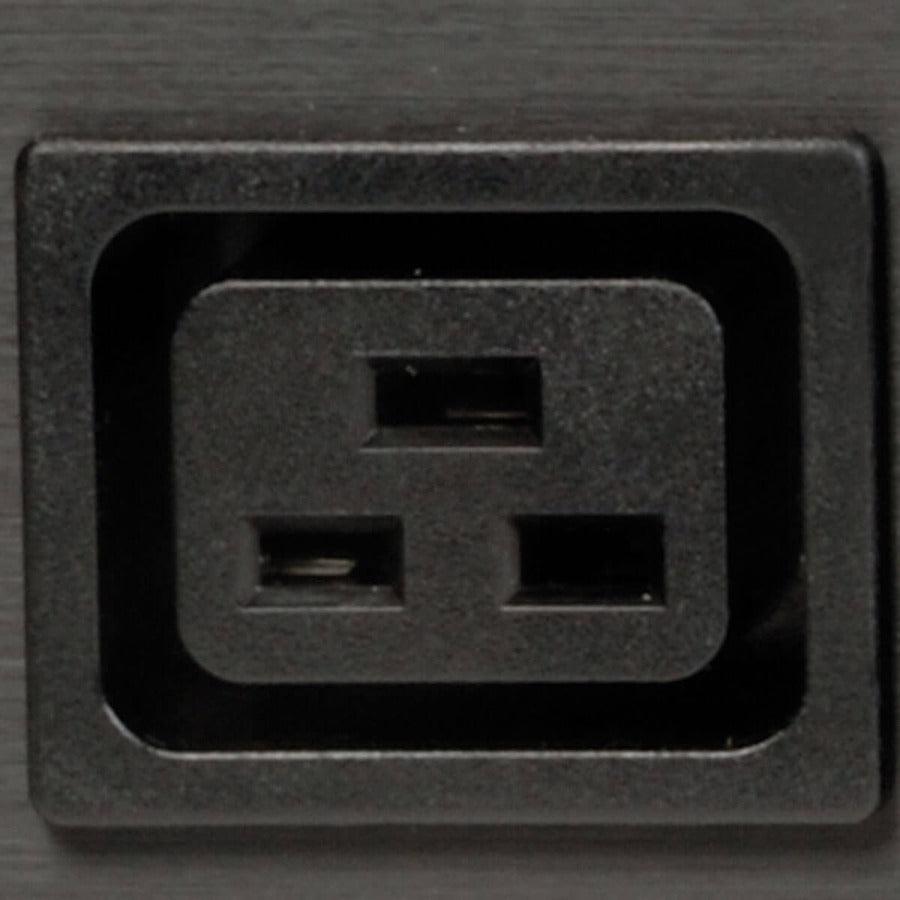

          20 C13 and 4 C19 Outlets Distribute AC Power
          Included plug-lock inserts prevent cables from becoming accidentally disconnected

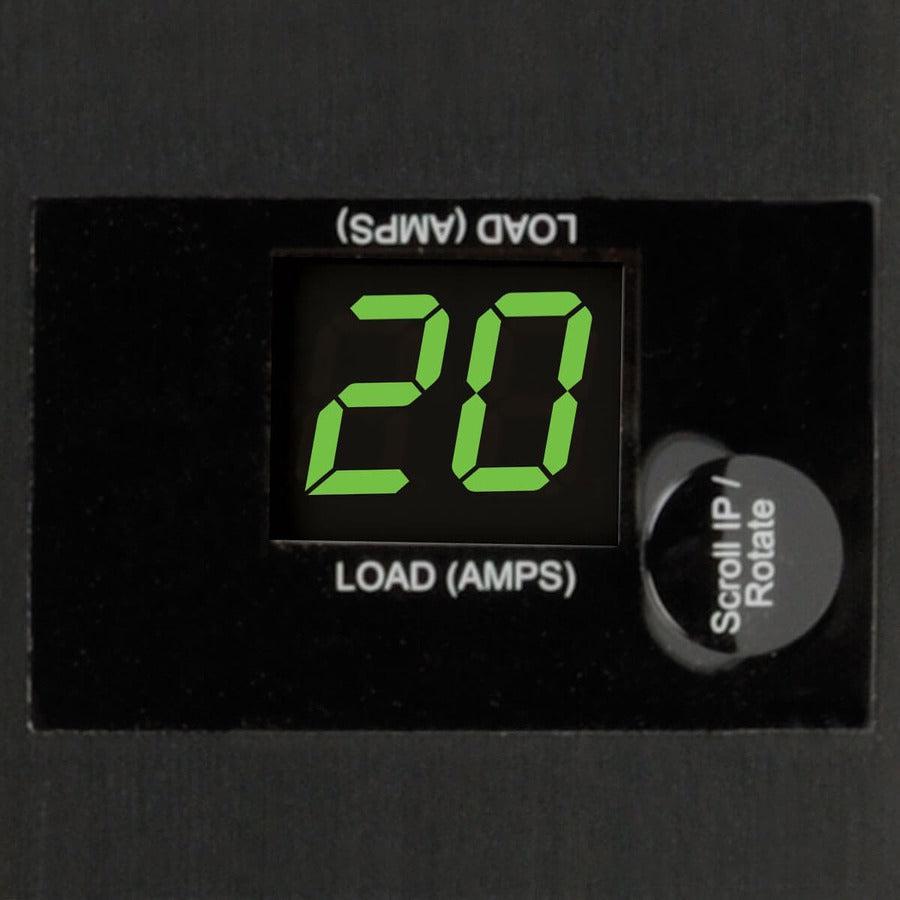

          Digital Ammeter
          Reports total connected equipment load in real time
          Supports IP-address self-ID
          Rotates 180° for easy reading at either angle

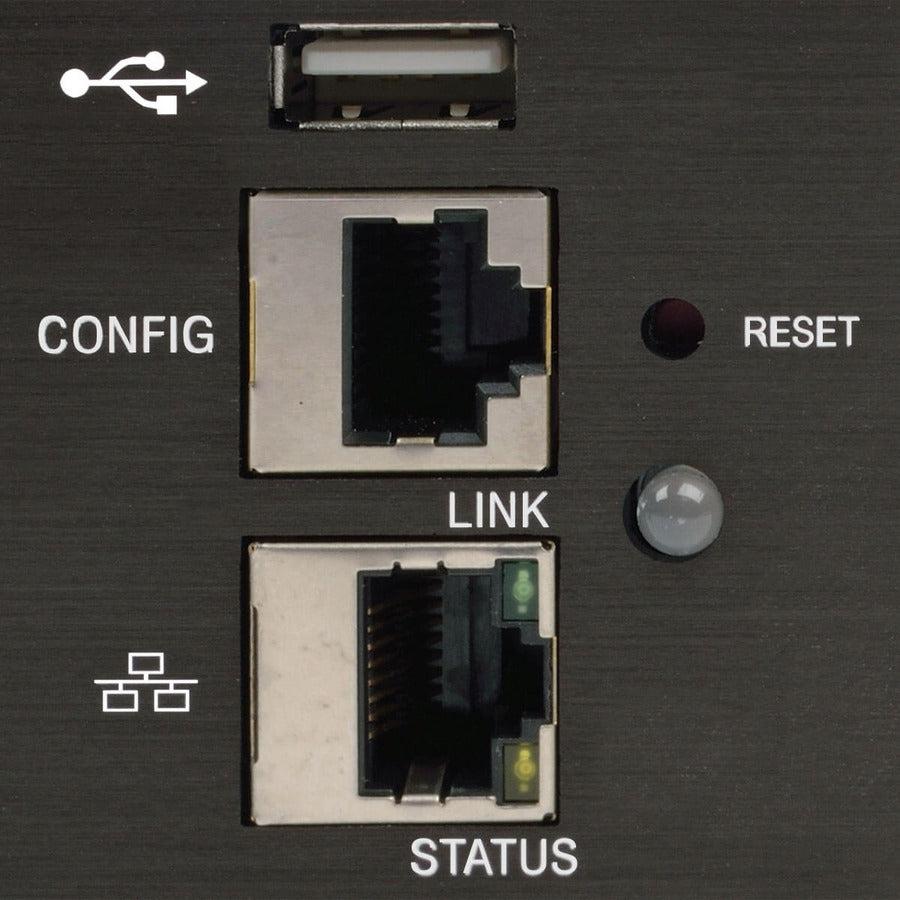

          Built-In LX Platform Interface
          Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
          PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
          Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
          Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
          Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
          No Java required

          Broad Communications Compatibility
          Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
          Supports automatic and manual assignment of IP address

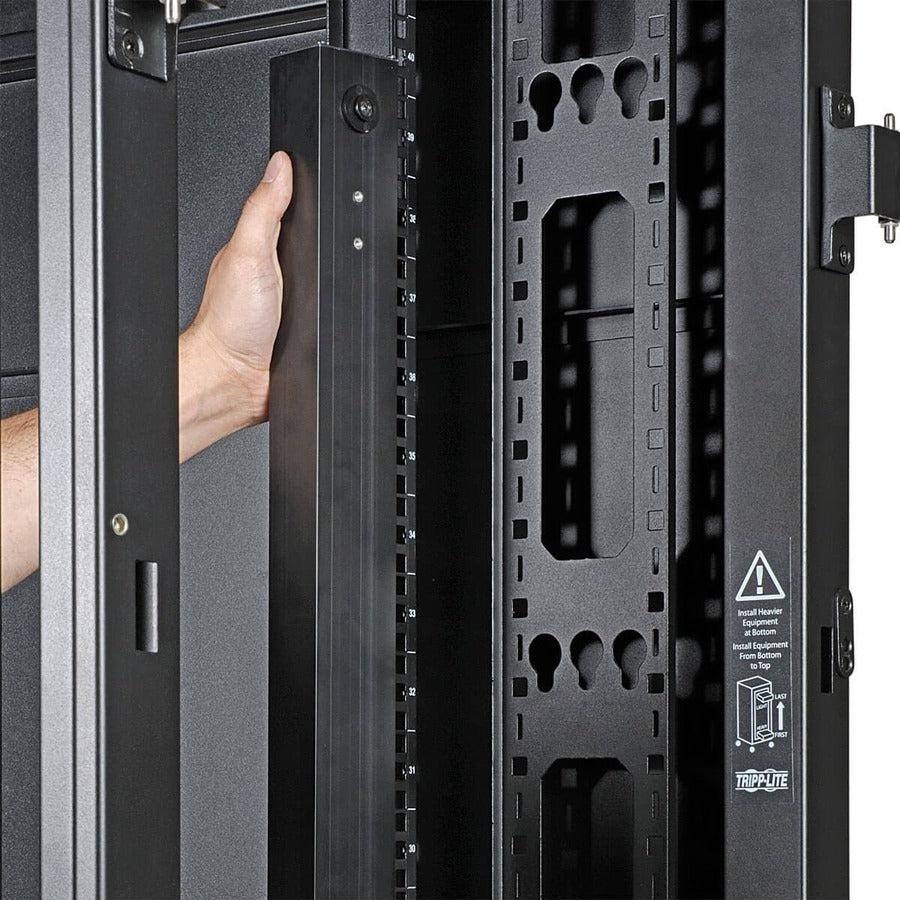

          Easy 0U Installation in EIA-Standard 19 in. Racks
          Mounts vertically using included toolless buttons or rack-mounting brackets
          Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

          TAA-Compliant
          Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
