Tripp Lite Pdumnh20Hv 3.7Kw Single-Phase 208/230V Monitored Pdu - Lx Platform, 8 C13 Outlets, C20 Input With L6-20P Adapter, 2.4M Cord, 1U Rack-Mount

Description :

3.7kW Single-Phase 208/230V Monitored PDU - LX Platform, 8 C13 Outlets, C20 Input with L6-20P Adapter, 2.4m Cord, 1U Rack-Mount

Tripp Lite PDUMNH20HV 3.7kW Single-Phase 208/230V Monitored PDU - LX Platform, 8 C13 Outlets, C20 Input with L6-20P Adapter, 2.4m Cord, 1U Rack-Mount. PDU types: Monitored, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Input connection type: NEMA L6-20P, IEC-320 C20. Cable length: 2.6 m, Certification: UL 60950-1 (USA, Canada), CE (International), Class A (Emissions), NOM (Mexico). Nominal input voltage: 200-240 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Width: 444.5 mm, Depth: 375.9 mm, Dimensions (WxDxH): 444 x 376 x 44 mm

16/20A 230/208V Monitored Power Distribution Unit / PDU (agency derated to 16A continuous)
C20 inlet; 8ft / 2.4m C20 cable and NEMA L6-20P plug adapter included
1U horizontal rackmount installation

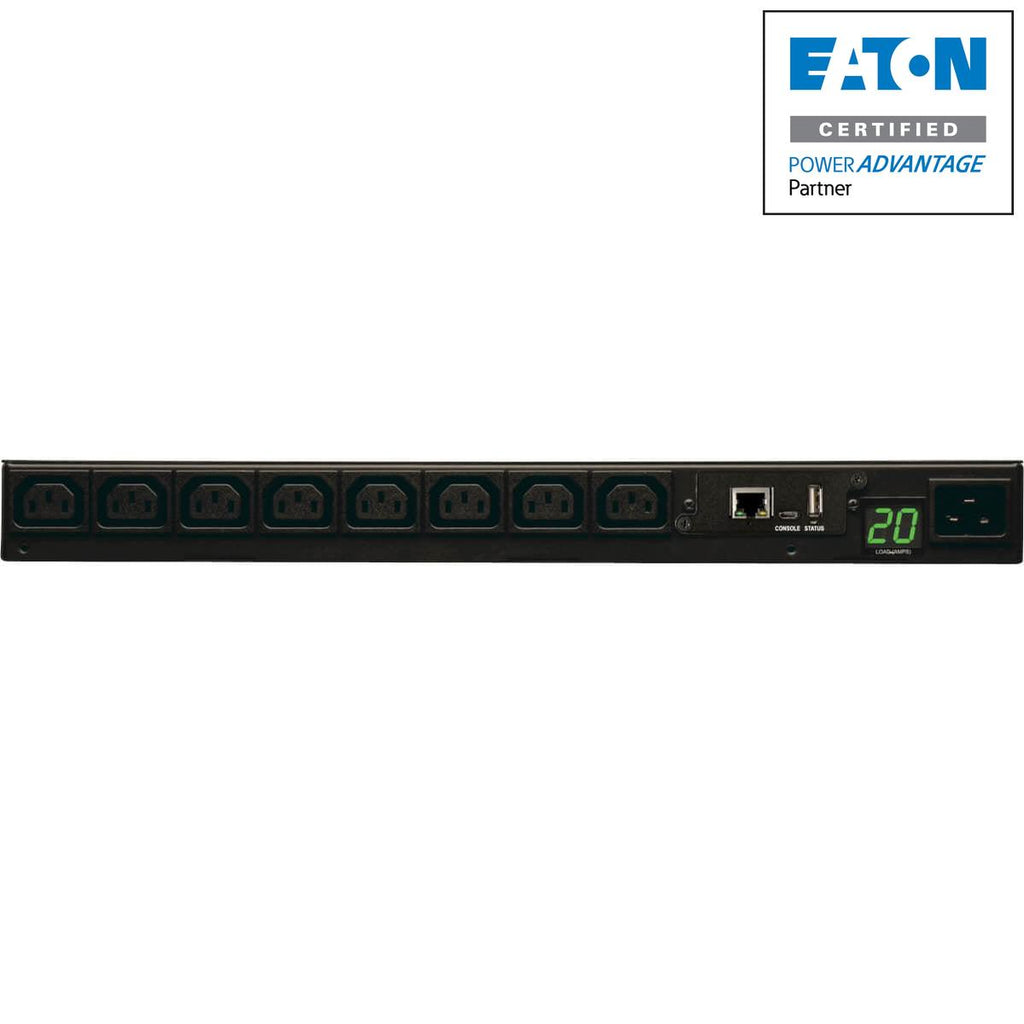

8 C13 outlets
Lighted display reports output power consumption in amps
Built-in network interface reports voltage, frequency and PDU loading via network or secure web browser interface with options for user specified alarm and notification thresholds
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements.
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation

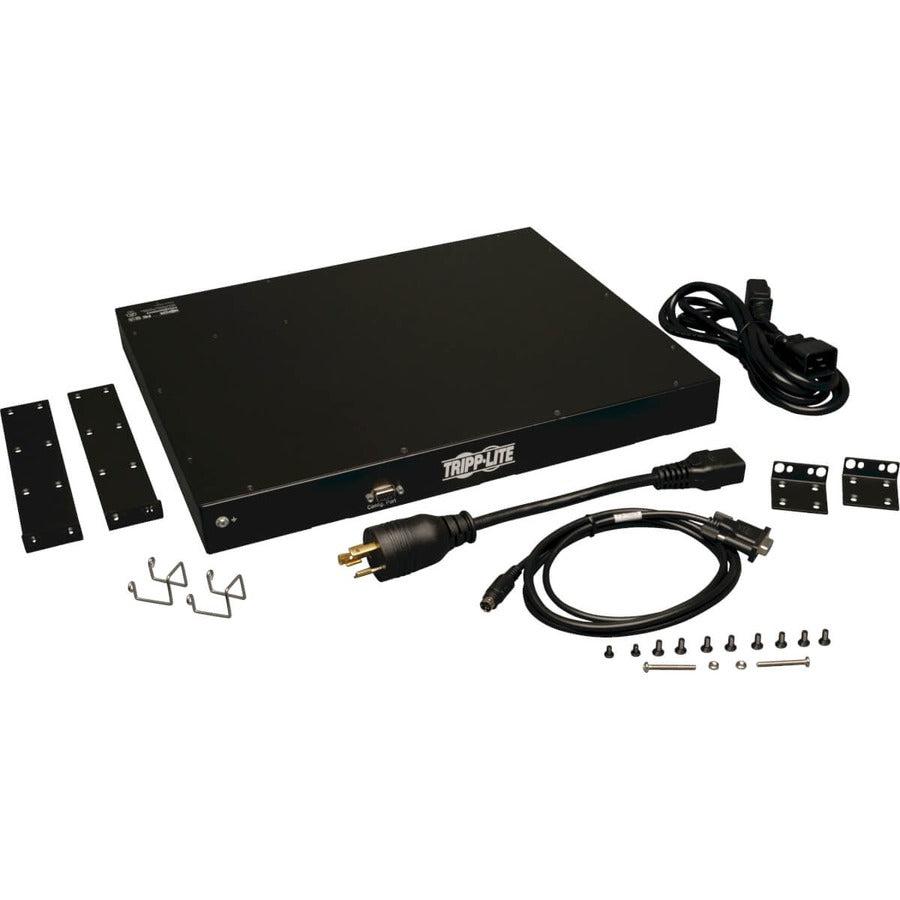

Included cord retention brackets keep vital network equipment plugged in and continuously powered
TAA Compliant for GSA Schedule purchases
