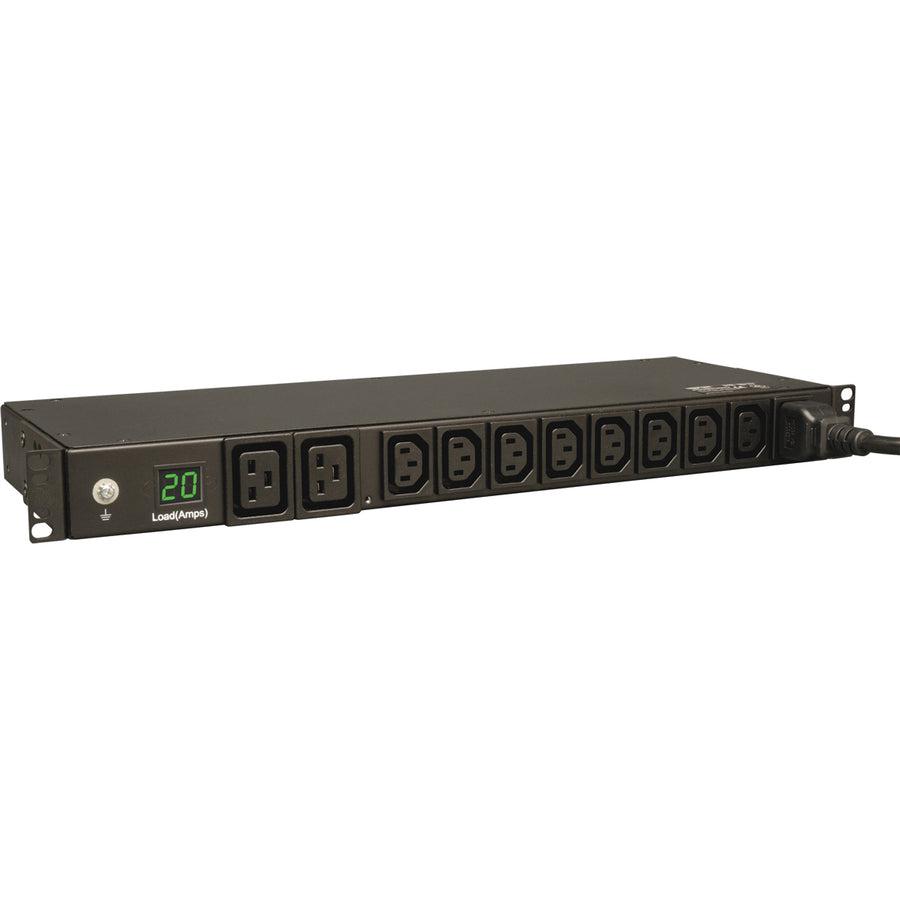

Tripp Lite Pdumh20Hv 3.7Kw Single-Phase Local Metered Pdu, 208/230V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12 Ft. (3.66 M) Cord, 1U Rack-Mount, Taa

Description :

3.7kW Single-Phase Local Metered PDU, 208/230V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA

Tripp Lite PDUMH20HV 3.7kW Single-Phase Local Metered PDU, 208/230V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA. PDU types: Metered, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 10 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Input connection type: NEMA L6-20P, IEC-320 C20. Cable length: 3.7 m, Certification: UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), CE (IEC 60950). Nominal input voltage: 200-240 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Width: 444.5 mm, Depth: 165.1 mm, Dimensions (WxDxH): 444 x 165 x 28.7 mm

16/20A single phase 208/230V Local Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)

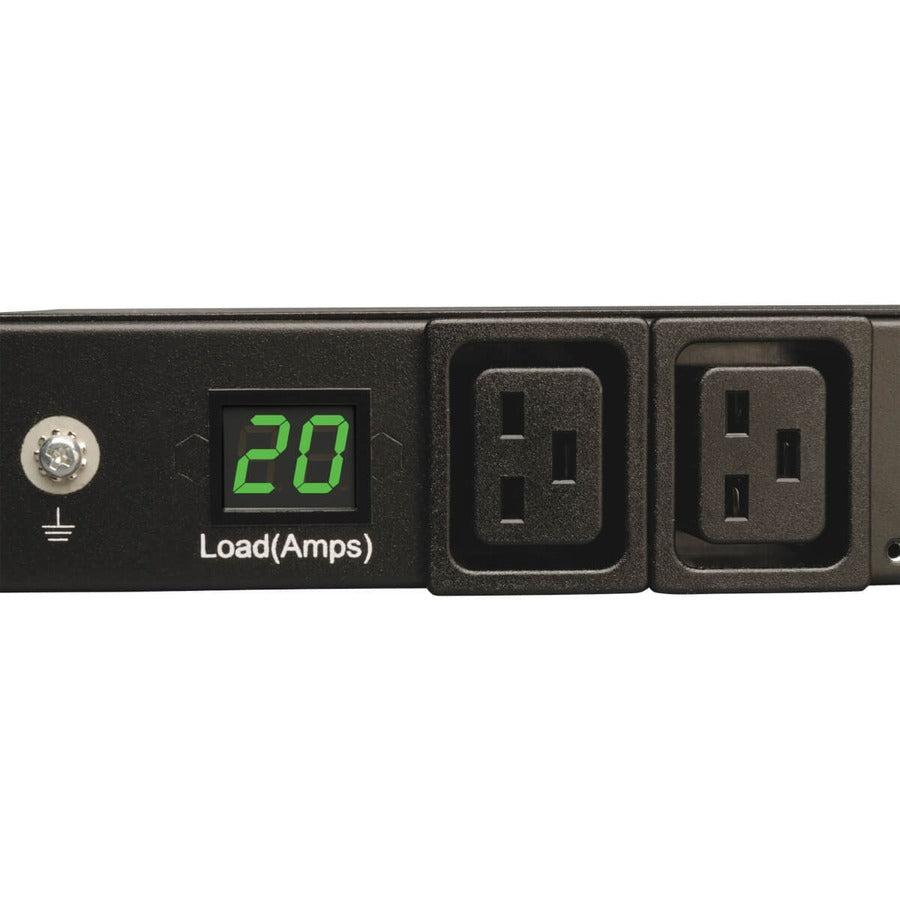

Built-in 2 digit visual meter continuously reports PDU load level in amps

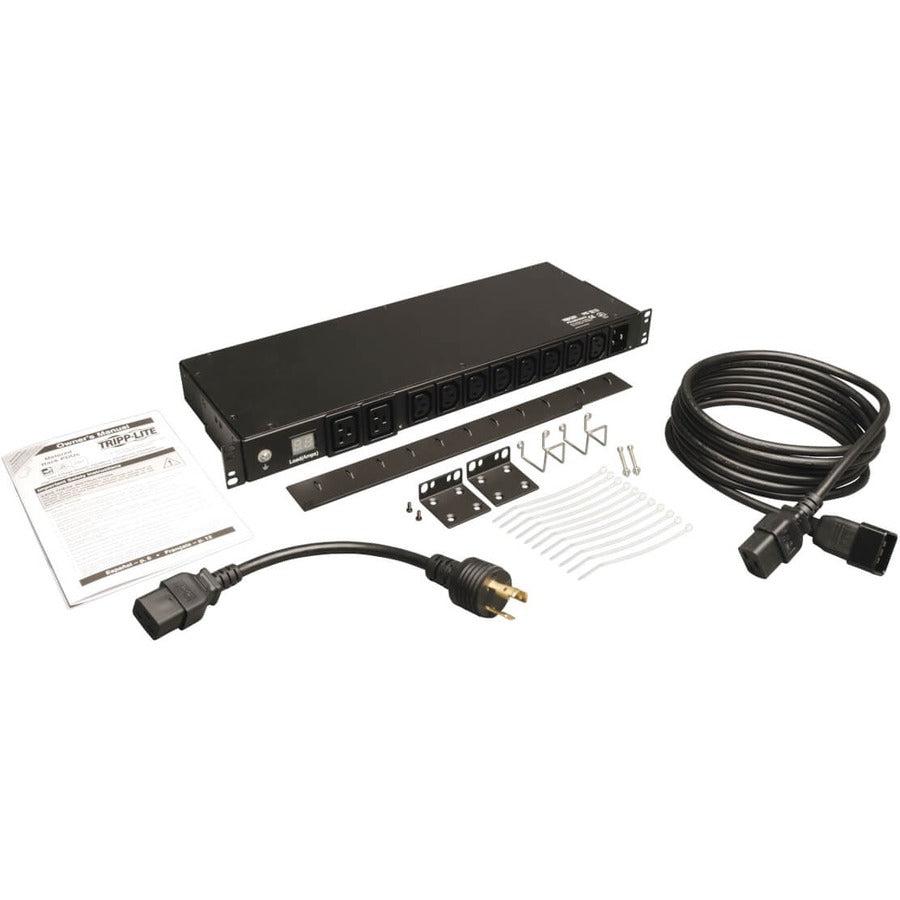

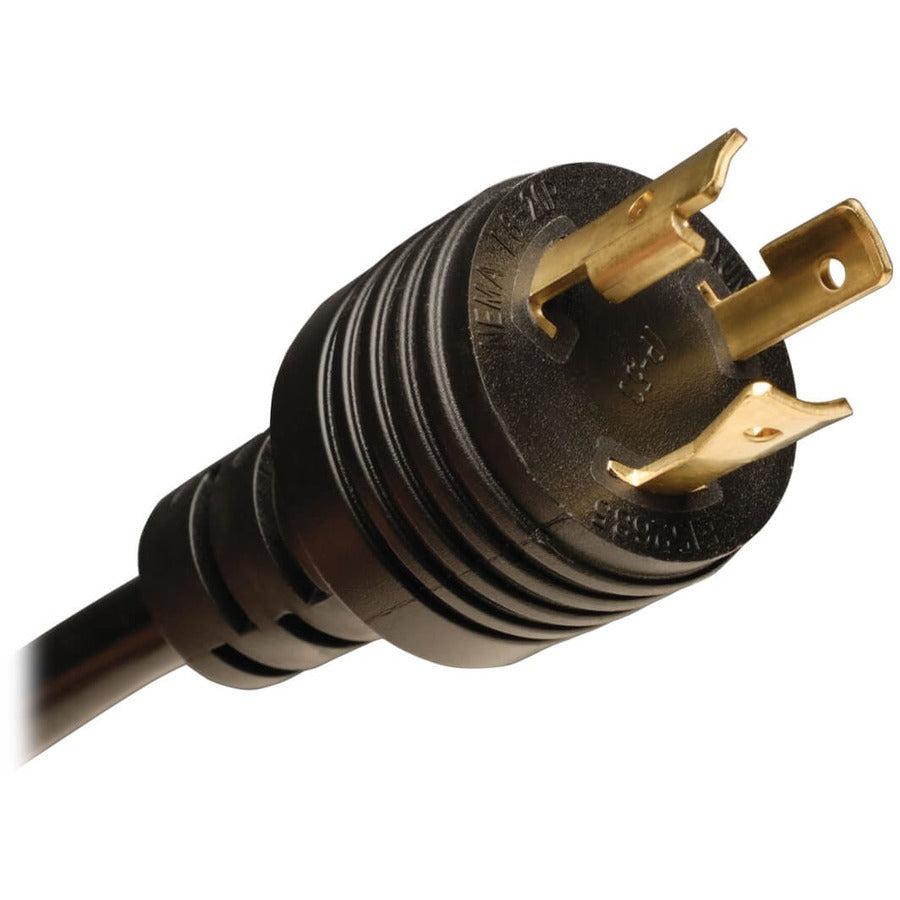

C20 inlet with C20 input cable and L6-20P adapter; 12-ft. (3.66 m) line cord
1U horizontal rackmount format installs in one rack space

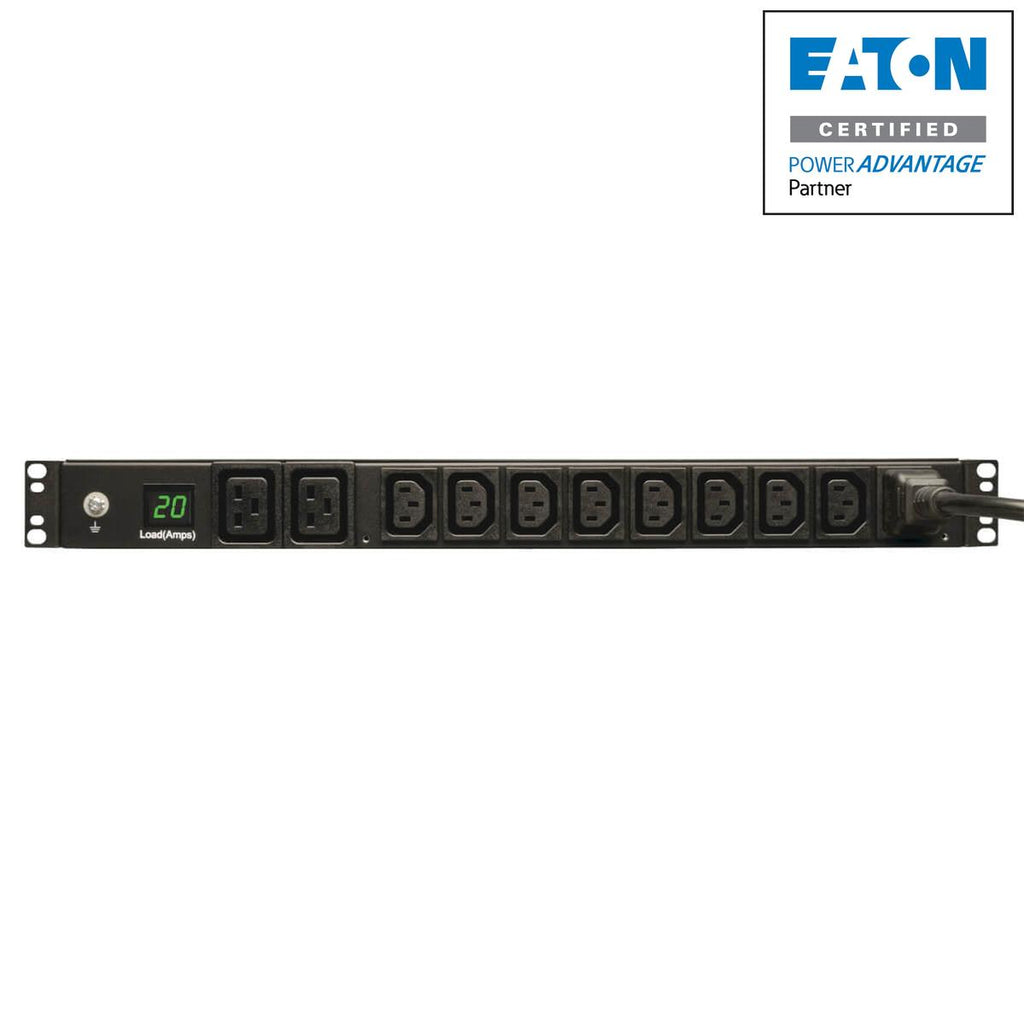

10 total outlets (8 C13 / 2 C19)

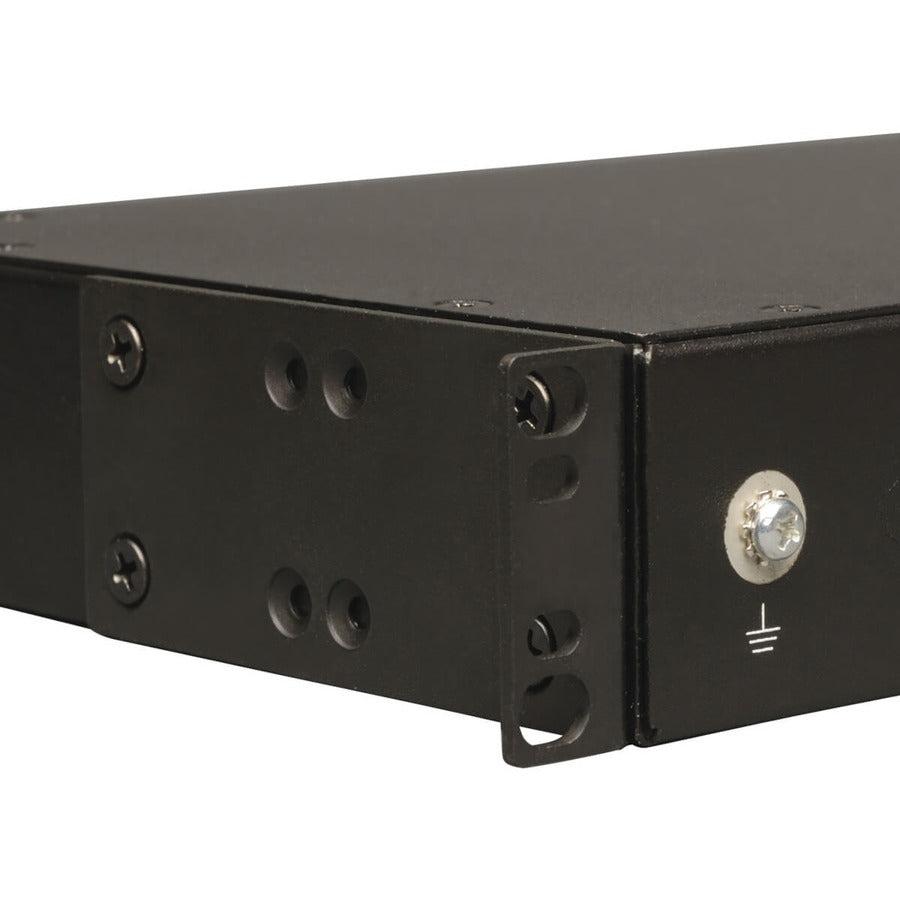

Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
Back panel grounding lug
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
