Description
Specifications
Description :

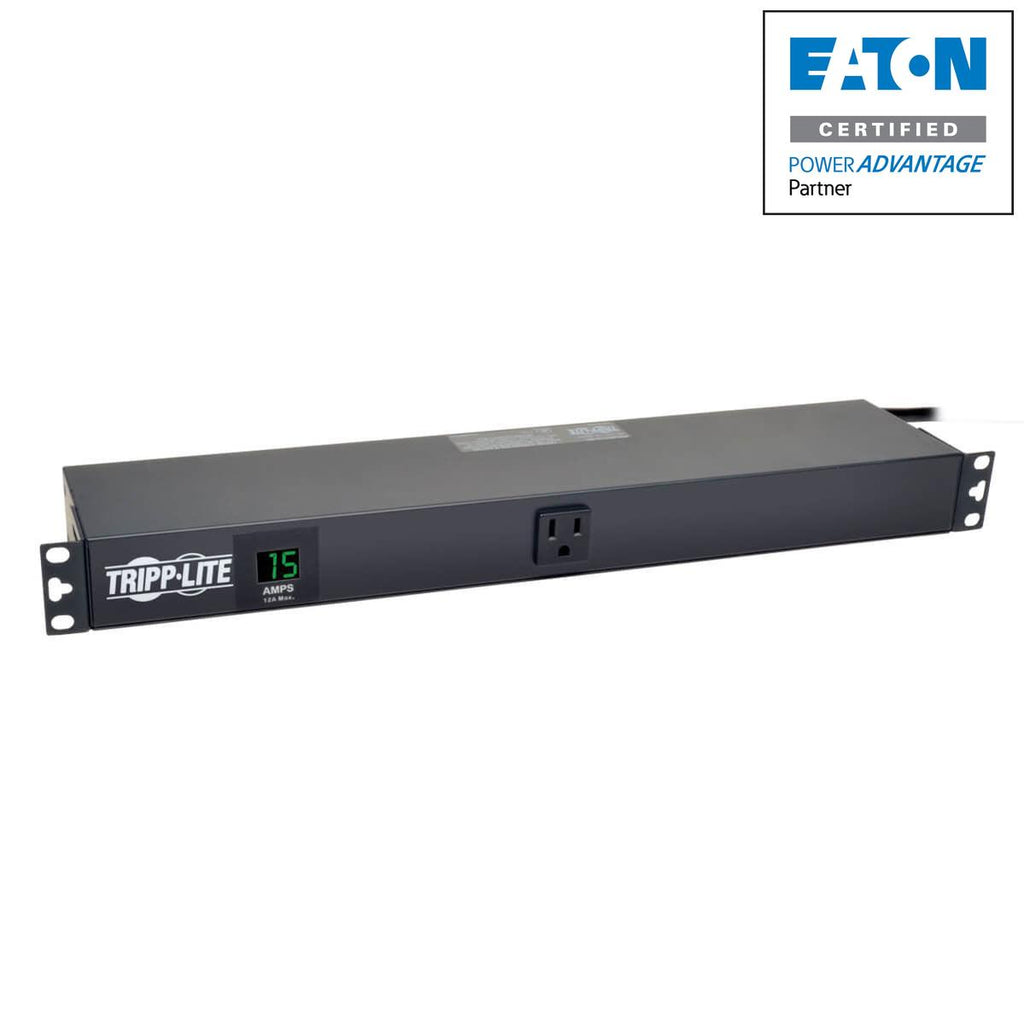

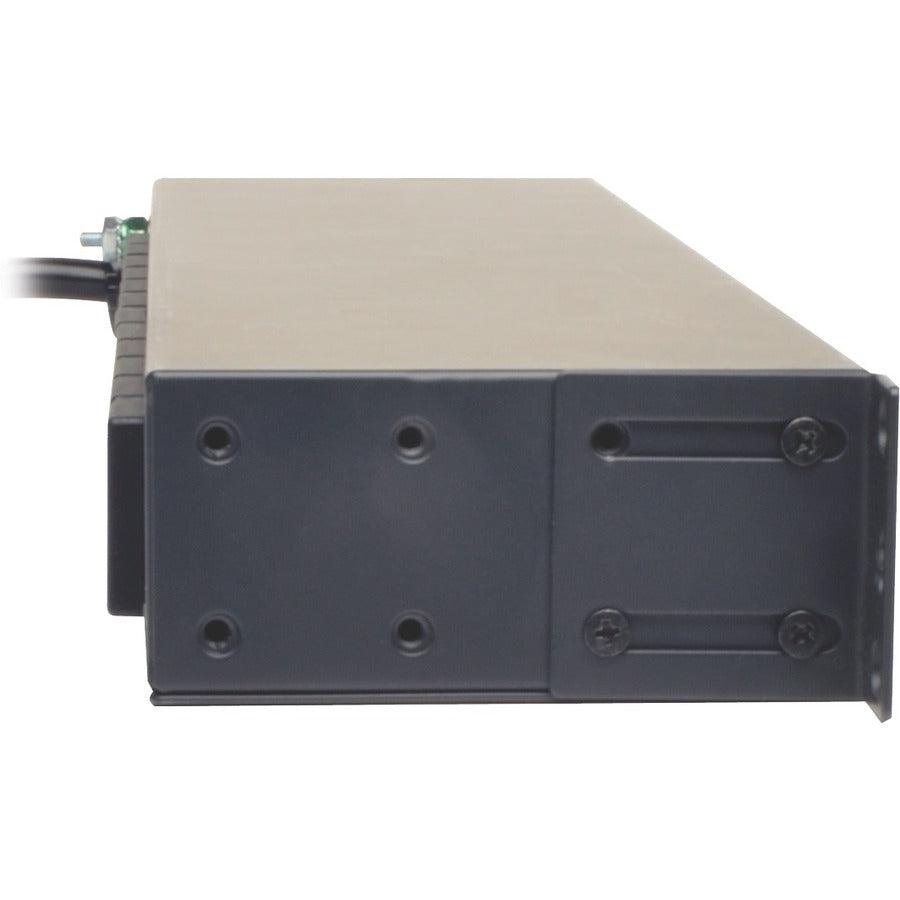

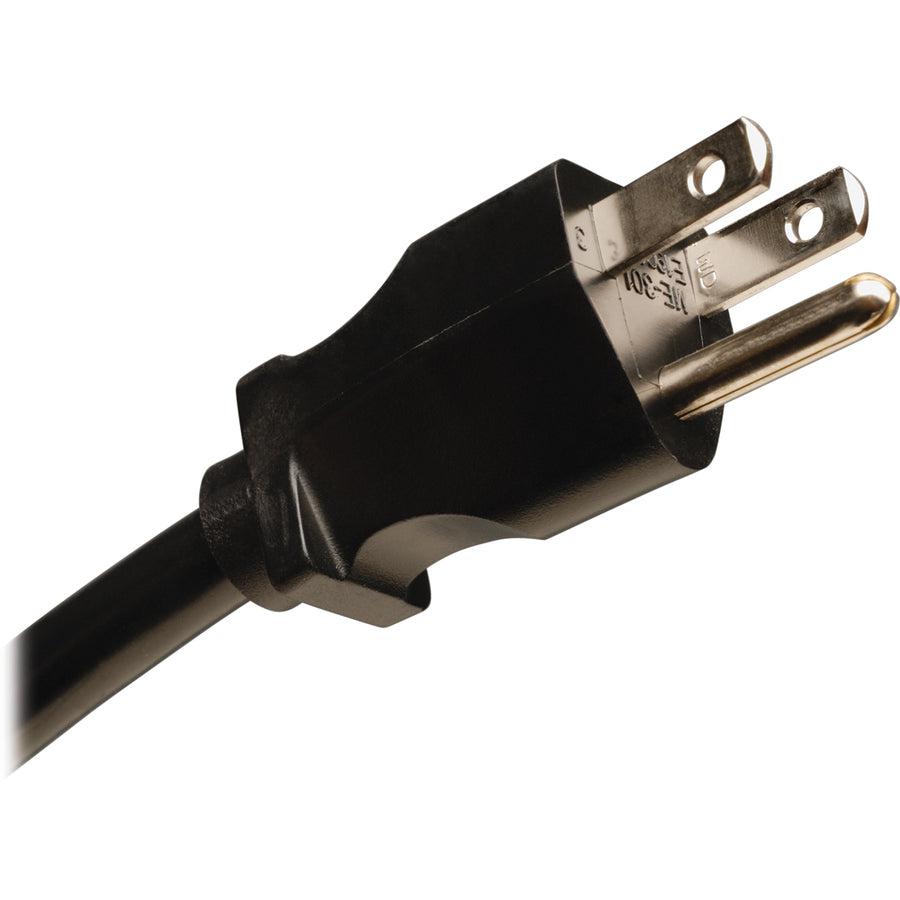

Single-Phase Metered PDU, 1.4kW, 100-127V, 13 x 5-15R Out, 1 x 5-15P In, 15ft Cord, 1U Rack-MountTripp Lite PDUMH15-RA. PDU types: Metered, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 13 AC outlet(s), AC outlet types: NEMA 5–15R, Power plug: NEMA 5–15P. Cable length: 4.57 m, Certification: UL60950-1 (USA), CAN/CSA C22.2 No. 60950-1-03. Nominal input voltage: 100-127 V, Maximum current: 15 A, AC input frequency: 50 - 60 Hz. Width: 439.4 mm, Depth: 95.2 mm, Dimensions (WxDxH): 444.5 x 95 x 44.5 mm
Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Specifications :
General Information
Manufacturer | Tripp Lite by Eaton |
---|---|
Manufacturer Part Number | PDUMH15-RA |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Line | Metered |
Product Model | PDUMH15-RA |
Product Name | PDUMH15-RA Metered Rackmount PDU |
Product Type | PDU |
UPC | 037332183231 |
Height | 1.8" |
---|---|
Width | 17.5" |
Depth | 3.8" |
Weight (Approximate) | 4.60 lb |
Package Contents |
|
---|---|
Environmentally Friendly | Yes |
Limited Warranty | 2 Year |
---|
