Description
Specifications
Description :

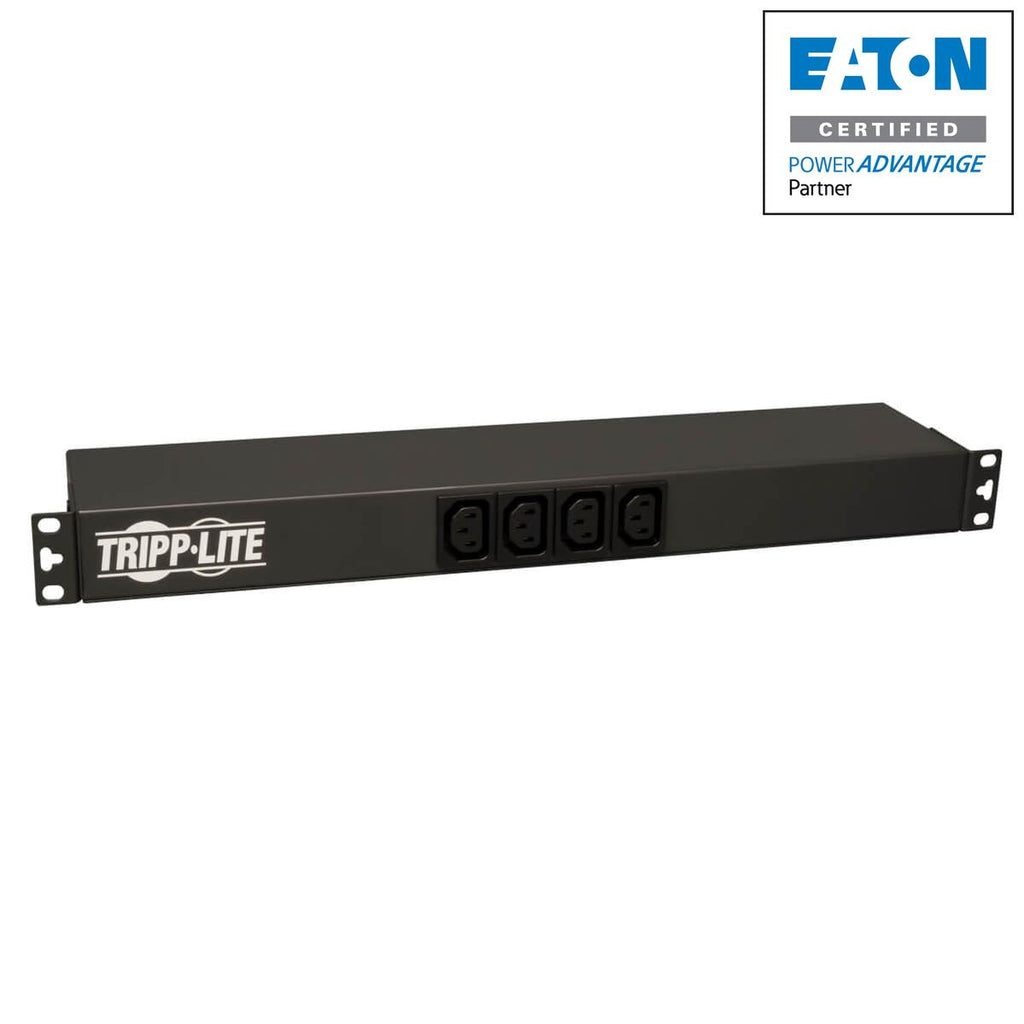

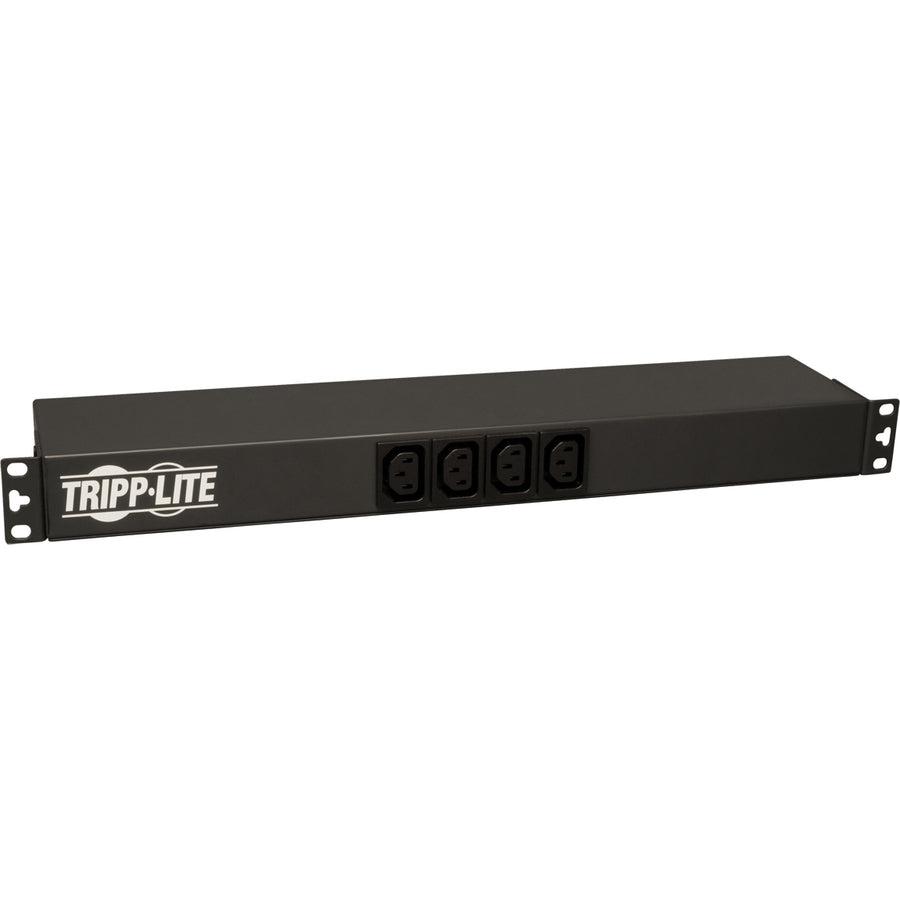

1.6-3.8kW Single-Phase 100-240V Basic PDU, 14 Outlets (12 C13 & 2 C19), C20 with L6-20P Adapter, 12 ft. (3.66 m) Cord, 1U Rack-MountTripp Lite PDUH20DV 1.6-3.8kW Single-Phase 100-240V Basic PDU, 14 Outlets (12 C13 & 2 C19), C20 with L6-20P Adapter, 12 ft. (3.66 m) Cord, 1U Rack-Mount. PDU types: Basic, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 14 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Input connection type: NEMA L6-20P, IEC-320 C20. Cable length: 3.7 m, Certification: UL 60950 (USA), CSA (Canada), CE (EU). Nominal input voltage: 100-240 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Width: 438.2 mm, Depth: 95.2 mm, Dimensions (WxDxH): 438 x 95 x 44.5 mm
The PDUH20DV 1.6-3.8kW Single-Phase 100-240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUH20DV features 14 total outlets—four C13 in front and eight C13 and two C19 in the rear.

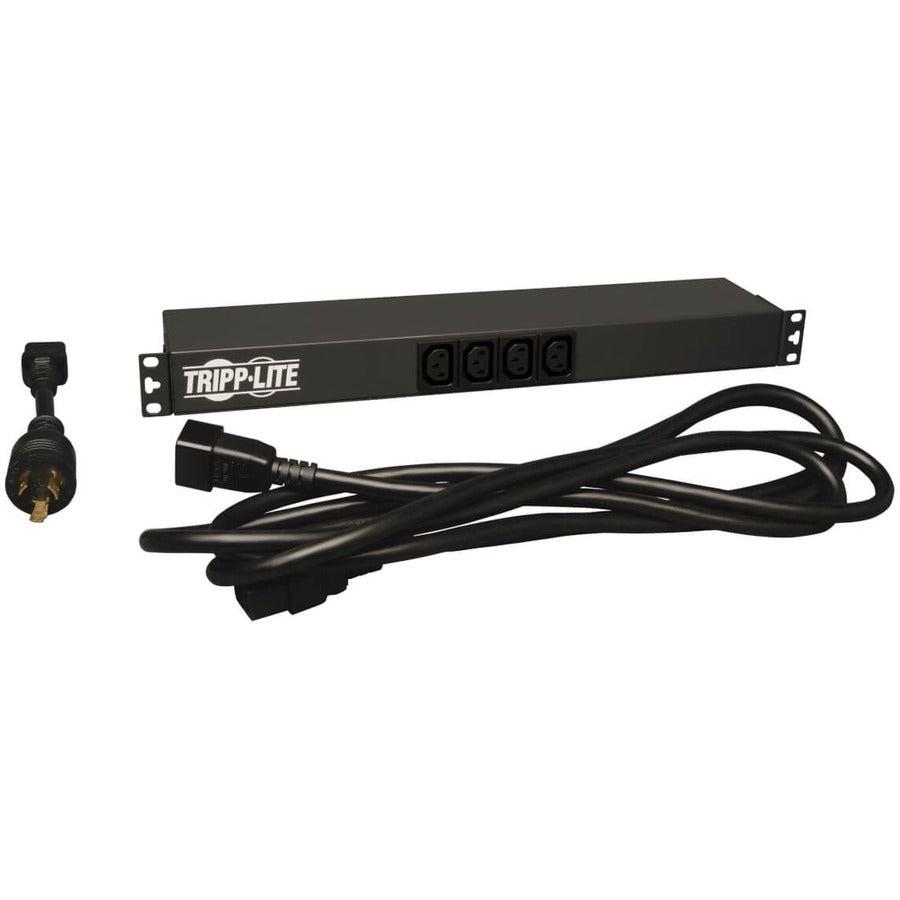

The C20 input plug with detachable 12-ft. (3.66 m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment. A NEMA L6-20P adapter is included for 208/240V power environments. The C20 inlet accepts any country-specific power cord with a C19 connector.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.
Reliable Single-Phase 16A 100-240V Power Distribution
Versatile no-frills PDU for data centers, server rooms and network wiring closets
14 total outlets—4 C13 in front, 8 C13 and 2 C19 in rear
C20 input with detachable 12-ft. (3.66 m) cord and NEMA L6-20P adapter
Inlet accepts any country-specific power cord with C19 connector
Rear-panel grounding lug
Switchless Design
Prevents accidental shutdowns and costly downtime
Versatile Installation Options
Reversible all-metal housing faces front or rear in rack
Supports 1U horizontal or 0U vertical mounting in EIA-standard 19 in. racks
Also mounts on wall, workbench or under a counter
Specifications :
General Information
Manufacturer | Tripp Lite by Eaton |
---|---|
Manufacturer Part Number | PDUH20DV |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Line | Basic |
Product Model | PDUH20DV |
Product Name | Basic PDUH20DV 14-Outlets PDU |
Product Type | PDU |
UPC | 037332158963 |
Height | 1.8" |
---|---|
Width | 17.3" |
Depth | 3.8" |
Weight (Approximate) | 3.75 lb |
Package Contents |
|
---|---|
Environmentally Friendly | Yes |
Limited Warranty | 5 Year |
---|
