Tripp Lite Pdu3Xevsr6G63B 28.8Kw 220-240V 3Ph Switched Pdu - Lx Interface, Gigabit, 30 Outlets, Iec 309 63A Red 380-415V Input, Lcd, 1.8 M Cord, 0U 1.8 M Height, Taa

Description :

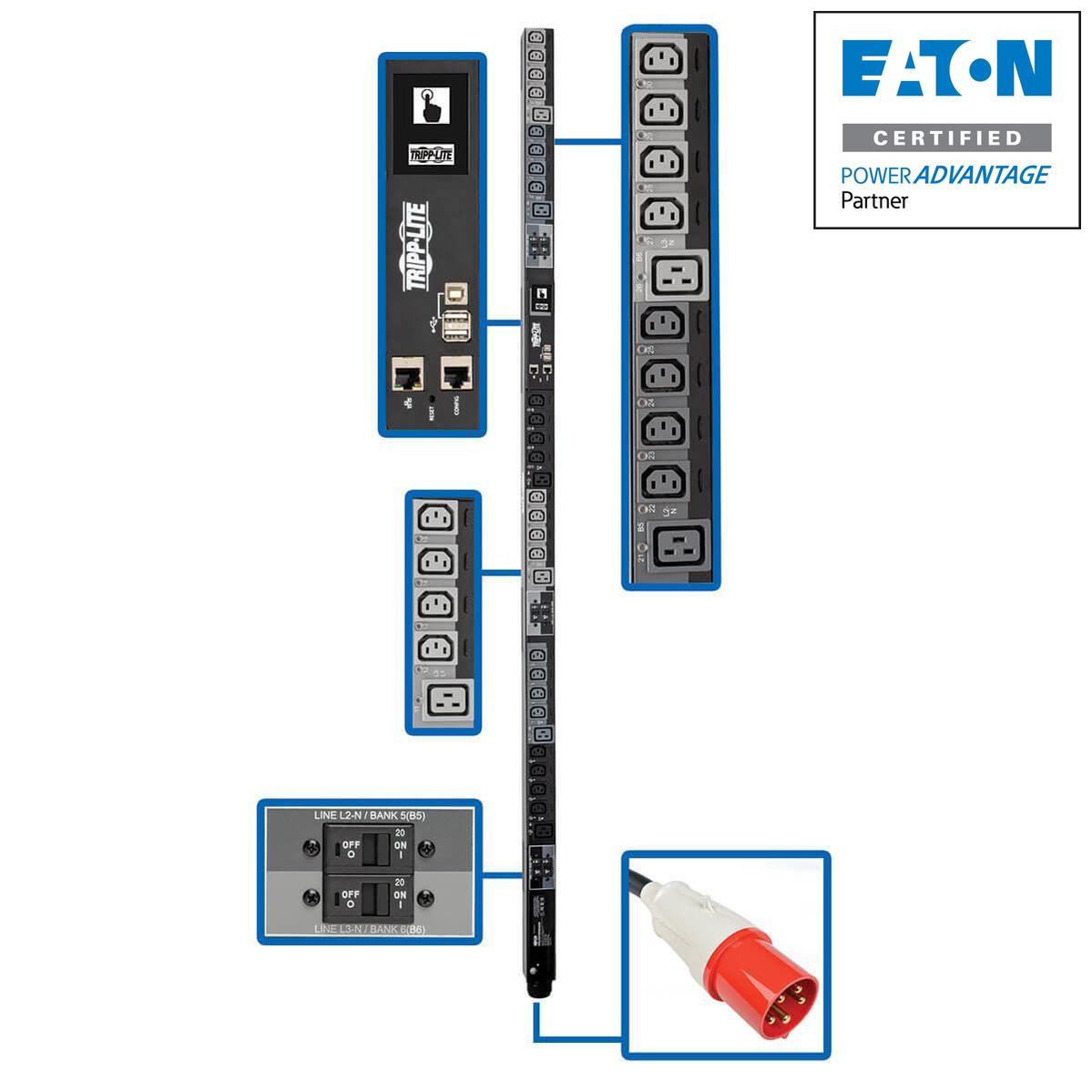

28.8kW 220-240V 3PH Switched PDU - LX Interface, Gigabit, 30 Outlets, IEC 309 63A Red 380-415V Input, LCD, 1.8 m Cord, 0U 1.8 m Height, TAA

Tripp Lite PDU3XEVSR6G63B 28.8kW 220-240V 3PH Switched PDU - LX Interface, Gigabit, 30 Outlets, IEC 309 63A Red 380-415V Input, LCD, 1.8 m Cord, 0U 1.8 m Height, TAA. PDU types: Switched, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 30 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 1.83 m, Certification: UL60950-1: 2007 R12.11, IEC 60950-1: 2005+A1:2009, CAN/CSA-C22.2 NO. 60950-1-07+A1:2011, NOM, CE.... Nominal input voltage: 380-400 V, Maximum current: 40 A, AC input frequency: 50 - 60 Hz. Width: 55.1 mm, Depth: 64 mm, Dimensions (WxDxH): 55.1 x 64 x 1778 mm

The PDU3XEVSR6G63B 28.8kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

The 0U PDU features 30 switched 220-240V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 1.8-meter cord with IEC 309 63A Red 380-415V plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.

Distributes, Monitors and Manages Network-Grade AC Power
27.7kW 380-415V input / 220-240V output switched PDU with 3-phase input
Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components

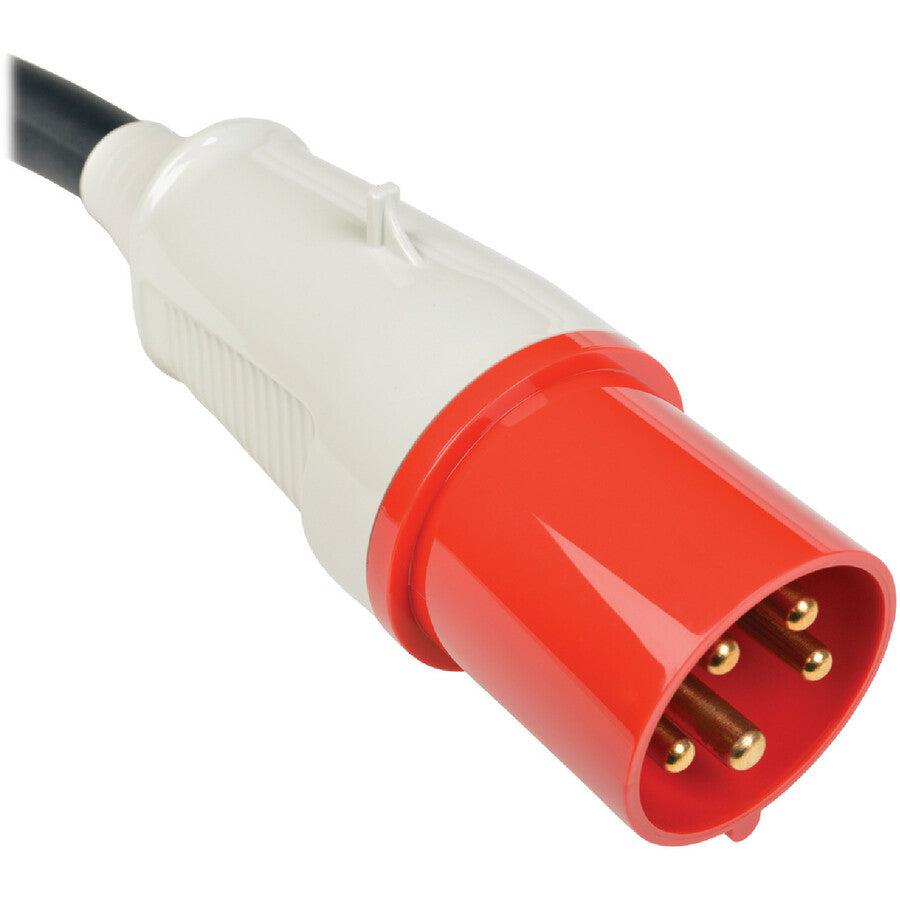

IEC 309 63A Red 380-415V plug with 1.8m cord connects to compatible AC power source
Firmware upgrades support future product enhancements

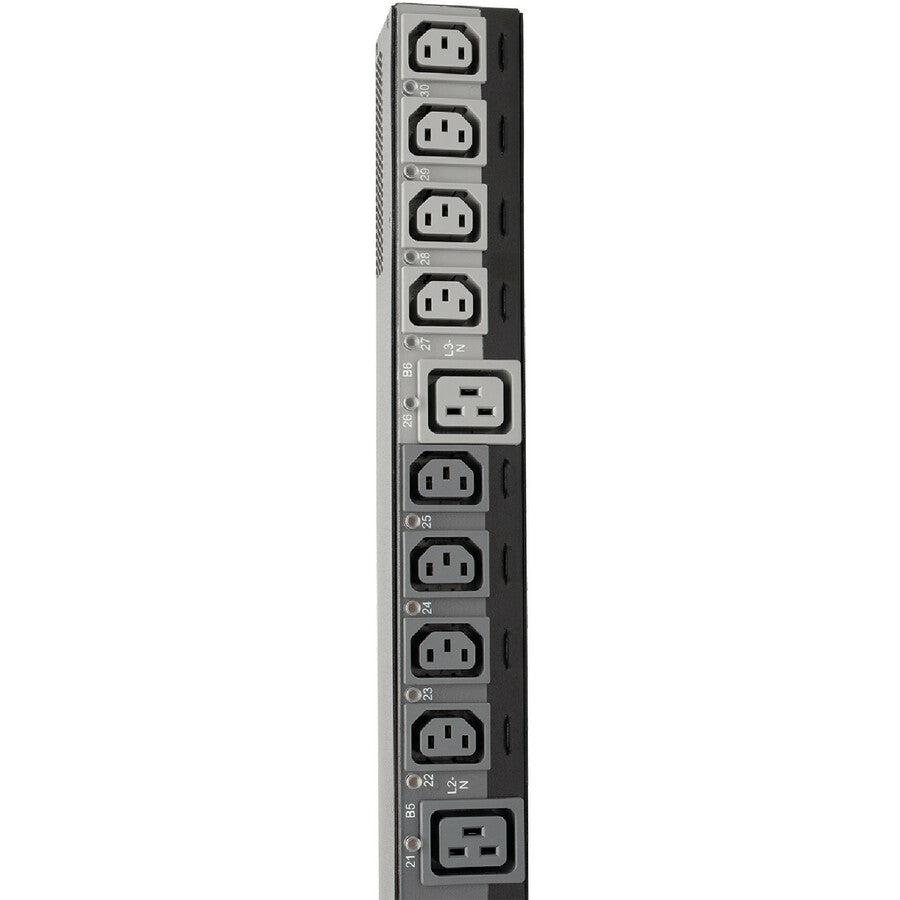

30 Switched 220-240V Outlets Distribute AC Power

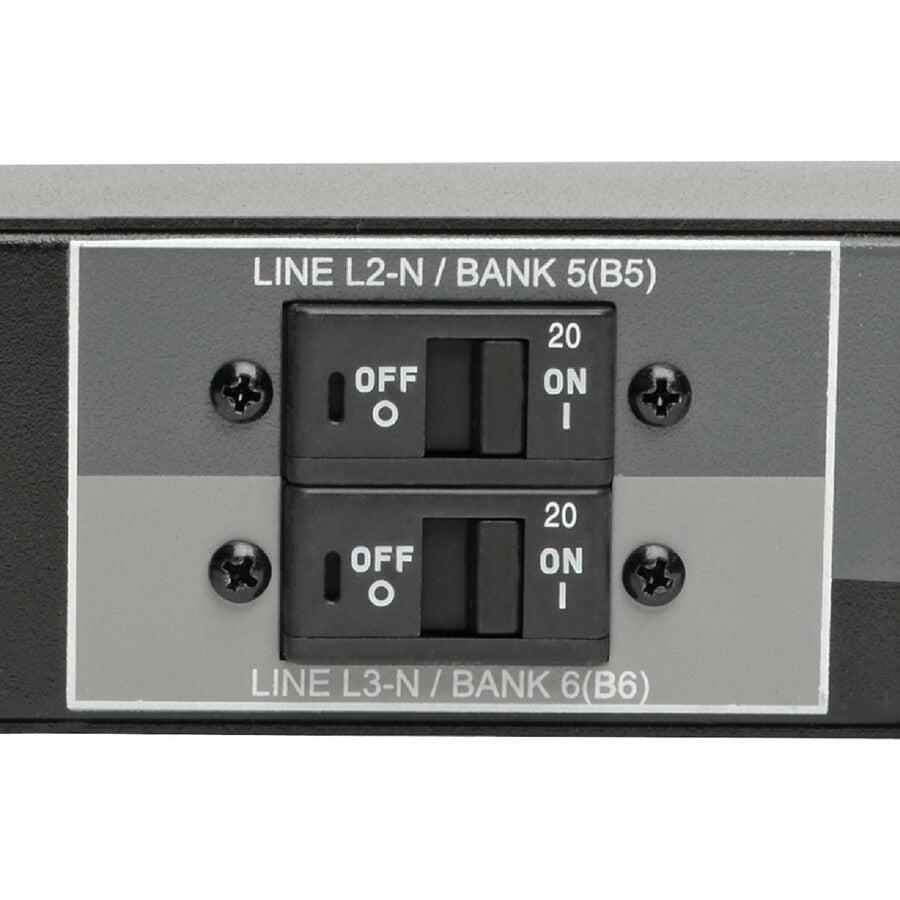

24 C13 and 6 C19 outlets split into 6 separately breakered load banks
Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
Plug-lock insert sleeves prevent cables from becoming accidentally disconnected

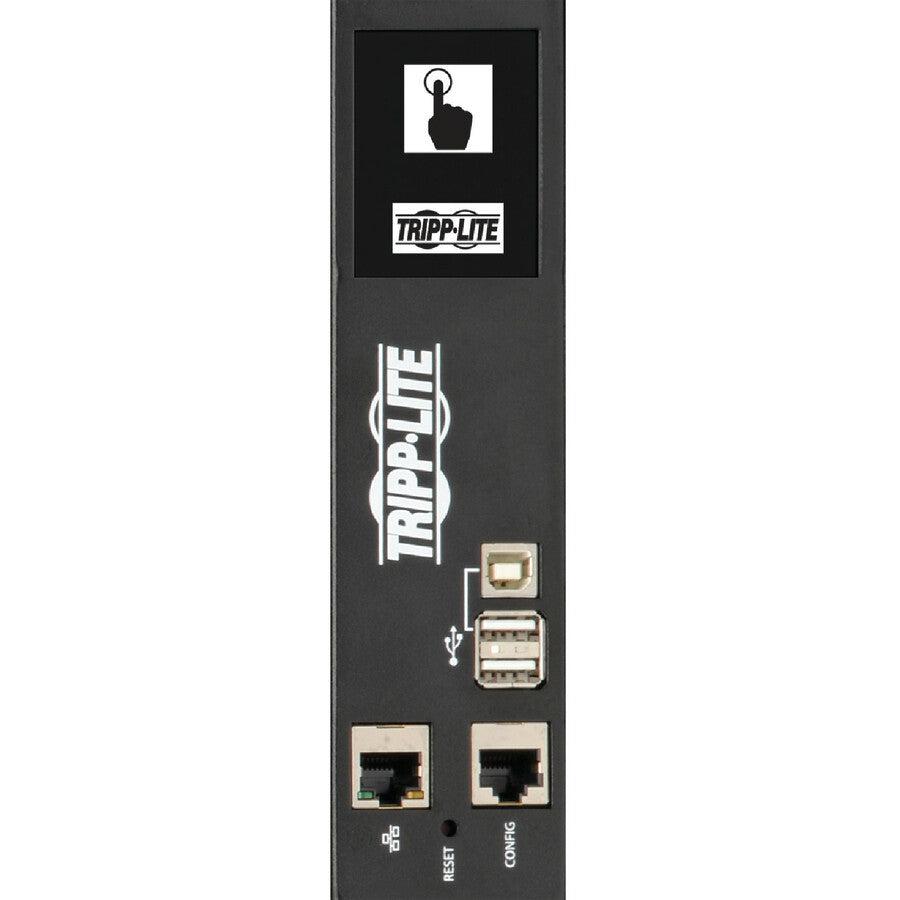

Color Touchscreen LCD
Reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy
Generates unique QR code for read-only access to PowerAlert® Device Manager via mobile device
Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials

Built-In GbE-Capable LX Interface
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
IP-based Auto Probe detects lost connectivity and restores service autonomously

Essential Safety Features
Tiered access allows administrator and guest to log in via web browser
Immediate alert notifications via email or SNMP traps
Supports user-specified alarm notification thresholds
Real-time clock backup maintains day/date even if PDU is unpowered

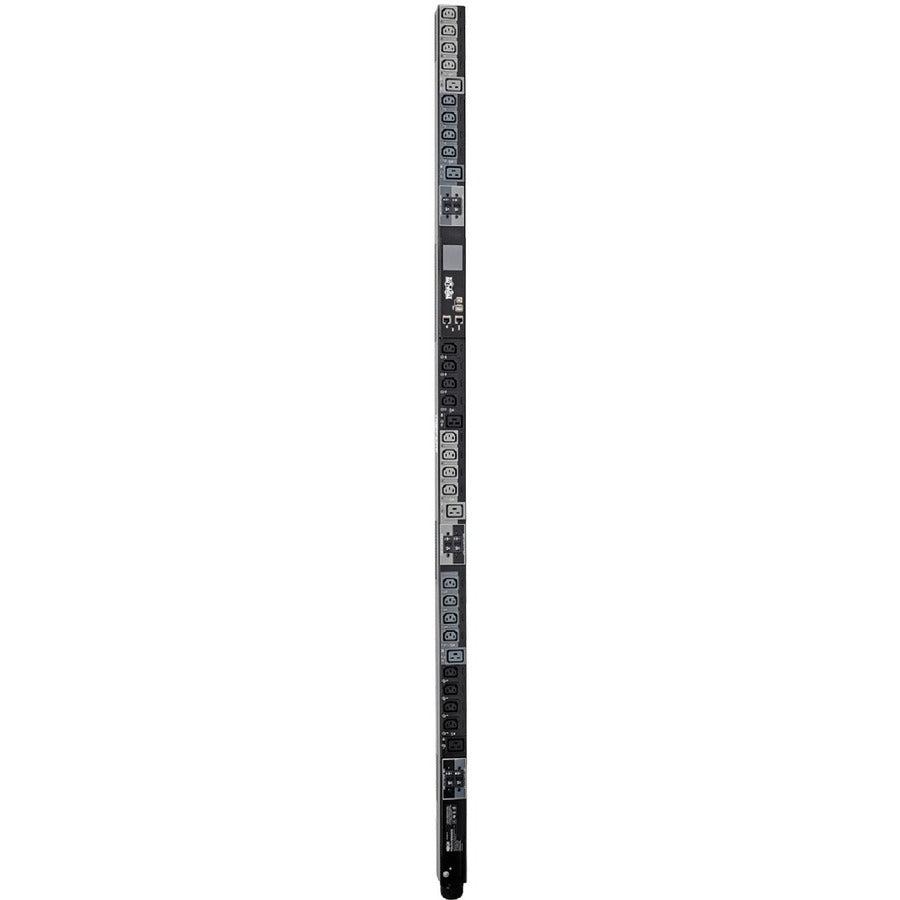

Easy 0U Installation in EIA-Standard 19 in. Racks

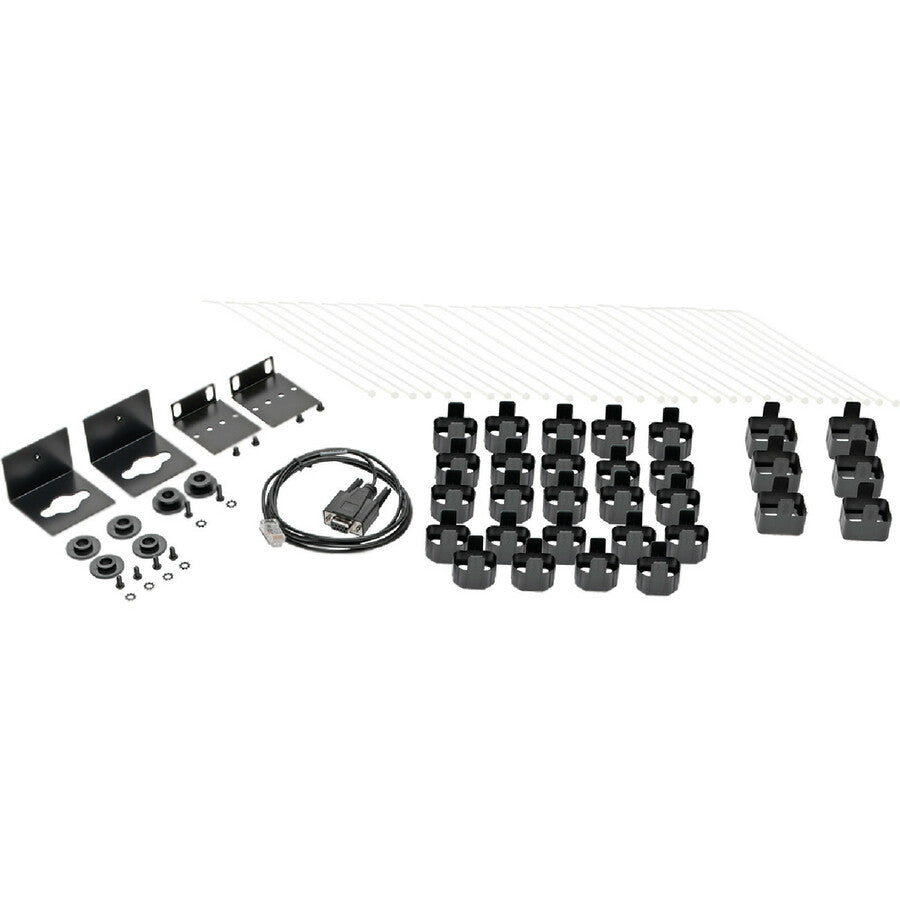

Mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
