Tripp Lite by Eaton

Tripp Lite Pdu3Mv6L2120 Power Distribution Unit (Pdu) 48 Ac Outlet(S) 0U Black

Tripp Lite Pdu3Mv6L2120 Power Distribution Unit (Pdu) 48 Ac Outlet(S) 0U Black

SKU:PDU3MV6L2120

Regular price $458.30
Regular price Sale price $458.30
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

          3-Phase Metered PDU, 5.7 kW, 48 outlets 208/120V, 6ft NEMA L21-20P in, 5.7kg

          Tripp Lite PDU3MV6L2120. PDU types: Metered, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 48 AC outlet(s), Power plug: NEMA L21-20P. Cable length: 1.83 m, Certification: UL60950-1, NOM. Monitoring: Current. Nominal input voltage: 208 V, Maximum current: 16 A, AC input frequency: 60 Hz

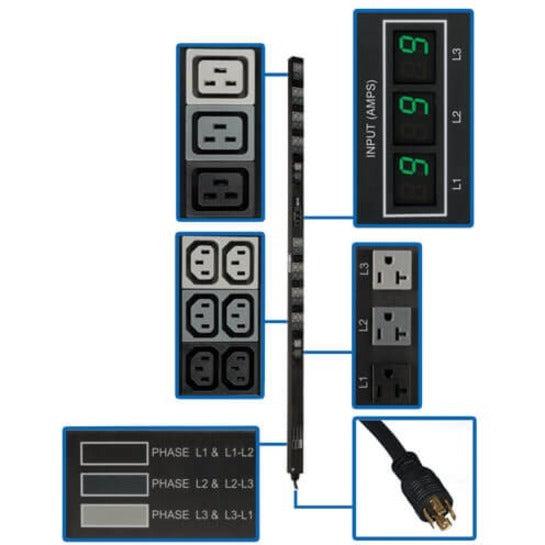

          3-Phase Metered PDU, 5.7 kW, 48 outlets (36 C13, 6 C19, 6 5-15/20R), 208/120V output, 6 ft NEMA L21-20P input connection

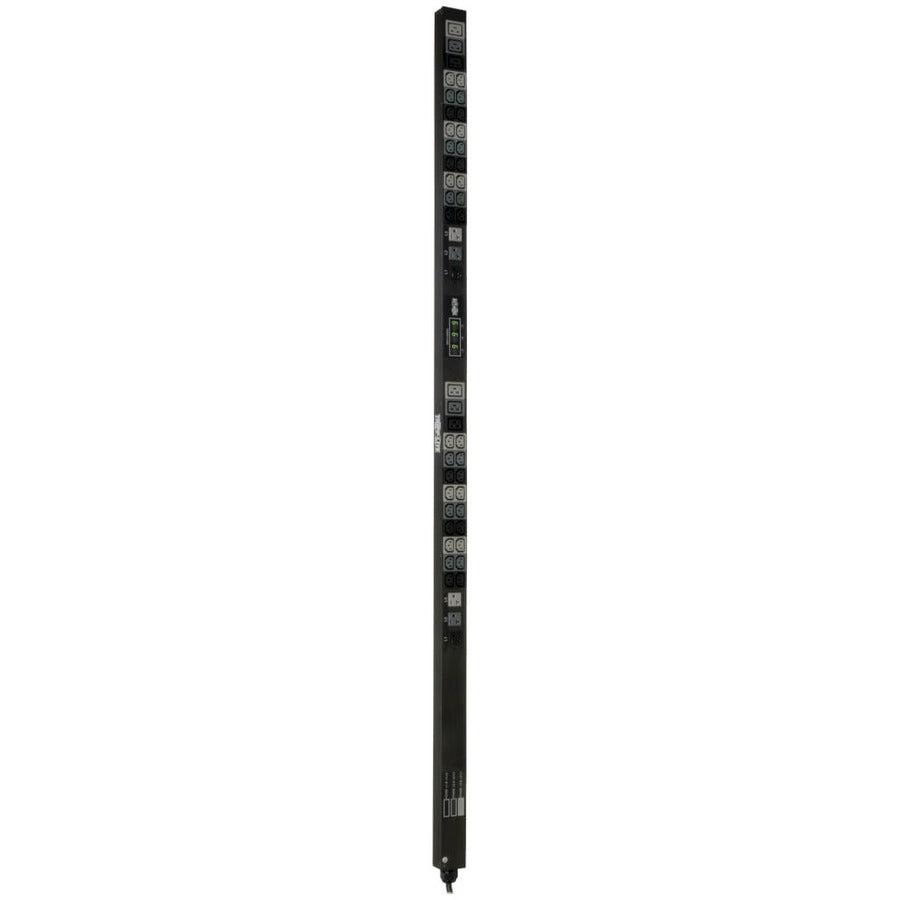

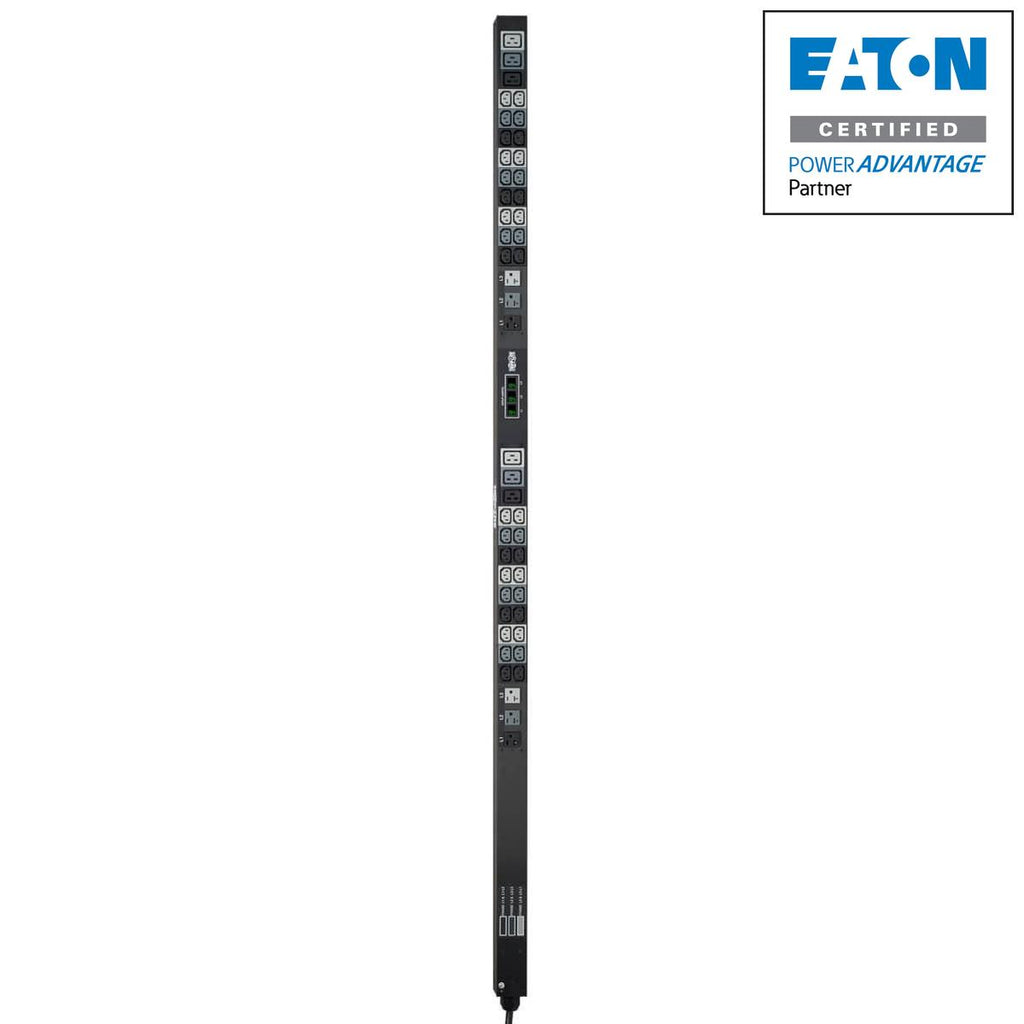

          - Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount

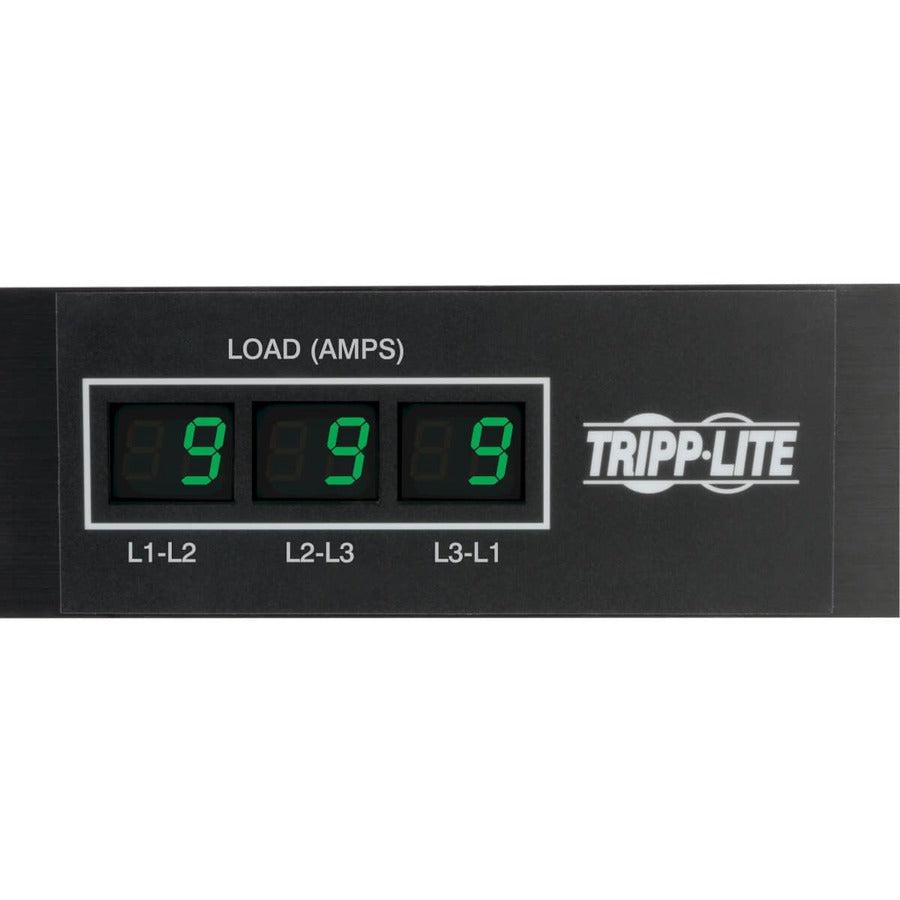

          - Reports input current per-phase via built in current meters

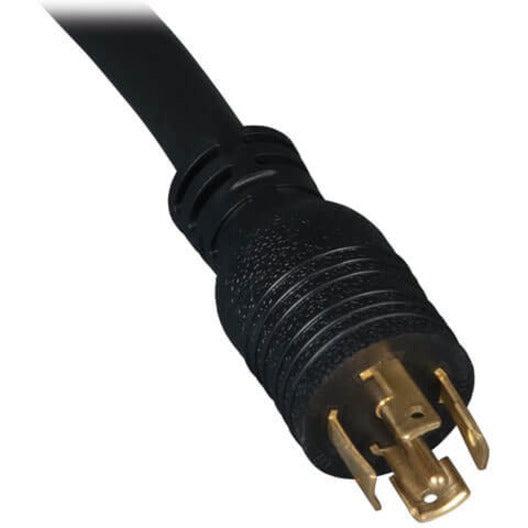

          - NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord

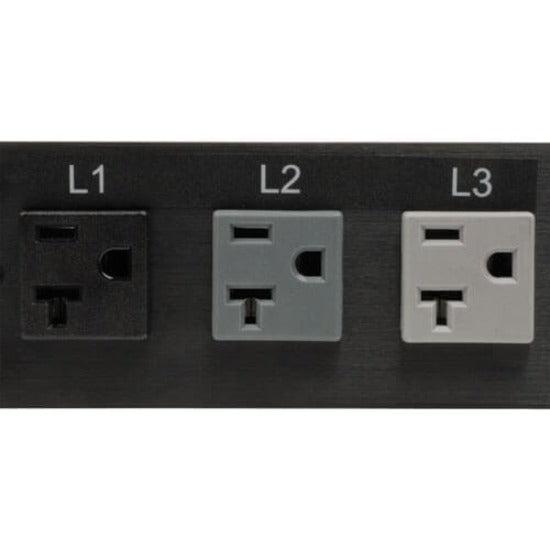

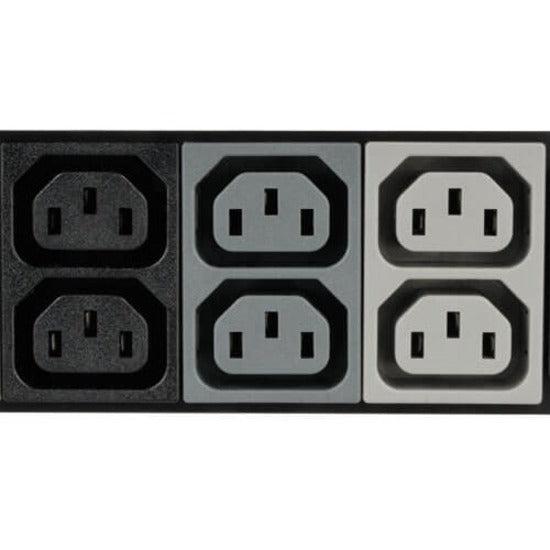

          - 48 outlets total; 36 C13 (208V), 6 C19 (208V) & 6 NEMA 5-15/20R (120V)

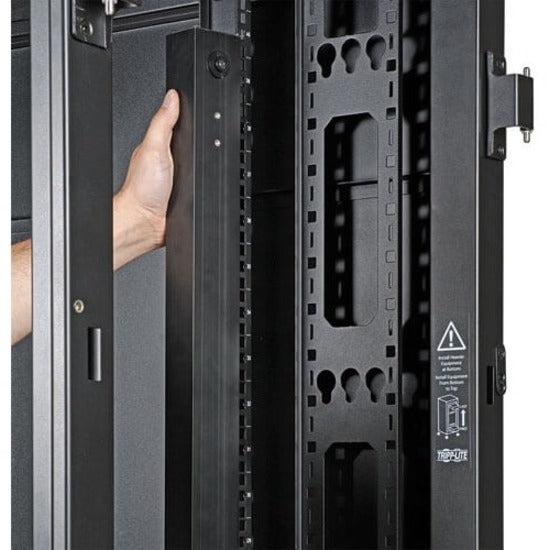

          - Toolless button-mount installation; cord retention brackets included

          Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
