Tripp Lite Netcommander 16-Port Cat5 1U Rack-Mount Console Kvm Switch With 19-In. Lcd

Description :

NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch with 19-in. LCD

Tripp Lite NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch with 19-in. LCD. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, Display: LCD. Interface: VGA, USB, PS/2. Certification: UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 449.3 mm, Height: 43.4 mm, Depth: 722.4 mm

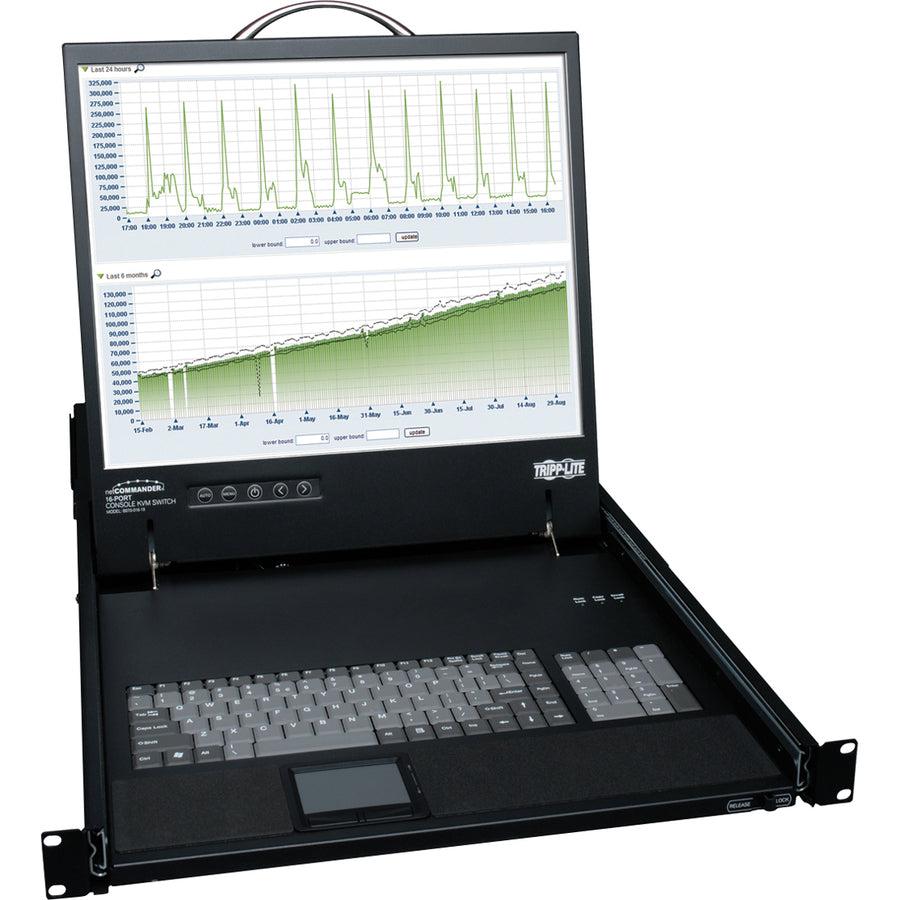

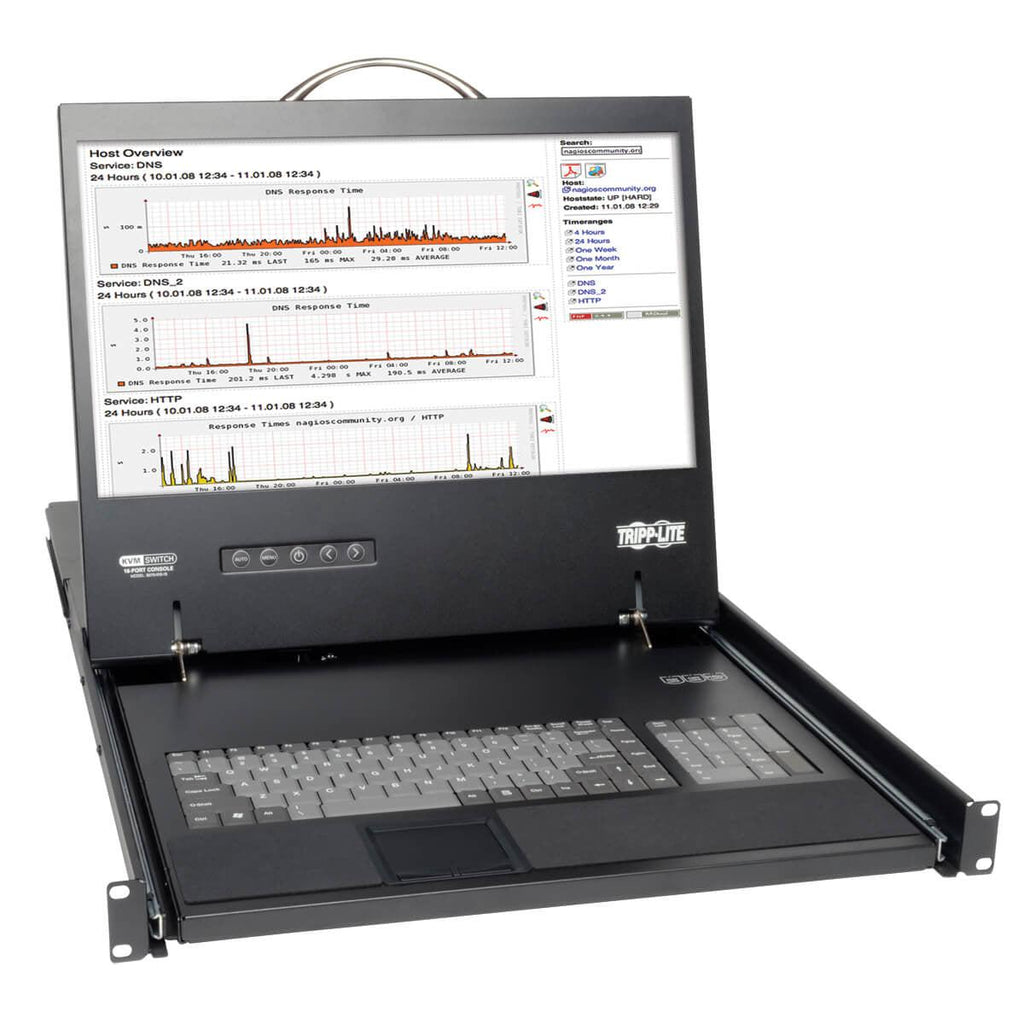

Tripp Lite’s B070-016-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 16 computers/servers.

The B070-016-19 uses inexpensive, user-supplied Cat5e/6/6a and a Server Interface Unit so you can control computers/servers located up to 30.5 m away from the switch. You can switch easily between the 16 ports using an on-screen display (OSD) or keyboard hot key commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19” LCD screen supports video resolutions up to 1366 x 768.

Add a Tripp Lite B051-000 IP Remote Access Unit and you’ll be able to connect to your servers from anywhere in the world. The B070-016-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.

Saves Space and Money

● Combines 16-port KVM switch, 19” LCD screen, keyboard and touchpad in a 1U rack-mountable drawer – ideal when rack space is at a premium
● Mounts into 19”-wide rack, 27”-42” deep; can be mounted in 2-post rack with Tripp Lite’s B019-000
● Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use
● Eliminates need to buy costly monitors, keyboards and mice for each computer/server

Uses inexpensive Cat5e/6/6a Cables

● Low-cost cables lets you locate servers up to 30.5 m from the switch
● Use plug-and-play Server Interface Unit B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable
● For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

Simplifies IT Tasks

● Switch easily between the 16 ports via on-screen display or keyboard hot key commands
● Hot pluggable; add or remove USB computers without having to power down the switch
● Auto-scan mode automatically sequences through all active ports accessible to the user

Large 19” LCD

● Extra-wide display makes multitasking easier
● Supports video resolutions up to 1366 x 768
● DDC emulation allows optimal output to the LCD

Multi-Level Password Security

● Multi-level password security limits access to authorized users (administrator, supervisor or user)
● Two-level log-out allows manual log-out or automatic log-out after a user-defined period of time has passed

Expandability and Long-Lasting Reliability

● Control your servers from anywhere in the world over LAN, WAN or the Internet by adding a Tripp Lite B051-000 IP Remote Access Unit
● Compatible with all major operating systems for easy integration into your existing structure
● Firmware is upgradable with included cable and utility
● Heavy-duty steel housing stands up to frequent use

● Occupies just 1U of space in a rack-mountable drawer
● Low-cost Cat5 cabling allows longer distances, reduces cable clutter
● 19” LCD screen supports video resolution up to 1366 x 768
● Simplifies IT tasks with easy switching between all 16 ports

System Requirements

● Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports
● User-supplied Cat 5e/6/6a cabling
● B078-101-USB-1 (USB) Server Interface Unit is required for each connected computer/server
● For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.
● Compatible with all major operating systems
● Power consumption: 120V, 60Hz, 30W

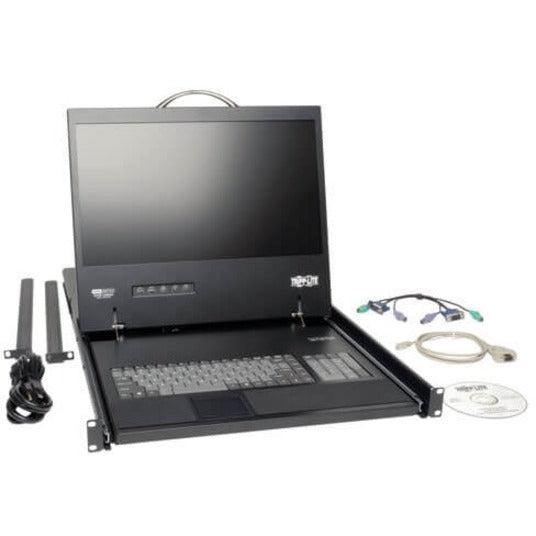

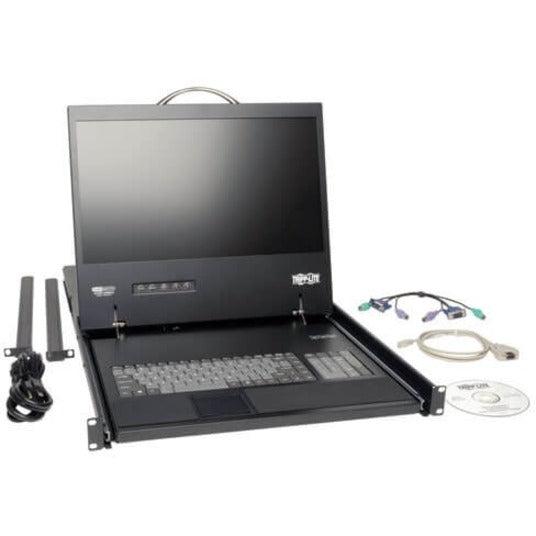

Package Includes

● B070-016-19 1U rackmount console KVM switch with 19” LCD
● C13 to 5-15P power cord
● Serial firmware upgrade cable
● Jumper cable to connect KVM console ports to integrated console ports
● Rackmount hardware
● CD with owner's manual
