Tripp Lite by Eaton

Tripp Lite N846D-05M-16Cmg 400G Multimode 50/125 Om4 Plenum Fiber Optic Cable, 16F Mtp/Mpo-Apc To 24F Mtp/Mpo-Upc (F/F), Magenta, 5 M

Tripp Lite N846D-05M-16Cmg 400G Multimode 50/125 Om4 Plenum Fiber Optic Cable, 16F Mtp/Mpo-Apc To 24F Mtp/Mpo-Upc (F/F), Magenta, 5 M

SKU:N846D-05M-16CMG

Regular price $211.09
Regular price Sale price $211.09
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

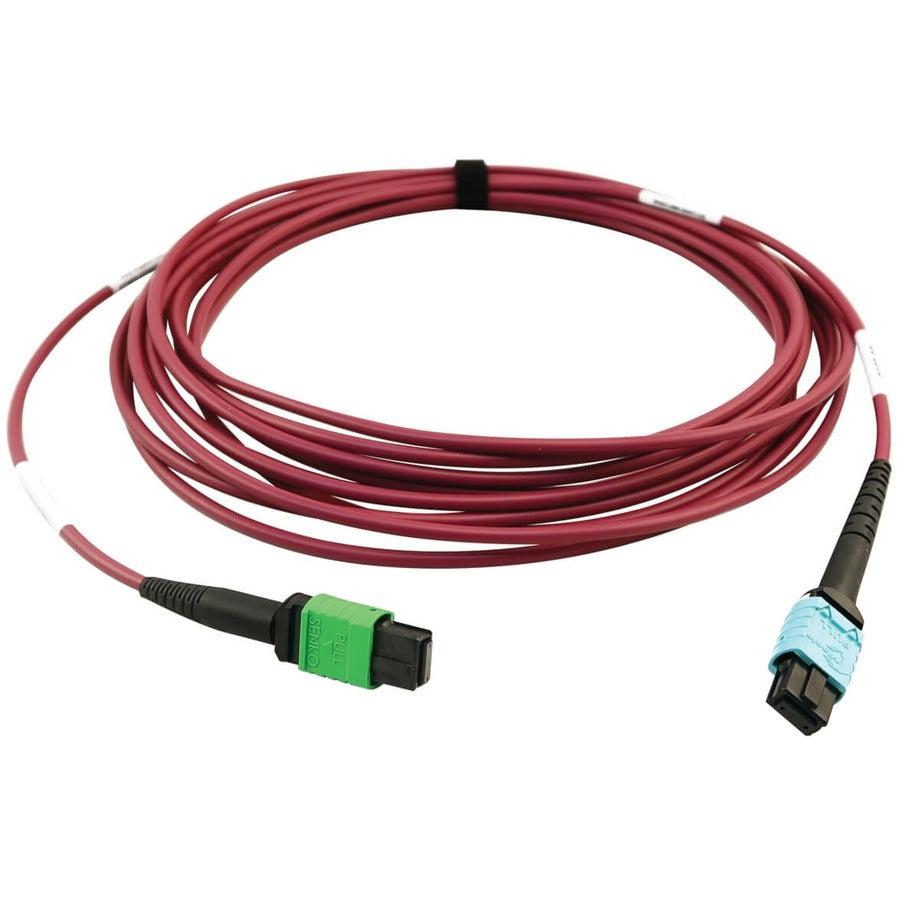

          400G Multimode 50/125 OM4 Plenum Fiber Optic Cable, 16F MTP/MPO-APC to 24F MTP/MPO-UPC (F/F), Magenta, 5 m

          Tripp Lite N846D-05M-16CMG 400G Multimode 50/125 OM4 Plenum Fiber Optic Cable, 16F MTP/MPO-APC to 24F MTP/MPO-UPC (F/F), Magenta, 5 m. Cable length: 5 m, Cable type: OFNP, Fibre optic type: OM4, Connector 1: MTP, Connector 2: MTP, Core diameter: 50 µm, Full duplex

          400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data and Voice Networking
          As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This multimode 50/125 OM4 cable is an ideal choice for 400G Ethernet applications up to 100 meters (at 850 nm). It has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards.

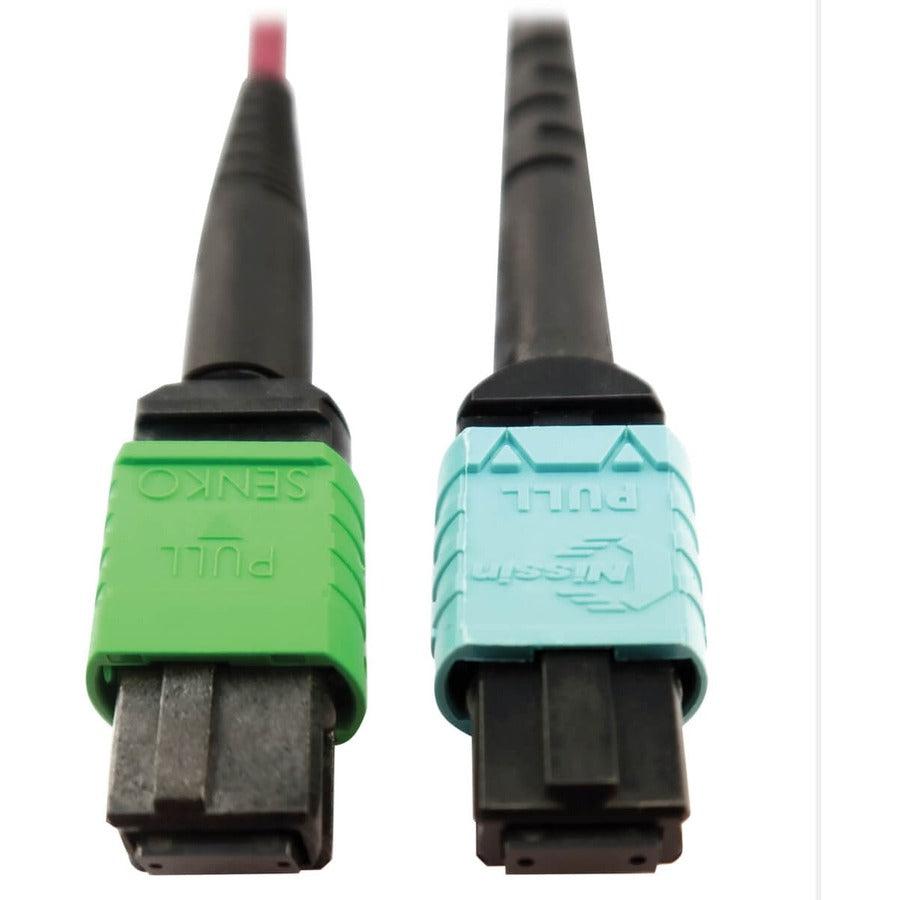

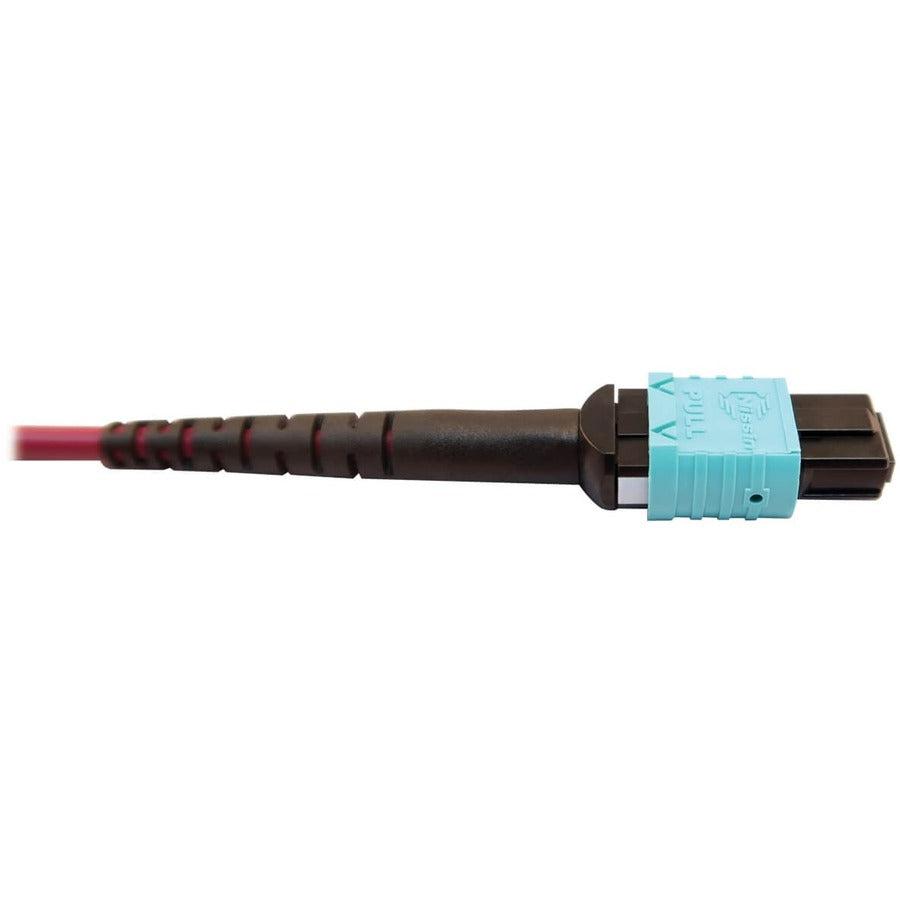

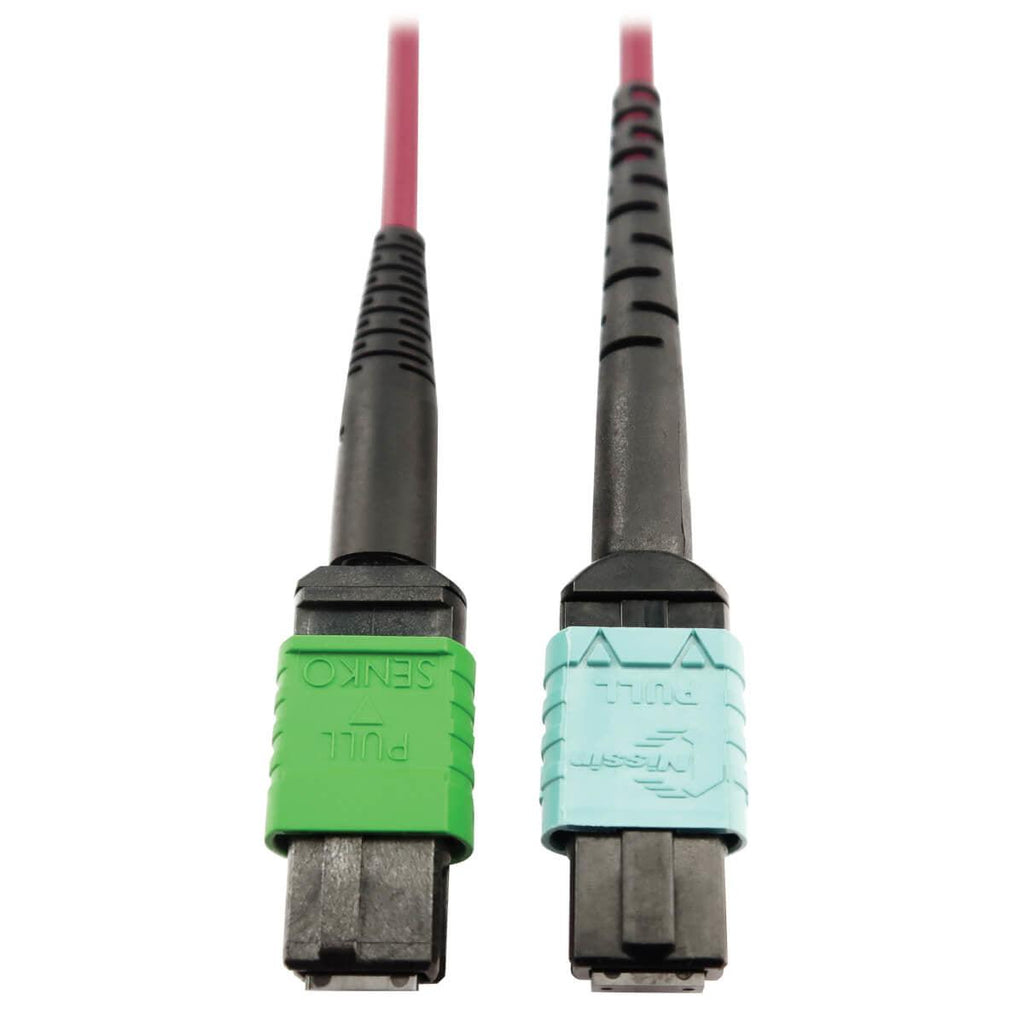

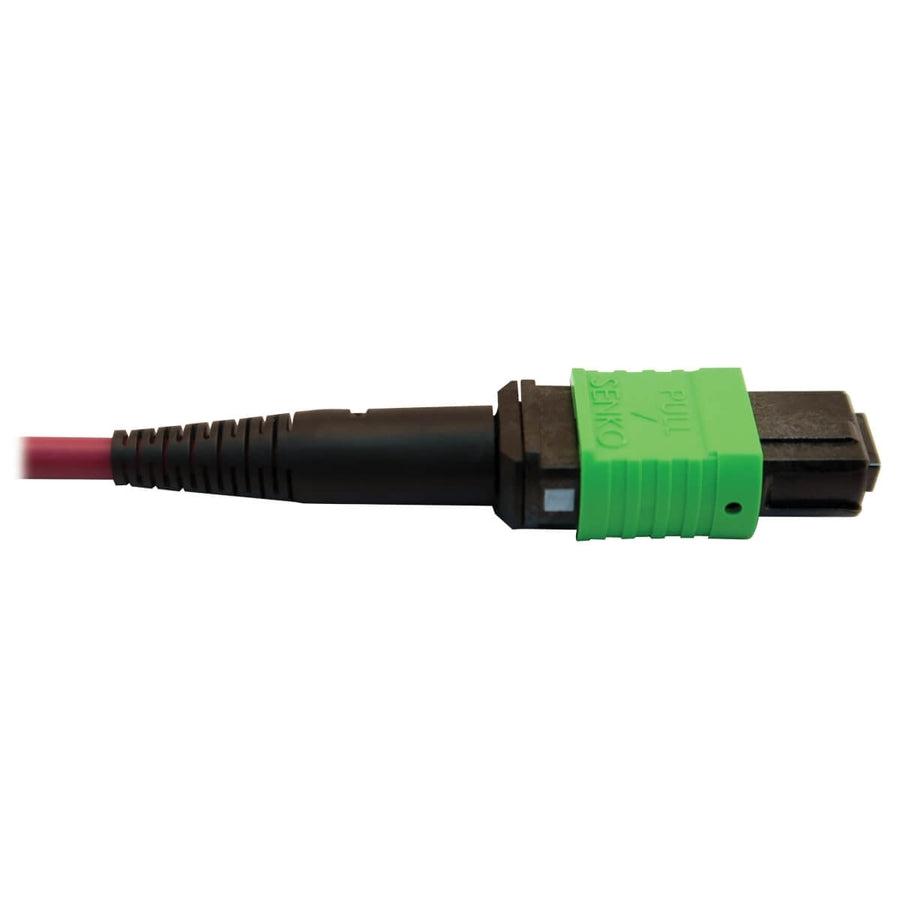

          16-Fiber and 24-Fiber MTP/MPO Connectors Designed for the Latest QSFP-DD Transceivers
          The MPO connectors have a wide parallel optical interface for use with the latest 400G QSFP-DD transceivers, making this cable an excellent solution for your high-density network application. The connectors are the same size as standard SC connectors, but 12 times denser, allowing vertical stacking in switches or patch panels where space is at a premium. Pull tabs make the cable easy to install or remove with one hand.

          Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
          The OM4-rated cable has a magenta jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The three-millimeter ruggedized plenum-rated jacket has low smoke and flame characteristics, making it suitable for premise applications in ceilings, walls and ducts.
