Tripp Lite

Tripp Lite N842-05M-12-Mf 40G Mtp/Mpo Multimode Om3 Plenum-Rated Fiber Optic Cable (M/F), 12 Fiber, 40Gbase-Sr4, Aqua, 5 M

SKU: N842-05M-12-MF

Regular price $216.88
Regular price Sale price $216.88
Sale Sold out
Shipping calculated at checkout.
          Description
          Que. & Ans.
          Reviews

          Description :

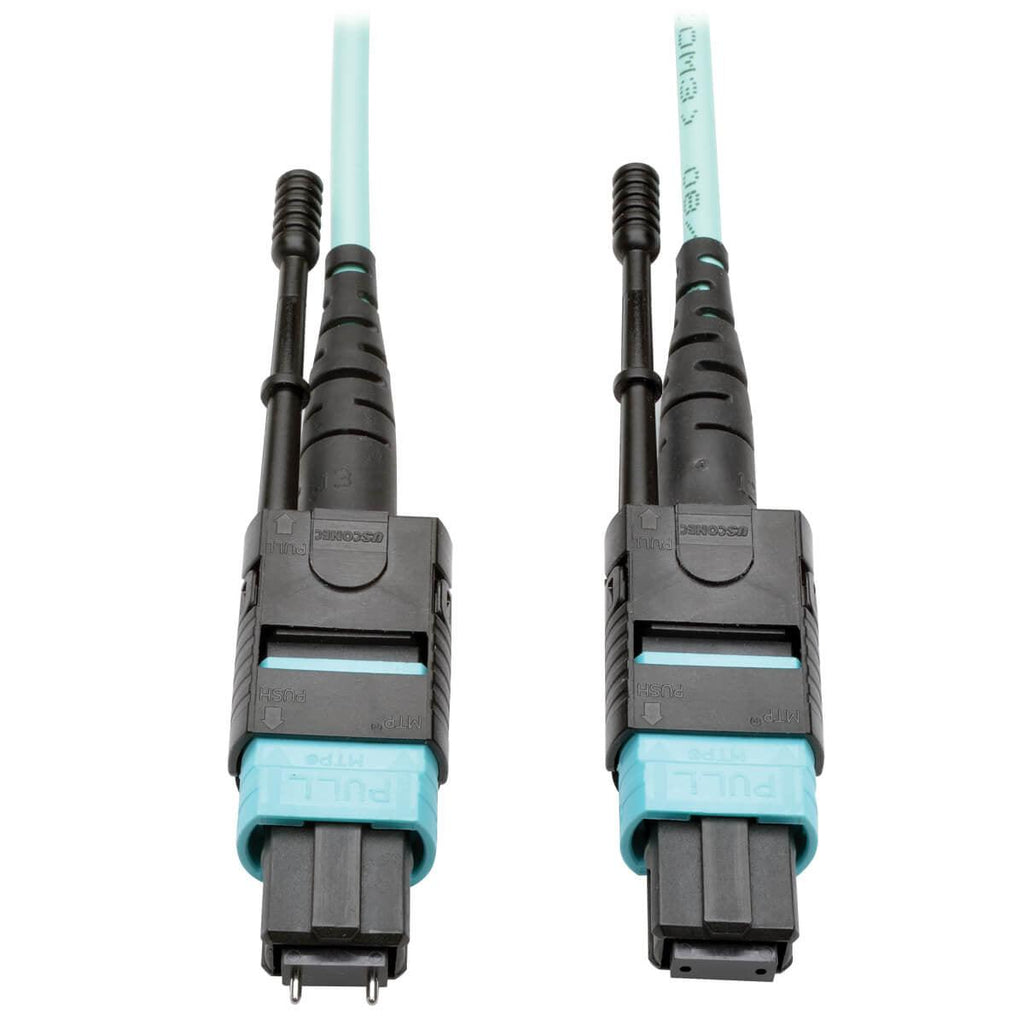

          40G MTP/MPO Multimode OM3 Plenum-Rated Fiber Optic Cable (M/F), 12 Fiber, 40GBASE-SR4, Aqua, 5 m

          Tripp Lite N842-05M-12-MF 40G MTP/MPO Multimode OM3 Plenum-Rated Fiber Optic Cable (M/F), 12 Fiber, 40GBASE-SR4, Aqua, 5 m. Cable length: 5 m, Fibre optic type: OM3, Connector 1: MTP, Connector 2: MTP, Core diameter: 50 µm

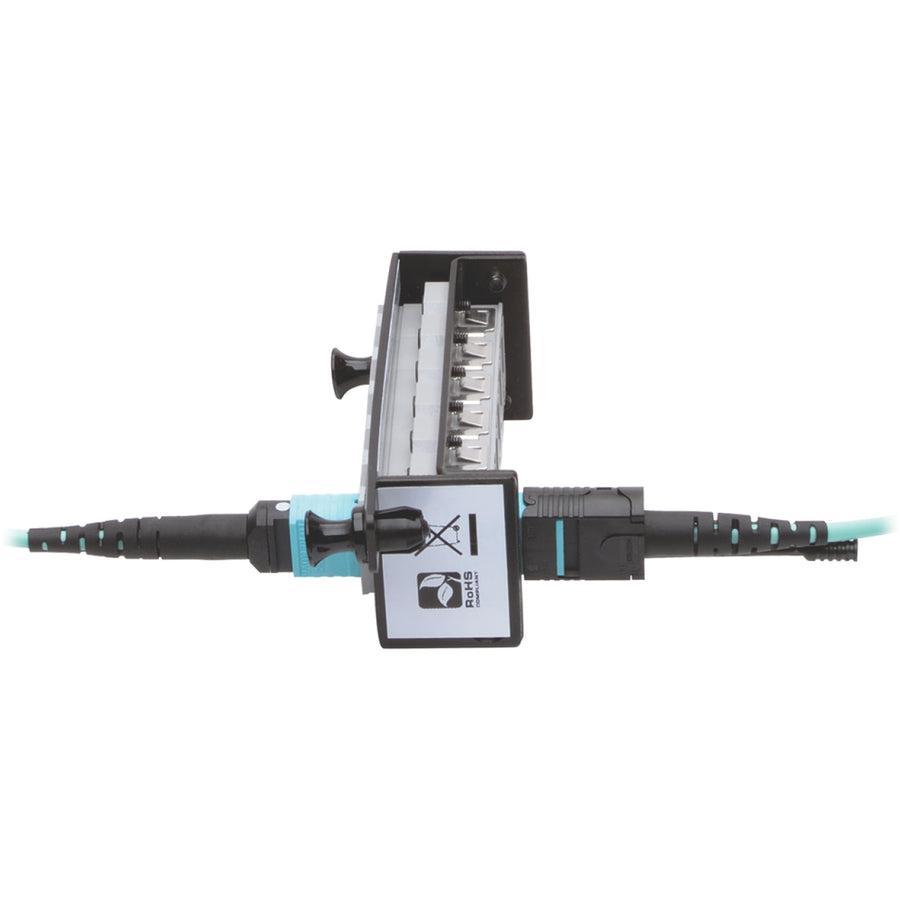

          The N842-05M-12-MF MTP/MPO Multimode Patch Cable is a 5-meter patch cable that supports 40 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers. With one male and one female MTP/MPO connector, this OM3-rated multimode fiber optic cable allows IT professionals to extend the length of their connection and eliminates the need for long fan-out cables or individual long duplex cable runs. MTP / MPO Extension cables used with Tripp Lite High Density patching systems, in particular MTP/MPO Feed-Through Cassettes, such as Tripp Lite N484-12M12.

          The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up circuit card and rack space for other cables. The cable has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand.

          Backward compatible with existing 50/125 fiber, the aqua-colored N842-05M-12-MF has 50/125 duplex (zipcord) fiber made from glass, as well as a plenum-rated jacket for connecting high-speed network components in ceilings, walls and ducts. The laser-optimized multimode fiber (LOMMF) cable meets the most current industry standards, including IEEE 802.3ae and TIA LOMMF.

          OM3-Rated for 10 Gb Ethernet Applications
          Designed to extend high-density connections between network equipment in telecommunication rooms and data centers
          Supports speeds up to 40 GbE
          Provides 3x more bandwidth than conventional 62.5 µm multimode fiber
          Backward compatible with existing 50/125 fiber
          Meets current IEEE 802.3ae and TIA LOMMF standards

          MTP/MPO Connectors with Push/Pull Tabs
          12-fiber male/female connectors 12 times denser than SC connectors
          Push/pull tab connectors easy to install and remove with one hand
          100% tested for low insertion loss and back reflection

          Error-Free Signal Transfer
          50/125 duplex glass fiber construction
          Plenum-rated jacket perfect for ceilings, walls and ducts
          Aqua-colored for identification as a 10 Gb cable
          Jacket features serial number for quality control and traceability
