Description :
Pre-Configured Unshielded Cat6 6-Port Surface-Mount Box, 110 IDC, RJ45, WhiteTripp Lite N236-006-WH Pre-Configured Unshielded Cat6 6-Port Surface-Mount Box, 110 IDC, RJ45, White. Construction type: Flat, Product colour: White, Connector 1: RJ-45. Package width: 177.8 mm, Package depth: 228.6 mm, Package height: 25.4 mm. Quantity per pack: 1 pc(s). Country of origin: China, Master (outer) case width: 355.6 mm, Master (outer) case length: 419.1 mm
The N236-006-WH Pre-Configured Unshielded Cat6 6-Port Surface-Mount Box features six RJ45 female connectors as a safe, easy, cost-effective tool for expanding your Cat5e/6 audio/video, voice or Ethernet network. The ABS UL 94V-0 flame-retardant housing mounts practically anywhere, including a wall or baseboard, using the included mounting screws or double-sided adhesive tape.

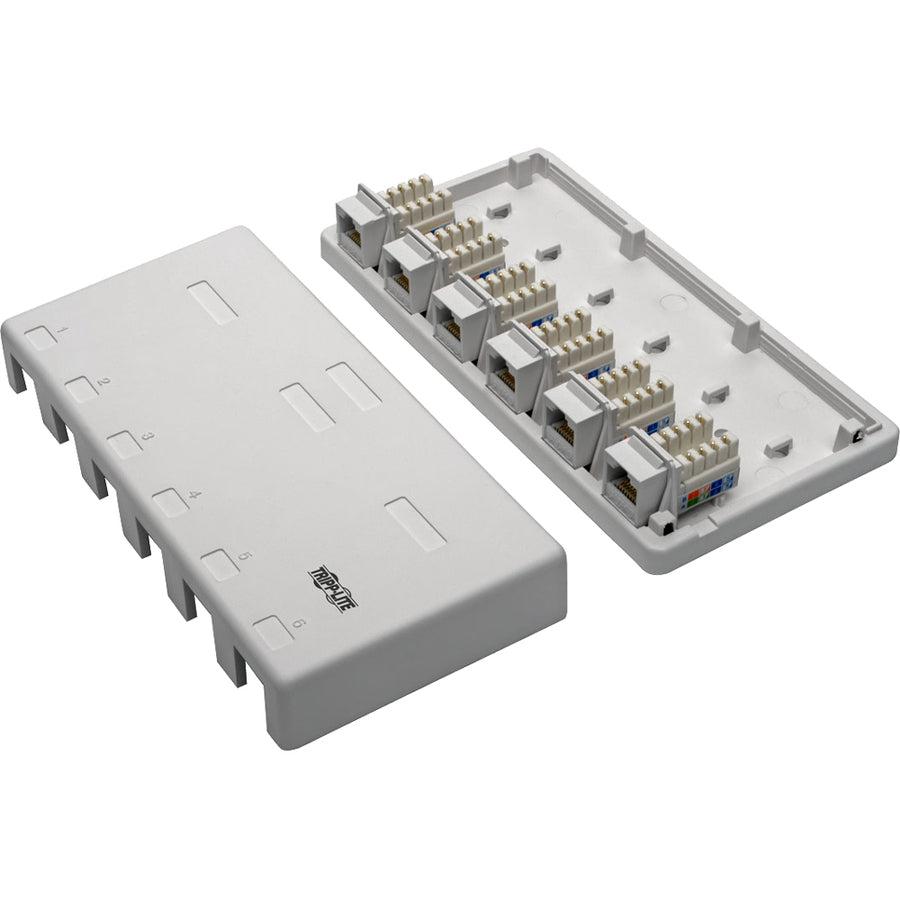

Just snap open the top cover to terminate up to six 22–26 AWG Cat5e/6 copper cables using a standard 110 IDC punchdown tool (such as Tripp Lite’s N046-000). The termination blocks are color-coded for easy T568A or T568B wiring. Zip ties are included for neatly securing the cables to the Cat6 surface-mount box, which features rear routing slots to allow the box to be installed flush against a wall or ceiling.

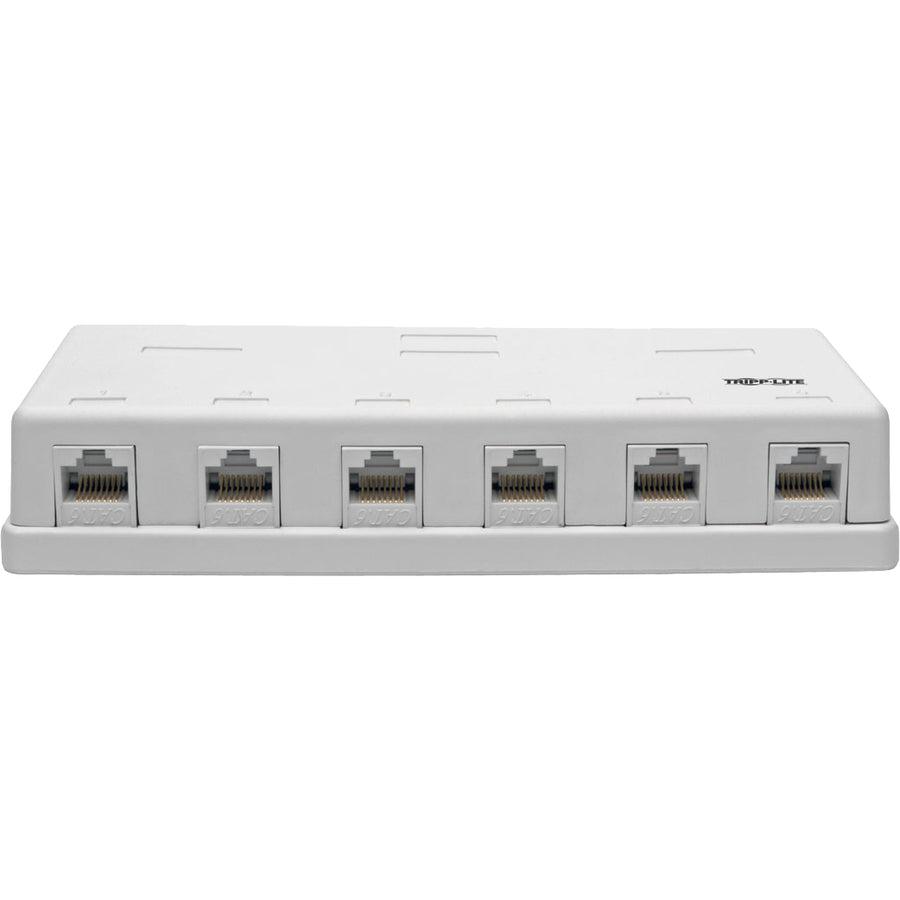

Snap the cover back on, and connect up to six Cat5e/6 cables to the pre-installed RJ45 keystone jacks with 50-micron gold-plated contacts for maximum conductivity and minimum data loss. The N236-006-WH offers great flexibility in placement, especially in applications where in-wall box and wire installation is impossible.
6-Port Surface-Mount Box Completes A/V, Voice and Ethernet Applications

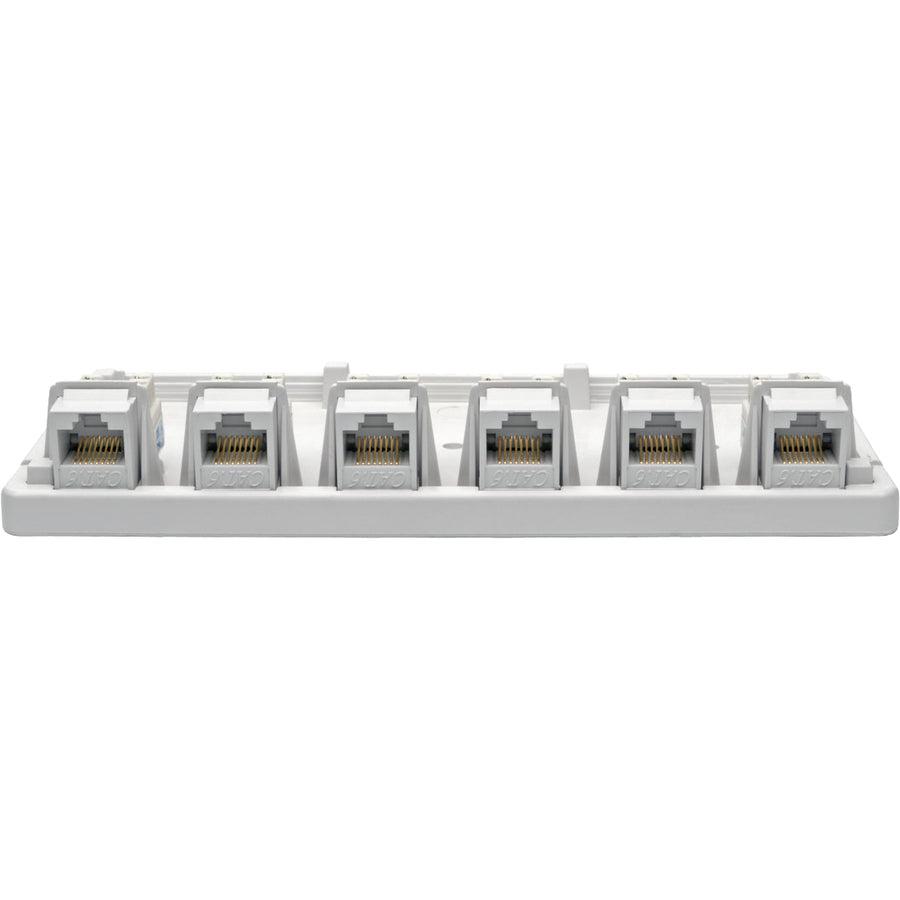

Connect up to 6 Cat5e/6 cables to pre-installed RJ45 keystone jacks
50 μm gold-plated contacts for maximum conductivity
Durable ABS UL 94V-0 flame-retardant housing designed to last
Complies with ANSI/TIA/EIA 568B standards
Ideal for Applications in Which In-Wall Installation Is Impossible
Recommended for use with 22–26 AWG Cat5e/6 cabling
Uses standard 110 IDC punchdown termination

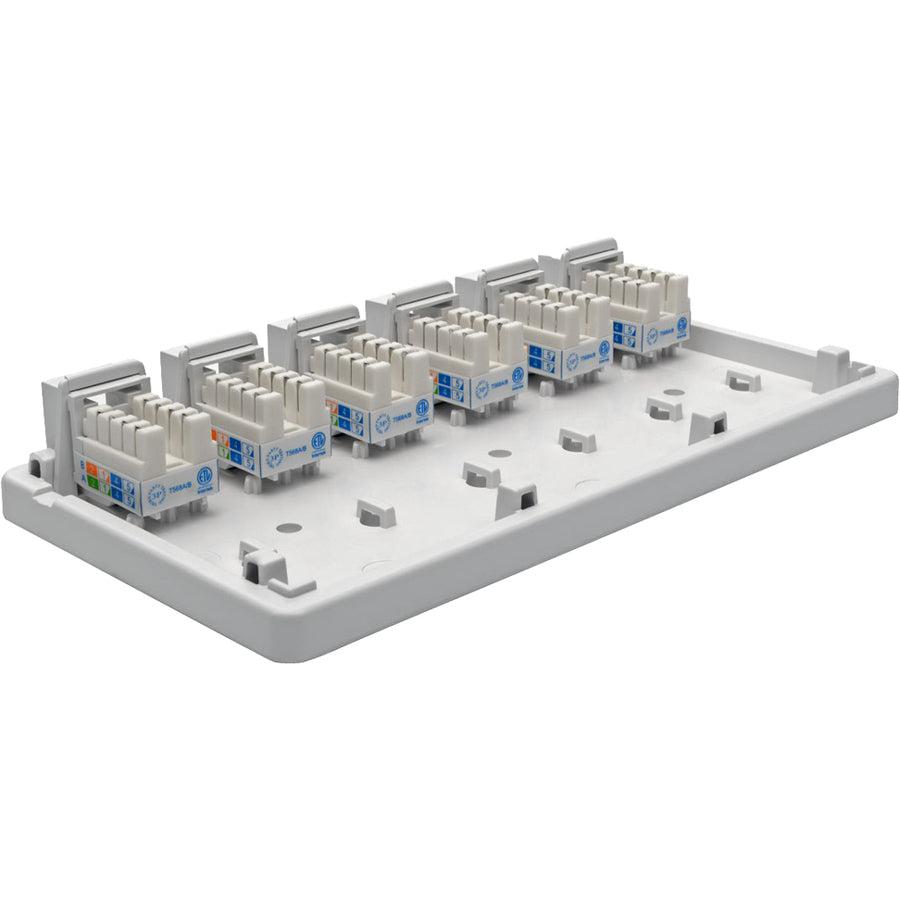

Termination blocks color-coded for T568A/B wiring compatibility

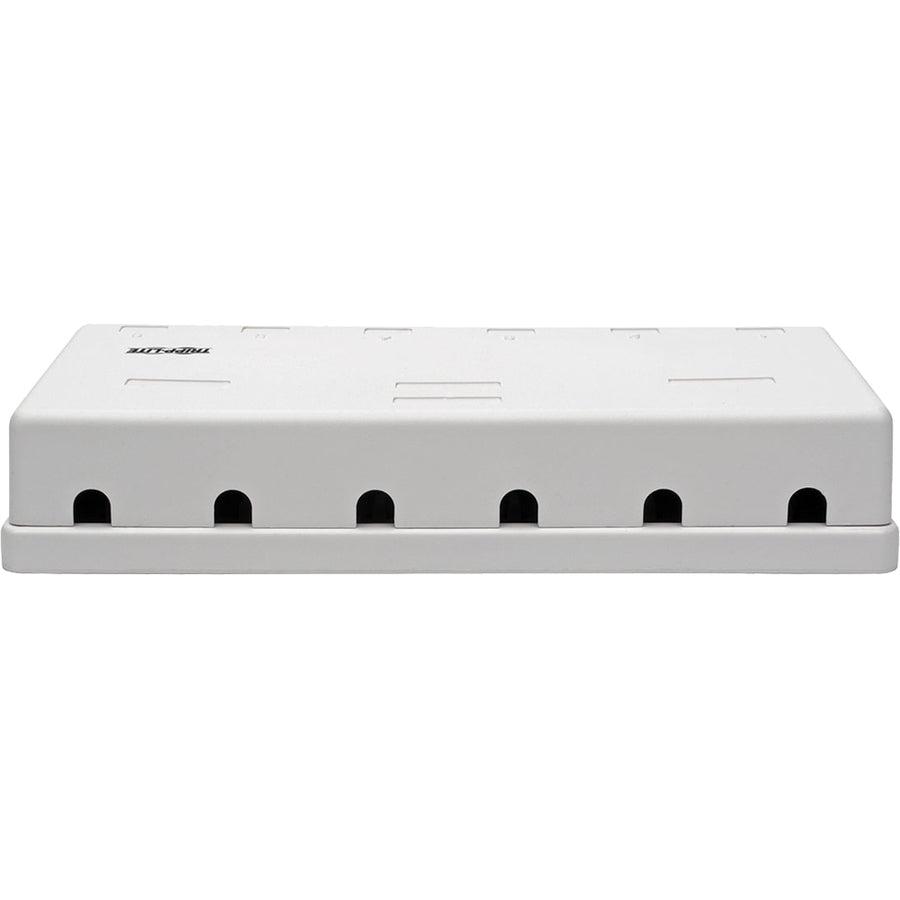

Zip ties included for neatly securing cables through rear routing slots
Easy to Mount Almost Anywhere

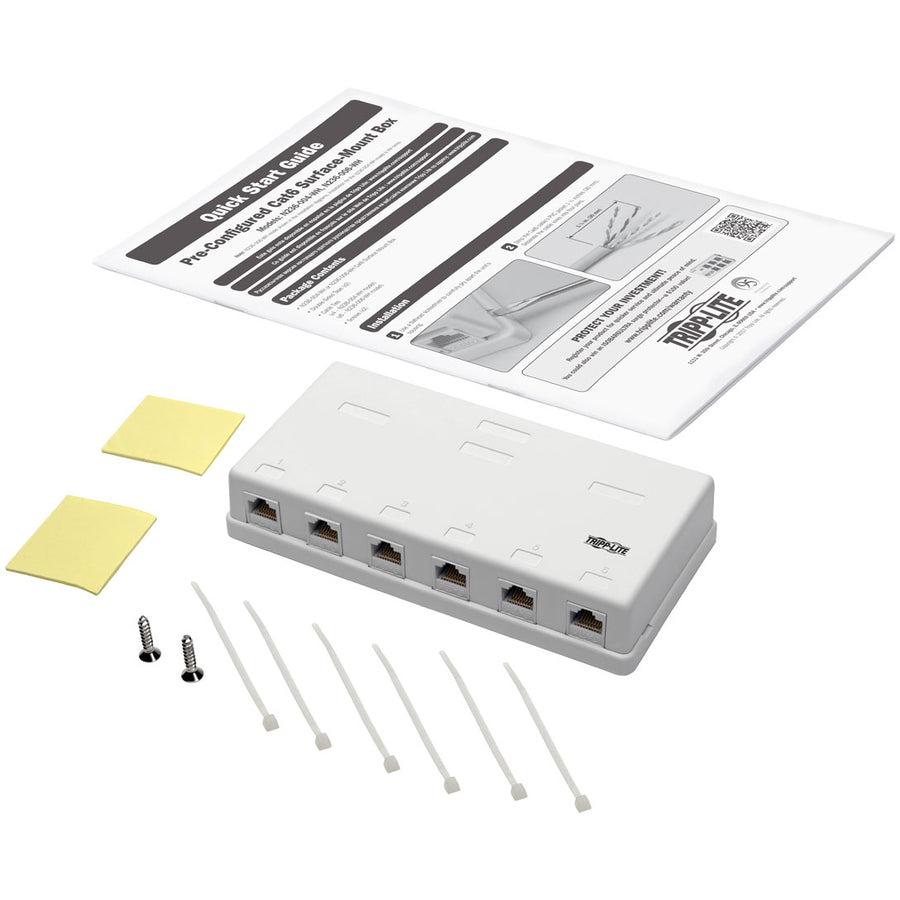

Mounting screws and double-sided tape are included
Specifications :
General Information
UPC | 037332206961 |
---|
