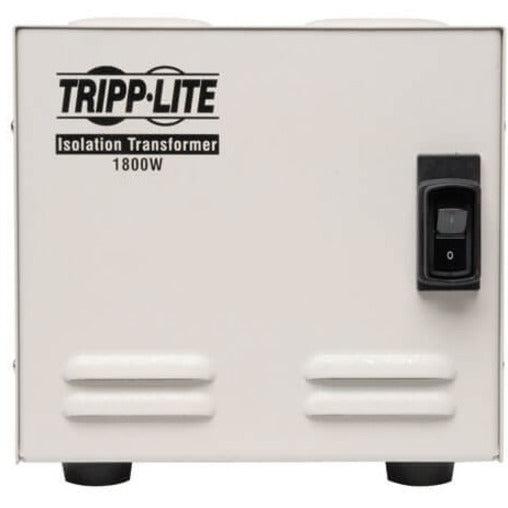

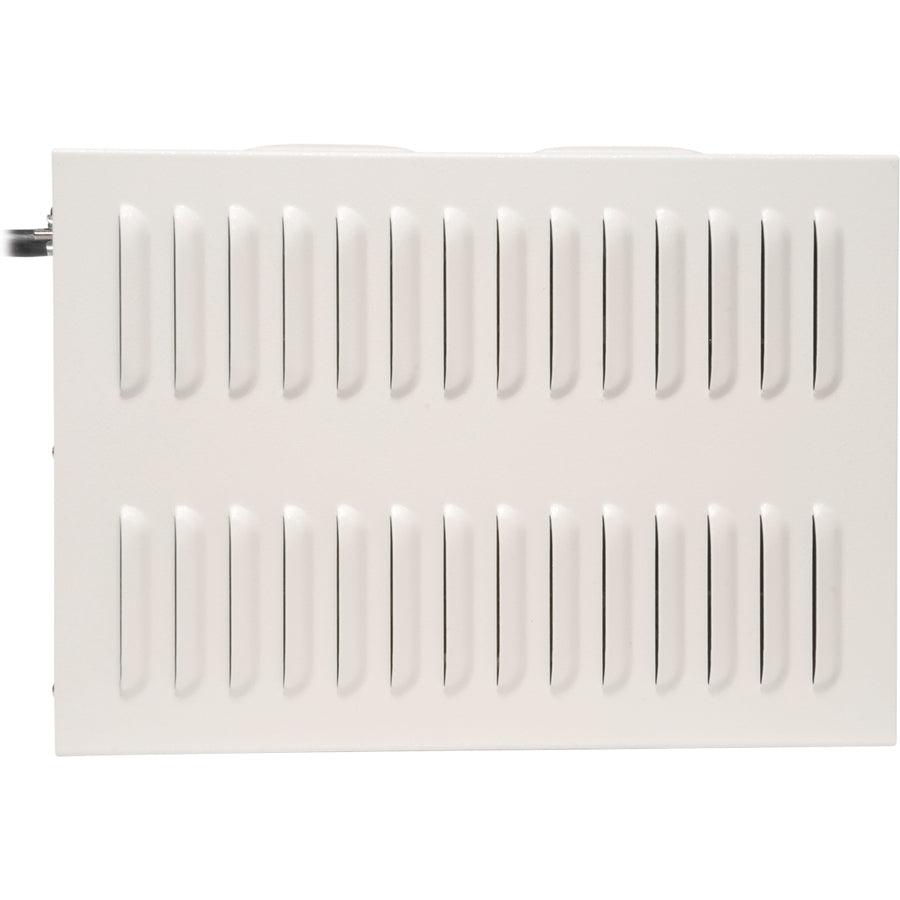

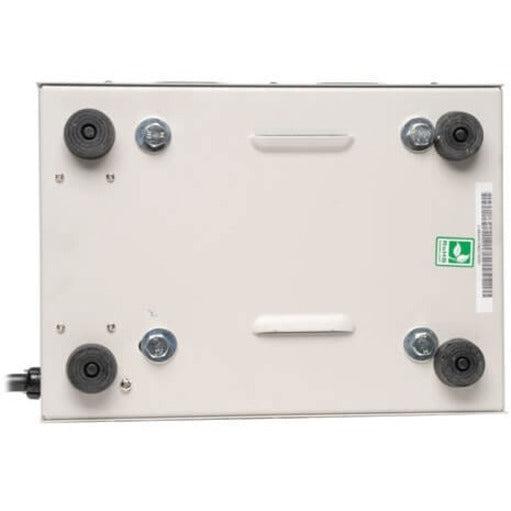

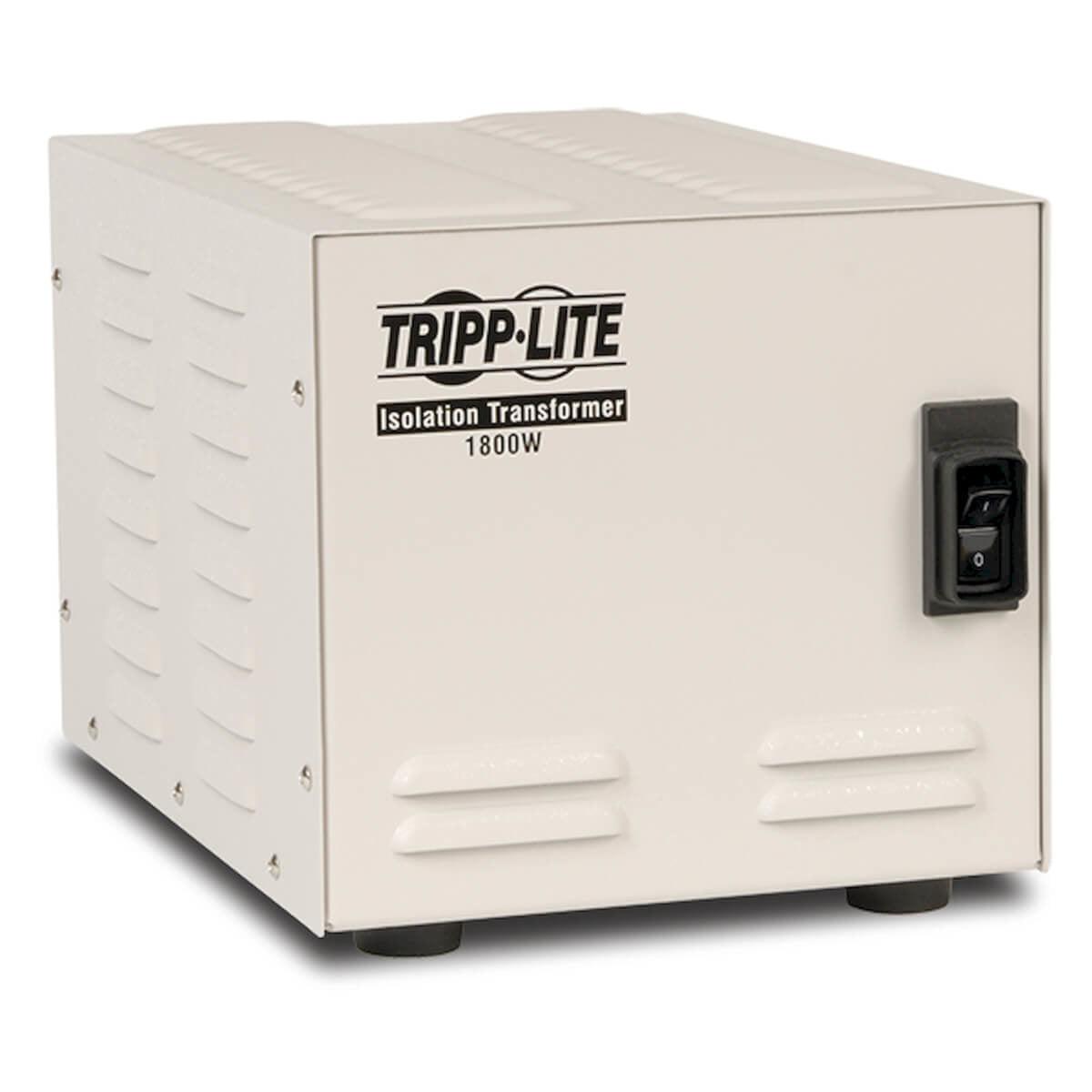

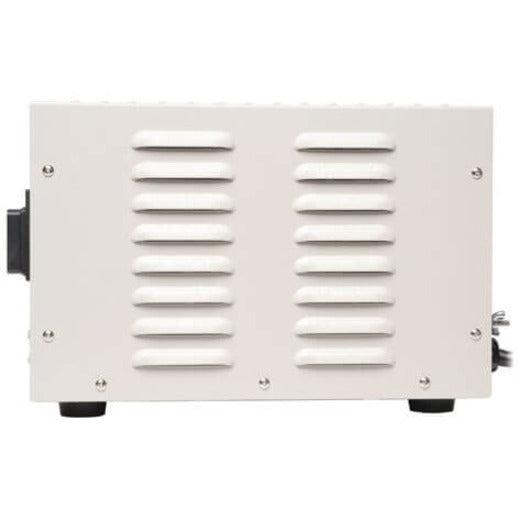

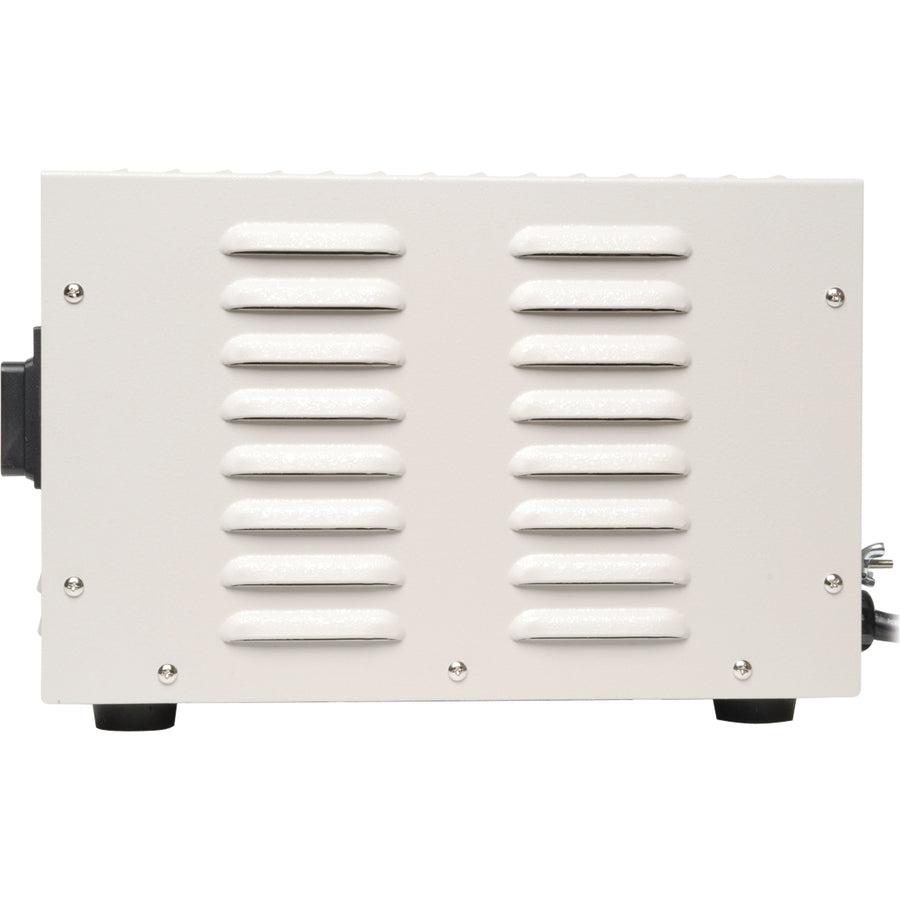

Tripp Lite Isolator Series 120V 1800W Ul60601-1 Medical-Grade Isolation Transformer With 6 Hospital-Grade Outlets

Tripp Lite Isolator Series 120V 1800W Ul60601-1 Medical-Grade Isolation Transformer With 6 Hospital-Grade Outlets

SKU:IS1800HG

Regular price $720.56
Regular price Sale price $720.56
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          Isolator Series 120V 1800W UL60601-1 Medical-Grade Isolation Transformer with 6 Hospital-Grade Outlets

          Tripp Lite Isolator Series 120V 1800W UL60601-1 Medical-Grade Isolation Transformer with 6 Hospital-Grade Outlets. Surge energy rating: 1190 J, AC outlets quantity: 6 AC outlet(s), AC outlet types: NEMA 5–20R. Power plug: NEMA 5–20P. Product colour: White, EMI/RFI noise filtering: 65 dB, Country of origin: Taiwan. Cable length: 3.05 m, Weight: 24.5 kg, Width: 209.6 mm. Certification: TAA, UL60601-1

          Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS1800HG includes 6 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit housing; ships ready for placement in any industrial, medical, office or network environment. PLUG/OUTLETS: Input - NEMA 5-20P Hospital Grade; Output - 6 NEMA 5-20R Hospital Grade ELECTRICAL: 120V AC, 60Hz, 2.1A (Requires NEMA 5-15R wall receptacle)

          - The IS1800HG Medical Grade Isolation Transformer offers line isolation and continuous noise filtering
          - Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
          - Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of
          - sensitive electronic equipment in patient-care areas.
          - Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral to ground
          - bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment
          - Serves as an inexpensive alternative to dedicated circuits and site electrical upgrades
          - Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops
          - Active transformer filtering offers continuous common-mode noise rejection with no wearable parts; unique ability to reduce surges in the worst of power
          - environments to harmless levels
          - Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode

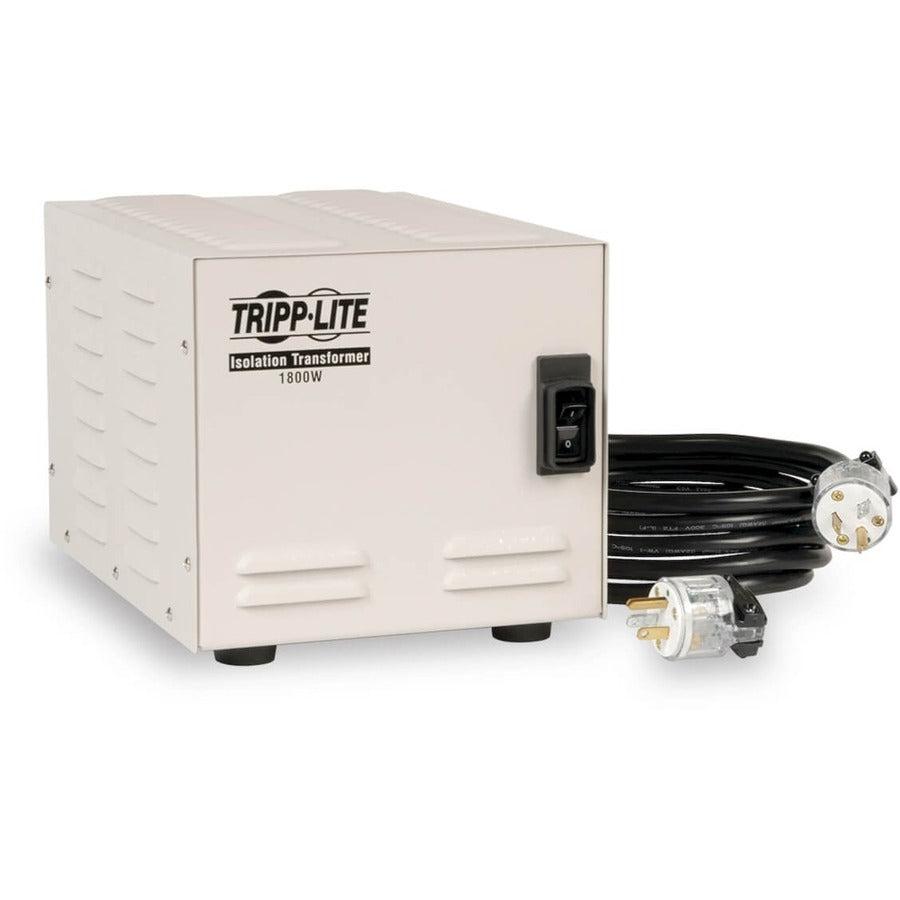

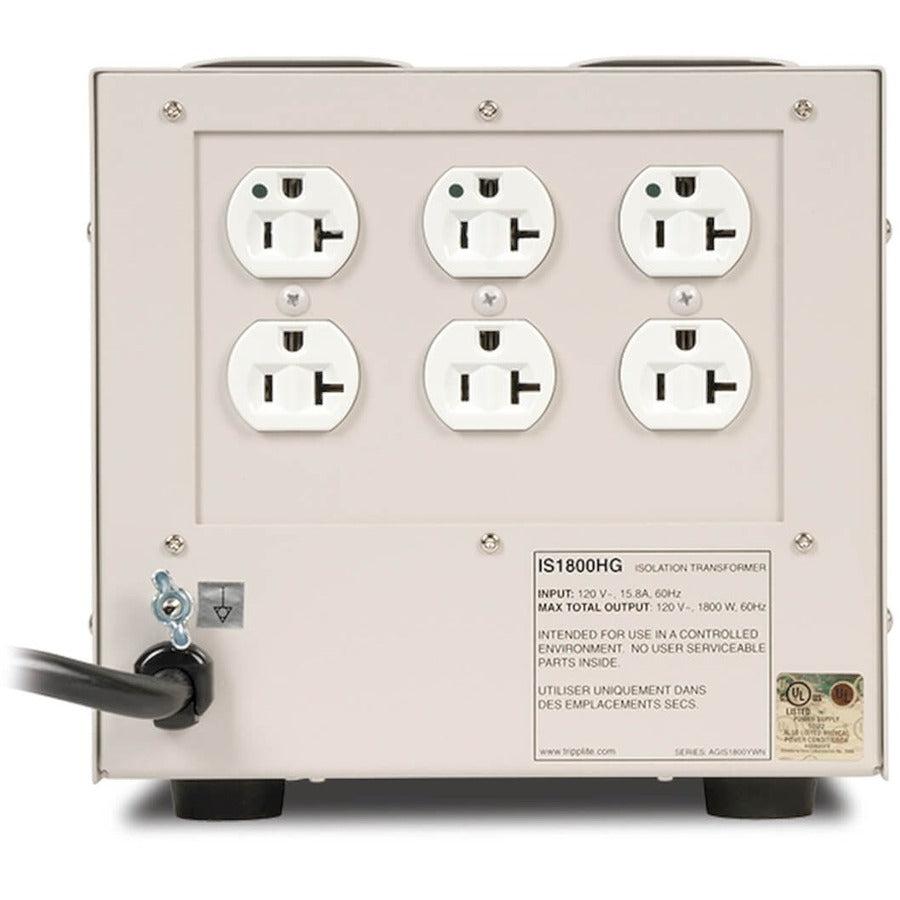

          - Includes 6 widely spaced NEMA5-20R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload
          - protection, and lighted power switch

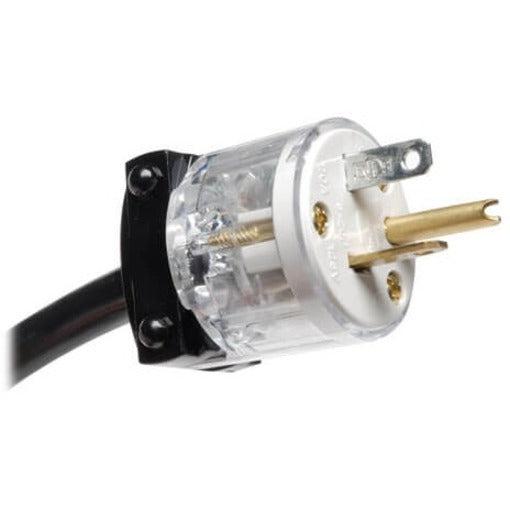

          - Ships with NEMA5-20P input plug installed, package includes NEMA5-15P user-installable hospital-grade replacement plug for compatiblity with common
          - 15A wall receptacles
          - Rugged all-metal unit housing; ships ready for upright tower placement in any industrial, medical, office or network environment

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model IS1800HG
          Product Name Isolator IS1800HG 6 outlets Transformer
          Product Type Isolation Transformer
          UPC 037332116222
          Height7.8"
          Width8.3"
          Depth12.3"

          Miscellaneous

          Package Contents
          • Isolator IS1800HG 6 outlets Transformer
          • IS1800HG Isolation Transformer
          • NEMA5-15P replacement plug
          • User manual with warranty information

          Warranty

          Limited Warranty2 Year
