Tripp Lite

Tripp Lite HDBaseT HDMI Over Cat5e/6/6a Extender Kit with Serial and IR Control, 4K x 2K UHD / 1080p, Up to 328-ft. (100M)

SKU: BHDBT-K-SI-LR

Regular price $383.05
Regular price Sale price $383.05
Sale Sold out
Shipping calculated at checkout.
          Description
          Que. & Ans.
          Reviews

          Description :

          HDBaseT HDMI Over Cat5e/6/6a Extender Kit with Serial and IR Control, 4Kx2K UHD / 1080p, Up to 328-ft. (100M)

          Tripp Lite HDBaseT HDMI Over Cat5e/6/6a Extender Kit with Serial and IR Control, 4K x 2K UHD / 1080p, Up to 328-ft. (100M). Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e,Cat6,Cat6a. Audio input: 6x 3.5MM (FEMALE). AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Receiver dimensions (WxDxH): 114.3 x 27.94 x 27.94 mm, Receiver weight: 226.7 g, Transmitter dimensions (WxDxH): 114.3 x 63.5 x 27.94 mm. Package width: 289.6 mm, Package depth: 165.1 mm, Package height: 55.9 mm

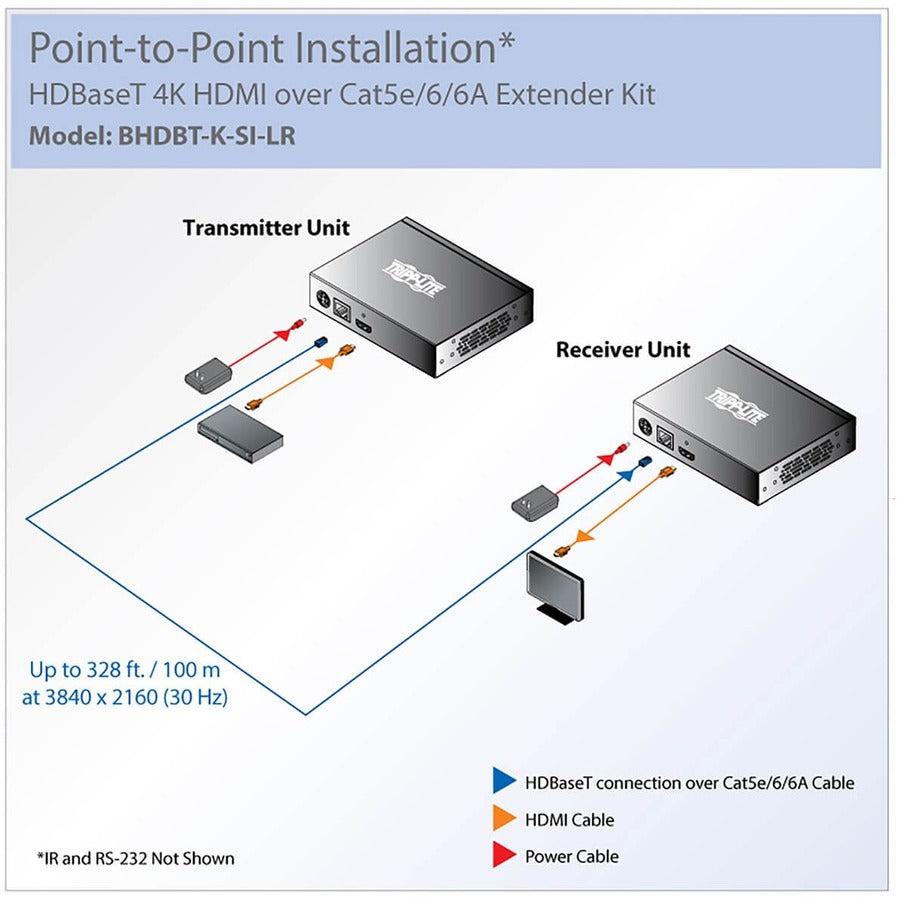

          The BHDBT-K-SI-LR HDBaseT Extender Kit allows you to transmit HDMI audio and video, RS-232 serial and IR Remote Control signals up to 328 feet (100 m) over a single Cat5e/6/6a cable. This includes 1920 x 1080 (1080p) signals @ 60 Hz and even Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) video signals. Add up to five Tripp Lite BHDBT-TR-SI-LR transceivers (sold separately) between the transmitter and receiver units to further expand the range up to 2,000 feet (600 m) with a monitor connected via HDMI port to each transceiver. You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The BHDBT-K-SI-LR’s 2-way IR Remote Control feature (@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports (ideal for use with Tripp Lite’s High-Speed HDMI cables with locking connectors, such as P569-006-LOCK) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The BHDBT-K-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach each unit to a wall, rack or pole. There’s no software to download or install, and you can have the BHDBT-K-SI-LR Extender Kit set up and ready to go quickly.

          - Extends a 1080p @ 60 Hz signal up to 328 feet (100 m)
          - Extends a 3840 x 2160 (4K x 2K) signal up to 328 feet (100 m)
          - Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
          - Controls RS-232 serial devices at baud rates up to 115 Kbps
          - Allows you to control a Blu-ray player from a remote monitor

          - Extends a High Definition 1920 x 1080 (1080p) @ 60 Hz signal up to 328 feet (100 m)
          - Extends an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) signal up to 328 feet (100 m)
          - Accepts up to five BHDBT-TR-SI-LR transceivers and six total monitors to further expand the range up to 2,000 feet (600 m)
          - Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
          - Supports 36-bit Deep Color (12 bits per channel), CEC pass-through, 3D video, EDID and HDCP
          - 2-way 39 KHz IR Remote Control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)
          - RS-232 serial port supports 115 Kbps full-duplex baud rates for scanners and touchscreen monitors
          - Plug-and-play engineering means no software or drivers to download and install
          - Ready to use in minutes
          - Included mounting hardware lets you install each unit on a wall, rack or pole
          - Locking HDMI ports (for use with Tripp Lite High Speed HDMI cables with locking connectors, such as P569-006-LOCK) on both the transmitter and receiver prevent cables from coming loose or disconnected, ensuring an intact signal
