Tripp Lite by Eaton

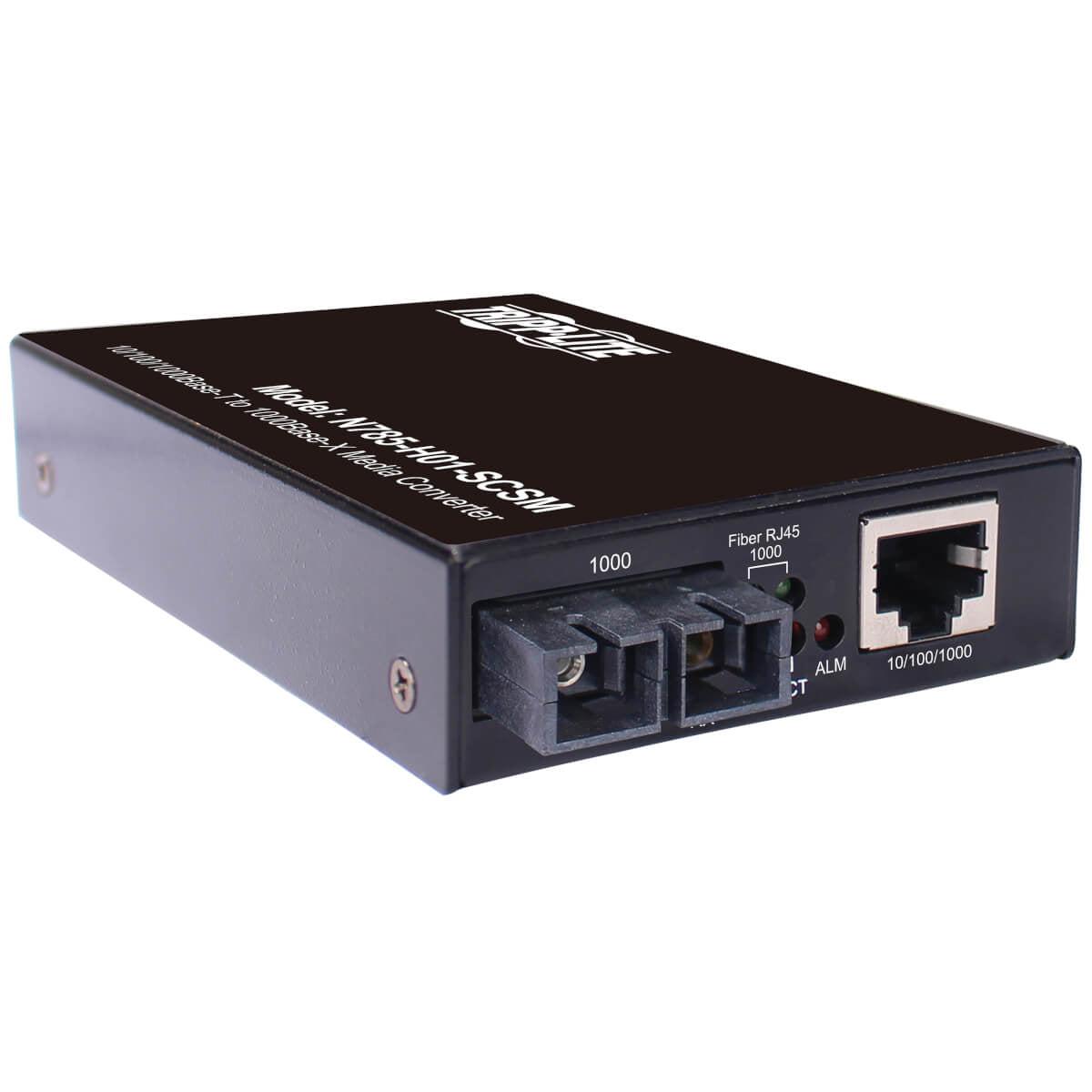

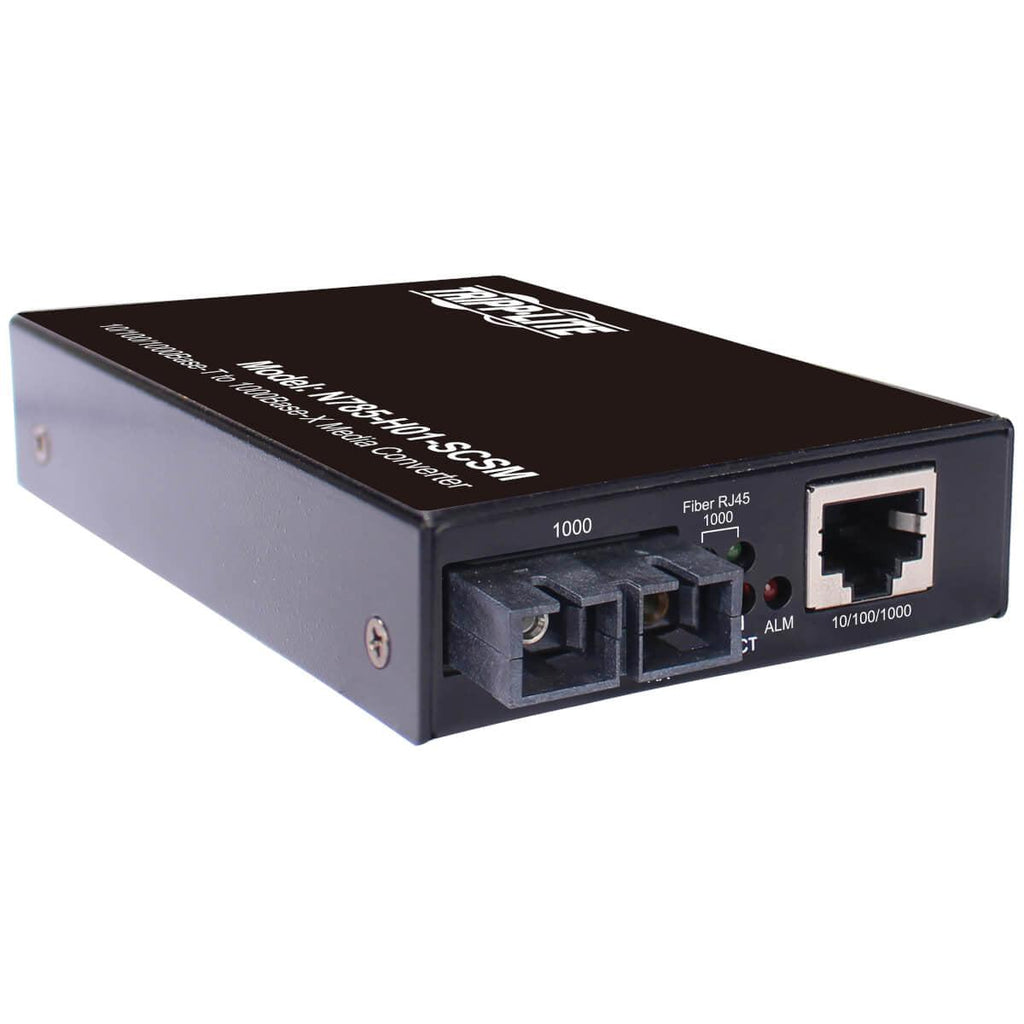

Tripp Lite Hardened Gigabit Fiber To Ethernet Media Converter, 10/100/1000 Mbps, Rj45/Sc Singlemode, -10° To 60°C, 10 Km (6.2 Mi.)

Tripp Lite Hardened Gigabit Fiber To Ethernet Media Converter, 10/100/1000 Mbps, Rj45/Sc Singlemode, -10° To 60°C, 10 Km (6.2 Mi.)

SKU:N785-H01-SCSM

Regular price $169.87
Regular price Sale price $169.87
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          Hardened Gigabit Fiber to Ethernet Media Converter, 10/100/1000 Mbps, RJ45/SC Singlemode, -10° to 60°C, 10 km (6.2 mi.)

          Tripp Lite Hardened Gigabit Fiber to Ethernet Media Converter, 10/100/1000 Mbps, RJ45/SC Singlemode, -10° to 60°C, 10 km (6.2 mi.). Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z, Ethernet interface type: Fast Ethernet, Gigabit Ethernet. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 10000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Black, Housing material: Metal, Country of origin: Taiwan. Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 0.5 A

          Extends a Network Connection up to 10 km over SC Singlemode Fiber Optic Cable
          This network media converter converts a copper Gigabit Ethernet signal to a singlemode fiber optic signal and extends it to a second network device up to 10 kilometers (6.2 miles) away. Because copper Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-H01-SCSM with singlemode fiber cable to reach hubs, switches and other network devices located farther away. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.

          Monitor Your Installation with Link Fault Signaling and Loop Back Functions

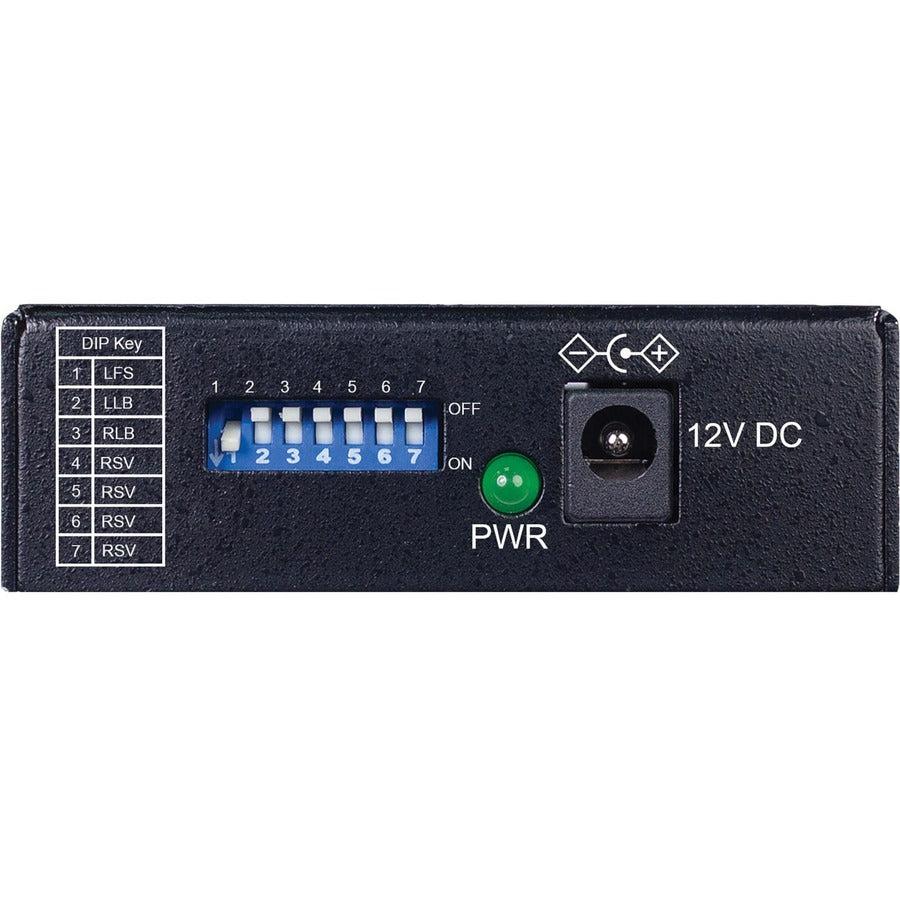

          Determine the health of your network connection via the Link Fault Signaling (LFS) and Loop Back functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The Local Loop Back (LLB) and Remote Loop Back (RLB) functions ensure copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.

          LEDs Indicate Installation Performance and Diagnostic Functions

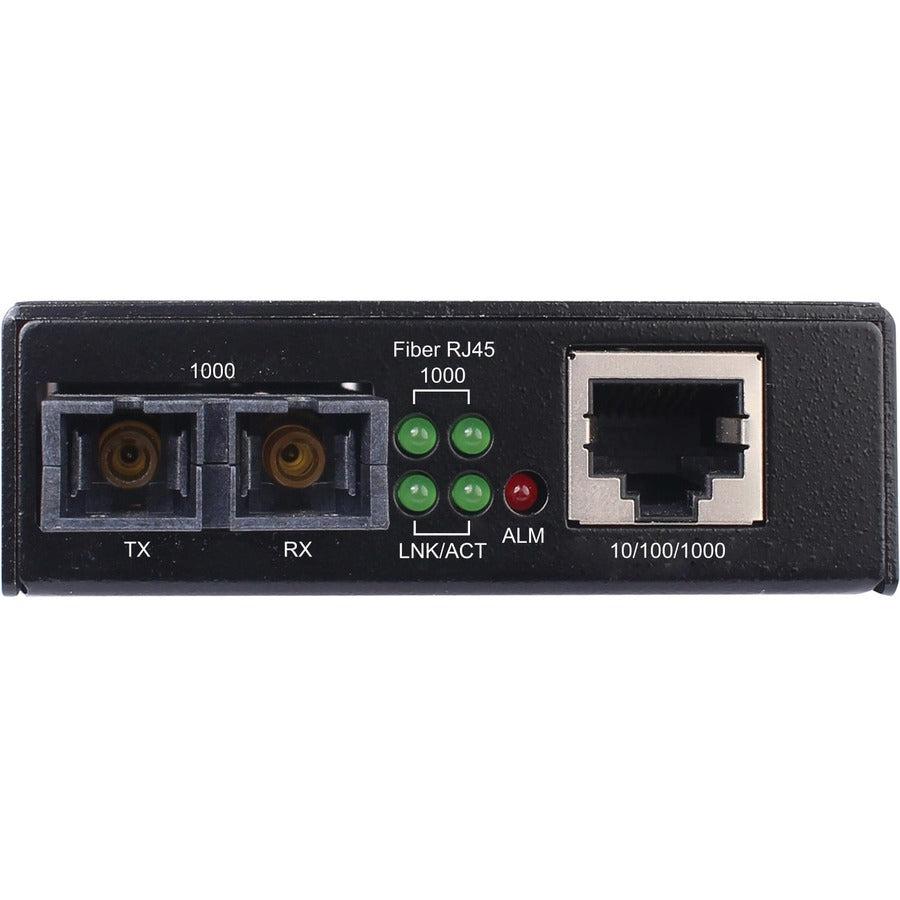

          Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power.

          Protective Metal Housing Built to Withstand a Variety of Hazards
          The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for wall or DIN mounting.

          Works in Tandem with Tripp Lite’s N785-CH12 Chassis
          House and power up to 12 Tripp Lite media converters, including the N785-H01-SCSM, using the N785-CH12 12-port chassis (sold separately) to create an organized installation.

          TAA-Compliant for GSA Schedule Purchases
          The N785-H01-SCSM is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number N785-H01-SCSM
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model N785-H01-SCSM
          Product Name N785-H01-SCSM Transceiver/Media Converter
          Product Type Transceiver/Media Converter
          UPC 037332267054
          Ethernet TechnologyGigabit Ethernet
          Network (RJ-45)Yes
          Height0.9"
          Width2.9"
          Depth4.3"
          Weight (Approximate)8.43 oz

          Miscellaneous

          Package Contents
          • N785-H01-SCSM Transceiver/Media Converter
          • L-shaped Bracket
          • Rubber Foot
          • SC Connector Cap
          • External Power Supply with NEMA 1-15P Plug (Input: 100-240VAC, 50/60 Hz, 0.5A; Output: 12VDC 1.5A)
          • DIN Rail Kit
          • Wall-mounting Hardware
          • Quick Start Guide
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year
