Tripp Lite Gigabit Multimode Fiber To Ethernet Media Converter, Poe+ - 10/100/1000 Lc, 850 Nm, 550 M (1804 Ft.)

Tripp Lite Gigabit Multimode Fiber To Ethernet Media Converter, Poe+ - 10/100/1000 Lc, 850 Nm, 550 M (1804 Ft.)

SKU:N785-P01-LC-MM1

Regular price $195.51
Regular price Sale price $195.51
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

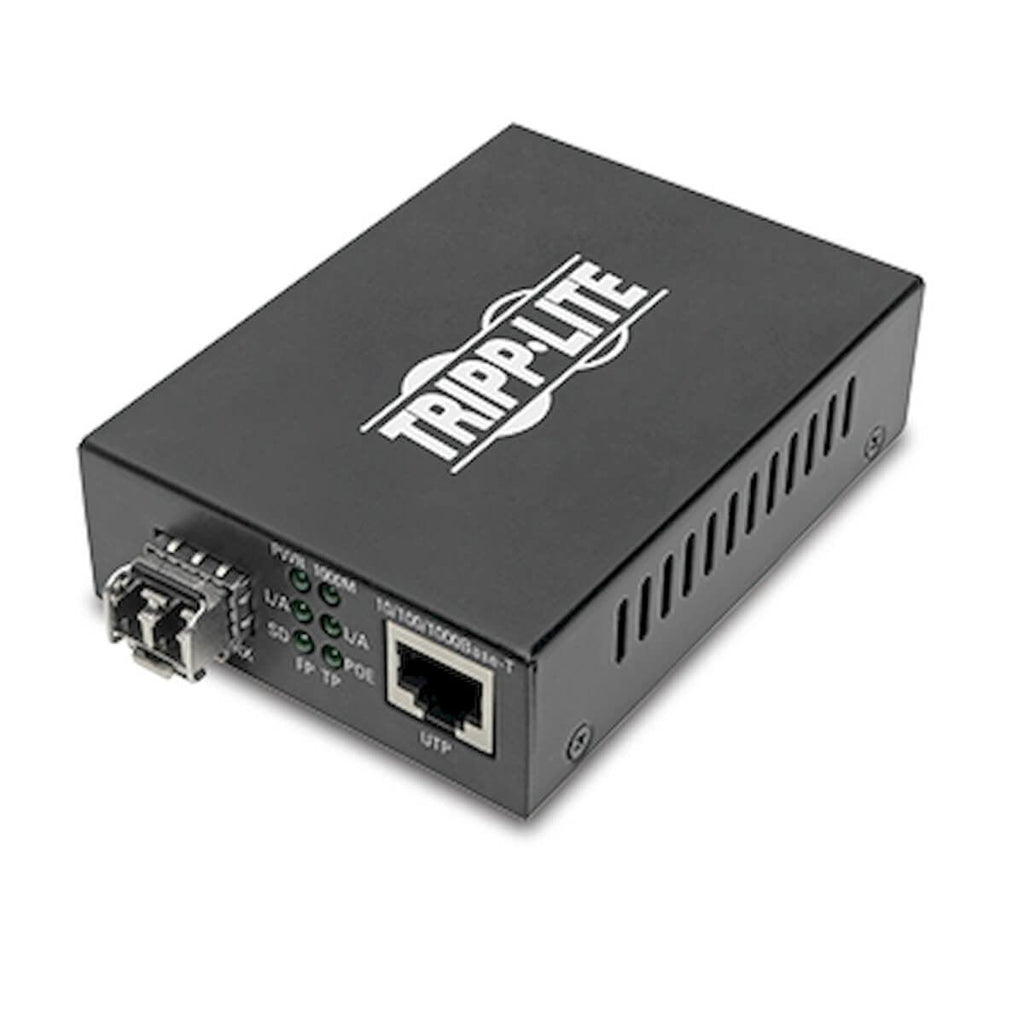

          Gigabit Multimode Fiber to Ethernet Media Converter, POE+ - 10/100/1000 LC, 850 nm, 550 m (1804 ft.)

          Tripp Lite Gigabit Multimode Fiber to Ethernet Media Converter, POE+ - 10/100/1000 LC, 850 nm, 550 m (1804 ft.). Maximum data transfer rate: 1000 Mbit/s, Ethernet LAN data rates: 100,1000 Mbit/s, Duplex system: Full, Half. Fiber optic connector: LC, Connectivity technology: Wired. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: Link, PoE, Power, Speed, Status, Product colour: Black, Country of origin: China. Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 1.5 A

          Extends Power and Data to a PoE+ Device up to 550 Meters via LC Multimode Fiber Cable
          This economical unit converts a multimode fiber optical signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet to a PoE+ (Power over Ethernet) device. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-P01-LC-MM1 with multimode fiber cable to reach greater distances. This could include providing both data and power to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices.

          Supports Power over Ethernet to Save You Money and Give You More Installation Choices
          PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.

          Supports Auto-Sensing of Network Speed and Other Advanced Functions

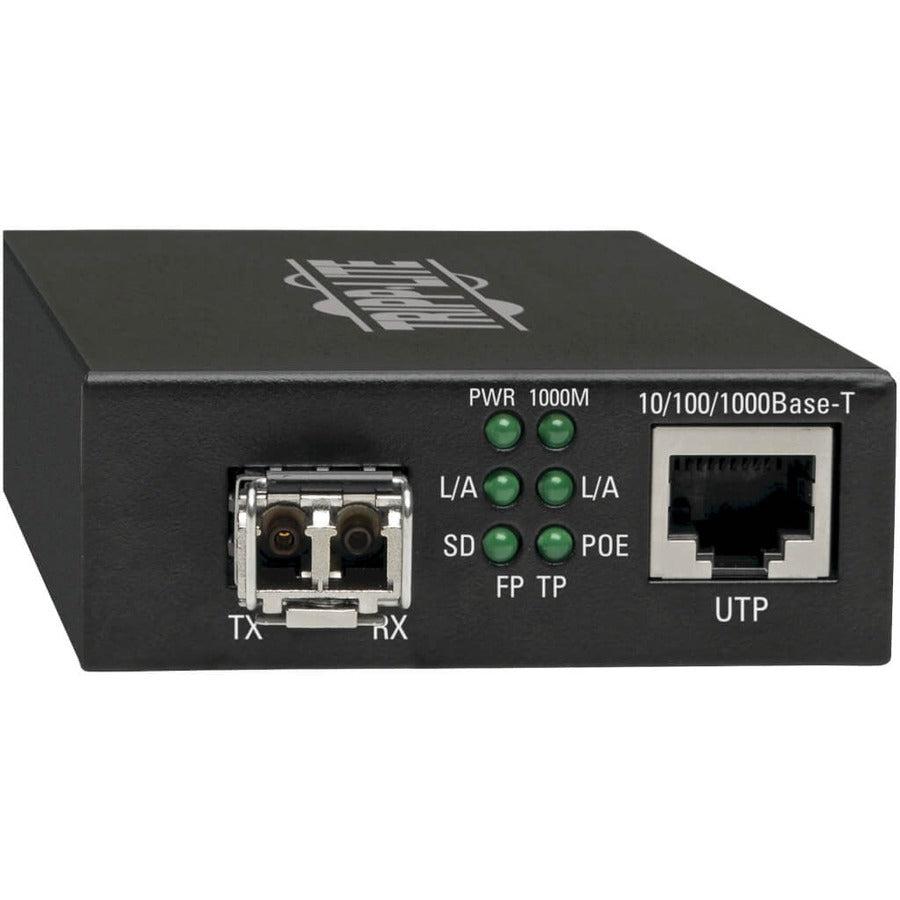

          Monitoring and controlling your network nodes is easy with the N785-P01-LC-MM1’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter’s power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the LC and RJ45 ports to ensure link status remains active.

          Works in Tandem with Tripp Lite’s N785-001-LC-MM Media Converter
          This media converter connects to the N785-001-LC-MM using multimode fiber optic cabling with LC ends (such as Tripp Lite’s N520-Series, sold separately) to extend an Ethernet network connection up to 550 meters. Use Cat5e/6 cabling (such as Tripp Lite’s N001- or N201-Series cables) to deliver data and power to a 10/100/1000 Mbps PoE device up to 100 meters (328 feet) from the N785-P01-LC-MM1.

          Completely Plug-and-Play with No Additional Software Required for Connection
          The compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed.

          Typical Applications
          - Deliver power and data to a PoE device mounted somewhere that is difficult to reach or without AC outlets
          - Extend a Gigabit Ethernet network beyond the standard 100 m reach of copper cabling

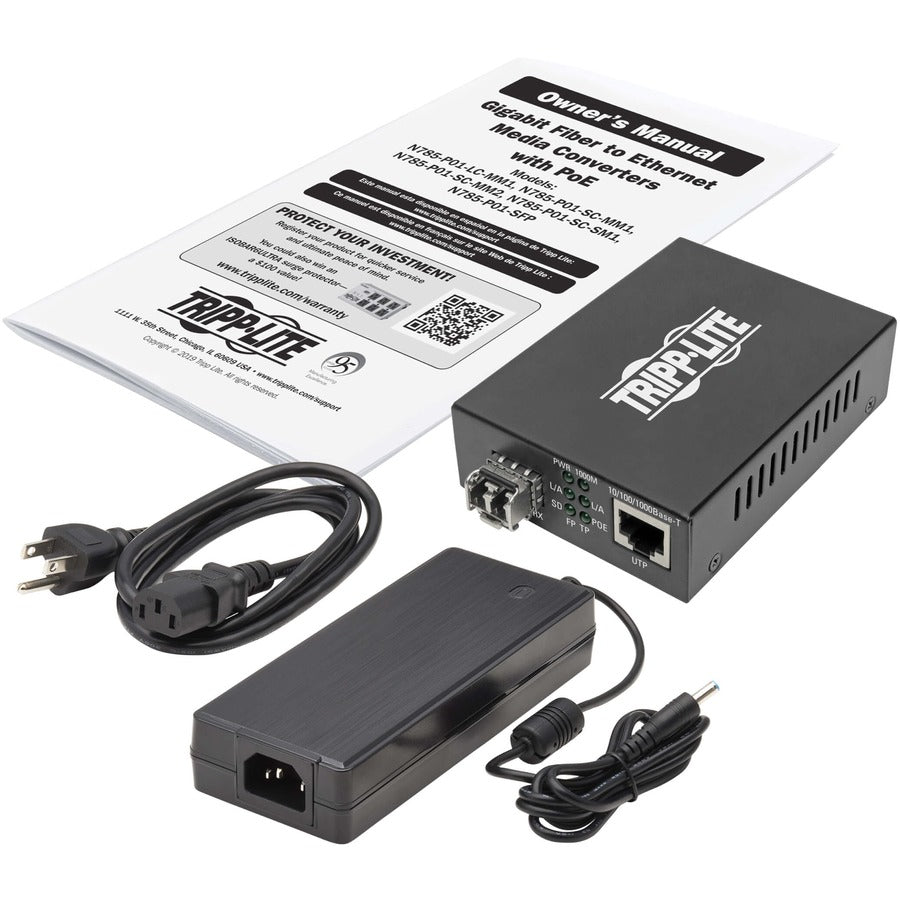

          Package Includes
          - N785-P01-LC-MM1 Gigabit Multimode Fiber to Ethernet Media Converter
          - External power supply with 3.6 ft. cord and NEMA 5-15P plug (Input: 100–240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)
          - Owner’s manual

          System Requirements
          - 10/100/1000 Mbps Gigabit Ethernet network
          - Multimode LC fiber optic cabling up to 550 m (1804 ft.)
          - Tripp Lite N785-001-LC-MM media converter

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number N785-P01-LC-MM1
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model N785-P01-LC-MM1
          Product Name N785-P01-LC-MM1 Transceiver/Media Converter
          Product Type Transceiver/Media Converter
          UPC 037332236906
          Ethernet TechnologyGigabit Ethernet
          Network (RJ-45)Yes
          Height1"
          Width3.7"
          Depth2.8"
          Weight (Approximate)7.04 oz

          Miscellaneous

          Package Contents
          • N785-P01-LC-MM1 Transceiver/Media Converter
          • External Power Supply with 3.6 ft. Cord and NEMA 5-15P Plug (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year
