DataShield In-Line Surge Protector for Network and Phone Lines, 1-Line RJ45
Tripp Lite DNET1 DataShield In-Line Surge Protector for Network and Phone Lines, 1-Line RJ45. Nominal input voltage: 120-230 V, Nominal current output: 750 A. Product colour: White, Country of origin: China. Package width: 76.2 mm, Package depth: 50.8 mm, Package height: 152.4 mm. Master (outer) case width: 241.3 mm, Master (outer) case length: 114.3 mm, Master (outer) case height: 266.7 mm

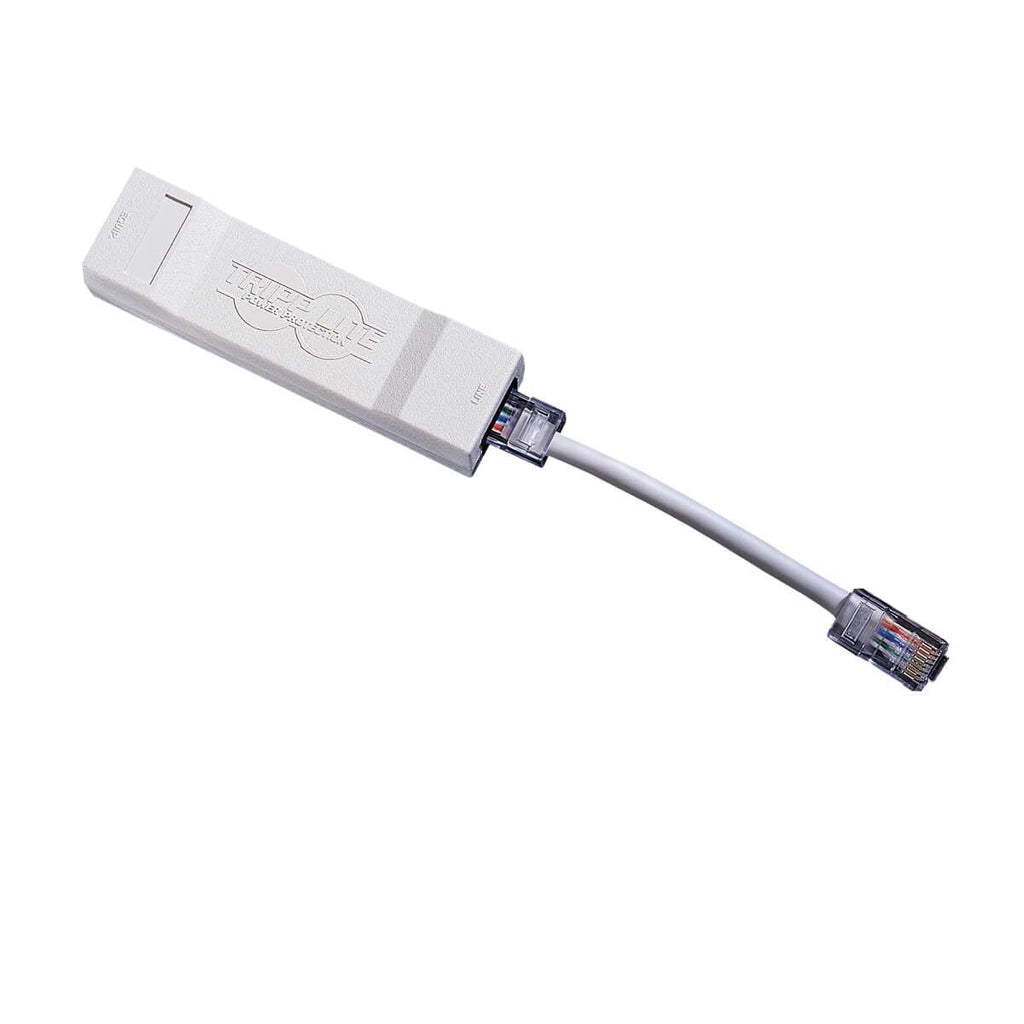

Tripp Lite's DNET1 provides network Ethernet line surge suppression for 100Base-T, 10Base-T, Token Ring, AS400/Sys3x and RS422 applications. Surge suppression is handled with balanced arrays of high-speed avalanche diodes that divert excess energies created by electrostatic discharges away from network interface connections. Tripp Lite network surge suppressors reduce blown NIC cards, garbled network transmissions, system lock-ups and hard equipment failure by safely shunting dataline surges to ground. Convenient RJ45 input and output connections with an included 5-inch Ethernet patch cable enables ideal protection for network workstations, printers and other internetworking devices with a network connection.
DNET1 protects network workstations, printers and internetworking devices from surges present on 10/100Base-T, token ring, AS400/Sys3x or RS422 network lines Convenient RJ45 input and output connections make for simple installation (RJ45 input/output connections, pins 1-8, 7.5V clamping) 5 inch Ethernet patch cable enables ideal protection placed as close as possible to the point of use Surge suppression utilizing high speed avalanche diodes divert excess energies on the network to ground RoHS Compliance Lifetime Warranty
