Tripp Lite by Eaton
Tripp Lite Bp72V18-2Us External 72V 2U Rack/Tower Battery Pack For Select Ups Systems (Bp72V18-2Us)
Tripp Lite Bp72V18-2Us External 72V 2U Rack/Tower Battery Pack For Select Ups Systems (Bp72V18-2Us)
SKU:BP72V18-2US
Regular price
$936.24
Regular price
Sale price
$936.24
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Specifications
Description :
External 72V 2U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP72V18-2US)Tripp Lite BP72V18-2US External 72V 2U Rack/Tower Battery Pack for select UPS Systems (BP72V18-2US). Battery voltage: 72 V, Number of batteries included: 1 pc(s), Product colour: Black. Weight: 40 kg, Width: 439.9 mm, Height: 87.1 mm. Package width: 711.2 mm, Package height: 228.6 mm, Package depth: 660.4 mm. Master (outer) case width: 711.2 mm, Master (outer) case length: 660.4 mm, Master (outer) case height: 228.6 mm

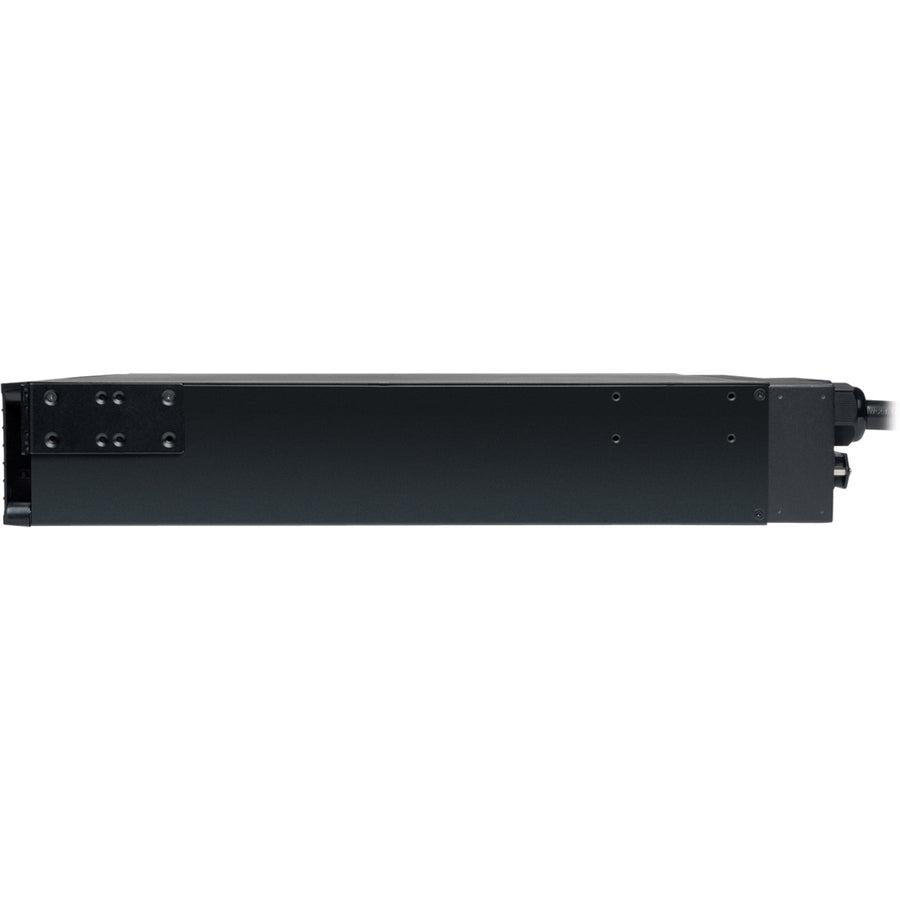

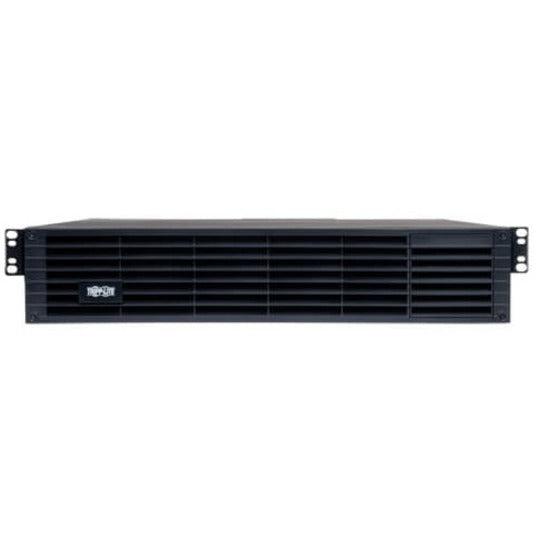

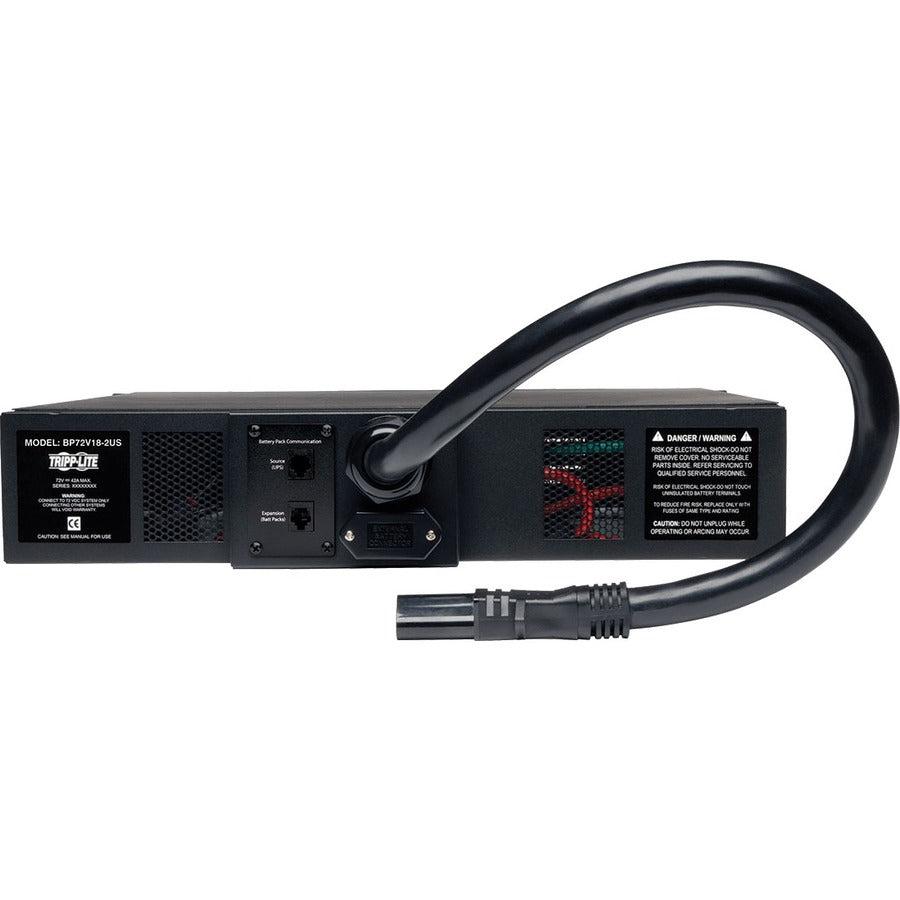

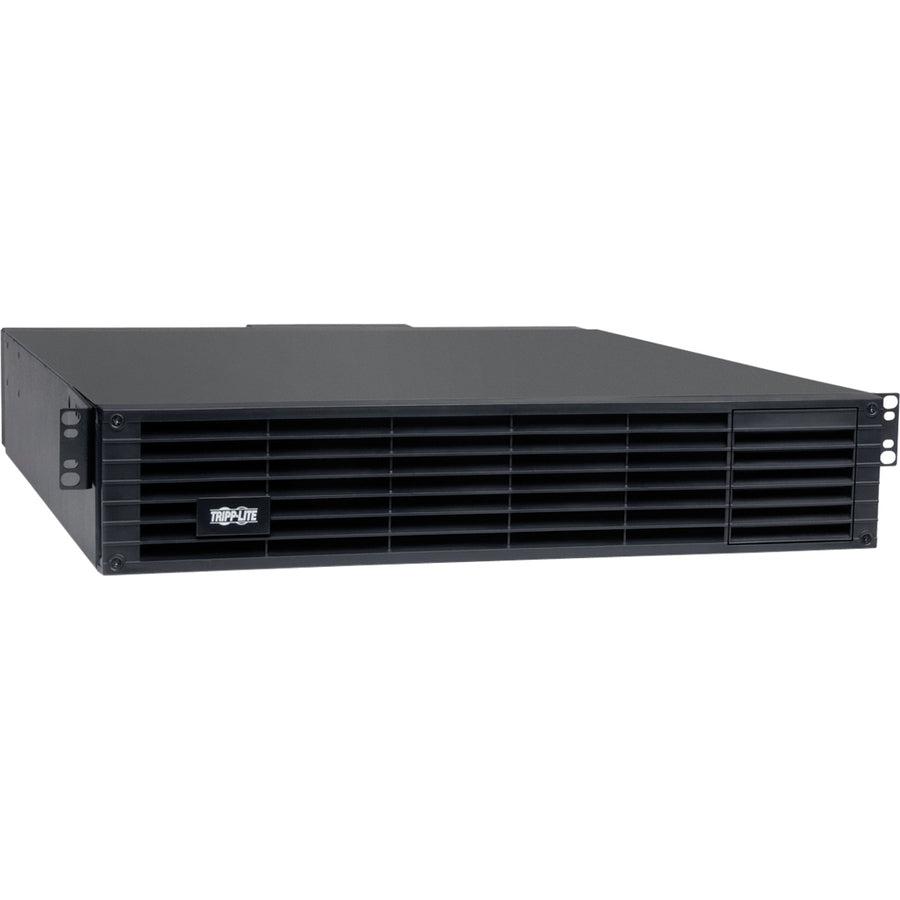

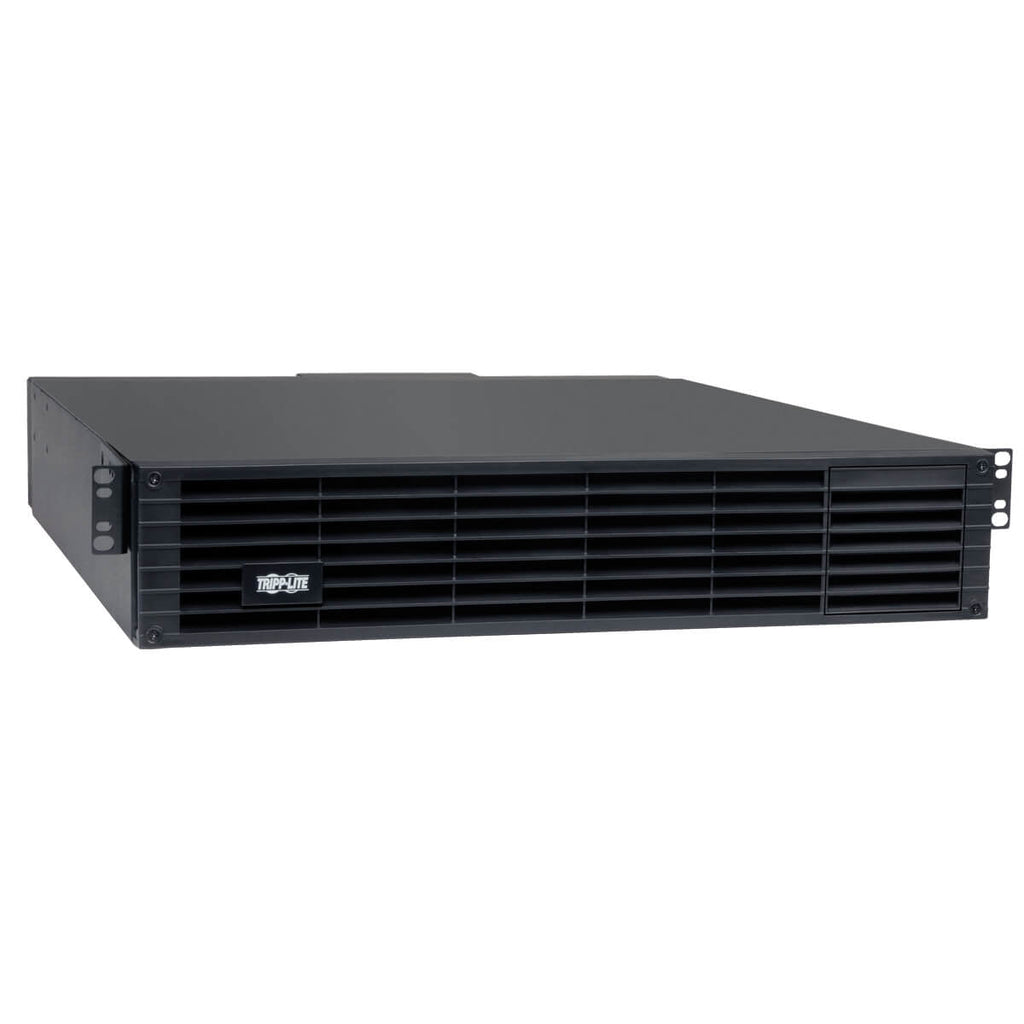

BP72V18-2US rack/tower external battery pack offers extended battery runtime when used in conjunction with expandable 72V Tripp Lite rackmount or tower UPS systems. Includes heavy gauge cabling with high current DC connector for safe, simple installation. Included daisychain connector enables the connection of additional compatible 72V external battery packs to the host UPS. Included mounting accessories support 2U rackmount installation in 4 post racks. Options for 2-point front-rail mounting, 2 post center-mounting, wallmount and upright tower installation available.
Compatible with these UPS Systems - SU3000RTXL2U, SU3000RTXL3U, SU3000RTXLCD2U, SU3000RTXLCD3U, SU3000RTXR3U, SU3000RTXR3UHW, SU3000XL, SU3000XLCD, SUINT3000RTXL2U, SUINT3000RTXL3U and other Tripp Lite UPS systems that specify the use of this battery pack.
Offers extended-run UPS operation when used in conjunction with compatible 72V DC Tripp Lite UPS systems
Includes heavy gauge cabling with high current DC connectors for simple installation
Daisychain connector enables the connection of additional compatible 72V external battery packs to the host UPS
Included mounting brackets support rackmount installation in 4 post racks using only 2 rack spaces (2U)
UPDHDEARKIT option supports 2 point front-rail rackmount installation without rear supports
2POSTRMKITWM option supports balanced 2 point center-mounting in 2 post equipment racks
2POSTRMKITWM option also enables wallmount installation
2-9USTAND option enables upright tower placement
Specifications :
General Information
| Manufacturer | Tripp Lite by Eaton |
|---|---|
| Manufacturer Part Number | BP72V18-2US |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | BP72V18-2US |
| Product Name | BP72V18-2US - 72V External 2U Rack / Tower Battery Pack for Select UPS Systems |
| Product Type | UPS Battery Pack |
| UPC | 037332178008 |
| Battery Chemistry | Lead Acid |
|---|
| Height | 3.4" |
|---|---|
| Width | 17.3" |
| Depth | 20.8" |
| Weight (Approximate) | 88.20 lb |
| Package Contents |
|
|---|---|
| Environmentally Friendly | Yes |
| Limited Warranty | 2 Year |
|---|
