Tripp Lite by Eaton

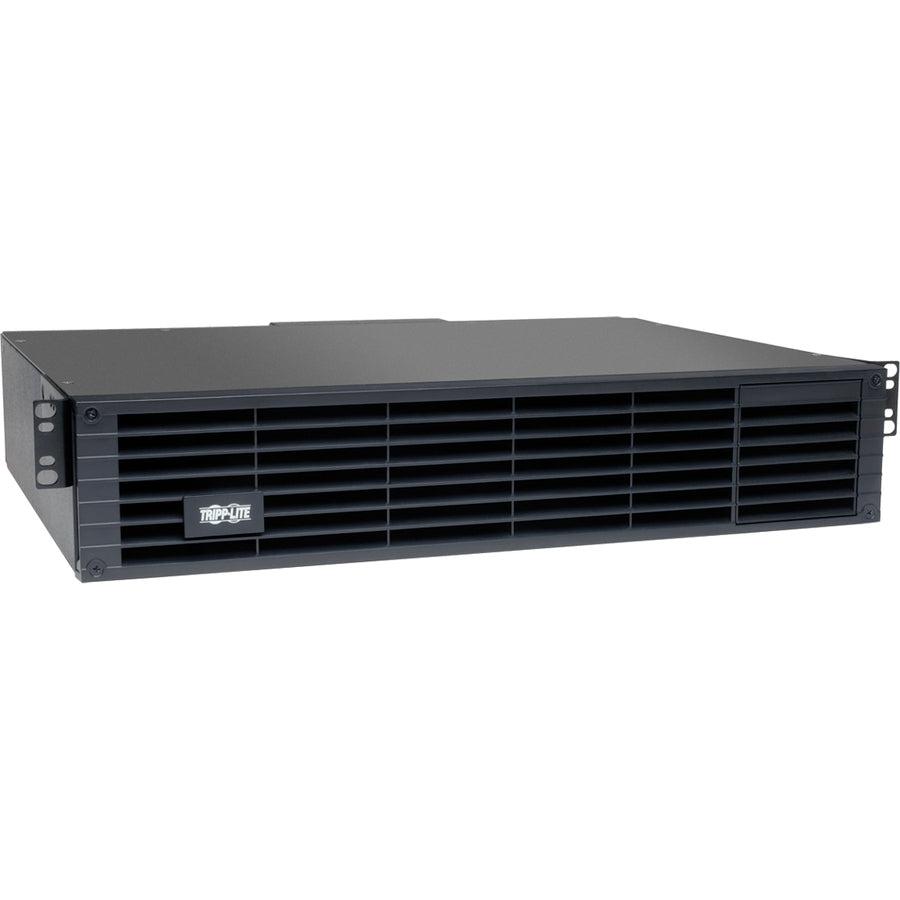

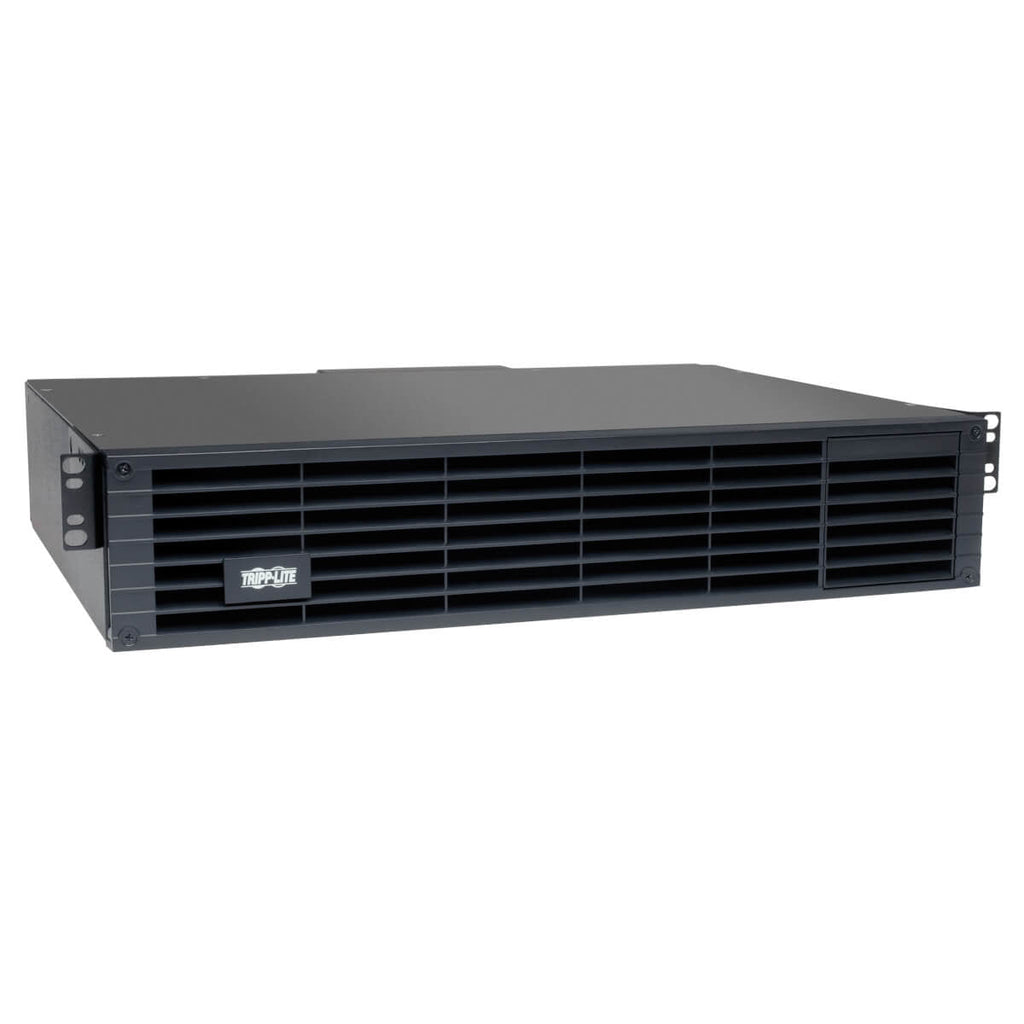

Tripp Lite Bp24V36-2Us External 24V 2U Rack-Mount Battery Pack For Select Ups Systems (Bp24V36-2Us)
Tripp Lite Bp24V36-2Us External 24V 2U Rack-Mount Battery Pack For Select Ups Systems (Bp24V36-2Us)
SKU:BP24V36-2US
Regular price
$1,025.00
Regular price
Sale price
$1,025.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Specifications
Description :
External 24V 2U Rack-Mount Battery Pack for select Tripp Lite UPS Systems (BP24V36-2US)Tripp Lite BP24V36-2US External 24V 2U Rack-Mount Battery Pack for select UPS Systems (BP24V36-2US). Battery voltage: 24 V, Product colour: Black, Battery life: 6 year(s). Weight: 26.9 kg, Width: 439.4 mm, Height: 86.6 mm. Package width: 581.7 mm, Package height: 228.6 mm, Package depth: 535.9 mm. Master (outer) case width: 581.7 mm, Master (outer) case length: 535.9 mm, Master (outer) case height: 228.6 mm
BP24V36-2US rackmount external battery pack offers extended battery runtime when used in conjunction with expandable 24V Tripp Lite rackmount UPS systems. Includes heavy gauge cabling with high current DC connector for safe, simple installation. Included daisychain connector enables the connection of additional compatible 24V external battery packs to the host UPS. Included mounting accessories support 2U rackmount installation in 4 post racks. Options for 2-point front-rail mounting, 2 post center-mounting and wallmount installation available.
Compatible with these UPS Systems - SMART750RMXL2U, SU750RTXL2U, SU750RTXLCD2U, SU1000RTXL2UA, SU1000RTXLCD2U, SUINT1000RTXL2UA and other Tripp Lite UPS systems that specify the use of this battery pack.
Offers extended-run UPS operation when used in conjunction with compatible 24V DC Tripp Lite UPS systems

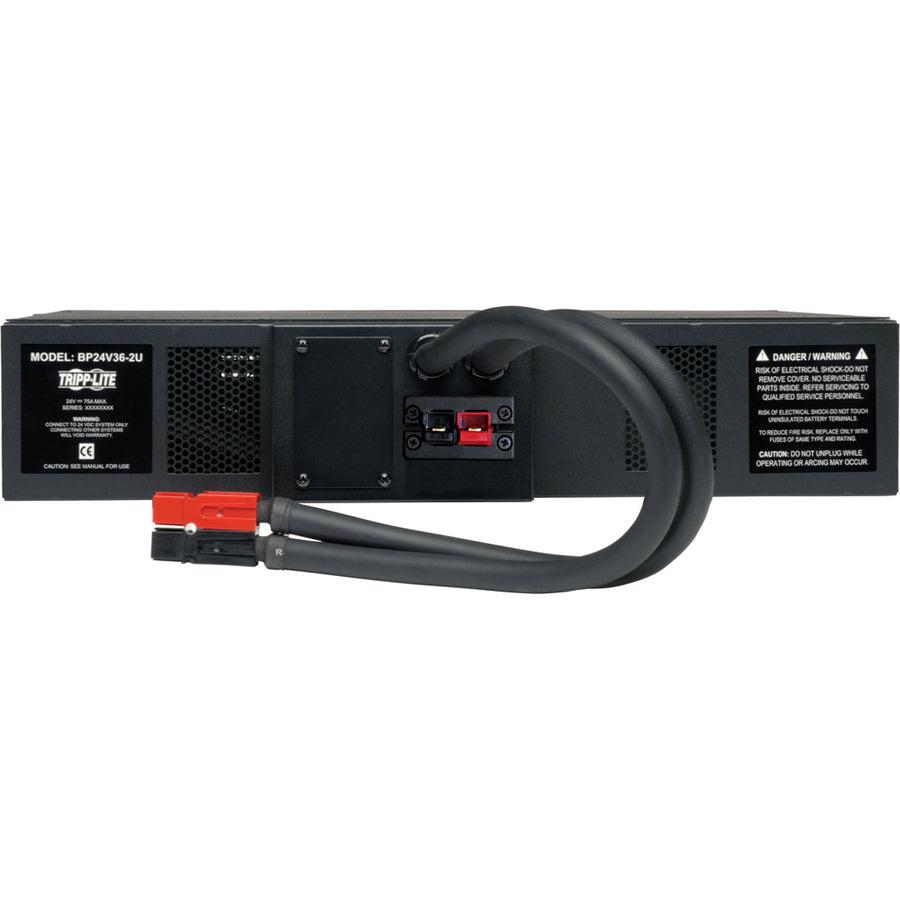

Includes heavy gauge cabling with high current DC connectors for simple installation
Daisychain connector enables the connection of additional compatible 24V external battery packs to the host UPS

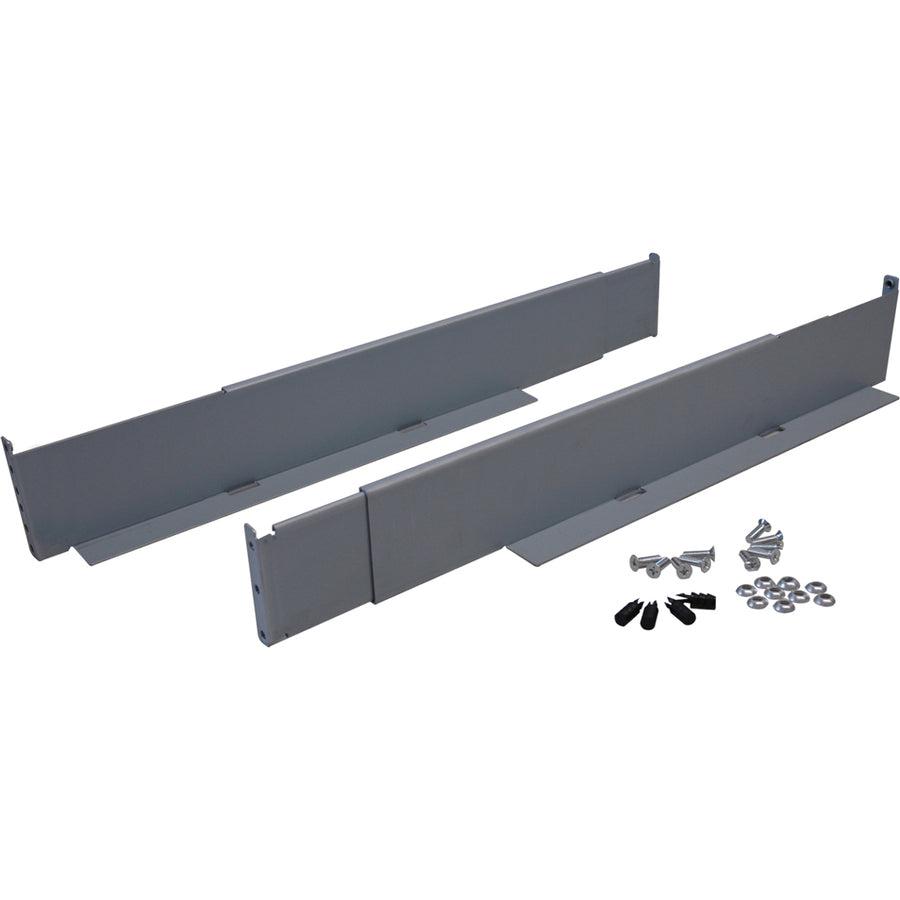

Included mounting brackets support rackmount installation in 4 post racks using only 2 rack spaces (2U)
Set of optional-use detection jacks automatically configure host UPS systems supporting this feature for one or more external battery packs
UPDHDEARKIT option supports 2 point front-rail rackmount installation without rear supports
2POSTRMKITWM option supports balanced 2 point center-mounting in 2 post equipment racks
Specifications :
General Information
| Manufacturer | Tripp Lite by Eaton |
|---|---|
| Manufacturer Part Number | BP24V36-2US |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | BP24V36-2US |
| Product Name | BP24V36-2US External Battery Pack with Attached DC Cabling |
| Product Type | Battery Unit |
| UPC | 037332178084 |
| Battery Chemistry | Lead Acid |
|---|
| Height | 3.4" |
|---|---|
| Width | 17.3" |
| Depth | 13.8" |
| Weight (Approximate) | 59.40 lb |
| Package Contents |
|
|---|
| Limited Warranty | 2 Year |
|---|
