Tripp Lite by Eaton

Tripp Lite B203-101-Ind-Er 1-Port Industrial Usb Over Cat6 Extender, Esd Protection, Poc - Usb 2.0, Mountable, 330 Ft., Taa

Tripp Lite B203-101-Ind-Er 1-Port Industrial Usb Over Cat6 Extender, Esd Protection, Poc - Usb 2.0, Mountable, 330 Ft., Taa

SKU:B203-101-IND-ER

Regular price $335.65
Regular price Sale price $335.65
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          1-Port Industrial USB over Cat6 Extender, ESD Protection, PoC - USB 2.0, Mountable, 330 ft., TAA

          Tripp Lite B203-101-IND-ER 1-Port Industrial USB over Cat6 Extender, ESD Protection, PoC - USB 2.0, Mountable, 330 ft., TAA. Type: Network transmitter & receiver, Maximum transfer distance: 100 m, Data transfer rate: 300 Mbit/s. Product colour: Black, Housing material: Metal, Country of origin: Taiwan. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Input current: 0.35 A. Transmitter width: 6.24 cm, Transmitter depth: 2.7 cm, Transmitter height: 11.5 cm. Package type: Box, Package width: 260.1 mm, Package depth: 164.1 mm

          Industrial-Grade Extender Connects Your Computer to a USB Device up to 330 ft. Away

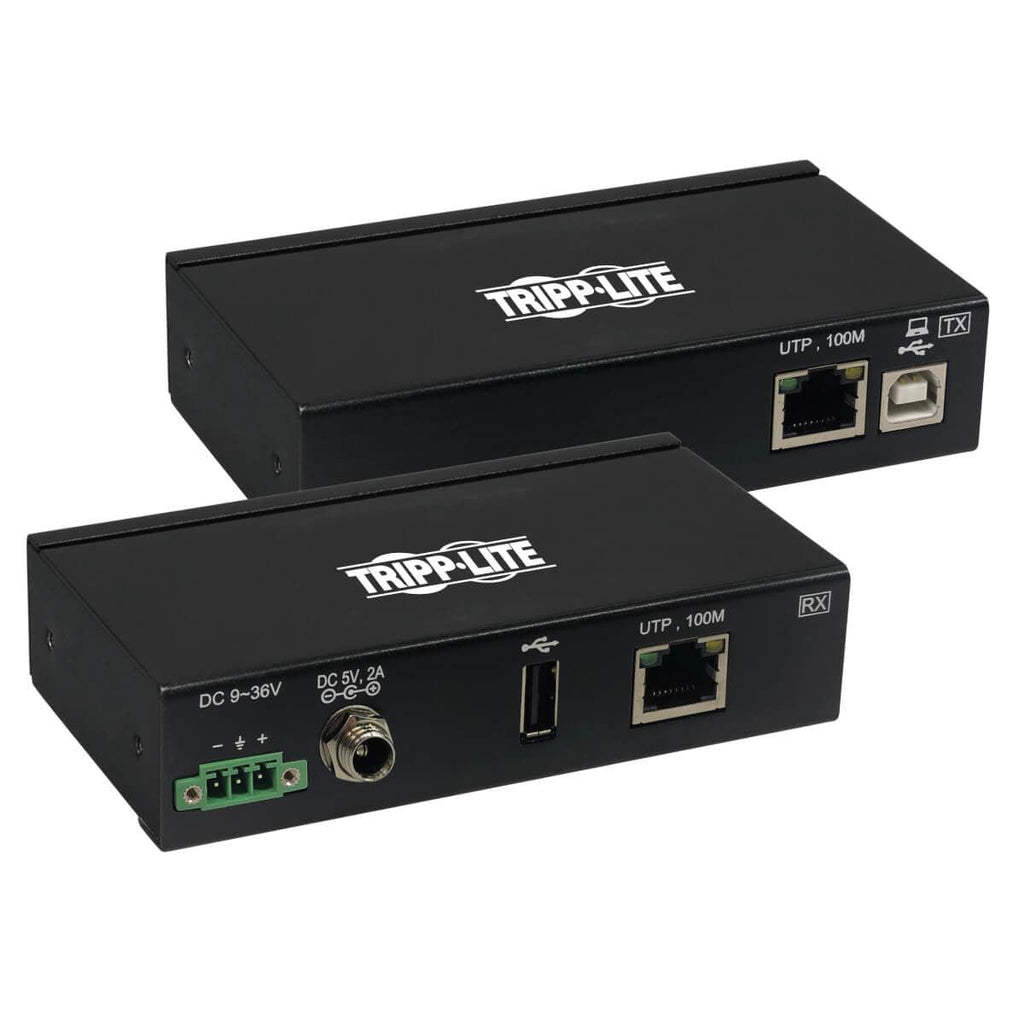

          This plug-and-play extender kit with heavy-duty all-metal housings is ideal for connecting your office computer’s USB-A port to a printer, 1080p webcam, external hard drive or other USB device located up to 330 feet (100 meters) away. The B203-101-IND-ER includes a local transmitter and a remote receiver that extends USB 2.0 signals over user-supplied Cat6 cabling (such as Tripp Lite’s N202-Series Cat6 Ethernet cables).

          Built-In Power over Cable Technology Provides Power to Avoid Bulky Power Bricks
          PoC powers the transmitter over Cat6 cable. Green and orange LEDs on both units will light up to indicate they are receiving power and data is being transmitted. PoC gives you the freedom to place the transmitter or receiver away from AC outlets, avoiding the hassle of running new power lines and multiple bulky power bricks. Note
          : if connected to a high-density USB hard drive, you may use the receiver’s RS-232 Phoenix connector or external power supply to add external power.

          Protects Your Devices Against Electrostatic Discharge (ESD)
          Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This extender kit provides ESD protection to ±15 kV, reducing potential static damage to your connected USB peripherals. The durable metal transmitter and receiver units withstand harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.

          With Great Distance Comes Great Flexibility
          By extending the USB connection beyond the standard 16-foot distance limitation to 330 feet, the B203-101-IND-ER provides workstation flexibility to place your computer and the USB device where they are best suited. This extender kit supports USB 2.0 data transfer rates up to 300 Mbps and is backward compatible with USB 1.1 technology, allowing you to connect legacy devices. No network connectivity is needed.

          Plug-and-Play Kit Offers Flexible Power and Installation Options

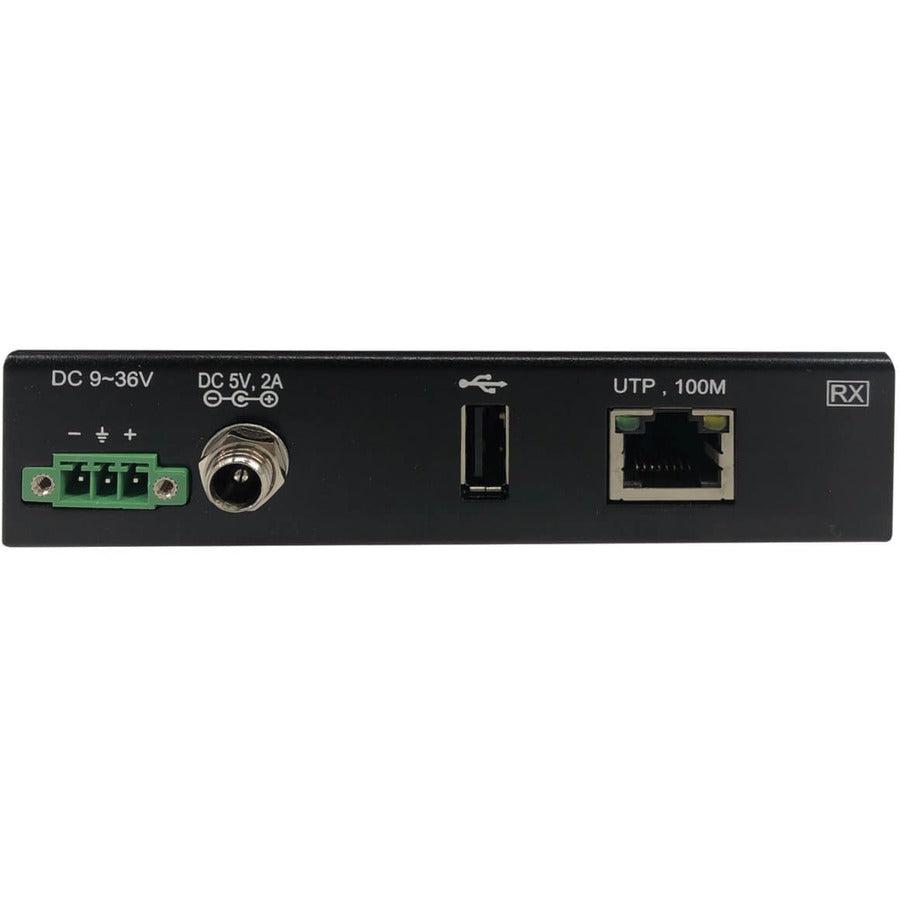

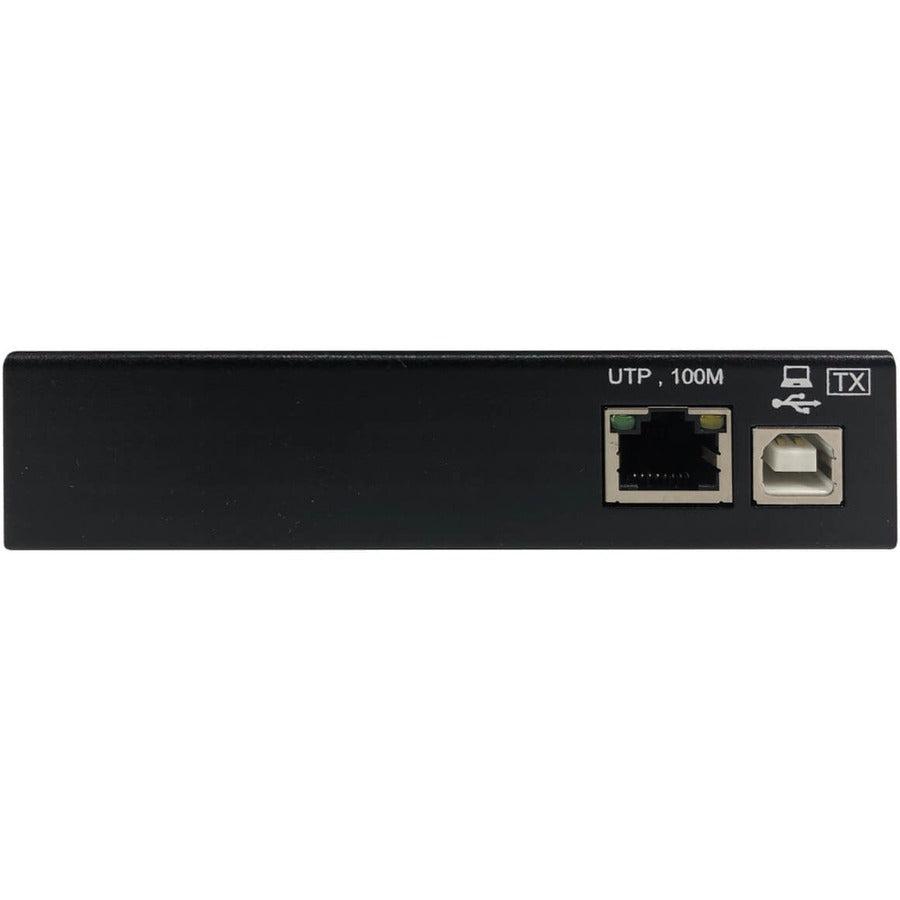

          With user-supplied USB cables, connect the transmitter to your computer and the receiver to your USB peripheral. Connect the transmitter and receiver with a user-supplied Cat6 cable (all cables sold separately). The extender kit requires no software to download and install. The metal chassis rest easily on any flat surface or mount to a wall or DIN rail using the included hardware. A power supply with international plug adapters, as well as a RS-232 Phoenix adapter supporting a DC voltage range from 9-36V, are included for connecting external power to the unit as needed.

          TAA-Compliant for GSA Schedule Purchases
          The B203-101-IND-ER is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number B203-101-IND-ER
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model B203-101-IND-ER
          Product Name B203-101-IND-ER USB Extender
          Product Type USB Extender
          UPC 037332260598
          Network (RJ-45)Yes

          Physical Characteristics

          Color FamilyBlack
          Product ColorBlack

          Miscellaneous

          Package Contents
          • Transmitter
          • Receiver
          • 2 x DIN Rail Mounts
          • 4 x M4 Screws
          • RS-232 Phoenix Adapter
          • International Power Supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A)
          • 4 x Plug adapters (North America, Europe, U.K., Australia)
          • Owner's manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty1 Year
