Tripp Lite B160-100-Vsi Vga Audio + Video Over Ip Extender Receiver Over Cat5/Cat6, Rs-232 Serial And Ir Control, 1920 X 1440, 328 Ft. (100 M), Taa

Description :

VGA Audio Video over IP Extender Receiver over Cat5/Cat6, RS-232 Serial and IR Control, 1920 x 1440, 328 ft. (100 m), TAA

Tripp Lite B160-100-VSI VGA Audio + Video over IP Extender Receiver over Cat5/Cat6, RS-232 Serial and IR Control, 1920 x 1440, 328 ft. (100 m), TAA. Type: AV receiver, Maximum resolution: 1920 x 1440 pixels, Maximum transfer distance: 100 m. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Package width: 162.6 mm, Package depth: 259.1 mm, Package height: 53.3 mm. Cables included: Audio (3.5mm), IR. Master (outer) case width: 175.3 mm, Master (outer) case length: 569 mm, Master (outer) case height: 271.8 mm

VGA Audio + Video, Serial and IR Control Signals over Cat5/6 Cabling
Receives IP-based audio + video transmitted point-to-point from a source 328 ft. away
Add low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switch

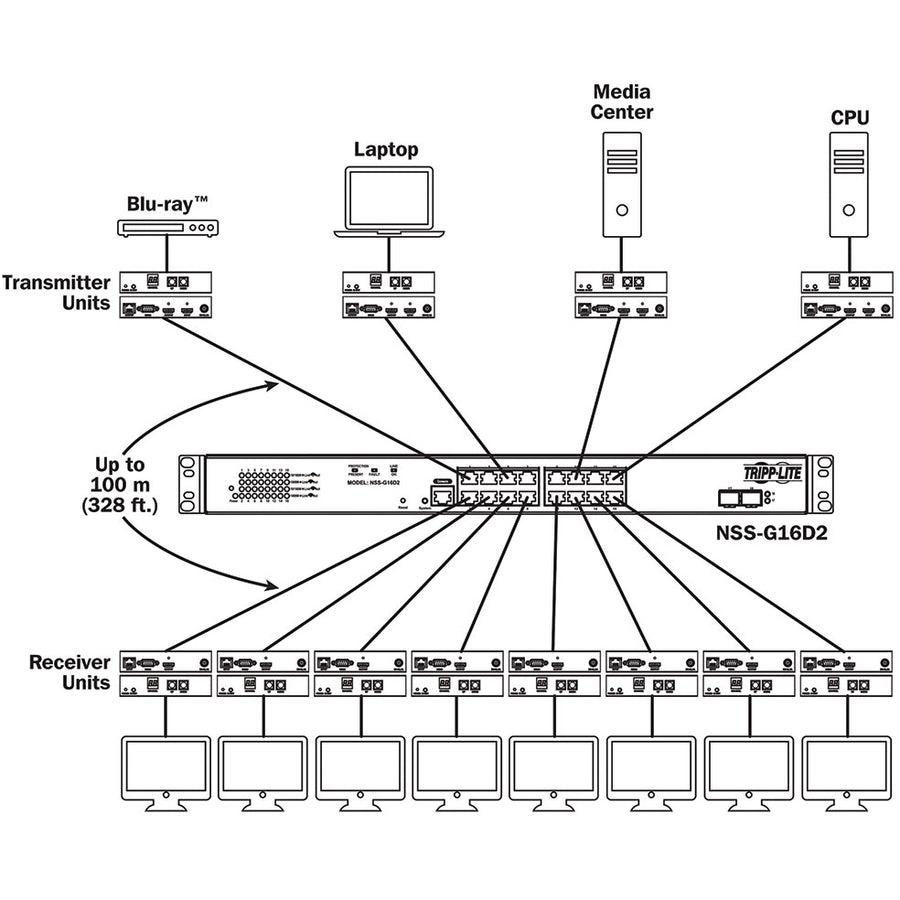

Create a Multi-In, Multi-Out Installation Using B160-Series Transmitters and Receivers
Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches
IGMP-enabled switches allow centralized control over which sources show on which displays
Displays video from any analog or digital source, so you can mix and match technologies and use existing sources and monitors

Enhanced Technical Features
Supports video resolutions up to 1920 x 1440, including 1080p
Uses H.264 video compression standard
Transmits on 20–60 kHz IR frequency
Extends IR control signals that control a source from a remote display
Supports RS-232 serial baud rates up to 57600 Bps
HDCP and 3D compatible when used with a DisplayPort or HDMI transmitter

Plug-and-Play Functionality
No software or drivers required
Hardware included for mounting on wall, rack or pole
Compatible with all Tripp Lite B160-Series A/V over IP transmitters

TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
