Tripp Lite by Eaton

Tripp Lite B155-004-Dp-V2 Video Splitter Mini Displayport 4X Displayport

Tripp Lite B155-004-Dp-V2 Video Splitter Mini Displayport 4X Displayport

SKU:B155-004-DP-V2

Regular price $92.01
Regular price Sale price $92.01
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

          -Port Mini DisplayPort 1.2 to DisplayPort Multi-Stream Transport (MST) Hub, 3840 x 2160 (4K x 2K) UHD

          Tripp Lite B155-004-DP-V2. Video port type: Mini DisplayPort, Video out: 4x DisplayPort, Connector(s): Mini DisplayPort 1.2. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Colour depth: 48 bit. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Input current: 0.5 A. Dimensions (WxDxH): 109 x 76.2 x 24 mm, Weight: 140 g. Package width: 55.1 mm, Package depth: 162.6 mm, Package height: 210.8 mm

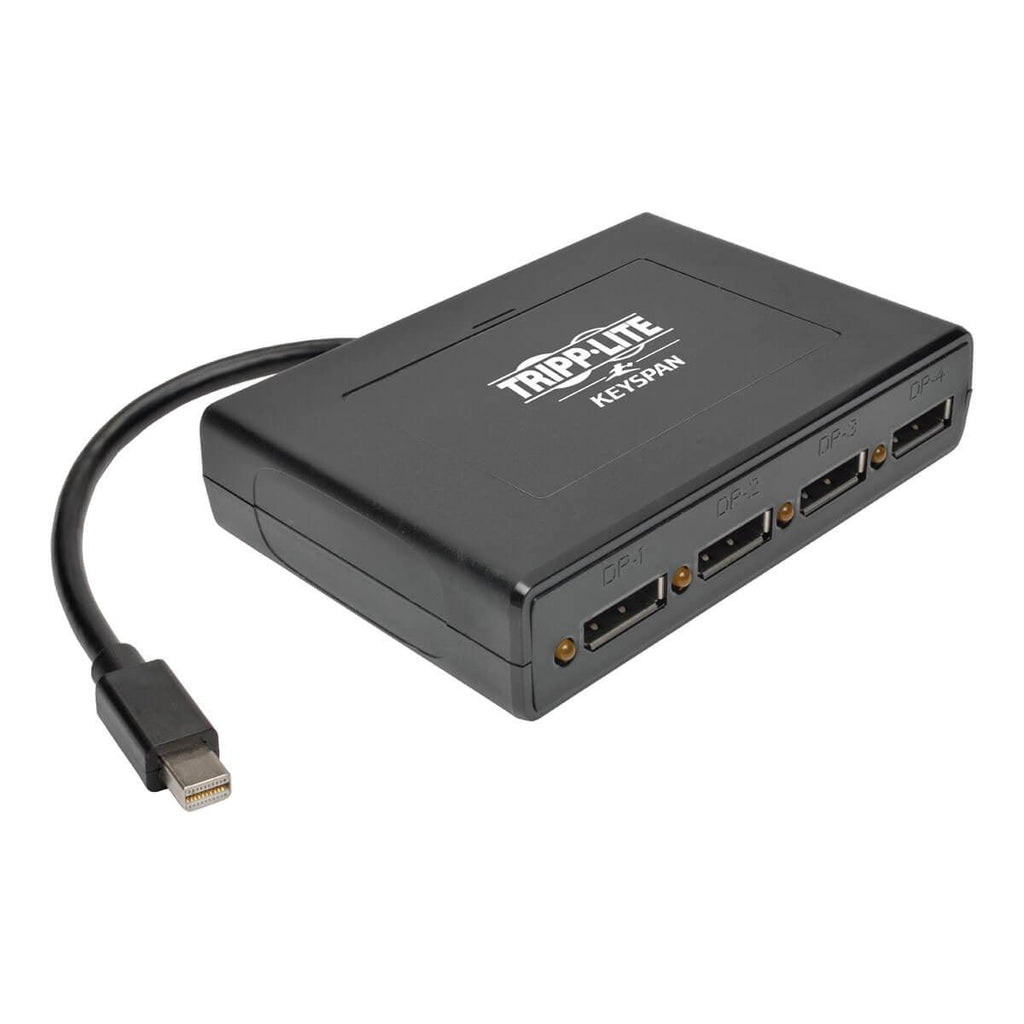

          The B155-004-DP-V2 4-Port Mini DisplayPort 1.2 to DisplayPort MST Hub connects four DisplayPort monitors to the Mini DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all four monitors, extend the desktop across them, or combine all four into one large monitor in video wall mode.

          The B155-004-DP-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports high-definition video resolutions up to 1920 x 1080 (1080p) per monitor. In video wall mode, this hub supports expanded video resolutions, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration.

          This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a Mini DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B155-004-DP-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

          Connects Up to 4 DisplayPort Monitors to Your Computer’s Mini DisplayPort
          - Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings
          - Displays same image on 4 monitors simultaneously in mirror mode
          - Extends desktop across 4 monitors in extended mode

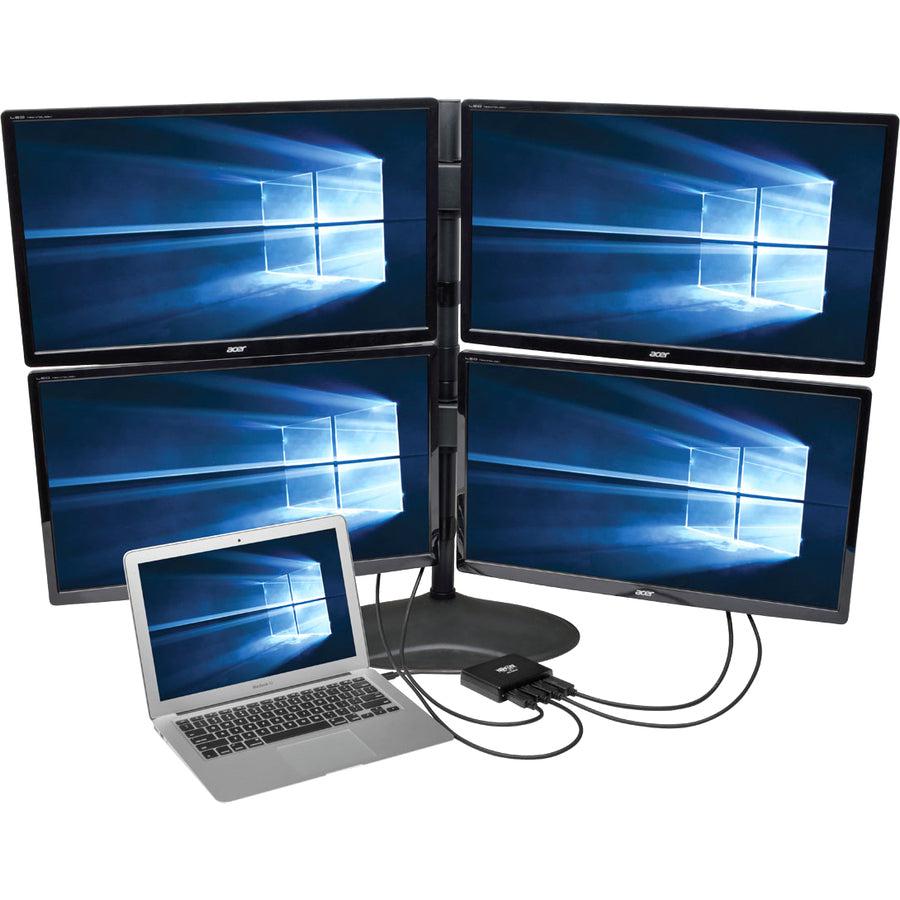

          - Combines 4 monitors into one large monitor in video wall mode

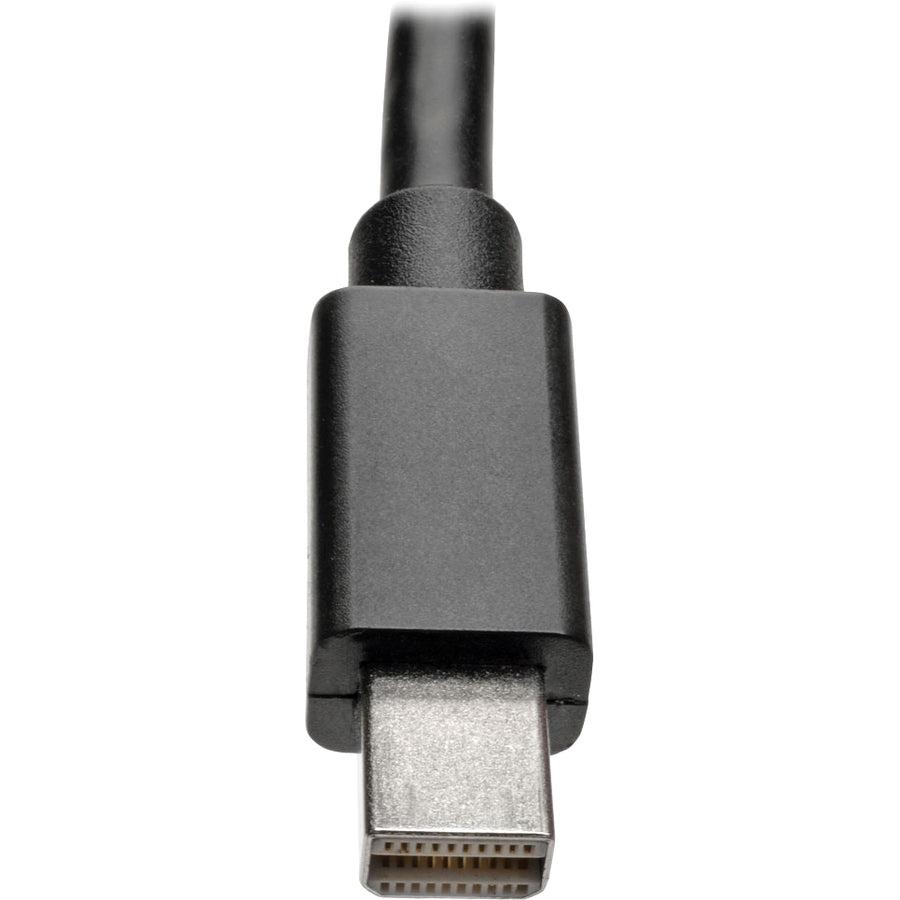

          - Built-in 6 in. cable connects directly to Mini DisplayPort source

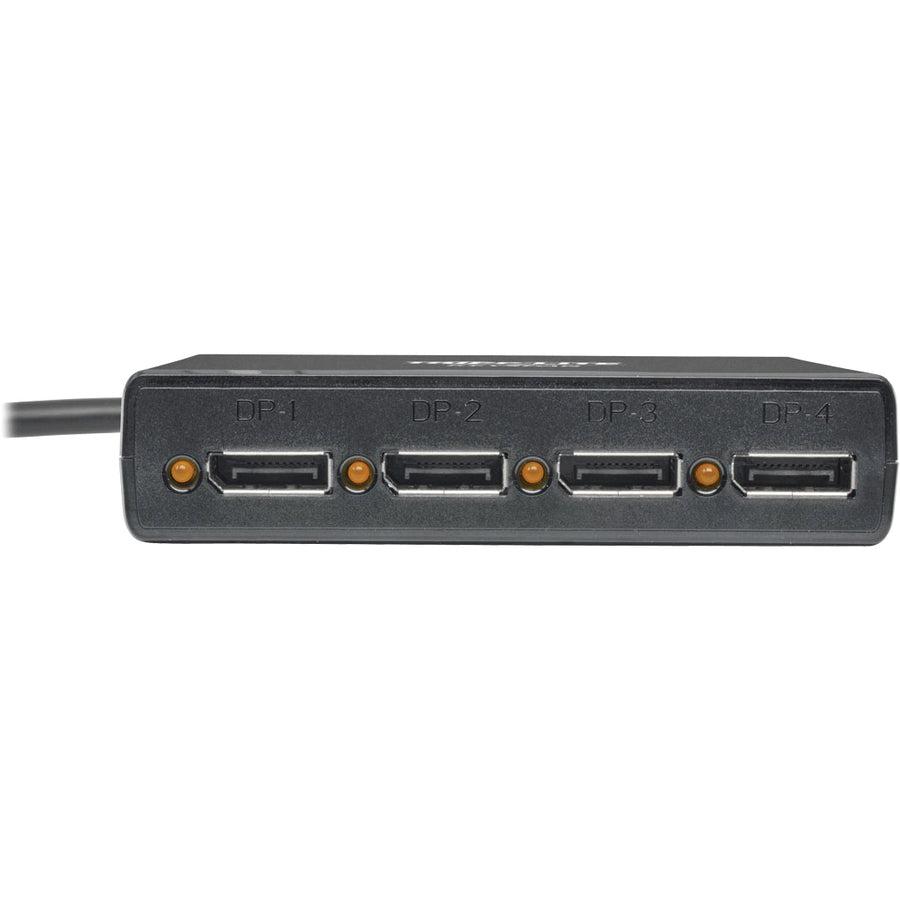

          - LEDs indicate when monitors are receiving a signal

          Meets the Latest Performance Standards
          - Supports HD video resolutions up to 1920 x 1080 per monitor
          - Supports expanded resolutions in video wall mode, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration
          - Supports HDCP, EDID and DDC
          - Supports 48-bit Deep Color (16 bits per channel)
          - Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
          - Backward compatible with DisplayPort 1.1 and 1.1a

          Easy to Use Almost Anywhere
          - Works with all operating systems
          - Plug and play—no software or drivers required

          TAA Compliant
          Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
