Description :
2-Port Mini DisplayPort to DVI Multi-Monitor Splitter, MST Hub, DP1.2, TAATripp Lite B155-002-DVI-V2 2-Port Mini DisplayPort to DVI Multi-Monitor Splitter, MST Hub, DP1.2, TAA. Connector 1: Mini DisplayPort, Connector 2: DVI, Connector 1 gender: Male. Package width: 137.2 mm, Package depth: 198.1 mm, Package height: 43.2 mm. Master (outer) case width: 154.9 mm, Master (outer) case length: 457.2 mm, Master (outer) case height: 213.4 mm

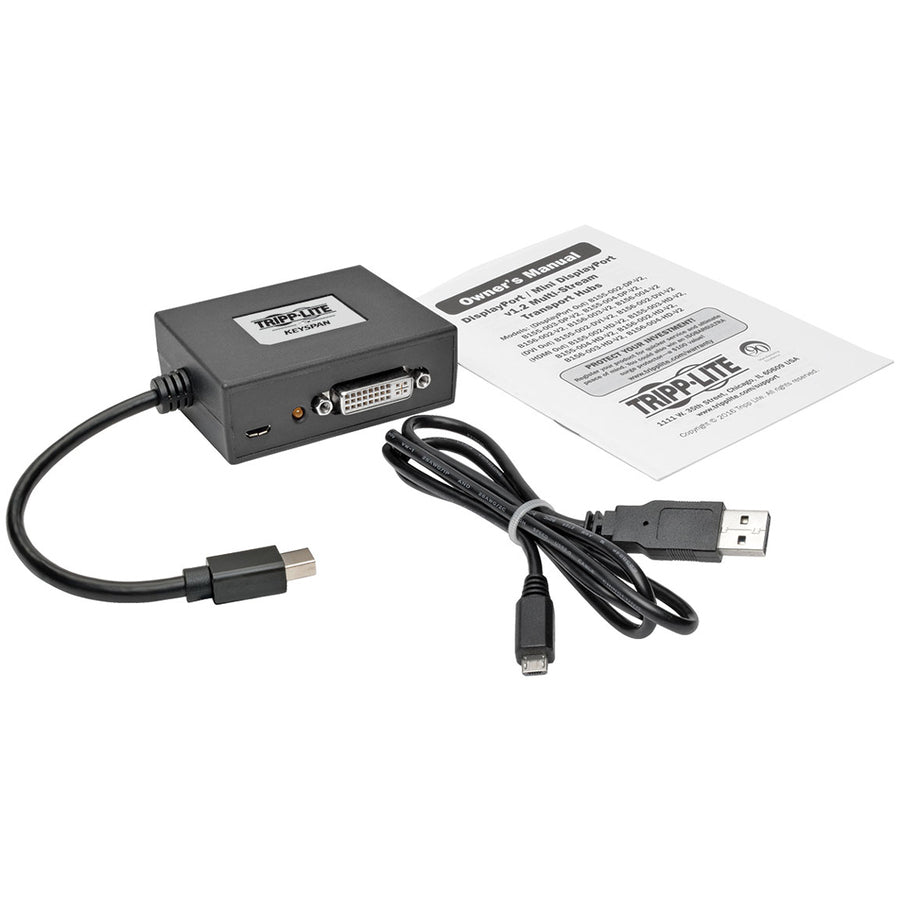

The B155-002-DVI-V2 2-Port Mini DisplayPort 1.2 to DVI MST Hub connects two DVI monitors to the Mini DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on both monitors, extend the desktop across them, or combine both as one large monitor in video wall mode.
The B155-002-DVI-V2 is compliant with Mini DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports high-definition video resolutions up to 1080p @ 60 Hz (1920 x 1080) on each monitor. Expanded video resolutions are supported when displaying in video wall mode, such as 3840 x 1080 in a horizontal 1 x 2 monitor configuration or 1920 x 2160 in a vertical 2 x 1 monitor configuration. The B155-002-DVI-V2 also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.
This MST hub works with all operating systems. Plug-and-play convenience means no software, drivers or external power supply is needed. A built-in six-inch cable connects directly to a Mini DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B155-002-DVI-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Connects 2 DVI Monitors to Your Computer’s Mini DisplayPort Output
Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings
Displays same image on 2 monitors simultaneously in mirror mode
Extends desktop across 2 monitors in extended mode
Combines 2 monitors into one large monitor in video wall mode

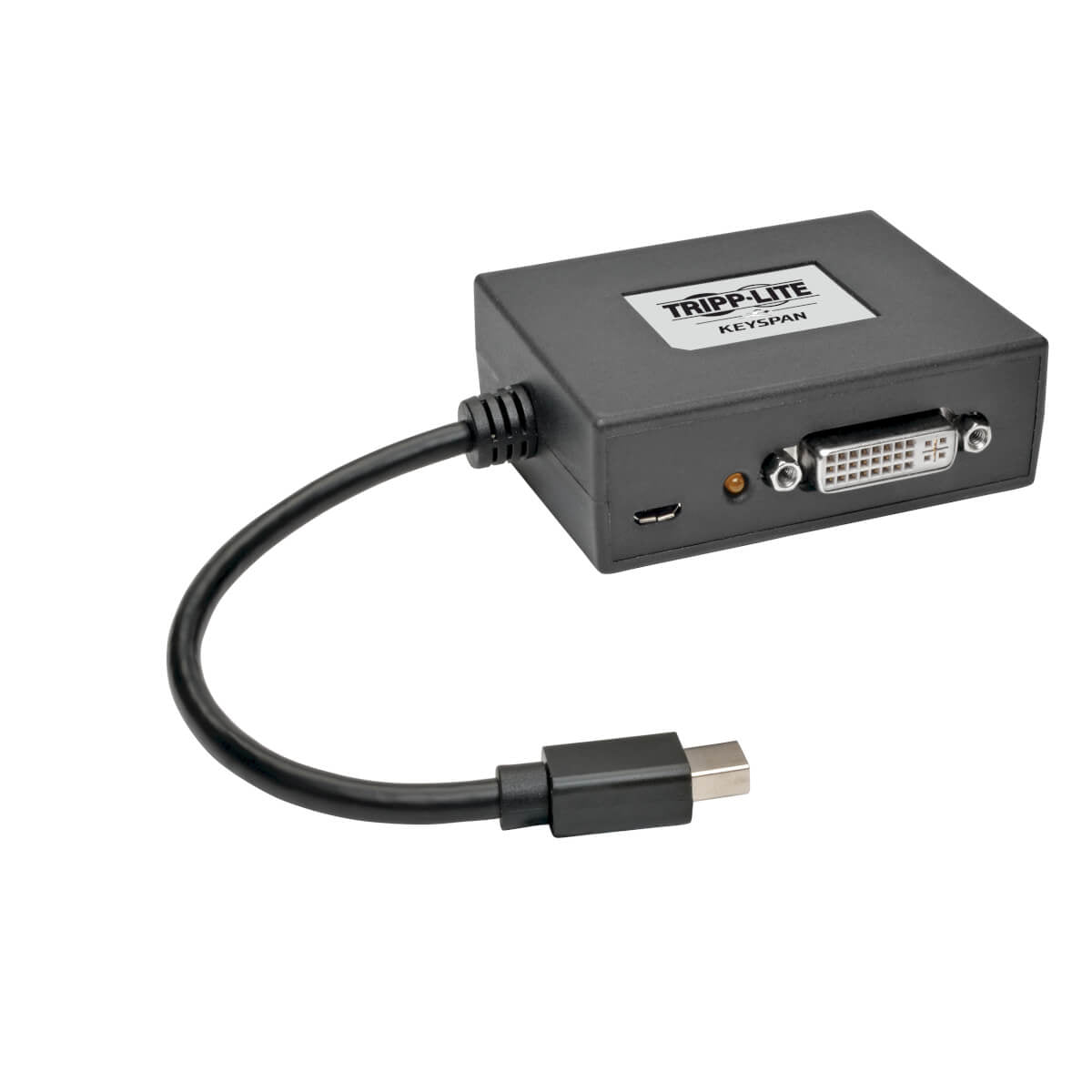

Built-in 6 in. cable connects directly to Mini DisplayPort source

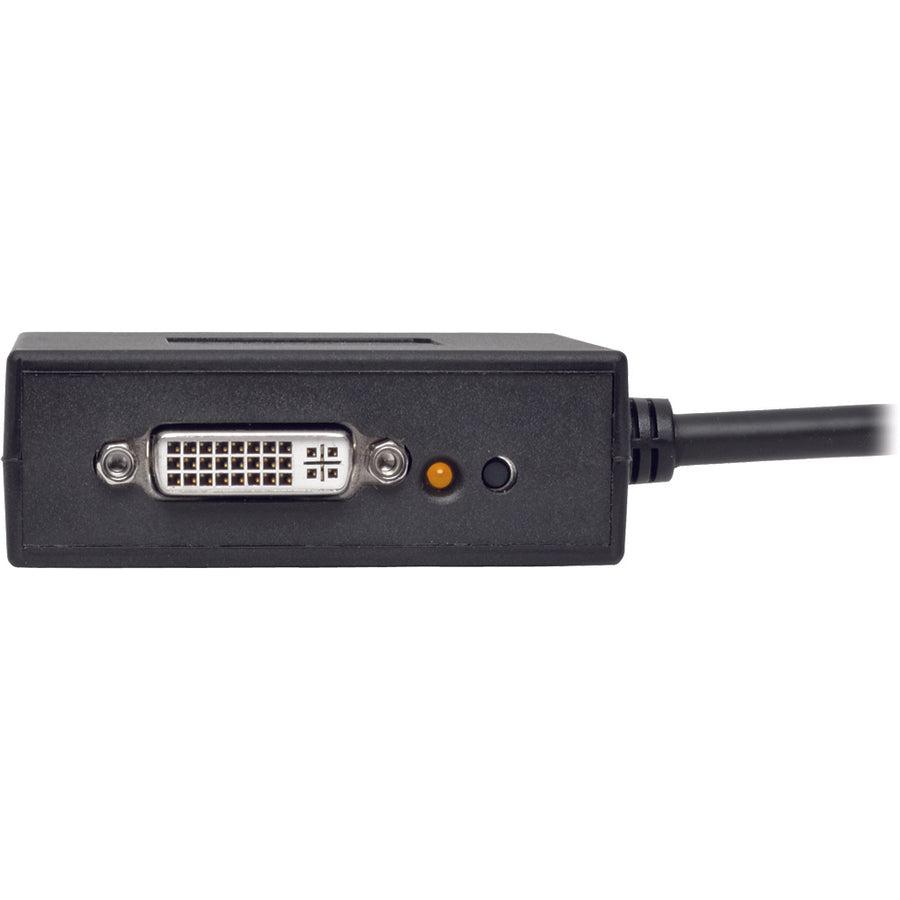

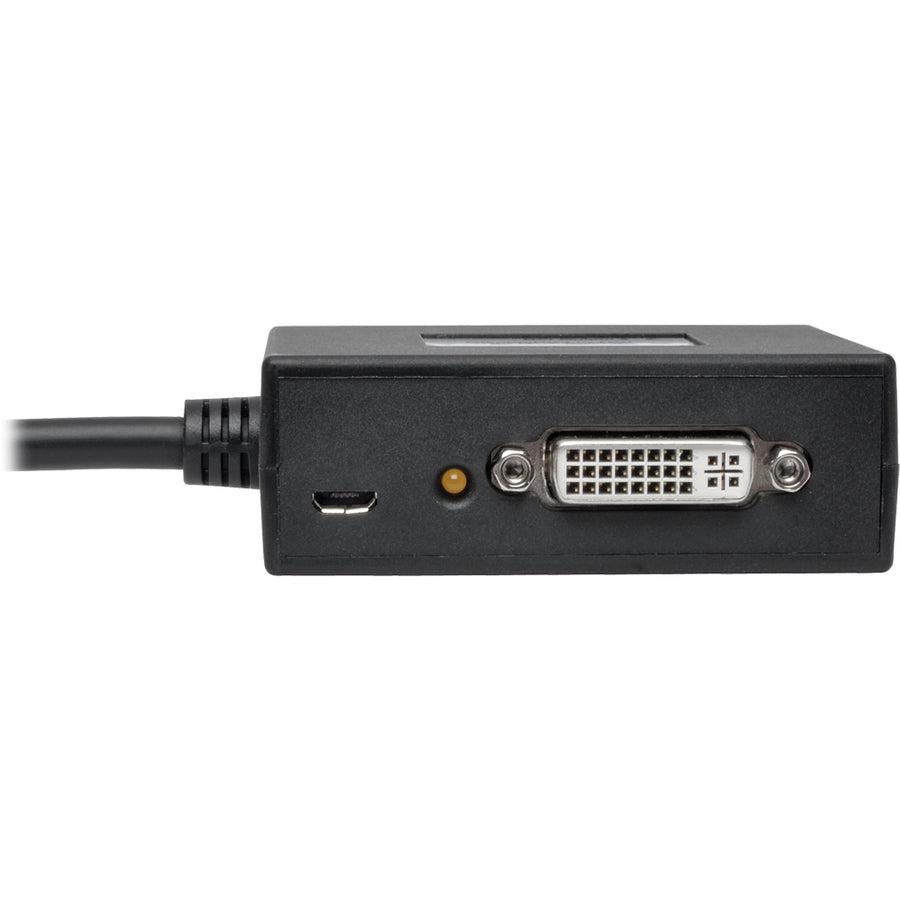

LEDs indicate when monitors are receiving a signal
Meets the Latest Performance Standards
Supports HD video resolutions up to 1080p @ 60 Hz (1920 x 1080)
Expanded video resolutions are supported in video wall mode, such as 3840 x 1080 in a horizontal 1 x 2 monitor configuration or 1920 x 2160 in a vertical 2 x 1 configuration
Supports HDCP, EDID and DDC
Supports 48-bit Deep Color (16 bits per channel)
Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
Easy to Use Almost Anywhere
Works with all operating systems
Plug and play—no software, drivers or external power supply required
Included USB Micro-B cable provides power
TAA Compliant
Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications :
General Information
Manufacturer | Tripp Lite by Eaton |
---|---|
Manufacturer Part Number | B155-002-DVI-V2 |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Model | B155-002-DVI-V2 |
Product Name | B155-002-DVI-V2 2-Port Mini DisplayPort 1.2 to DVI MST Hub |
Product Type | Signal Splitter |
UPC | 037332193438 |
Height | 1" |
---|---|
Width | 3" |
Depth | 2.4" |
Weight (Approximate) | 3.20 oz |
Package Contents |
|
---|---|
Environmentally Friendly | Yes |
Limited Warranty | 3 Year |
---|
