Tripp Lite

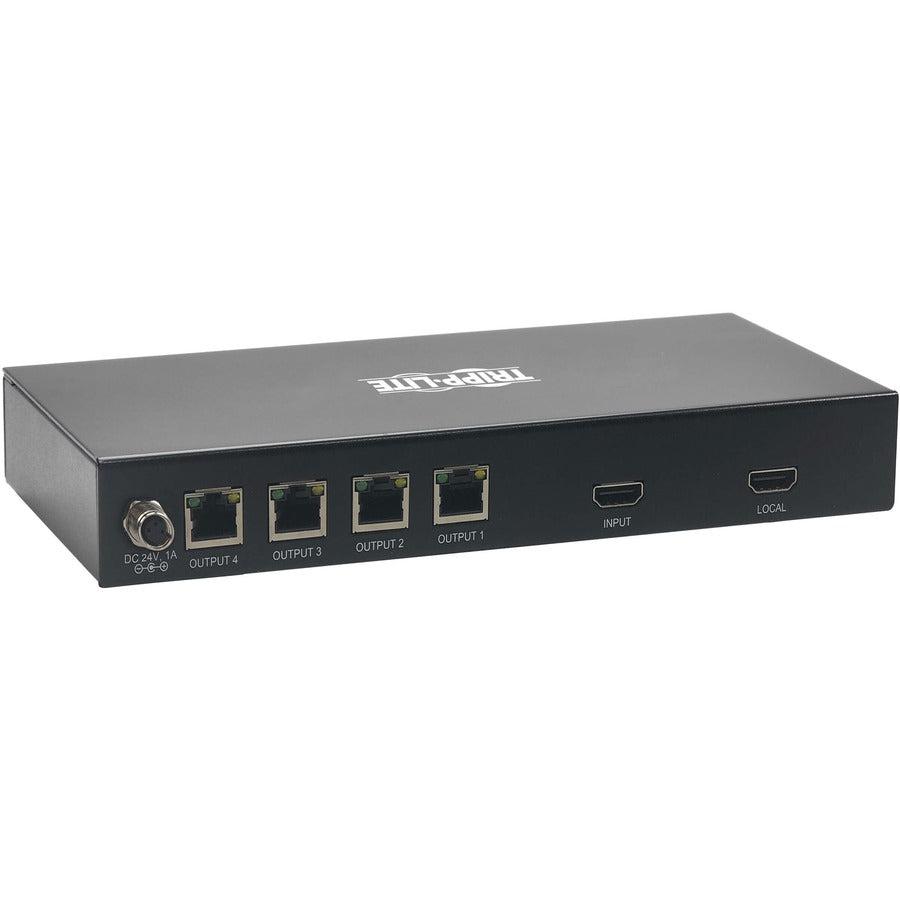

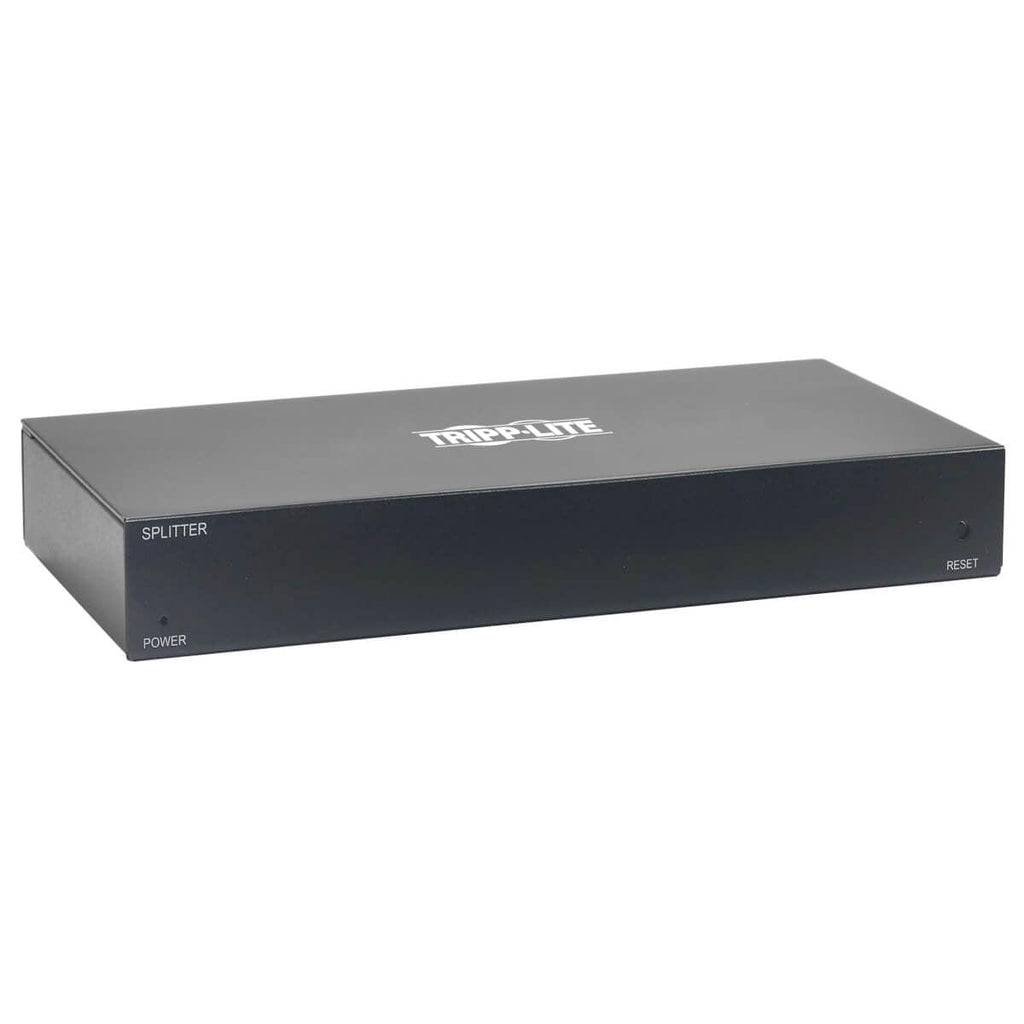

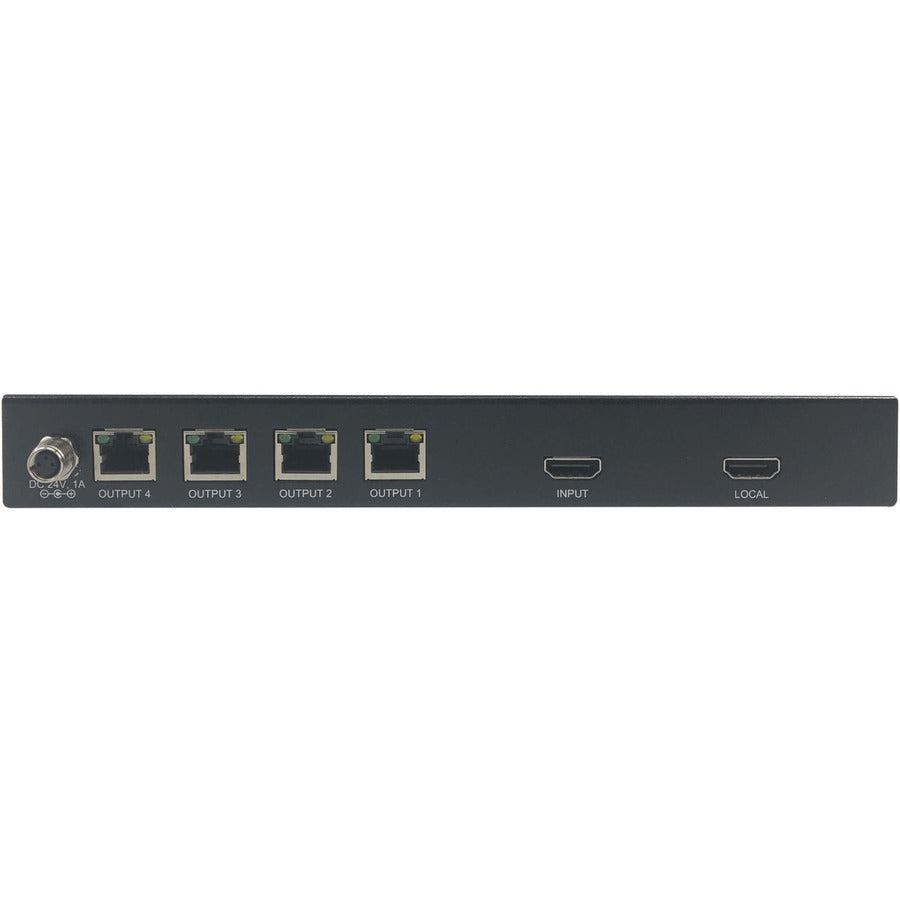

Tripp Lite B127M-004-H 1x4 HDMI over Cat6 Splitter for Medical Applications, 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70 m), TAA

SKU: B127M-004-H

Regular price $309.20
Regular price Sale price $309.20
Sale Sold out
Shipping calculated at checkout.
          Description
          Que. & Ans.
          Reviews

          Description :

          1x4 HDMI over Cat6 Splitter for Medical Applications, 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70 m), TAA

          Tripp Lite B127M-004-H 1x4 HDMI over Cat6 Splitter for Medical Applications, 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70 m), TAA. Type: AV repeater, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6,HDMI. Connectivity technology: Wired. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Operating voltage: 24 V. Width: 325 mm, Depth: 100 mm, Height: 29.7 mm. Quantity per pack: 1 pc(s), Package width: 352 mm, Package depth: 164.1 mm

          4-Port HDMI Splitter Ideal for Medical Environments
          The B127M-004-H pairs with Tripp Lite’s B127M-100-H receiver (sold separately) to transmit, split and extend 4K video for medical applications in hospitals, clinics, physicians’ offices and other medical environments where the source and display are farther apart than conventional A/V cables allow. This splitter conforms to strict EMI/RFI and ESD requirements.

          Splits and Extends a 4K A/V Transmission Up to 230 ft. (70 m)
          The B127M-004-H extends 4K signals from an HDMI source device to four HDMI displays up to 230 feet (70 meters) away via user-supplied Cat6 cabling. Each display must be connected to a Tripp Lite B127M-100-H receiver (sold separately).

          Transmits Crystal-Clear 4K Video with Multi-Channel Audio
          The HDCP 2.2-compliant B127M-004-H supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with 36-bit Deep Color, 4:4:4 chroma subsampling and full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on 4K displays.

          Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
          Say you want to connect your 4K source device to monitors of various video resolutions – for instance, a 4K @ 60 Hz, a 4K @ 30 Hz and a 1080p @ 60 Hz. The B127M-004-H allows each connected monitor to display video at its maximum resolution without affecting the resolution of the other monitors.

          Meets EMI/RFI and ESD Requirements Necessary for Use in Medical Applications
          This 4K splitter meets CISPR 11- Group 1 Class A and IEC 61000-4-2 (ESD) Test level 4 standards for environments with strict EMI/RFI and ESD limitations. It is approved for medical applications where reducing electrical interference is vital to the proper functioning of equipment.

          Local HDMI Port Supports 4K @ 60 Hz Resolution
          To monitor the video signal being extended to the receivers, connect a 4K display to the local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.

          Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
          Power over Cable (PoC) technology powers the receivers over Cat6 cable. LEDs on both this splitter and the connected receivers will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receivers where needed without worrying about finding convenient AC outlets.

          Plug-and-Play Operation for Quick Setup and Immediate Use
          The B127M-004-H works right out of the box with no software required. Mounting hardware is included for installing the splitter on a wall, pole or 19-inch rack. Connect the splitter to the source (Blu-ray player, cable box, laptop, media server, etc.) with a user-supplied HDMI cable (such as Tripp Lite’s P569-XXX-CERT Series). Then, connect up to four receivers to HDMI displays (HDTV, projector, monitor, etc.) with additional HDMI cables. Finally, connect the splitter and receivers with user-supplied 26AWG STP Cat6 patch cable (such as Tripp Lite N262-Series).

          TAA-Compliant for GSA Schedule Purchases
          The B127M-004-H is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
