Tripp Lite by Eaton

Tripp Lite B110-Sp-Cat In-Line Network Surge Protector - Hdbaset/10Gbps, Cat5E/6, Metal Case, Iec Compliant, Taa

Tripp Lite B110-Sp-Cat In-Line Network Surge Protector - Hdbaset/10Gbps, Cat5E/6, Metal Case, Iec Compliant, Taa

SKU:B110-SP-CAT

Regular price $48.04
Regular price Sale price $48.04
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

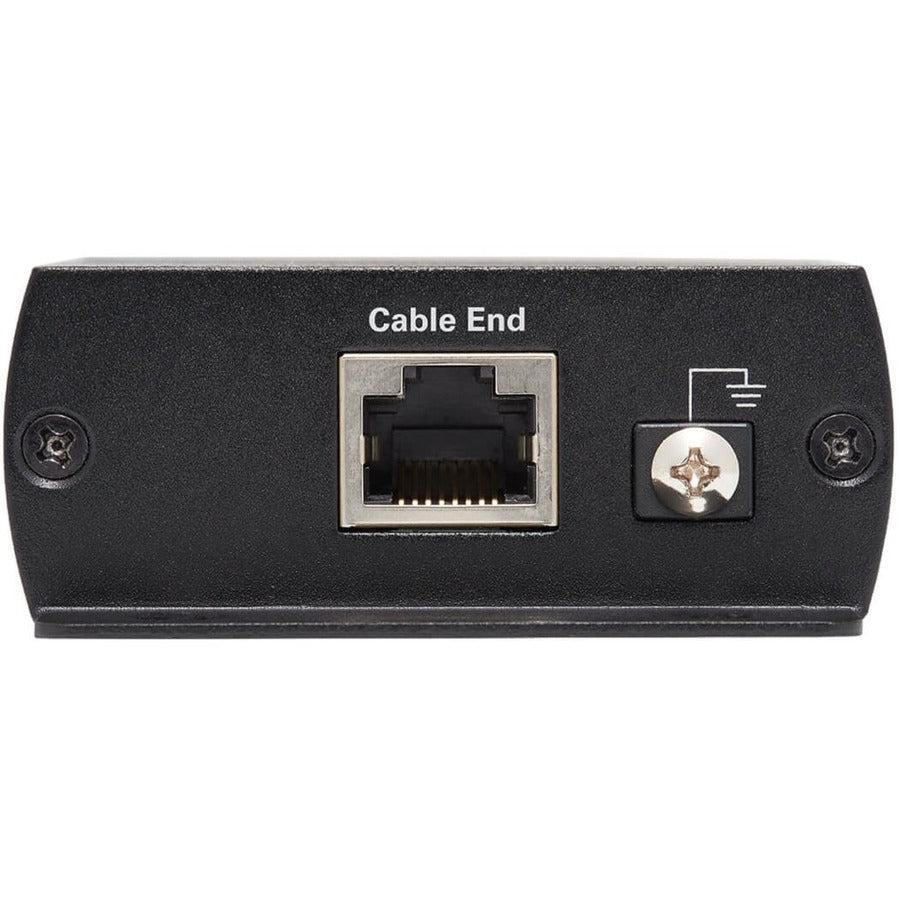

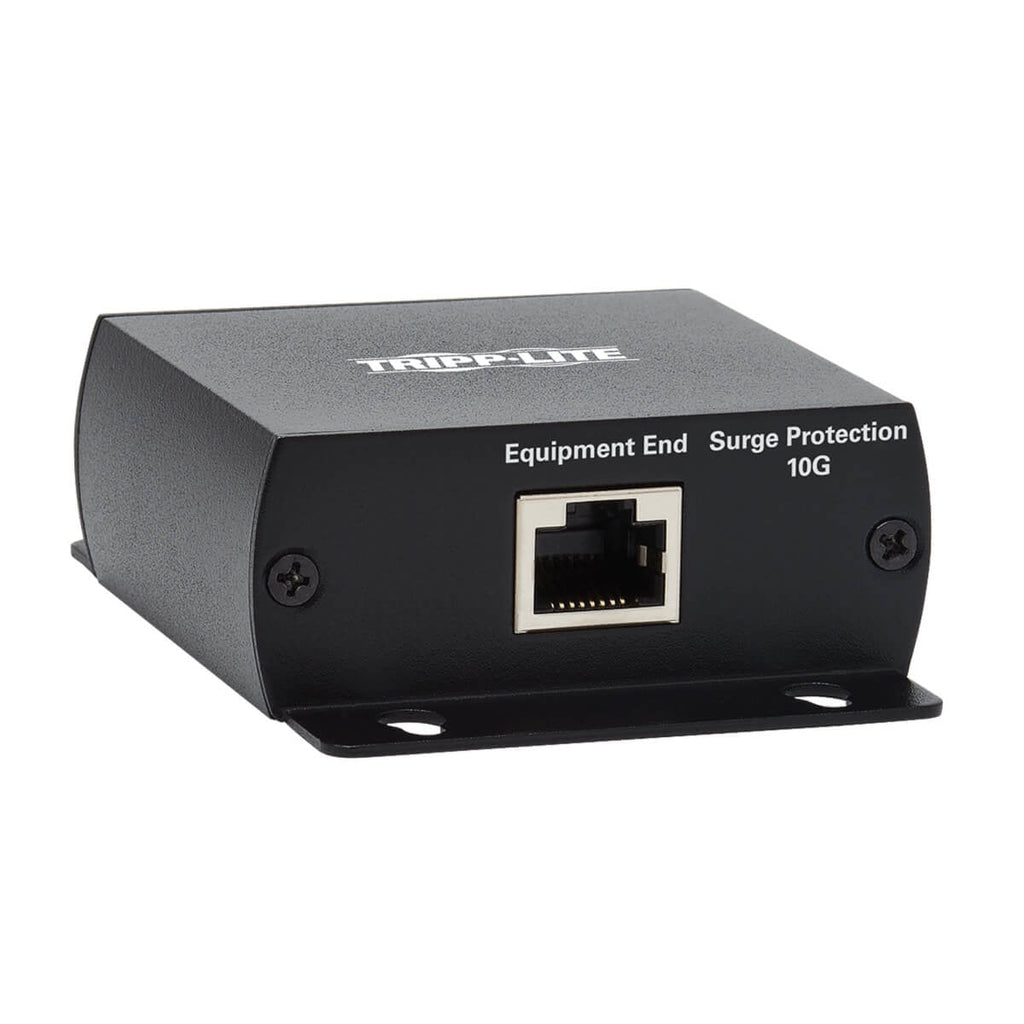

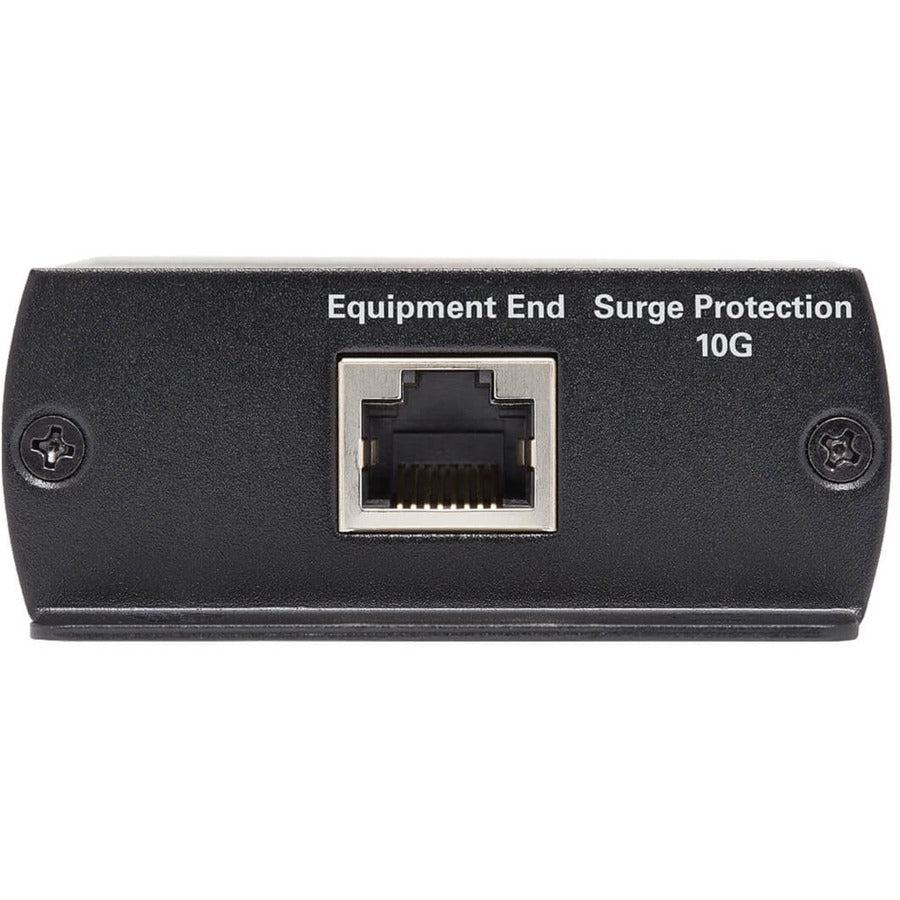

          In-Line Network Surge Protector - HDBaseT/10Gbps, Cat5e/6, Metal Case, IEC Compliant, TAA

          Tripp Lite B110-SP-CAT In-Line Network Surge Protector - HDBaseT/10Gbps, Cat5e/6, Metal Case, IEC Compliant, TAA. Product colour: Black, Material: Aluminium, Country of origin: Taiwan. Weight: 130 g, Width: 87 mm, Depth: 27 mm. Certification: CE, FCC, REACH. Package width: 115.1 mm, Package depth: 108 mm, Package height: 39.1 mm. Master (outer) case width: 230.1 mm, Master (outer) case length: 209 mm, Master (outer) case height: 124 mm

          In-Line Surge Protector Keeps Your 10G Ethernet Network Equipment Safe
          Ideal for home/corporate security systems, home theaters, trade shows and other digital signage applications, the B110-SP-CAT protects connected network equipment from damage caused by electrostatic discharge (ESD) and cable discharge events. Just connect it between your source and network device using Cat5/5e/6 cables, such as Tripp Lite’s N001-Series snagless patch cables (sold separately). Note
          : two B110-SP-CAT surge protectors are required to protect both source and device.

          Your Last Defense Against Intruding Voltage Spikes
          Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Gas discharge modules on all four twisted pairs protect each wire from surges or spikes by dissipating the voltage transient through a contained plasma gas. The B110-SP-CAT meets the following IEC regulations: IEC 61000-4-2 (ESD) +/- 15kV (Air), +/- 8kV (Contact) and IEC 61000-4-5 2kA (8/20µs), 6kV (8/20µs).

          Ready to Use Right from the Package, So You Can Plug and Play Immediately
          This in-line surge protector supports data transmission speeds up to 10 Gbps and 4K resolutions up to 3840 x 2160 at 60Hz (HDBaseT) without signal degradation. No software, drivers or external power supply is required. The compact metal housing is designed to endure in applications where static discharge is likely to occur. Mounting hardware is included for convenient installation where needed. Be sure the distance between the B110-SP-CAT and the equipment it is protecting is no more than 300 feet.

          TAA-Compliant for GSA Schedule Purchases
          The B110-SP-CAT is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number B110-SP-CAT
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model B110-SP-CAT
          Product Name B110-SP-CAT Surge Suppressor/Protector
          Product Type Surge Suppressor/Protector
          UPC 037332217882
          Height26.4"
          Width34.3"
          Depth10.6"
          Weight (Approximate)4.59 oz

          Miscellaneous

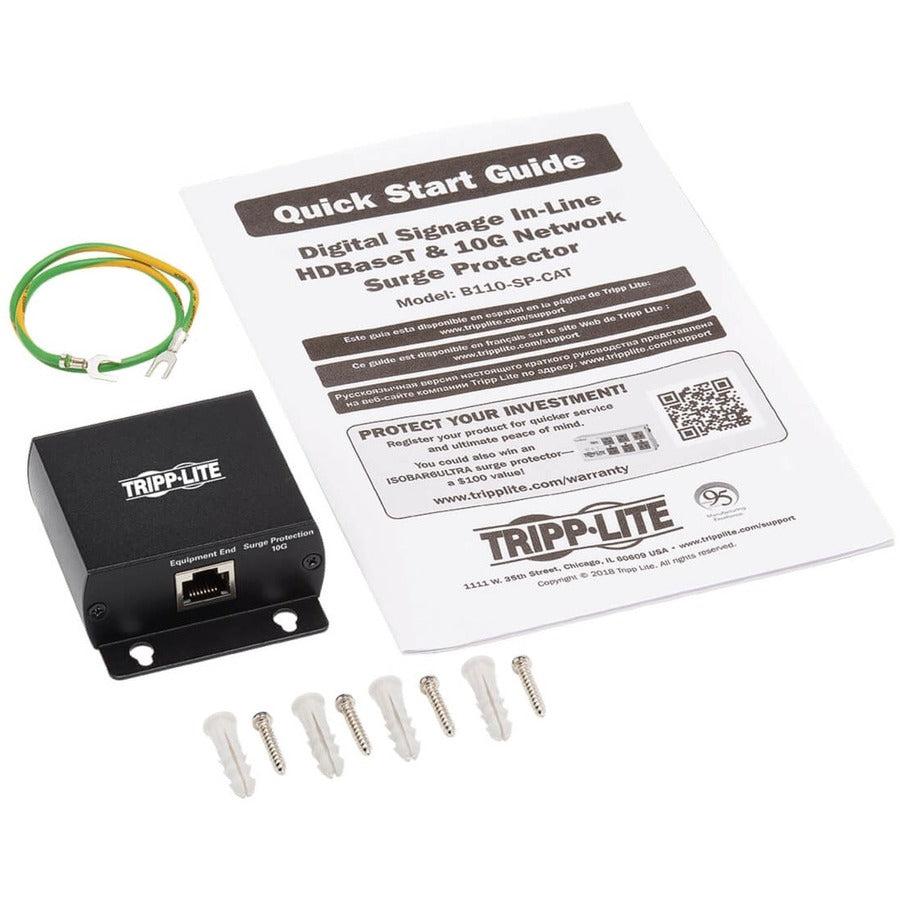

          Package Contents
          • B110-SP-CAT Surge Suppressor/Protector
          • Grounding Wire, 1 ft.
          • 4 x Mounting Screws
          • 4 x Screw Anchors
          • Grounding Wire Screw
          • Quick Start Guide
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year
