Tripp Lite by Eaton

Tripp Lite B072-032-Ip2-K Netcommander 32-Port Cat5 Kvm Over Ip Switch - 2 Remote + 1 Local User, 16 Usb Dongles, 1U Rack-Mount

Tripp Lite B072-032-Ip2-K Netcommander 32-Port Cat5 Kvm Over Ip Switch - 2 Remote + 1 Local User, 16 Usb Dongles, 1U Rack-Mount

SKU:B072-032-IP2-K

Regular price $2,910.31
Regular price Sale price $2,910.31
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          NetCommander 32-Port Cat5 KVM over IP Switch - 2 Remote 1 Local User, 16 USB Dongles, 1U Rack-Mount

          Tripp Lite B072-032-IP2-K NetCommander 32-Port Cat5 KVM over IP Switch - 2 Remote + 1 Local User, 16 USB Dongles, 1U Rack-Mount. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Maximum resolution: 1920 x 1080 pixels, Number of users: 3 user(s). Product colour: Black, Rack capacity: 1U, Country of origin: Taiwan. Width: 438.9 mm, Depth: 279.1 mm, Height: 43.4 mm. Package width: 365.8 mm, Package depth: 584.2 mm, Package height: 144.8 mm

          Tripp Lite’s B072-032-IP2-K KVM Switch is the optimal solution for controlling up to 32 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.

          This KVM switch can be accessed and controlled remotely, so there’s no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available.

          The B072-032-IP2-K uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (16 included) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch easily between the 32 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and up to two remote users can each log on and access different ports simultaneously.

          Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems, and provides remote access using a Windows computer. It supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.

          Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes.

          Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-032-IP2-K.

          Saves Space and Money
          Mounts in a standard 19 in. rack
          Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
          Use a Server Interface Unit, B078-101-USB-1 or B078-101-USB2 (for USB) or B078-101-PS2 (for PS/2) with each server that will be connected with Cat5 cable; 16 B078-101-USB-1 units are included
          To convert DisplayPort or HDMI computers to VGA, use Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

          IP Remote Access for Fewer Trips to the Server Room
          Remote access means there’s no need to travel to the server room or network closet
          Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection
          A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java
          1 local + 2 remote users can access different ports concurrently; up to 5 users can share a single remote session
          Supports both IPv4 and IPv6

          Simplifies IT Tasks
          On-screen display, hot keys and remote toolbar for easy use
          Free NetCommander-AXS Management Software gives you remote access and control over all your Tripp Lite NetCommander IP KVM switches (B070 and B072 series)
          Video resolutions up to 1920 x 1080 @ 60 Hz are supported
          2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; assign individual ports to an IP PDU port to power on/off the server connected to that port
          BIOS-level control of any brand and model server, regardless of the server’s condition and network connectivity
          Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were directly stored on it
          Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit; the included B078-101-USB-1 Server Interface Units can be used for Virtual Media support, but only at speeds up to 1Mbps
          Fast Virtual Media KVM System patented under Pat. No. US 9,417,720
          System-sent messages to SNMP server notify you of network failures
          Supports RADIUS and LDAP/S authentication
          Log tracks events such as logins, reboots and network setting changes on your installation

          Advanced Security Features
          Multi-level password protection: create administrator accounts with full access and user accounts with limited access
          Supports TLS 1.2 security protocol
          You can install SSL certificates to ensure secure transactions between web servers and browsers

          Built to Last
          Flash-upgradable firmware over the network
          Heavy-duty steel housing stands up to frequent use
          Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number B072-032-IP2-K
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Name 32-Port, 2+1 User NetCommander Cat5 IP KVM Switch with Sixteen USB Dongles
          Product Type KVM Switchbox
          UPC 037332181442
          Network (RJ-45)Yes
          Height1.7"
          Width17.3"
          Depth11"
          Weight (Approximate)7.75 lb

          Miscellaneous

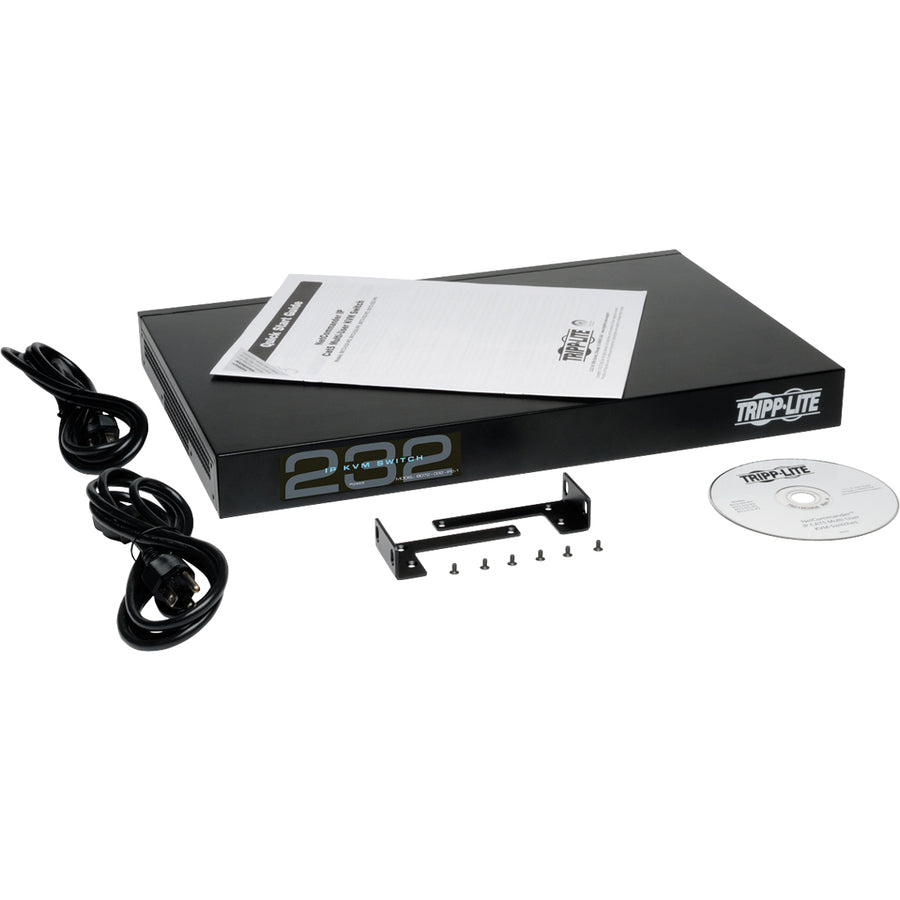

          Package Contents
          • 32-Port, 2+1 User NetCommander Cat5 IP KVM Switch with Sixteen USB Dongles
          • 16 x USB Dongles ( B078-101-USB-1 )
          • Rackmount Hardware
          • 2 x Power Cords
          Environmentally FriendlyYes

          Warranty

          Limited Warranty3 Year
