Tripp Lite by Eaton

Tripp Lite B070-016-19-Ip Netcommander 16-Port Cat5 Kvm Over Ip Switch - 19 In. Lcd, 1 Remote + 1 Local User, 1U Rack-Mount

Tripp Lite B070-016-19-Ip Netcommander 16-Port Cat5 Kvm Over Ip Switch - 19 In. Lcd, 1 Remote + 1 Local User, 1U Rack-Mount

SKU:B070-016-19-IP

Regular price $1,519.75
Regular price Sale price $1,519.75
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          NetCommander 16-Port Cat5 KVM over IP Switch - 19 in. LCD, 1 Remote 1 Local User, 1U Rack-Mount

          Tripp Lite B070-016-19-IP NetCommander 16-Port Cat5 KVM over IP Switch - 19 in. LCD, 1 Remote + 1 Local User, 1U Rack-Mount. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, Display: LCD. Interface: VGA, USB, PS/2. Certification: UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 440.9 mm, Height: 43.4 mm, Depth: 722.1 mm

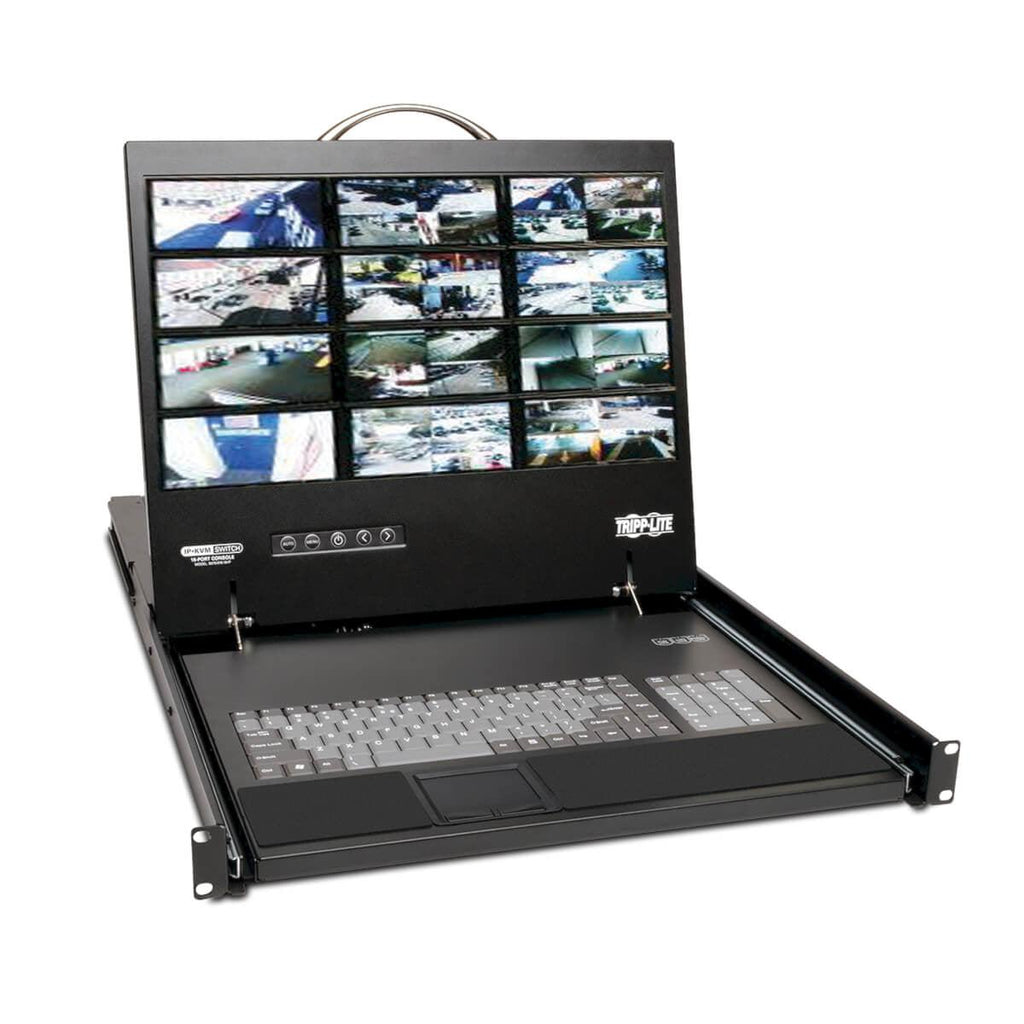

          Tripp Lite’s B070-016-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 16 computers/servers locally, from across the room, down the street or halfway around the globe on a LAN, WAN or Internet.

          The B070-016-19-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units so you can control computers/servers located up to 100 ft. away from the switch. This switch features two 10/100 Mbps LAN ports, so if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 16 ports using an on-screen display (OSD). Multi-level password protection prohibits unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19” LCD screen supports video resolutions up to 1366 x 768.

          Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; you can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-016-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

          Free NetCommander-AXS Management Software is available for access and control of all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU's, and manage KVM settings. This software can be found on the model support page of the B070-016-19-IP, or via searching NetCommander-AXS on www.tripplite.com

          Saves Space and Money
          Combines 16-port KVM switch, 19” LCD screen, keyboard and touchpad in a single 1U rack-mountable drawer
          Mounts into 19”-wide rack, 27”-42” deep; to mount in a 2-post rack, use Tripp Lite’s B019-000
          Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
          Use a Server Interface Unit, B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable
          To convert DisplayPort or HDMI computers to VGA, use Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.


          IP Remote Access for Fewer Trips to the Server Room
          Remote access means there’s no need to travel to the server room or network closet
          Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection
          A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java
          1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single session
          Supports both IPv4 and IPv6
          Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface

          Simplifies IT Tasks
          On-screen display, hot keys and remote toolbar for easy use
          2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers
          Add IP PDUs as devices that can be controlled by the KVM; assign individual ports to an IP PDU port to power on/off the server connected to that port
          Virtual Media allows a .iso file to be mounted to a target server and accessed as if it were directly stored on it
          Fast Virtual Media KVM System patented under Pat. No. US 9,417,720
          System-sent messages to SNMP server notify you of LAN failures
          Supports RADIUS and LDAP/S authentication
          Log tracks events on your installation


          Large 19” LCD

          Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
          DDC emulation allows for optimal output to LCD

          Advanced Security Features
          Multi-level password protection: create administrator accounts with full access and user accounts with limited access
          Supports TLS 1.2 security protocol
          You can install SSL certificates to ensure secure transactions between web servers and browsers

          Long-Lasting Reliability
          Flash-upgradeable firmware over the network
          Heavy-duty steel housing stands up to use

          TAA Compliant
          Complies with the Federal Trade Agreements Act for GSA Schedule purchases

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number B070-016-19-IP
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line NetCommander
          Product Model B070-016-19-IP
          Product Name 16-Port, 1+1 User NetCommander Cat5 IP Console KVM Switch
          Product Type LCD Rack Console
          UPC 037332140326

          Display & Graphics

          Screen Size19"
          Screen ModeWXGA
          Screen Resolution1366 x 768
          Network (RJ-45)Yes

          Physical Characteristics

          Color FamilyBlack
          Product ColorBlack
          Height1.7"
          Width19"
          Depth26.8"
          Weight (Approximate)37.50 lb

          Miscellaneous

          Package Contents
          • NetCommander B070-016-19-IP 19" Rackmount LCD with KVM Switch
          • Power Cord
          • Serial Firmware Upgrade Cable
          • KVM/Console Jumper Cable
          • CD (Includes: Owner's Manual)
          Environmentally FriendlyYes

          Warranty

          Limited Warranty1 Year
