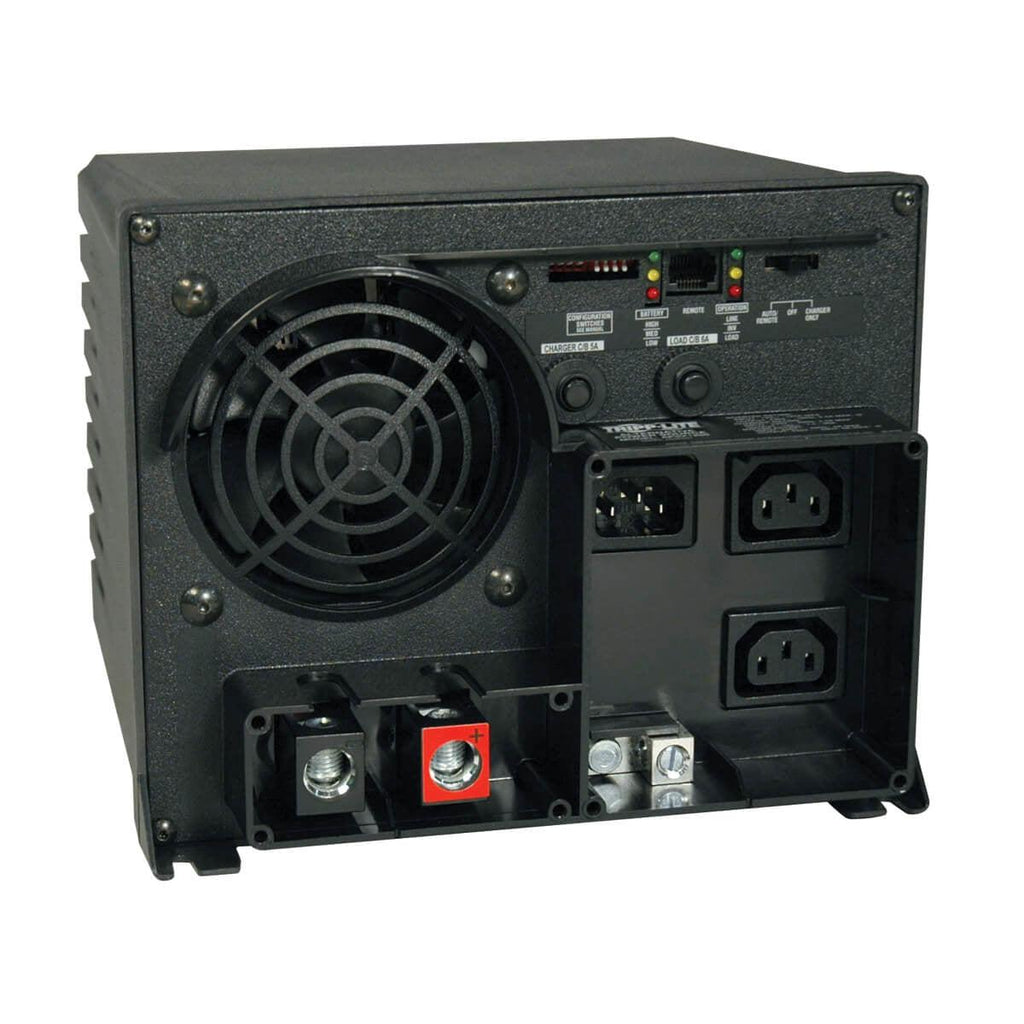

750W APS X Series 12VDC 230V Inverter/Charger with Auto-Transfer Switching, 2 C13 Outlets
Tripp Lite APSX750 750W APS X Series 12VDC 230V Inverter/Charger with Auto-Transfer Switching, 2 C13 Outlets. Power supply type: Indoor, Input voltage: 230 V, Input frequency: 50 Hz. Product colour: Black, Housing material: Polycarbonate (PC). Width: 222.2 mm, Depth: 228.6 mm, Height: 177.8 mm. Package width: 266.7 mm, Package depth: 271.8 mm, Package height: 315 mm. Master (outer) case width: 266.7 mm, Master (outer) case length: 271.8 mm, Master (outer) case height: 315 mm
The APSX750 750W APS X Series 12V DC 230V AC Inverter/Charger is a reliable power source for a wide variety of equipment ranging from power tools and portable lighting to laptop computers and sensitive monitoring equipment. With no fumes, fuel or excess noise, it’s an excellent alternative to generator power.
The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 750W of continuous power, 1125W up to one hour, or 1500W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.
Designed for easy installation in RVs, over-the-road trucks, fleet vehicles and conversion vans, the APSX750 converts stored power from any 12V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime. When hardwired to an external 230V AC source, the unit keeps the user-supplied battery charged via a three-stage 5/20A selectable charging system while simultaneously delivering AC power to connected equipment.
When used as a UPS, the APSX750 responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output. LEDs on the unit indicate load percentage and battery charge level.
Reliable Power for Mobile, Emergency and Remote Sites Generates safe, stable, computer-grade 230V AC power from 12V battery bank Ideal for powering tools, saws, motors, pumps, portable lighting, appliances and computer equipment in heavy-load conditions Designed for easy installation in RVs, commercial and fleet vehicles, emergency vehicles and construction equipment Functions as a vehicle inverter, standalone AC power source or extended-run UPS Features dual C13 outlets Unlimited runtime with variety of user-supplied batteries
Meets Normal and Peak Power Demands 750W of continuous power 1125W of reserve power up to 1 hr. 1500W of peak power up to 10 sec. to accommodate surge power demands during equipment startup and cycling Automatic overload detector, built-in cooling fan and resettable AC circuit breakers protect unit from damage High-current DC input terminals for simple hardwired installation
Automatic Transfer Switching Transfer relay switches to inverter power during blackout in 10 ms 3-position switch enables Auto, Charge Only or System Off mode DIP switches configure high and low voltage auto-transfer
3-Stage 5/20A Selectable Battery Charger Serves as battery charger when external 230V AC power is supplied and powering connected equipment Protects battery from overcharging and overdischarging Low-battery protection prevents excessive battery depletion DIP switches configure wet/gel charging profiles
Optional Remote Control Capability RJ45 port allows connection of optional remote control module, such as Tripp Lite’s APSRM4
Front-Panel LEDs Indicate load percentage and battery charge level
Rugged Polycarbonate Housing Resists moisture, vibration and impact Built-in mounting feet for installation on any rigid horizontal surface
