          Description :

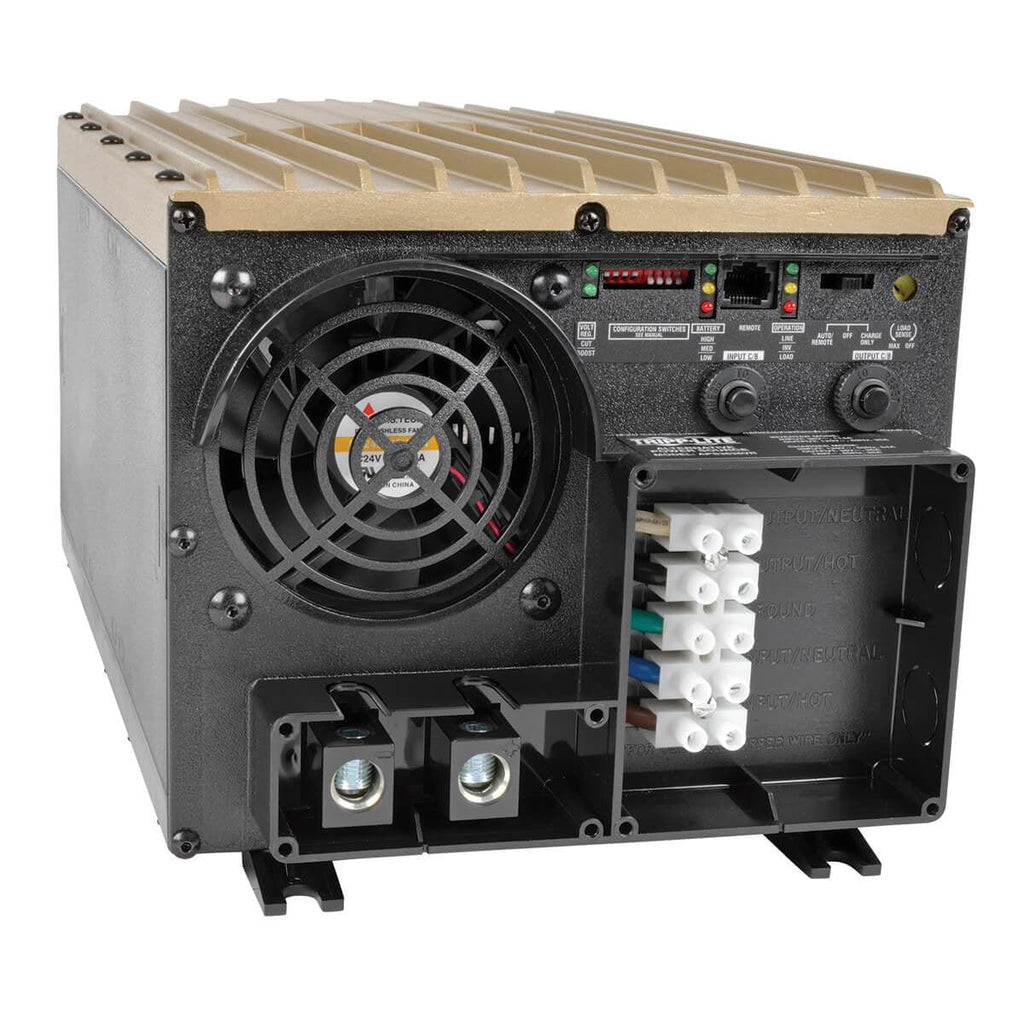

          3600W APS INT Series 36VDC 230V Inverter/Charger with Auto-Transfer Switching, Line-Interactive AVR

          Tripp Lite APSINT3636VR 3600W APS INT Series 36VDC 230V Inverter/Charger with Auto-Transfer Switching, Line-Interactive AVR. Purpose: Universal, Power supply type: Indoor, Input voltage: 230 V. Product colour: Black, Housing material: Polycarbonate (PC). Width: 215.9 mm, Depth: 355.6 mm, Height: 177.8 mm. Package width: 368.3 mm, Package depth: 530.9 mm, Package height: 340.4 mm. Master (outer) case width: 368.3 mm, Master (outer) case length: 530.9 mm, Master (outer) case height: 340.4 mm

          The APSINT3636VR 3600W APS INT Series 36V DC 230V AC Inverter/Charger is a reliable power source for a wide variety of equipment ranging from power tools, pumps and portable lighting to laptop computers and sensitive monitoring equipment. With no fumes, fuel or excess noise, it’s an excellent alternative to generator power.

          The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 3600W of continuous power, 5400W up to one hour or 7200W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.

          Designed for easy installation in RVs, commercial and fleet vehicles, emergency vehicles and construction equipment, the APSINT3636VR converts stored power from any 36V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime. When hardwired to an external 230V AC source, the unit keeps the user-supplied battery charged via a three-stage 7.5/30A selectable charging system while simultaneously delivering AC power to connected equipment.

          When used as a UPS, the APSINT3636VR’s automatic voltage regulation feature protects your equipment against blackouts, brownouts, surges and line noise. Tripp Lite’s APSRM4 module with “traffic light” LEDs is included to provide complete remote monitoring and control of the unit.

          Reliable Power for Mobile, Emergency and Remote Sites
          Generates safe, stable, computer-grade 230V AC power from 36V battery bank
          Ideal for powering tools, saws, motors, pumps, portable lighting, appliances and computer equipment in heavy-load conditions
          Designed for easy installation in RVs, commercial and fleet vehicles, emergency vehicles and construction equipment
          Functions as a vehicle inverter, standalone AC power source or extended-run UPS
          Unlimited runtime with variety of user-supplied batteries

          Meets Normal and Peak Power Demands
          3600W of continuous power
          5400W of reserve power up to 1 hr.
          7200W of peak power up to 10 sec. to accommodate surge power demands during equipment startup and cycling
          Automatic overload detector, built-in cooling fan and resettable AC circuit breakers protect unit from damage
          High-current DC input terminals for simple hardwired installation

          Automatic Voltage Regulation
          Corrects brownouts and overvoltages without using battery power during battery charging and UPS standby modes
          Protects against line noise that can damage equipment or cause data loss

          Automatic Transfer Switching
          Transfer relay switches to inverter power during blackout in 20 ms
          3-position switch enables Auto, Charge Only or System Off mode
          DIP switches configure high and low voltage auto-transfer

          3-Stage 7.5/30A Selectable Battery Charger
          Serves as battery charger when external 230V AC power is supplied and powering connected equipment
          Protects battery from overcharging and overdischarging
          Low-battery protection prevents excessive battery depletion
          DIP switches configure wet/gel charging profiles

          Remote Control Capability
          Included Tripp Lite APSRM4 remote control module provides remote monitoring and control of unit

          Front-Panel LEDs
          Indicate AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status

          Rugged Polycarbonate Housing
          Resists moisture, vibration and impact
          Mounts on any rigid horizontal surface

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line PowerVerter
          Product Series APS
          Product Model APSINT3636VR
          Product Name APS PowerVerter INT APSINT3636VR Power Inverter With Charger
          Product Type Power Inverter
          UPC 037332095985
          Height7.3"
          Width8.5"
          Depth16.3"
          Weight (Approximate)61 lb

          Miscellaneous

          Package Contents
          • APS PowerVerter INT APSINT3636VR Power Inverter With Charger
          • Instruction manual with Warranty Information
          • Wired Remote Switch with full LED status indicators (model APSRM4)

          Warranty

          Limited Warranty1 Year
