Tripp Lite by Eaton

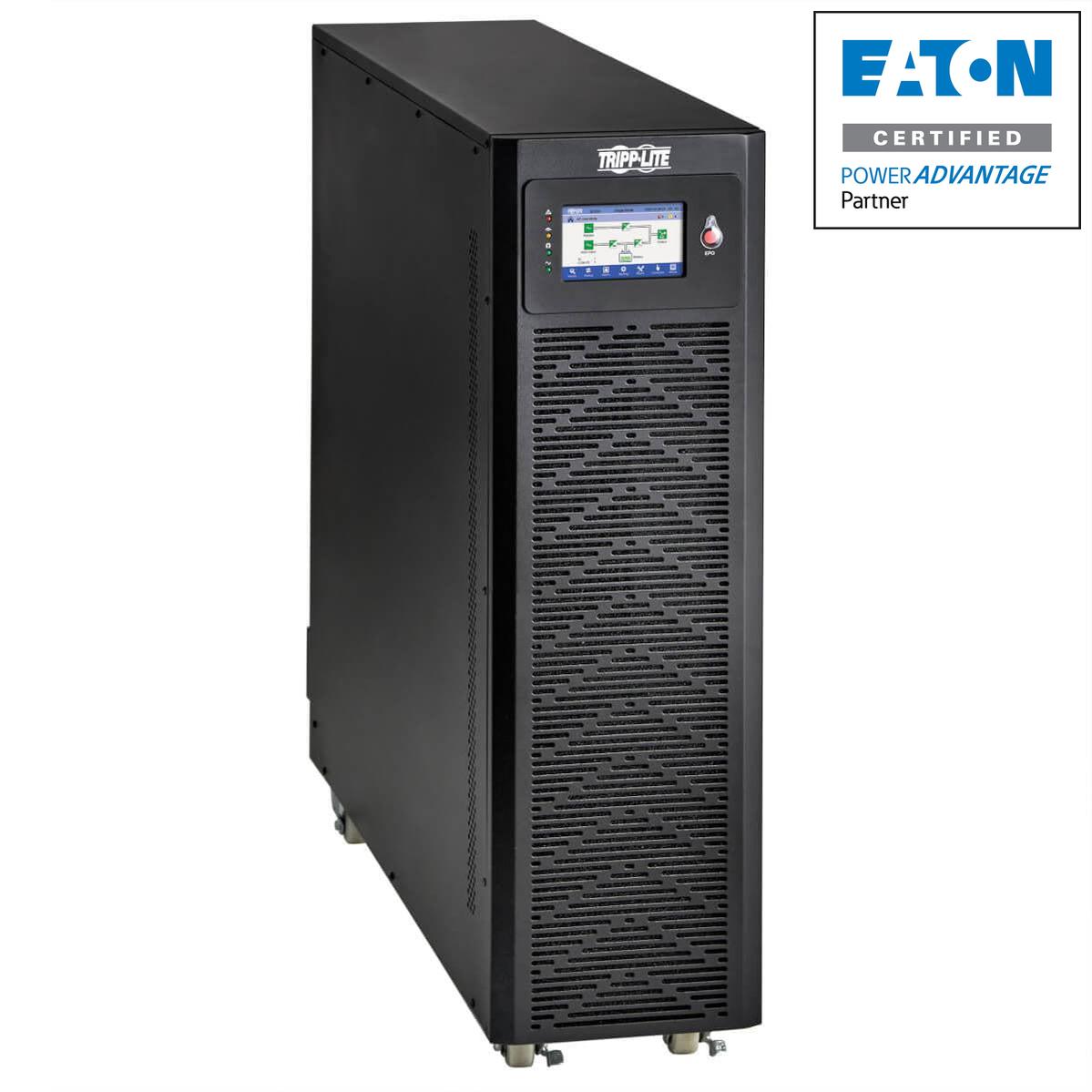

Tripp Lite 3-Phase 208/220/120/127V 15Kva/Kw Double-Conversion Ups - Unity Pf, No Internal Battery Modules

Tripp Lite 3-Phase 208/220/120/127V 15Kva/Kw Double-Conversion Ups - Unity Pf, No Internal Battery Modules

SKU:S3M15K-NIB

Regular price $4,767.47
Regular price Sale price $4,767.47
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          3-Phase 208/220/120/127V 15kVA/kW Double-Conversion UPS - Unity PF, No Internal Battery Modules

          Tripp Lite 3-Phase 208/220/120/127V 15kVA/kW Double-Conversion UPS - Unity PF, No Internal Battery Modules. UPS topology: Double-conversion (Online), Output power capacity: 15 kVA, Output power: 15000 W. AC outlet types: Hardwire, Power plug: Hardwire, USB port type: USB Type-B. Form factor: Tower, Product colour: Black, Housing material: Steel. Width: 249.9 mm, Depth: 899.9 mm, Height: 867.9 mm. Cables included: RS-232, USB cable, Package width: 365 mm, Package depth: 1014 mm

          Battery Backup and VFI Operation Protect Critical Loads
          The SmartOnline® S3M15K-NIB IGBT UPS supports the continuous availability of your most important operational and IT equipment loads through all power conditions, providing a compact backup power platform that’s easy to manage and inexpensive to operate. Sophisticated voltage- and frequency-independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 15kVA/kW of clean, continuous power, this 3-phase UPS system is ideally suited for critical applications in banking, education, healthcare, government and manufacturing sectors.

          Best-in-Class Footprint for Easy Integration into Your Network Application
          The UPS market’s smallest footprint for 3-phase 208V systems lets you install the S3M15K-NIB in spaces that would otherwise have required expensive retrofitting. By achieving its compact size without compromising runtime, reliability or functionality, the S3M15K-NIB is recommended for data centers, colocation facilities and edge computing environments that require high efficiency, high performance and clean, reliable power protection, while preserving as much space as possible for revenue-generating server racks.

          Efficient Operation and Design Reduces Cost of Ownership
          ENERGY STAR 2.0-certified technology provides high operational efficiency to save on utility and cooling costs, as well as protect the environment. This UPS achieves 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. Unity output power factor (1.0) lets you support more equipment. A low THDi (<1%) improves generator compatibility. A low THDv (≤1%) and active power factor correction with DSP control improve output performance. The hardware and firmware platform design reduces the number of unique boards, improving mean time to repair (MTTR) and resulting in reduced downtime. Automatic and maintenance bypass transfer UPS load to utility power during faults, overloads and maintenance, which also avoids costly system downtime.

          External Batteries Supply Reliable Backup with Expandable Runtime Options
          The S3M15K-NIB uses external battery cabinets, including BP240V09K, BP240V40/40L, BP240V65/65L and BP240V100/100L (sold separately), to provide backup support in case of a power failure. No internal batteries are included. A one-touch cold-start button powers up the UPS with battery power only.

          Intuitive LCD Interface Delivers Important Performance Information at a Glance

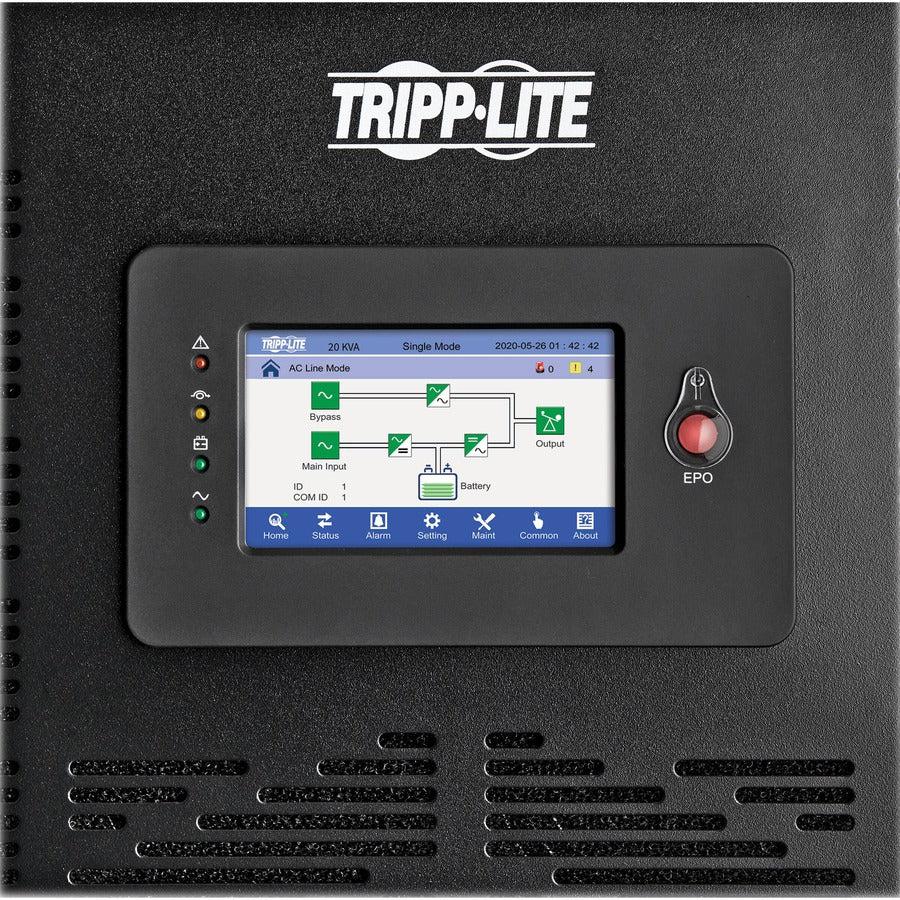

          The large five-inch touchscreen LCD panel displays critical operating conditions and diagnostic data, including battery and load status. Four LEDs provide information about AC, bypass, battery and fault status.

          Remote Network Monitoring and Control Available 24 Hours a Day
          The optional Java-free WEBCARDLXMINI network management card (sold separately) enables remote management through embedded HTML5 web, SSH/telnet and SNMP interfaces, as well as integration with a wide range of network management systems and DCIM platforms. WEBCARDLXMINI also supports EnviroSense2 (sold separately), which monitors temperature, humidity and other environmental factors. Three MODBUS ports (RS-485, USB, RS-232) may also be used to monitor and manage the UPS. A Remote Emergency Power Off (REPO) port allows shutdown from a safe distance during emergencies.

          Parallel Capability Provides Additional Capacity
          Connect up to four S3M15K-NIB units in parallel using separate/shared battery cabinets for 60kVA maximum capacity or N+N fault tolerance redundancy.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number S3M15K-NIB
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartOnline
          Product Model S3M15K-NIB
          Product Name SmartOnline S3M15K-NIB 15kVA Tower UPS
          Product Type Double Conversion Online UPS
          UPC 037332257642
          Height34.2"
          Width9.8"
          Depth35.4"
          Weight (Approximate)180.93 lb

          Miscellaneous

          Package Contents
          • SmartOnline S3M15K-NIB 15kVA Tower UPS
          • Parallel UPS cable
          • USB cable
          • RS-232 cable
          • Owner's manual
          Energy StarYes
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year
