Tripp Lite by Eaton

Tripp Lite 3.8Kw Single-Phase Dual Circuit Pdu, 120V 40A Outlets (40 5-15/20R) L5-20P & 5-20P, 2 10Ft Cords, 0U Vertical

Tripp Lite 3.8Kw Single-Phase Dual Circuit Pdu, 120V 40A Outlets (40 5-15/20R) L5-20P & 5-20P, 2 10Ft Cords, 0U Vertical

SKU:PDU40TDUAL

Regular price $263.27
Regular price Sale price $263.27
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          3.8kW Single-Phase Dual Circuit PDU, 120V 40A Outlets (40 5-15/20R) L5-20P & 5-20P, 2 10ft Cords, 0U Vertical

          Tripp Lite 3.8kW Single-Phase Dual Circuit PDU, 120V 40A Outlets (40 5-15/20R) L5-20P & 5-20P, 2 10ft Cords, 0U Vertical. PDU types: Basic, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 40 AC outlet(s), AC outlet types: NEMA 5–15,NEMA 5–20R, Input connection type: NEMA 5-20P, NEMA L5-20P. Cable length: 3.05 m, Certification: UL60950-1 (USA), CSA (Canada). Nominal input voltage: 100-127 V, Maximum current: 40 A, AC input frequency: 50 - 60 Hz. Width: 38.1 mm, Depth: 84.8 mm, Dimensions (WxDxH): 38 x 76 x 1778 mm

          Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. Dual independent power circuits offer all the benefits of two PDUs in a single housing, ideal for network equipment fitted with dual redundant input cables.
          - 40A total single phase 120V Basic Power Distribution Unit / PDU with dual independent 120V 20A circuits (Agency de-rated to 16A per circuit)

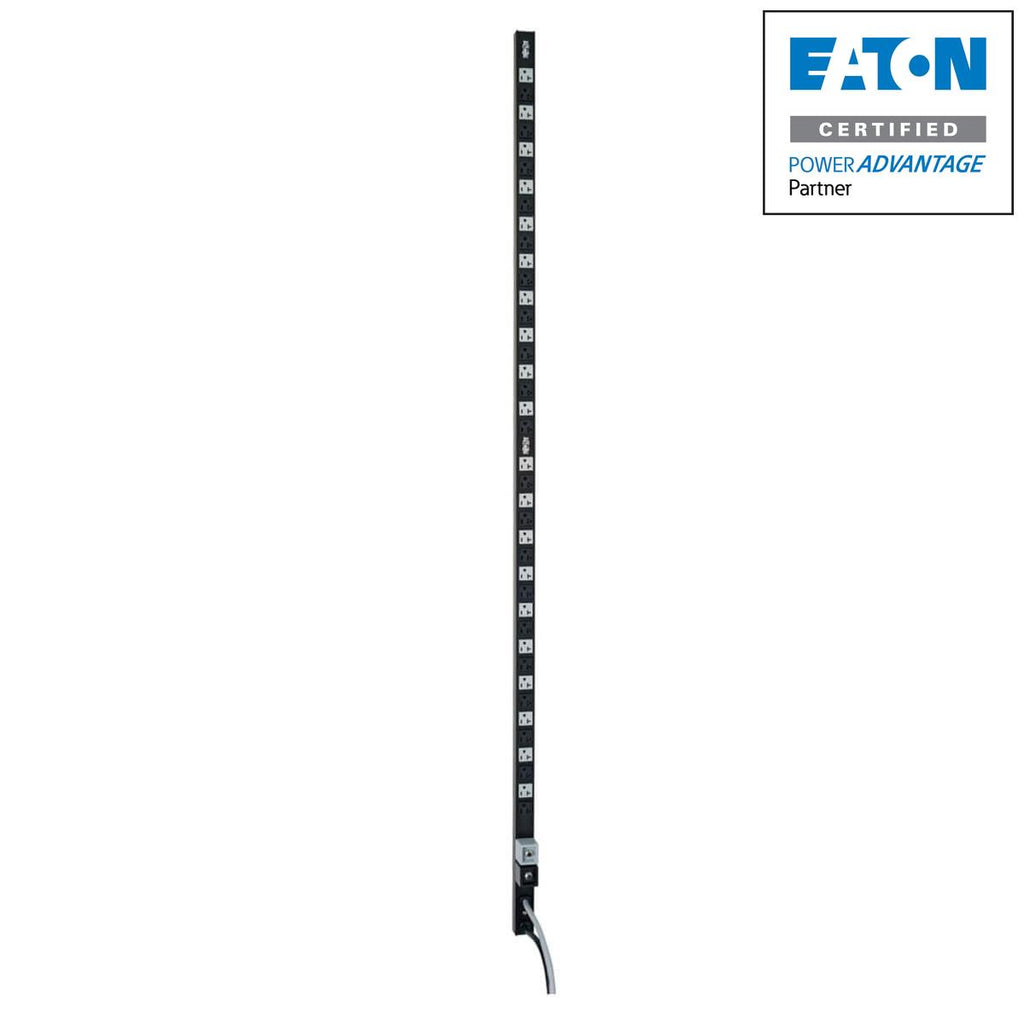

          - Functions as two PDUs built into a single 70 in. / 1778mm 0U vertical rackmount housing
          - Color coded circuit identification with separate black and gray colored outlets, circuit breakers and line cords
          - 40 NEMA 5-15/20R outlets (20 black / 20 gray)

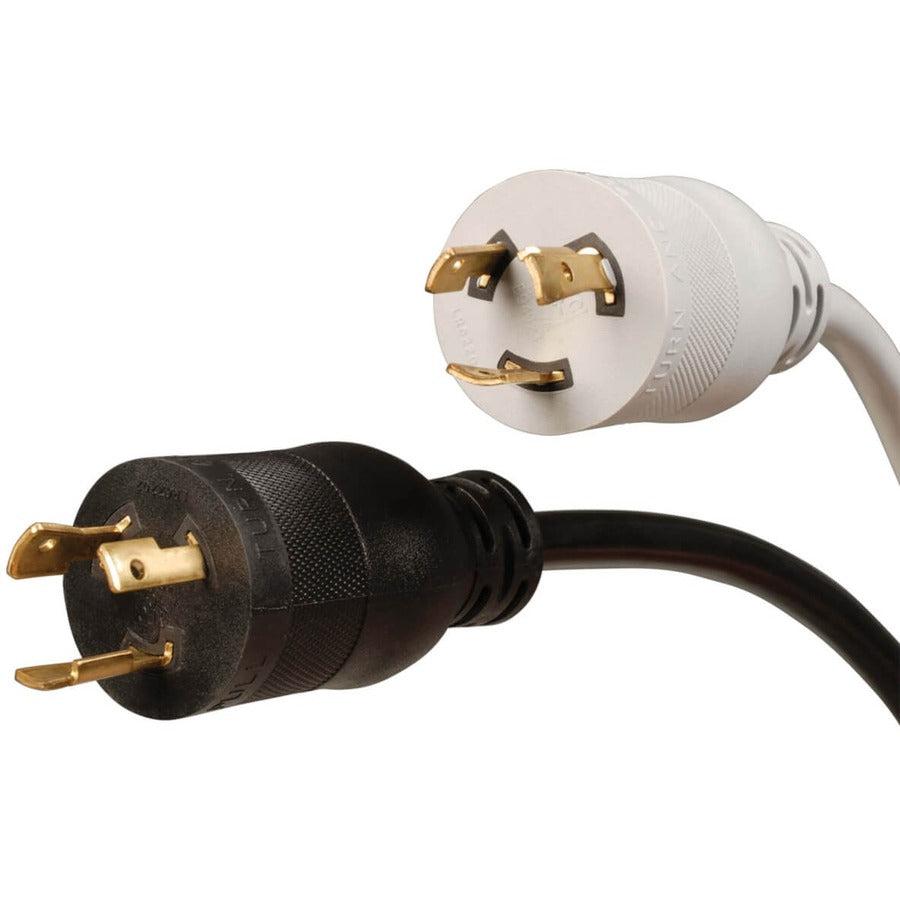

          - Two 10 ft. / 3m NEMA L5-20P / 5-20P compatible inputs (1 black / 1 gray)
          - Two 20A circuit breakers (1 black / 1 gray)

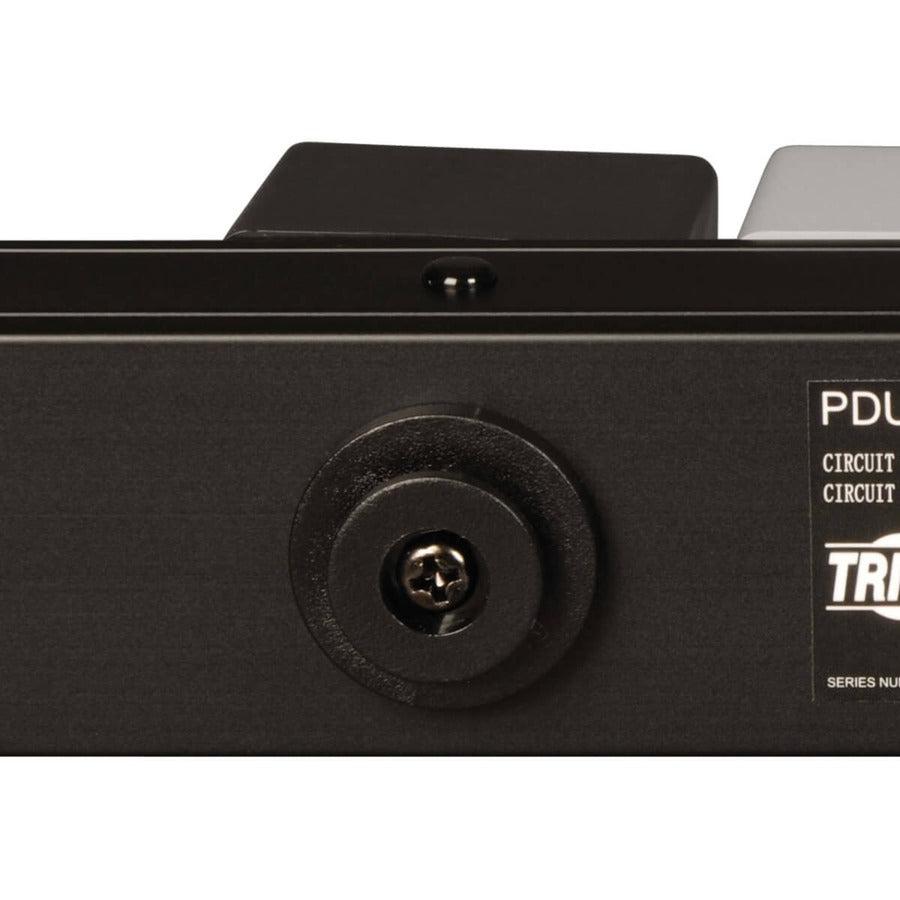

          - Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number PDU40TDUAL
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model PDU40TDUAL
          Product Name PDU40TDUAL PDU Basic DUAL 20A 40 Outlet
          Product Type PDU
          UPC 037332128409
          Height3"
          Width65"
          Depth1.5"
          Weight (Approximate)8 lb

          Miscellaneous

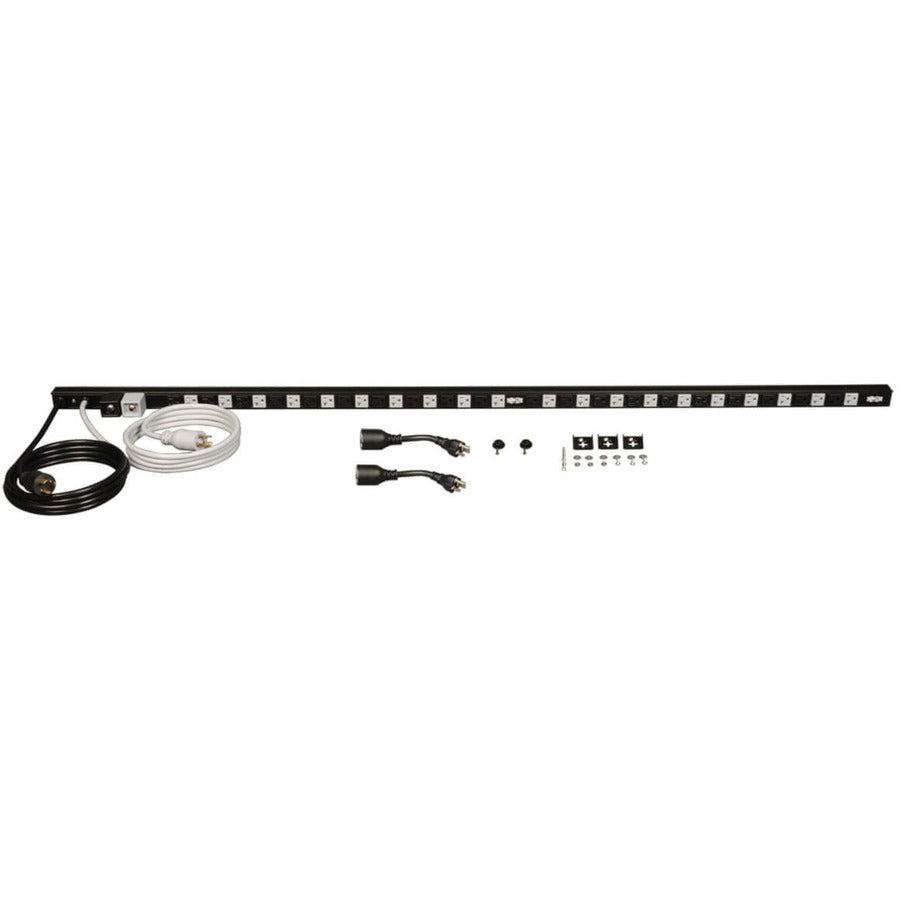

          Package Contents
          • PDU40TDUAL PDU Basic DUAL 20A 40 Outlet
          • Mounting Hardware

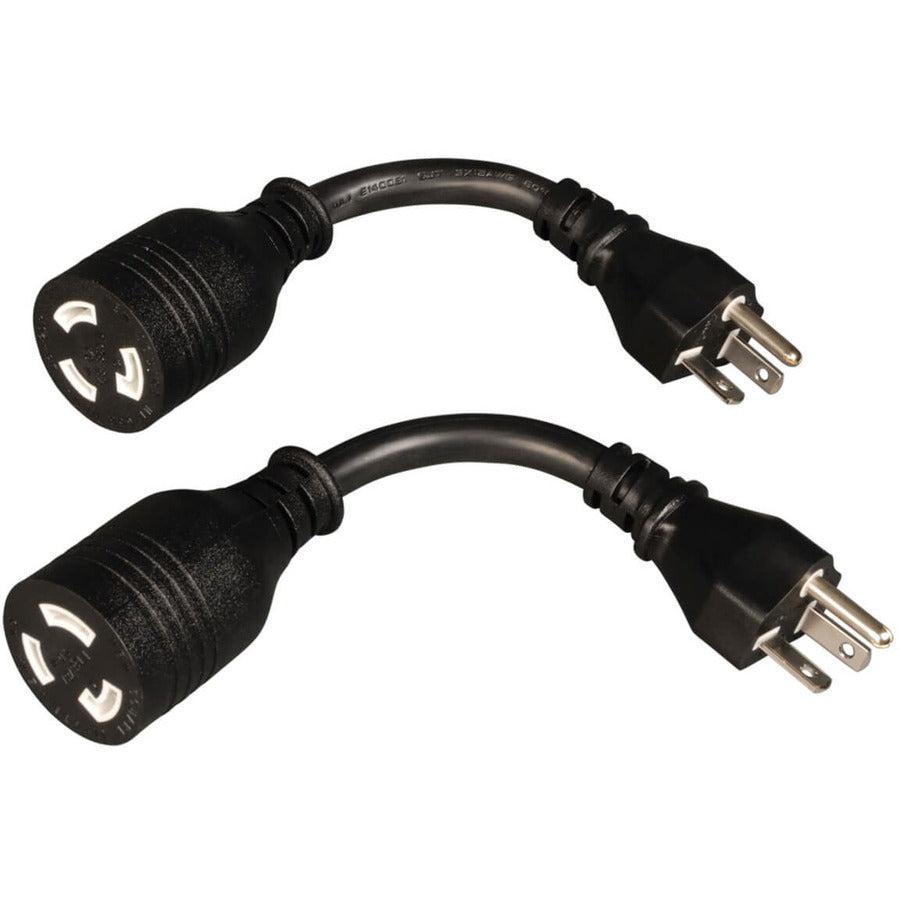

          • 2 x NEMA L5-20R to NEMA 5-20P Plug Set Adapters
          • Manual with Warranty Information
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year Lifetime
