Tripp Lite by Eaton

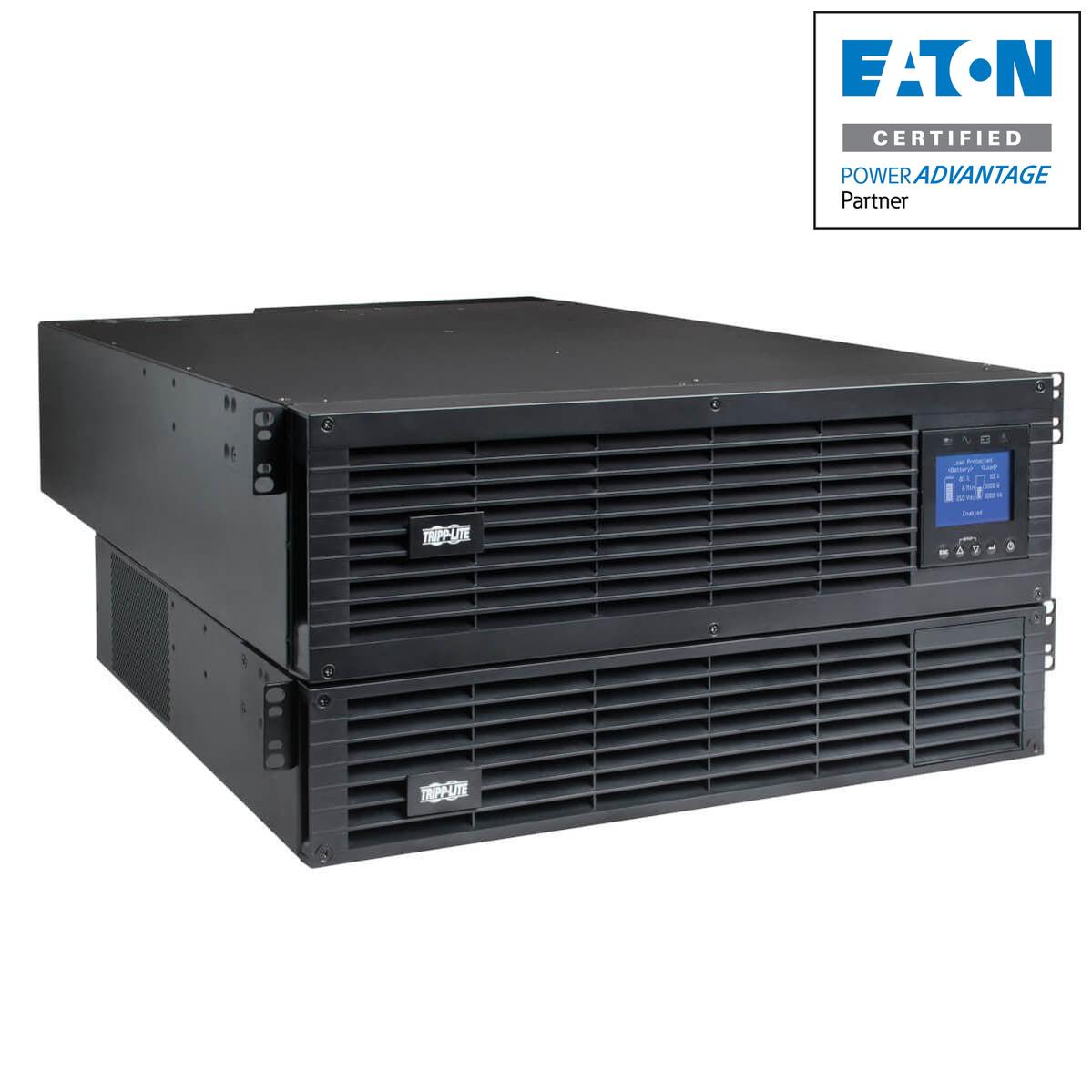

Tripp Lite 208V 5000Va 5000W On-Line Ups, Unity Power Factor With 120V Transformer, Hardwire/L6-30P Input, 5U

Tripp Lite 208V 5000Va 5000W On-Line Ups, Unity Power Factor With 120V Transformer, Hardwire/L6-30P Input, 5U

SKU:SU5KRT3UTF

Regular price $4,351.63
Regular price Sale price $4,351.63
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          208V 5000VA 5000W On-Line UPS, Unity Power Factor with 120V Transformer, Hardwire/L6-30P Input, 5U

          Tripp Lite 208V 5000VA 5000W On-Line UPS, Unity Power Factor with 120V Transformer, Hardwire/L6-30P Input, 5U. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 5000 W. AC outlet types: C13 coupler, C19 coupler, Hardwire, Power plug: Hardwire, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 5 min, Typical backup time at half load: 14 min. Rack capacity: 5U. Width: 444.5 mm, Depth: 773.9 mm, Height: 219.5 mm

          Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data Loss
          Tripp Lite's SU5KRT3UX Unity Power Factor UPS system protects connected equipment against damage, downtime and data loss due to power outages, voltage fluctuations and transient surges. Unity Power Factor design enables full 5000VA / 5000W output capacity. In double-conversion mode, this UPS system maintains perfect output by continuously converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with ±1% voltage regulation and zero transfer time between online and battery modes. Featuring true on-line, double-conversion operation, Tripp Lite's SmartOnline® SU5KRT3UX provides the highest level of UPS power protection for critical server, network and telecom equipment.

          Reliable, Expandable Battery Backup
          UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The internal battery set provides 14 minutes of support at half load and 5 minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so backup power will be available when needed. Advanced temperature-controlled battery charge management system provides efficient recharge and enhanced battery lifespan. For mission-critical applications demanding continuous uptime, the 5kVA UPS can provide expandable runtime with optional BP192V12RT3US external battery pack (sold separately). Battery-independent restart ensures automatic UPS power-up after lengthy power outages, even with expired batteries.

          Economy Mode Helps the Environment and Your Cash Flow
          Operates with >98% full-load efficiency in optional economy mode significantly reducing BTU heat output and operating energy costs.

          Intuitive Front-Panel Interface offers Convenient Monitoring
          Front-panel LEDs indicate line power, AC output, On-battery mode, and Fault conditions.The LCD readout with scroll controls supports visual monitoring of a variety of control options to support advanced UPS settings and configurations. The panel rotates for comfortable viewing in rack-mount or tower configuration.

          Pre-installed WEBCARDLXMINI Network Interface Offers 24/7 Access
          Pre-installed Java-free HTML5-based WEBCARDLXMINI interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. Advanced Communications Ports USB and DB9 ports with included cabling enable data-saving unattended shutdown of connected systems when used with Tripp Lite’s free downloadable PowerAlert® software. Capabilities include detailed monitoring of load levels, self-test data and utility power conditions.DB9 ports also support basic contact-closure monitoring to report On-battery and Low-battery status for legacy systems.

          Versatile Installation Options
          Hardware is included for mounting the complete 5kVA UPS system with internal batteries in 3U of space in an EIA-standard 19-inch 4-post rack. Use the optional 2POSTRMKITHD for 2-post rack mounting or the optional 2-9USTAND for mounting in an upright tower position.

          2-Year Warranty and Environmentally Responsible Design
          The SU5KRT3UX comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

          Typical Application
          ● Delivering perfectly regulated sine wave output to mission-critical equipment
          ● Protecting connected components from dangerous surges, spikes and line noise
          ● Keeping equipment operational through short power failures
          ● Allowing time to save data and safely shut down components in case of a prolonged blackout

          Introduction Bullets
          ● Unity (1.0) power factor equalizes VA and wattage to safely support more equipment
          ● Zero transfer time between on-line and battery modes for uninterrupted operation
          ● Optional external battery packs provide additional runtime for applications requiring it
          ● Pre-installed WEBCARDLXMINI network interface supports Auto Probe feature
          ● ENERGY STAR-certified to save electricity, lower costs and protect the environment

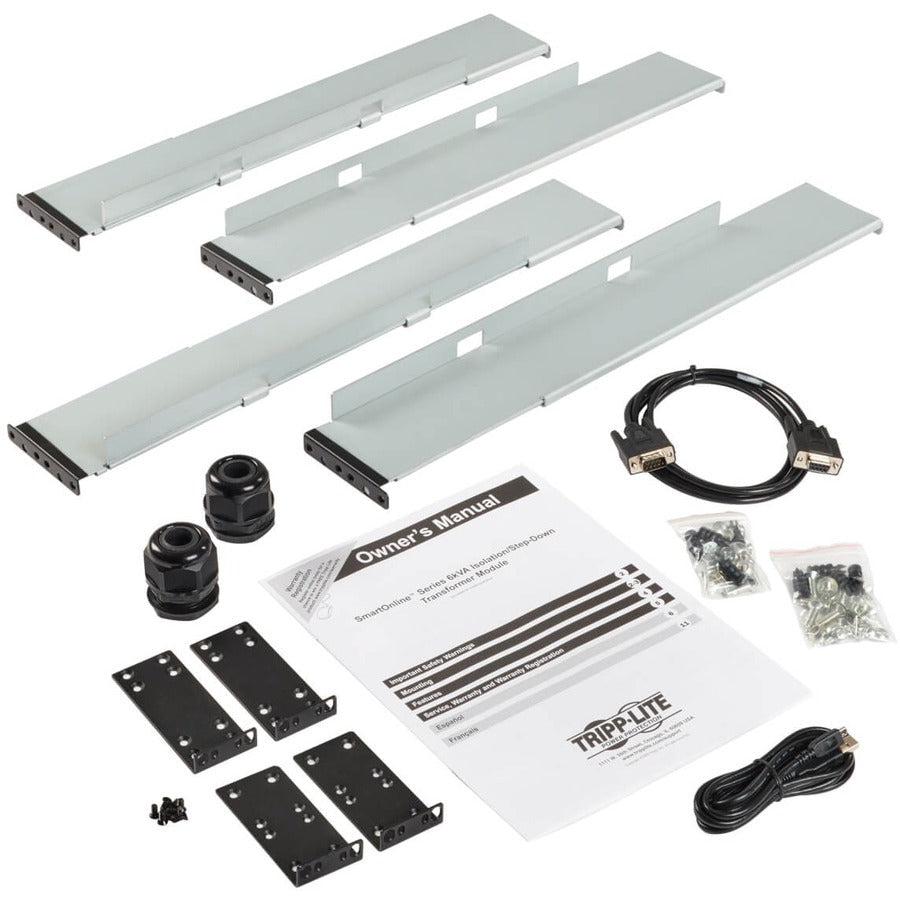

          Package Includes
          ● SU5KRT3UX on-line double-conversion UPS
          ● Pre-installed WEBCARDLXMINI network management card
          ● (2) Hardwire strain reliefs
          ● USB cable
          ● RS-232 cable
          ● Rack-mounting hardware
          ● Owner’s manual

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SU5KRT3UTF
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartOnline
          Product Model SU5KRT3UTF
          Product Name SmartOnline SU5KRT3UTF 5kVA Rack/Tower UPS
          Product Type Double Conversion Online UPS
          UPC 0037332237934

          Battery Information

          Battery ChemistryLead Acid
          Height8.7"
          Width17.5"
          Depth30"
          Weight (Approximate)117.51 lb

          Miscellaneous

          Package Contents
          • SmartOnline SU5KRT3UTF 5kVA Rack/Tower UPS
          • Pre-installed WEBCARDLXMINI Network Management Card
          • 2 x Hardwire Strain Reliefs
          • USB Cable
          • RS-232 Cable
          • Rack-mounting Hardware
          • Owner's Manual
          • L6-30P Power Cable
          • Step-down Transformer
          Energy StarYes
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year
